Circular Plunge & Mitre Cut Saw - PL-75

75mm Depth Capacity

Ø210mm Blade

W881 1 of 8

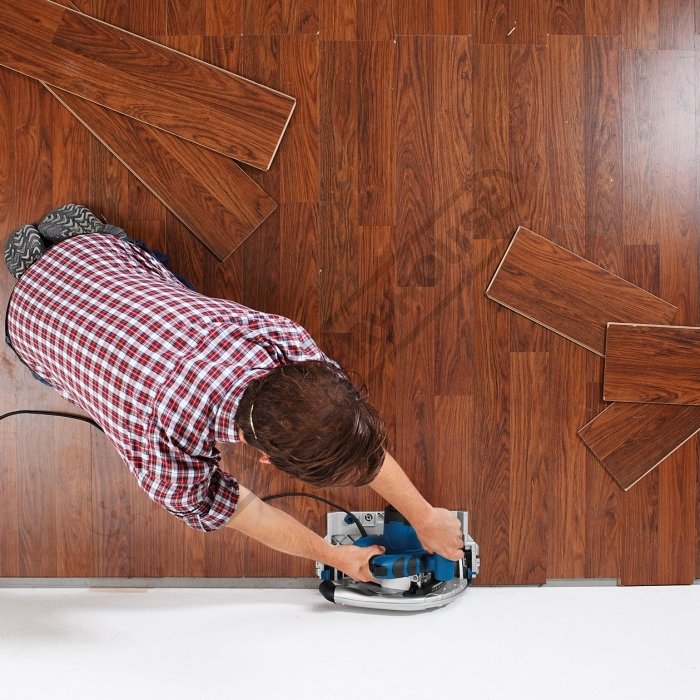

Ideal for edging up to 17mm from the wall 2 of 8

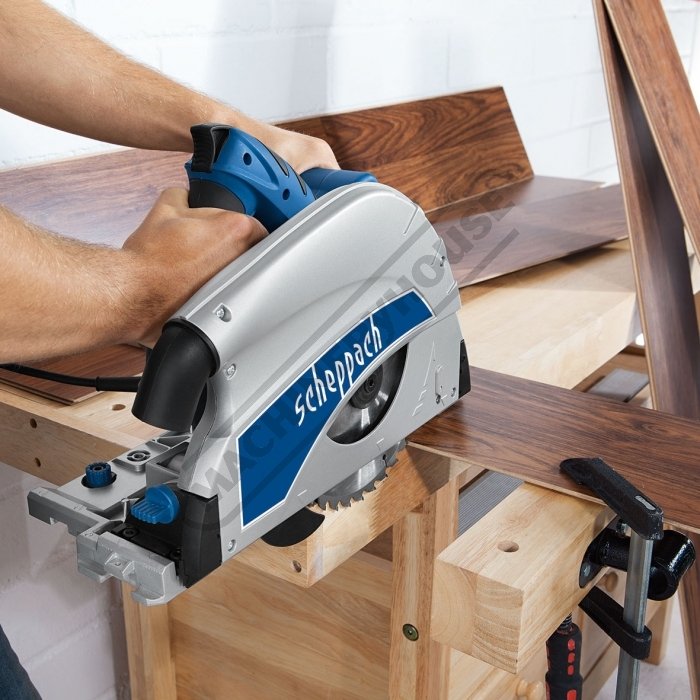

Cuts Solid Natural Timber Chipboards Plywood and MDF 3 of 8

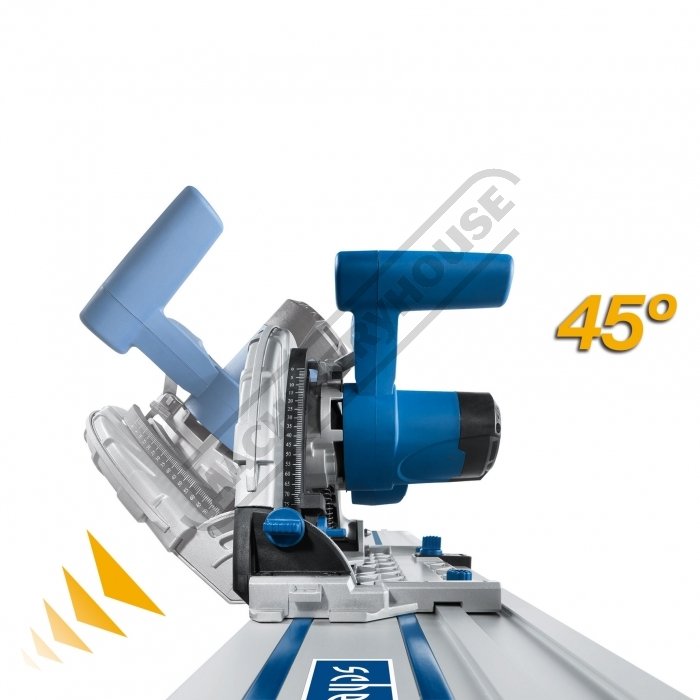

Mitre cuts with stepless angle adjustment 0 to 45 Degree angle adjustment 4 of 8

Perfect For Kitchen Bench Tops - Shown with Optional Guide Rail 5 of 8

75mm Depth of Cut - Shown with Optional Guide Rail 6 of 8

Shown with Optional Guide Rail 7 of 8

Shown Plunge Cutting 8 of 8

Description Specifications Compare Accessories Downloads Spare Parts

Buy Circular Plunge & Mitre Cut Saws & Acc. Online - New Zealand

Description

Circular Plunge & Mitre Cut Saw - PL-75

75mm Depth Capacity

Ø210mm Blade

Overview

The Scheppach circular plunge cut saw PL-75 "Three Saws in One" can be used as a plunge saw, Portable hand saw & a Panel sizing saw, anyone can get great results in the shop or on the job site.

The combination of a Scheppach PL-75 parallel plunge saw with the "optional" guide rail allows the user to maintain a smooth and constant hand position while cutting 90º or 45º cuts.

Features

German design & technology
Powerful 1.6kW / 2.1hp 240V Motor
Parallel plunge allows the user to maintain a smooth and constant hand position while cutting
The enclosed guard gives a 90% dust extraction capability
75mm @ 90º maximum depth of cut allows the trimming and sizing of most common door sizes
Can tilt saw head up to 45º and will cut 55mm maximum depth
Maximum precision, even when cutting free hand
17mm – close to wall cutting is achievable with PL75 saw
Splinter bracket to protect upward side of sawn off work-piece
Anti fall-over saw clamp used with optional guide rail
Includes 36 tooth blade that gives a fine and accurate finish with very little breakout in laminates

Optional Accessories

Replacement Saw Blades:
210 x 30 x 2.4mm 36 Teeth (W882)
210 x 20 x 2.4mm 72 Teeth (W883)

Specifications

Compare Product Range

Specifications

ORDER CODE	W881
MODEL	PL-75
Type	Circular Plunge Saw
(mm x T)Blade Diameter x Teeth	Ø210mm x 36T
(mm)Blade Thickness	2.4
(mm)Blade Bore	30
(rpm)Blade Speed	4500
(mm)Cut Depth @ 90º - Plunge Saw only	75
(mm)Cut Depth @ 45º - Plunge Saw only	55
(deg)Mitre Cutting Angle	0 - 45º
(mm)Closest to Wall Cutting	17
(mm)Dust Collector Connection Size	38
(V)Voltage	240
(kW / hp)Motor Power	1.6 / 2.1
(kg)Nett Weight	7.6
