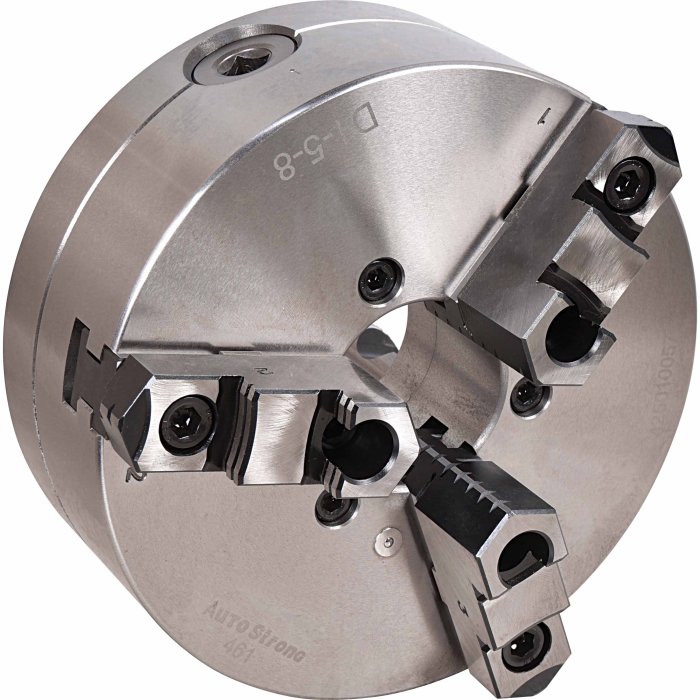

High Precision 3 Jaw Self Centring Lathe Chuck - KD-4-8
Ø200mm
D1-4 Camlock Mount
C7025
1 of 5

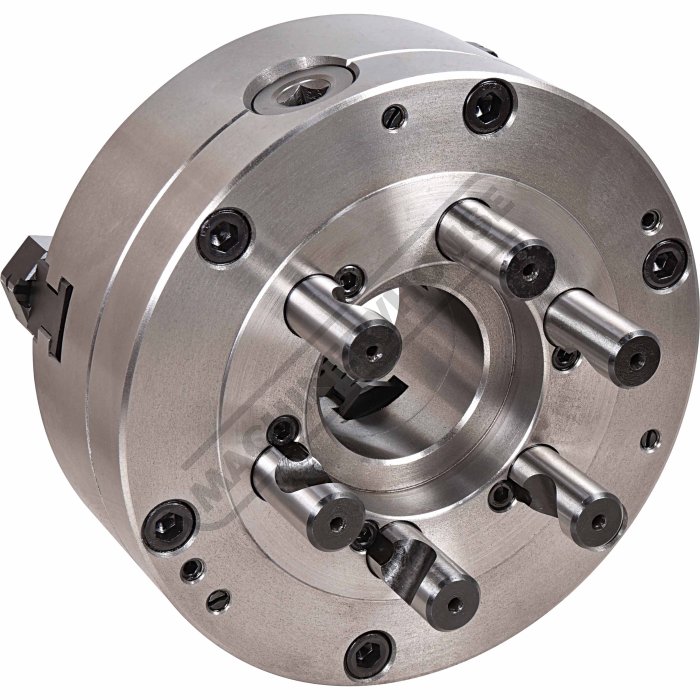

Rear View
2 of 5

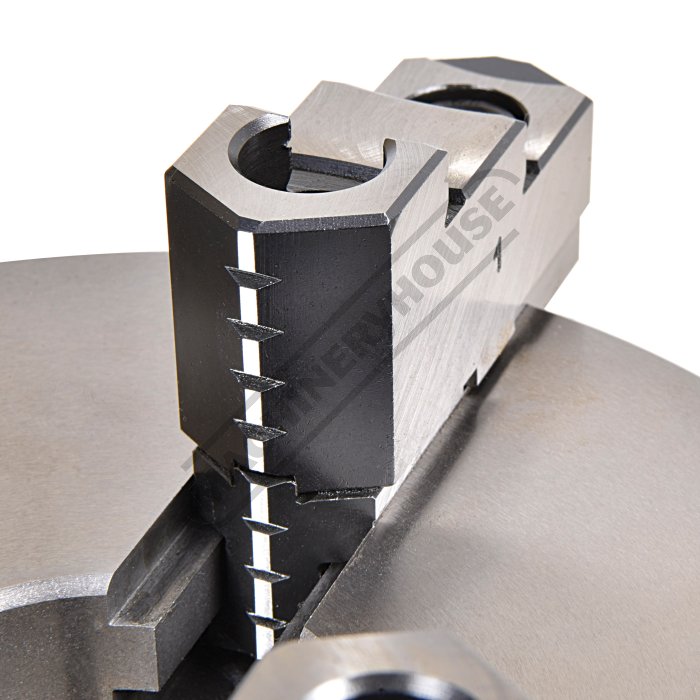

Jaw
3 of 5

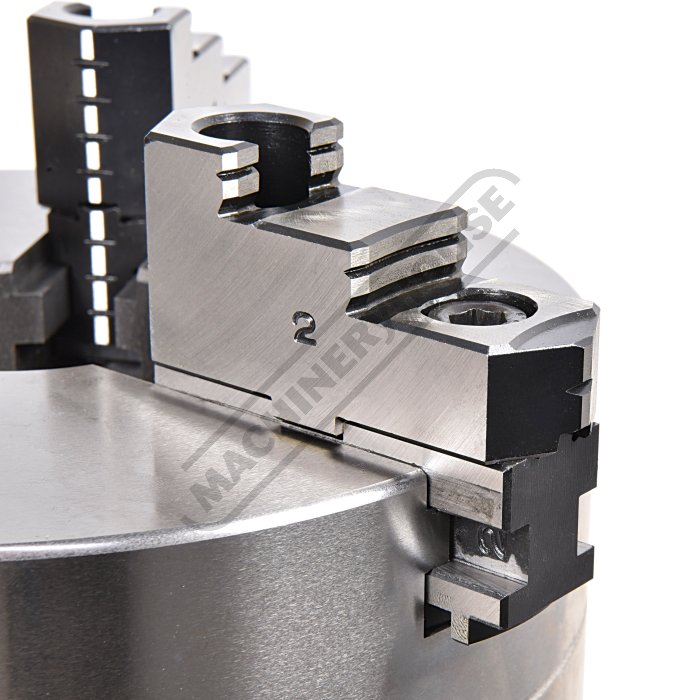

Jaw Rear View
4 of 5

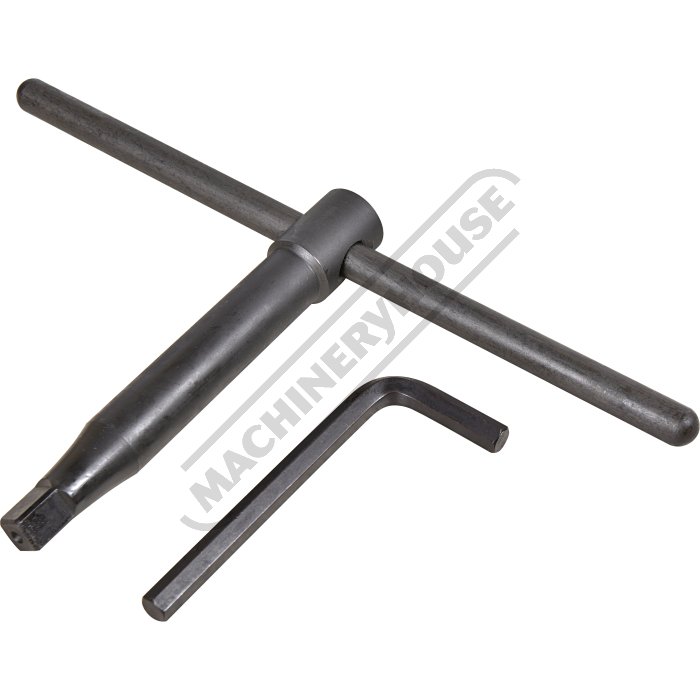

Parts
5 of 5
On Sale - Back In Stock Soon
Order Code: C7025
ex-gst
inc-gst
$
1,330.00
$
1,529.50
$
1,152.17
$
1,325.00
Unspecified
Description
High Precision 3 Jaw Self Centring Lathe Chuck - KD-4-8
Ø200mm
D1-4 Camlock Mount
Overview
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The KD Series, camlock direct mounting chucks are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.
Features
- 3 Jaw self centering lathe chuck
- D1-4 Camlock direct mount
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R
- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 2000rpm)
- Optional bolt on soft jaws are available, Order Code: C7019
Compare Product Range

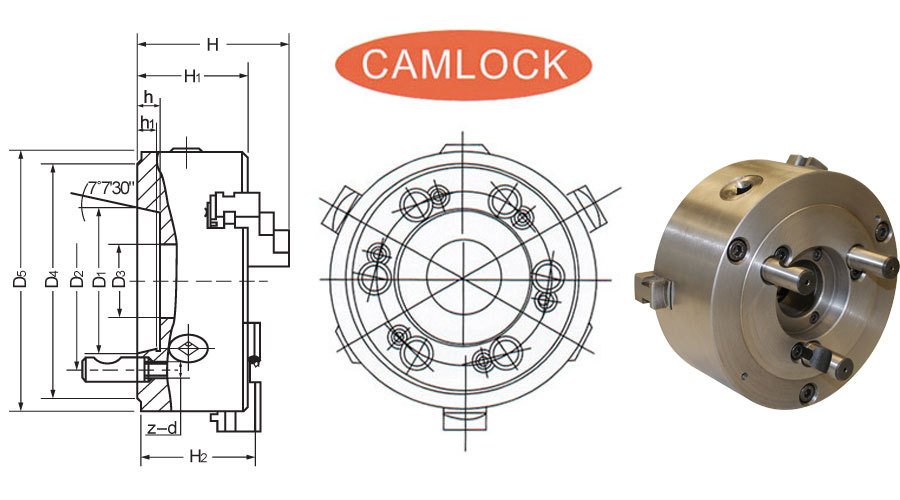

Specifications
| ORDER CODE | C7025 |
|---|---|
| (mm)Chuck Size | Ø200 |
| Camlock | D1-4 |
| (mm)Outside Jaw | 8-180 |
| (mm)Inside Jaw | 62-170 |
| (rpm)Speed | 2000 |
| (mm)D1 | 63.513 |
| (mm)D3 | 53 |
| (mm)H | 119.4 |
| (mm)H1 | 77.2 |
| (mm)h | 13 |
| (kg)Nett Weight | 18.5 |
- Compare:
- Wishlist:
- ORDER CODE
- (mm)Chuck Size
- Camlock
- (mm)Outside Jaw
- (mm)Inside Jaw
- (rpm)Speed
- (mm)D1
- (mm)D2
- (mm)D3
- (mm)H
- (mm)H1
- (mm)h
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- C260
- Ø160
- D1-4
- 3 - 55
- 55 - 145
- 2500
- 130
- 142
- 40
- 95
- 65
- 5
- 9
- $264.35
- $304.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7064
- Ø160
- D1-4
- 3 - 64
- 50 - 160
- 3000
- 63.52
- 82.6
- 42
- 105.5
- 81.5
- 13
- 10
- $606.09
- $697.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C262
- Ø200
- D1-4
- 4 - 85
- 65 - 200
- 2000
- 63.52
- 180
- 50
- 109
- 75
- 5
- 18
- $350.43
- $403.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C2625
- Ø200
- D1-5
- 4 - 85
- 65 - 200
- 2000
- 165
- 104.8
- 50
- 109
- 75
- 5
- 18.5
- $350.43
- $403.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C7025
- Ø200
- D1-4
- 8-180
- 62-170
- 2000
- 63.513
- ~
- 53
- 119.4
- 77.2
- 13
- 18.5
- $1,152.17
- $1,325.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C7026
- Ø200
- D1-5
- 8-180
- 62-170
- 2000
- 82.563
- ~
- 55
- 119.4
- 77.2
- 16
- 18
- $1,152.17
- $1,325.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C7028
- Ø250
- D1-6
- 11-220
- 70-210
- 1800
- 106.375
- ~
- 76
- 136.8
- 86
- 17
- 29.5
- $1,800.00
- $2,070.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C7031
- Ø306
- D1-8
- 15-300
- 90-290
- 1800
- 139.719
- ~
- 103
- 165.3
- 107.5
- 18
- 47
- $2,580.00
- $2,967.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C263
- Ø250
- D1-6
- 6 - 110
- 90 - 250
- 1600
- 106.3
- 133.4
- 80
- 120
- 80
- 5
- 26
- $449.57
- $517.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C264
- Ø250
- D1-8
- 6 - 110
- 90 - 250
- 1600
- 139
- 172
- 80
- 120
- 80
- 5
- 33
- $506.96
- $583.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C269
- Ø315
- D1-8
- 11.5 - 165
- 110 - 320
- 1200
- 260
- 285
- 100
- 136
- 90
- 6
- 60
- $929.57
- $1,069.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C2695
- Ø400
- D1-8
- 11.5 - 210
- 110 - 400
- 1000
- 139.72
- 171.4
- 130
- 191.5
- 118
- 18
- 81
- $1,320.00
- $1,518.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C270
- Ø400
- D1-11
- 11.5 - 210
- 110 - 400
- 1000
- 196.87
- 235
- 135
- 191.5
- 118
- 18
- 90
- $1,320.00
- $1,518.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C2706
- Ø500
- D1-11
- 11.5 - 210
- 150 - 500
- 800
- 196.87
- 235
- 190
- 222
- 135
- 20
- 155
- $2,102.61
- $2,418.00
- ADD TO CART
On Sale
