Drills - Taper Shank Individual D314

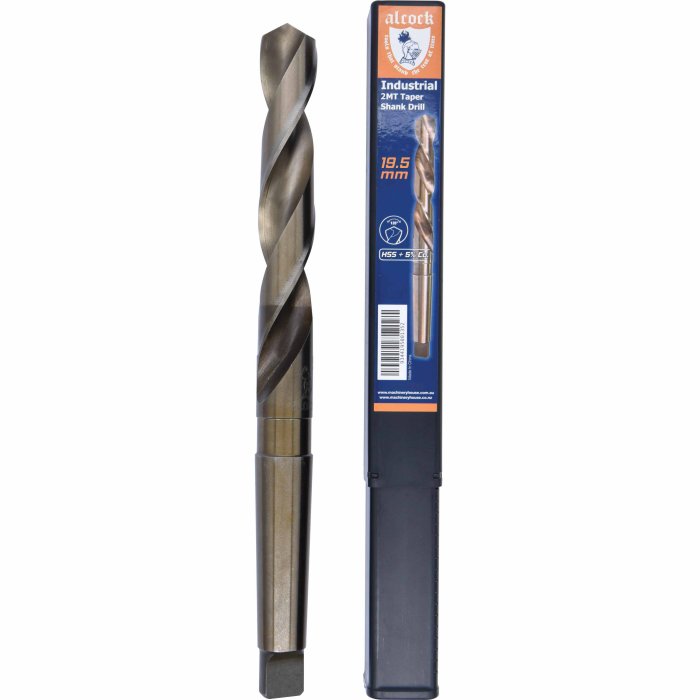

2MT Morse Taper Shank Drill Bit

Ø19.5mm
M35 Grade HSS including 5% Cobalt
D314 1 of 3

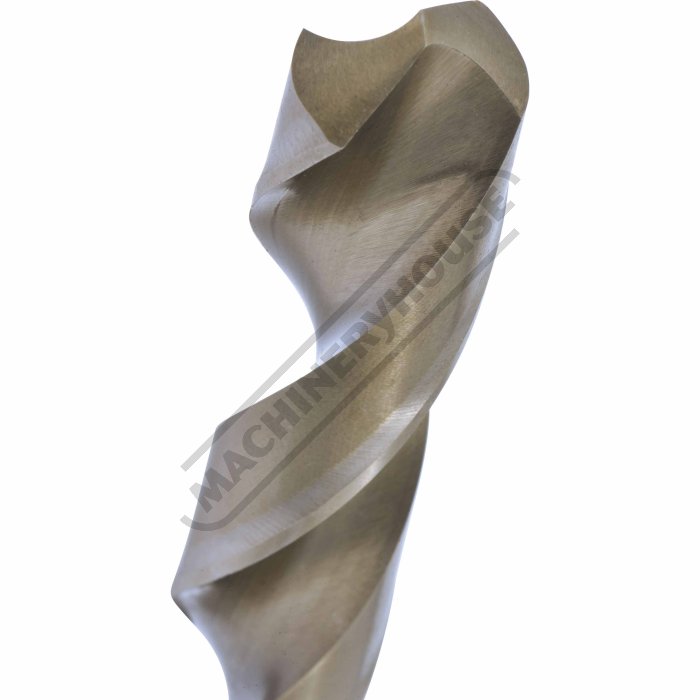

135 Degree Split Point M35 HSS 5% Cobalt 2 of 3

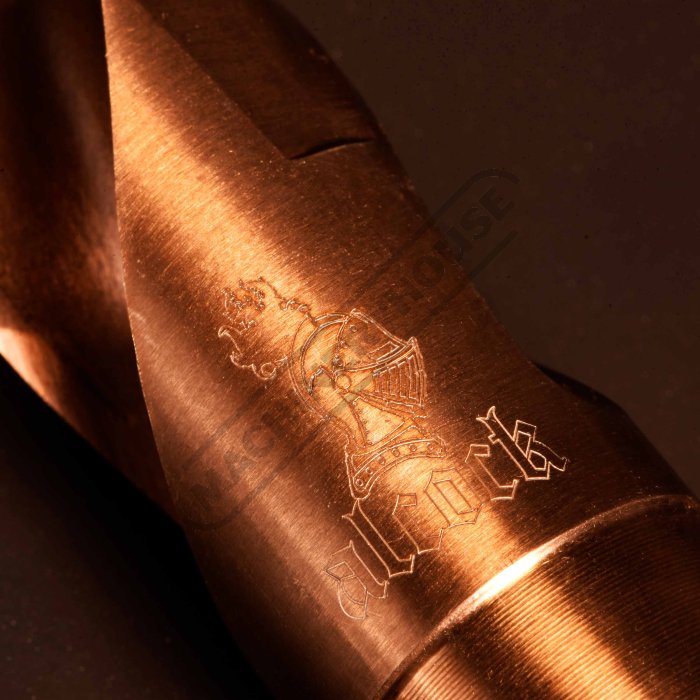

Alcock 3 of 3
ALCOCK
On Sale
Order Code: D314
ex-gst
inc-gst
$ 52.00
$ 59.80
$ 40.87
$ 47.00
1
Add to Cart
Enquire
Price Match
Compare
Wishlist
Print
Description
Description

2MT Morse Taper Shank Drill Bit

Ø19.5mm
M35 Grade HSS including 5% Cobalt
Overview
Alcock drill bits are manufactured from M35 grade HSS including 5% cobalt, this high-grade material offers superior drilling performance and durability. Each drill bit features precision-ground flutes and a 135° cutting point angle, which is ideal for drilling in tougher materials while enhancing longevity and performance. The morse taper shank ensures positive driving for heavy duty drilling & is supplied with a tang for easy ejection making it an ideal choice for any workshop.
Features
  • M35 Grade HSS including 5% Cobalt
  • Precision ground flutes
  • 135º cutting point for drilling steels and tough materials
  • Morse taper shank with tang
  • Manufactured to DIN 345 ​Standard
  • Bronze oxide finish to reduce friction
  • Supplied in a protective tube
Specifications
Downloads
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE

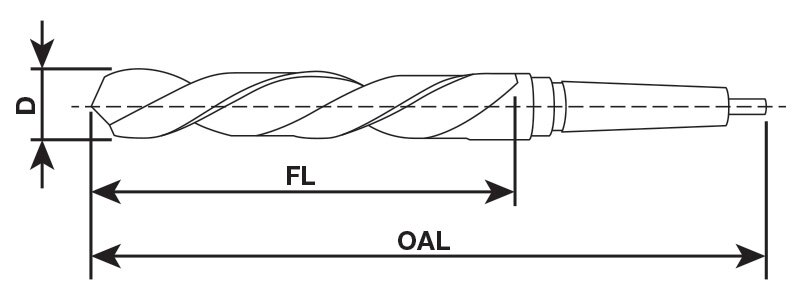

  • (MT)Taper
  • (mm)D - Drill Diameter (Ø)
  • (mm)OAL - Overall Length
  • (mm)FL - Flute Length
  • (DIN)Standard
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale D300
  • Compare
  • Wishlist
  • D300
  • 1
  • 12.5
  • 182
  • 101
  • DIN 345
  • 0.12
  • $20.00
  • $23.00
  • ADD TO CART
  • On Sale D302
  • Compare
  • Wishlist
  • D302
  • 1
  • 13.5
  • 189
  • 108
  • DIN 345
  • 0.12
  • $21.74
  • $25.00
  • ADD TO CART
  • On Sale D304
  • Compare
  • Wishlist
  • D304
  • 2
  • 14.5
  • 212
  • 114
  • DIN 345
  • 0.24
  • $23.48
  • $27.00
  • ADD TO CART
  • On Sale D306
  • Compare
  • Wishlist
  • D306
  • 2
  • 15.5
  • 218
  • 120
  • DIN 345
  • 0.26
  • $23.48
  • $27.00
  • ADD TO CART
  • On Sale D308
  • Compare
  • Wishlist
  • D308
  • 2
  • 16.5
  • 223
  • 125
  • DIN 345
  • 0.28
  • $28.70
  • $33.00
  • ADD TO CART
  • On Sale D310
  • Compare
  • Wishlist
  • D310
  • 2
  • 17.5
  • 228
  • 130
  • DIN 345
  • 0.34
  • $33.04
  • $38.00
  • ADD TO CART
  • On Sale D312
  • Compare
  • Wishlist
  • D312
  • 2
  • 18.5
  • 233
  • 135
  • DIN 345
  • 0.34
  • $36.52
  • $42.00
  • ADD TO CART
  • On Sale D314
  • Compare
  • Wishlist
  • D314
  • 2
  • 19.5
  • 238
  • 140
  • DIN 345
  • 0.36
  • $40.87
  • $47.00
  • ADD TO CART
  • On Sale D316
  • Compare
  • Wishlist
  • D316
  • 2
  • 20.5
  • 243
  • 145
  • DIN 345
  • 0.40
  • $46.96
  • $54.00
  • ADD TO CART
  • On Sale D318
  • Compare
  • Wishlist
  • D318
  • 2
  • 21.5
  • 248
  • 150
  • DIN 345
  • 0.46
  • $50.43
  • $58.00
  • ADD TO CART
  • On Sale D320
  • Compare
  • Wishlist
  • D320
  • 2
  • 22.5
  • 253
  • 155
  • DIN 345
  • 0.46
  • $57.39
  • $66.00
  • ADD TO CART
  • On Sale D322
  • Compare
  • Wishlist
  • D322
  • 3
  • 23.5
  • 276
  • 155
  • DIN 345
  • 0.64
  • $66.96
  • $77.00
  • ADD TO CART
  • On Sale D324
  • Compare
  • Wishlist
  • D324
  • 3
  • 24.5
  • 281
  • 160
  • DIN 345
  • 0.68
  • $66.96
  • $77.00
  • ADD TO CART
  • On Sale D326
  • Compare
  • Wishlist
  • D326
  • 3
  • 25.5
  • 286
  • 165
  • DIN 345
  • 0.74
  • $73.04
  • $84.00
  • ADD TO CART
  • On Sale D328
  • Compare
  • Wishlist
  • D328
  • 3
  • 26.5
  • 286
  • 165
  • DIN 345
  • 0.80
  • $84.35
  • $97.00
  • ADD TO CART
  • On Sale D329
  • Compare
  • Wishlist
  • D329
  • 3
  • 27
  • 291
  • 170
  • DIN 345
  • 0.84
  • $90.43
  • $104.00
  • ADD TO CART
  • On Sale D330
  • Compare
  • Wishlist
  • D330
  • 3
  • 27.5
  • 291
  • 170
  • DIN 345
  • 0.84
  • $90.43
  • $104.00
  • ADD TO CART
  • On Sale D331
  • Compare
  • Wishlist
  • D331
  • 3
  • 28
  • 291
  • 170
  • DIN 345
  • 0.98
  • $95.65
  • $110.00
  • ADD TO CART
  • On Sale D332
  • Compare
  • Wishlist
  • D332
  • 3
  • 28.5
  • 296
  • 175
  • DIN 345
  • 0.98
  • $95.65
  • $110.00
  • ADD TO CART
  • On Sale D333
  • Compare
  • Wishlist
  • D333
  • 3
  • 29
  • 296
  • 175
  • DIN 345
  • 0.98
  • $106.09
  • $122.00
  • ADD TO CART
  • On Sale D334
  • Compare
  • Wishlist
  • D334
  • 3
  • 29.5
  • 296
  • 175
  • DIN 345
  • 0.98
  • $108.70
  • $125.00
  • ADD TO CART
  • On Sale D335
  • Compare
  • Wishlist
  • D335
  • 3
  • 30
  • 296
  • 175
  • DIN 345
  • 0.98
  • $109.57
  • $126.00
  • ADD TO CART
  • On Sale D336
  • Compare
  • Wishlist
  • D336
  • 3
  • 30.5
  • 301
  • 180
  • DIN 345
  • 0.98
  • $113.04
  • $130.00
  • ADD TO CART
  • On Sale D337
  • Compare
  • Wishlist
  • D337
  • 3
  • 31
  • 301
  • 180
  • DIN 345
  • 0.98
  • $115.65
  • $133.00
  • ADD TO CART
  • On Sale D338
  • Compare
  • Wishlist
  • D338
  • 3
  • 31.5
  • 301
  • 180
  • DIN 345
  • 1.44
  • $115.65
  • $133.00
  • ADD TO CART
  • On Sale D339
  • Compare
  • Wishlist
  • D339
  • 4
  • 32
  • 334
  • 185
  • DIN 345
  • 1.44
  • $123.48
  • $142.00
  • ADD TO CART
  • On Sale D340
  • Compare
  • Wishlist
  • D340
  • 4
  • 32.5
  • 334
  • 185
  • DIN 345
  • 1.44
  • $134.78
  • $155.00
  • ADD TO CART
  • On Sale D341
  • Compare
  • Wishlist
  • D341
  • 4
  • 33
  • 334
  • 185
  • DIN 345
  • 1.50
  • $134.78
  • $155.00
  • ADD TO CART
  • On Sale D342
  • Compare
  • Wishlist
  • D342
  • 4
  • 33.5
  • 334
  • 185
  • DIN 345
  • 1.50
  • $146.09
  • $168.00
  • ADD TO CART
  • On Sale D343
  • Compare
  • Wishlist
  • D343
  • 4
  • 34
  • 339
  • 190
  • DIN 345
  • 1.58
  • $149.57
  • $172.00
  • ADD TO CART
  • On Sale D344
  • Compare
  • Wishlist
  • D344
  • 4
  • 34.5
  • 339
  • 190
  • DIN 345
  • 1.58
  • $159.13
  • $183.00
  • ADD TO CART
  • On Sale D345
  • Compare
  • Wishlist
  • D345
  • 4
  • 35
  • 339
  • 190
  • DIN 345
  • 1.58
  • $164.35
  • $189.00
  • ADD TO CART
  • On Sale D347
  • Compare
  • Wishlist
  • D347
  • 4
  • 36
  • 344
  • 195
  • DIN 345
  • 1.58
  • $170.43
  • $196.00
  • ADD TO CART
  • On Sale D349
  • Compare
  • Wishlist
  • D349
  • 4
  • 37
  • 344
  • 195
  • DIN 345
  • 1.80
  • $177.39
  • $204.00
  • ADD TO CART
  • On Sale D352
  • Compare
  • Wishlist
  • D352
  • 4
  • 38
  • 349
  • 200
  • DIN 345
  • 1.80
  • $186.09
  • $214.00
  • ADD TO CART
  • On Sale D358
  • Compare
  • Wishlist
  • D358
  • 4
  • 40
  • 349
  • 200
  • DIN 345
  • 1.80
  • $200.87
  • $231.00
  • ADD TO CART
  • On Sale D362
  • Compare
  • Wishlist
  • D362
  • 4
  • 42
  • 354
  • 205
  • DIN 345
  • 2.72
  • $219.13
  • $252.00
  • ADD TO CART
  • On Sale D368
  • Compare
  • Wishlist
  • D368
  • 4
  • 45
  • 359
  • 210
  • DIN 345
  • 2.72
  • $253.91
  • $292.00
  • ADD TO CART
  • On Sale D378
  • Compare
  • Wishlist
  • D378
  • 4
  • 50
  • 369
  • 220
  • DIN 345
  • 2.72
  • $321.74
  • $370.00
  • ADD TO CART
  • On Sale D381
  • Compare
  • Wishlist
  • D381
  • 5
  • 52
  • 412
  • 225
  • DIN 345
  • 4.40
  • $342.61
  • $394.00
  • ADD TO CART
