Lathe & Mill Drill Combination Package Deal - AL-60M (SIEG M6 = C6+M6MA)
250 x 500mm
Includes Fixed & Travelling Steadies
K160
1 of 30

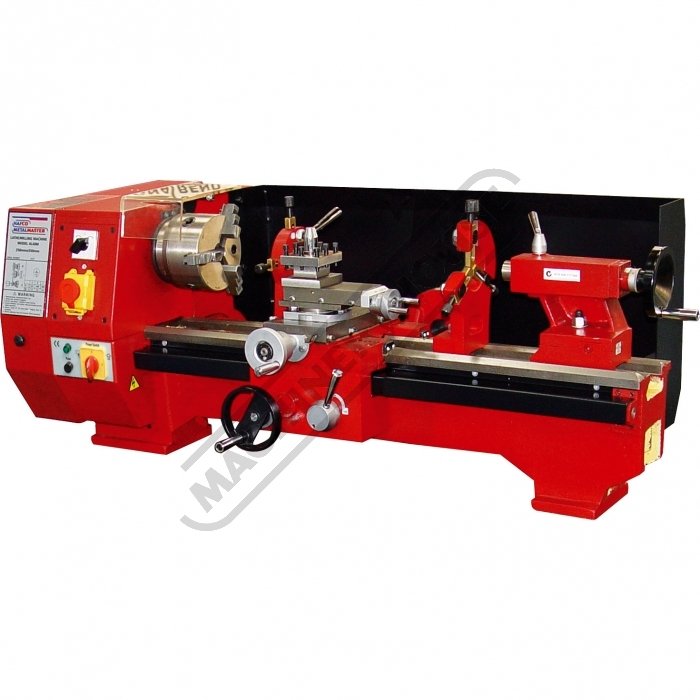

Lathe
2 of 30

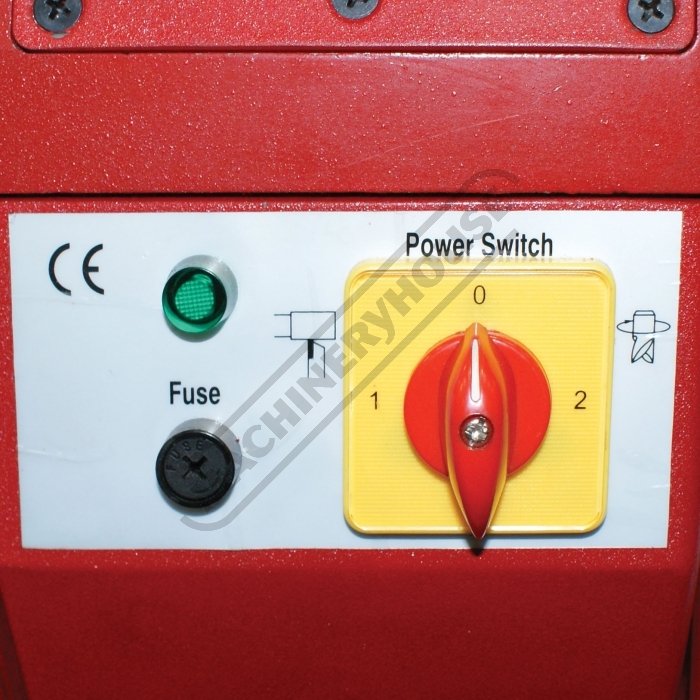

Switch
3 of 30

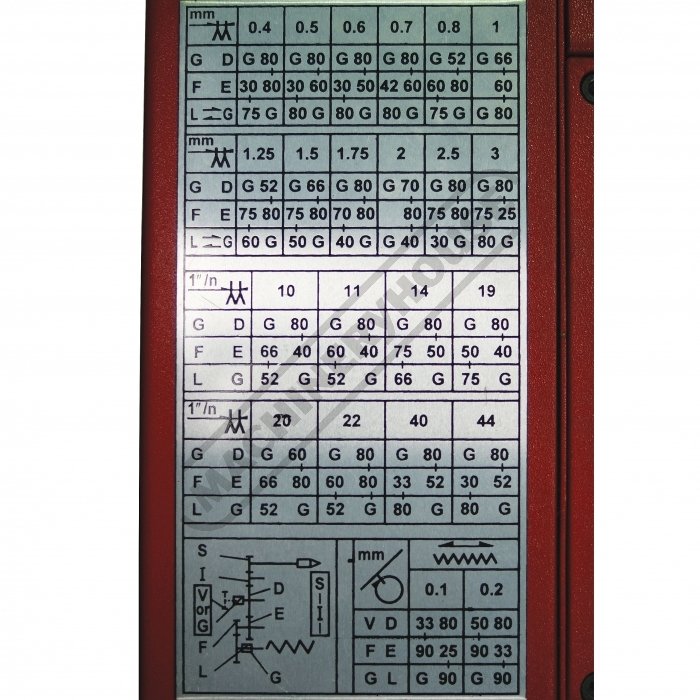

Thread Chart
4 of 30

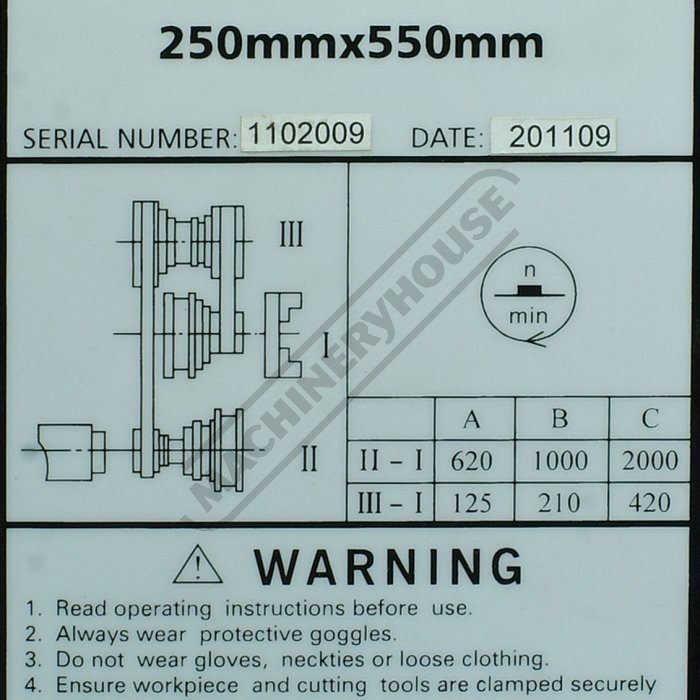

Speed Chart
5 of 30

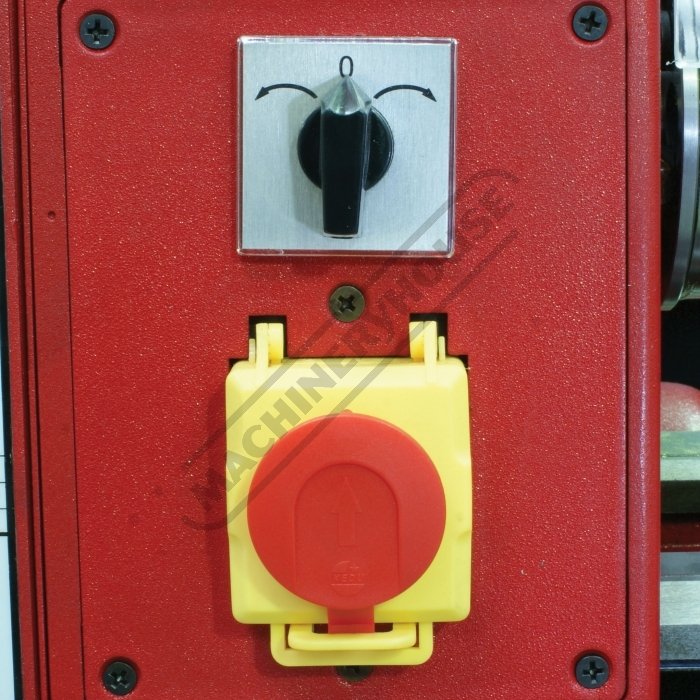

Forward Reverse Switch
6 of 30

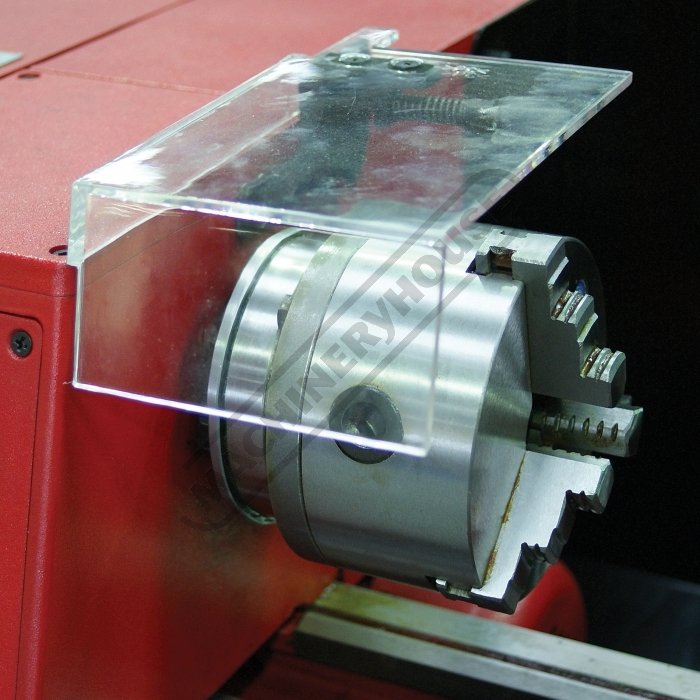

Chuck Guard
7 of 30

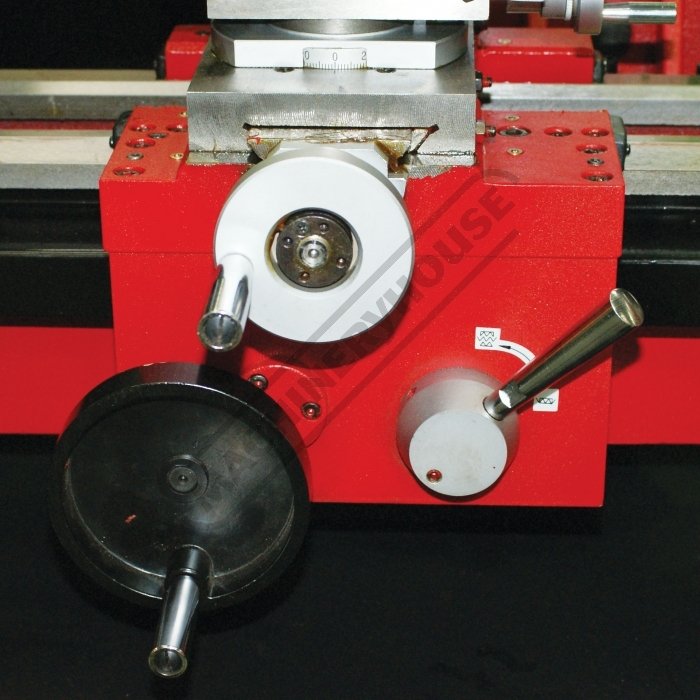

Saddle Controls
8 of 30
Saddle
9 of 30

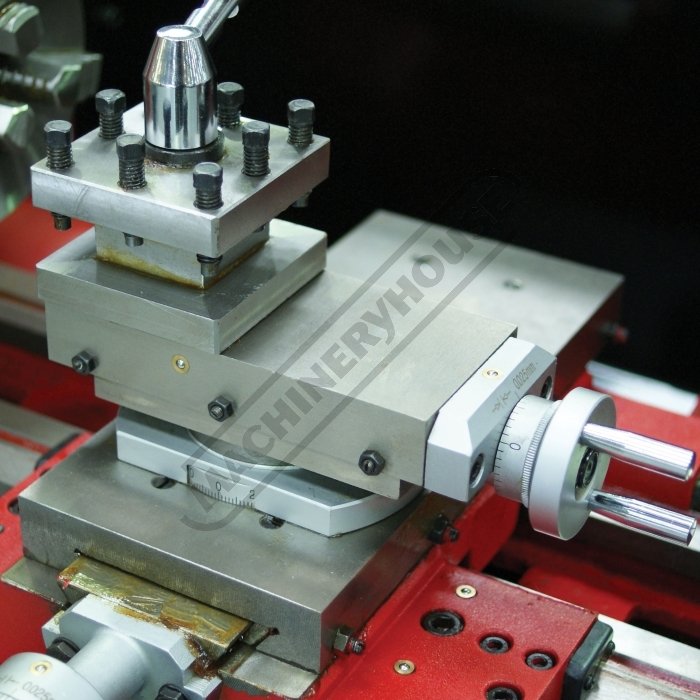

Compound Slide
10 of 30

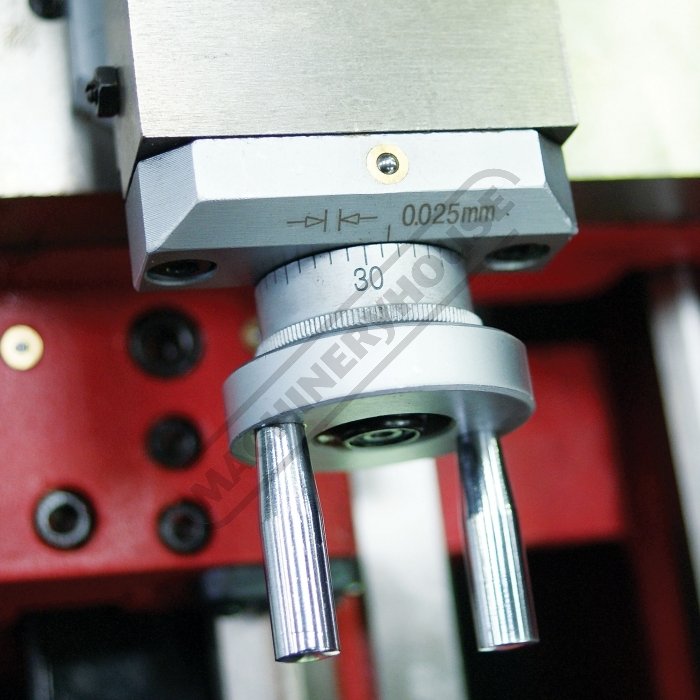

Compound Slide Handle
11 of 30

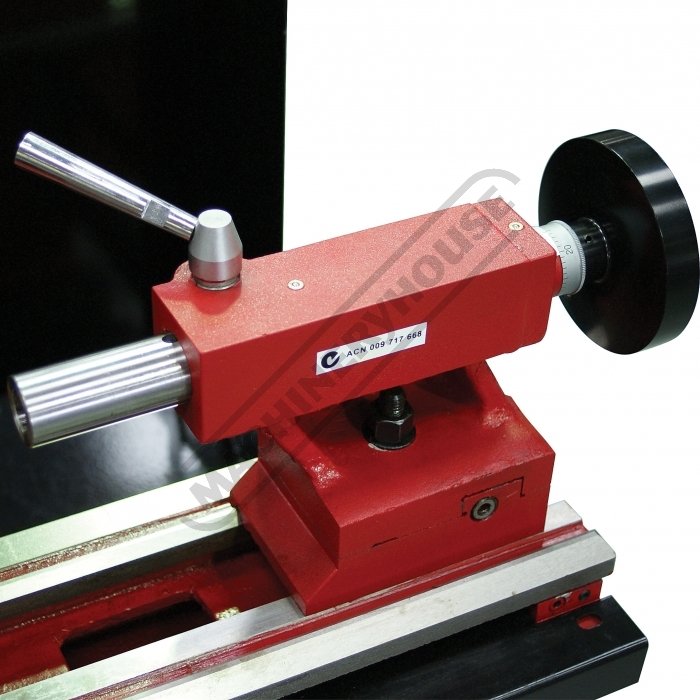

Tailstock
12 of 30

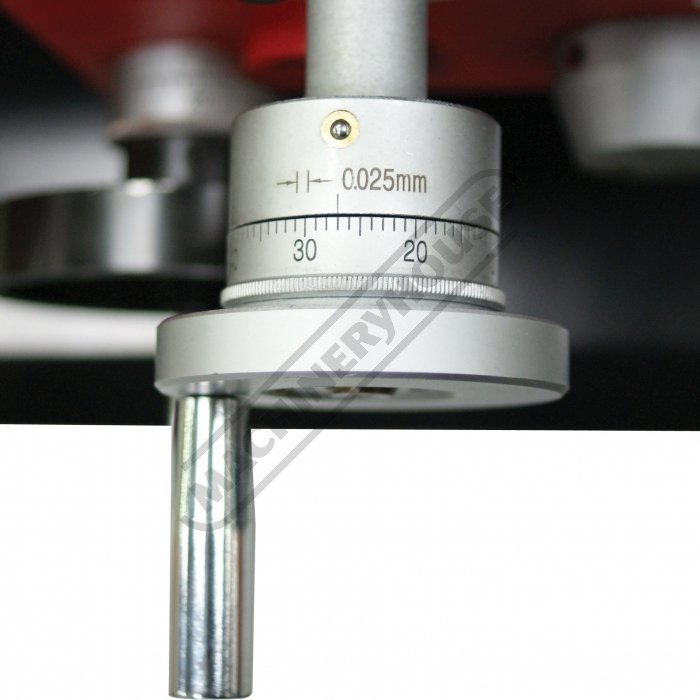

Crosslide Handle
13 of 30

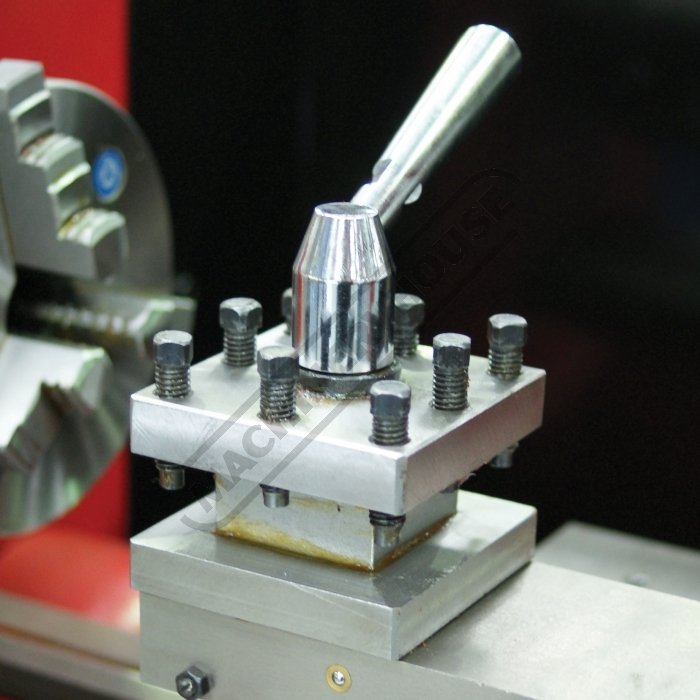

Toolpost
14 of 30

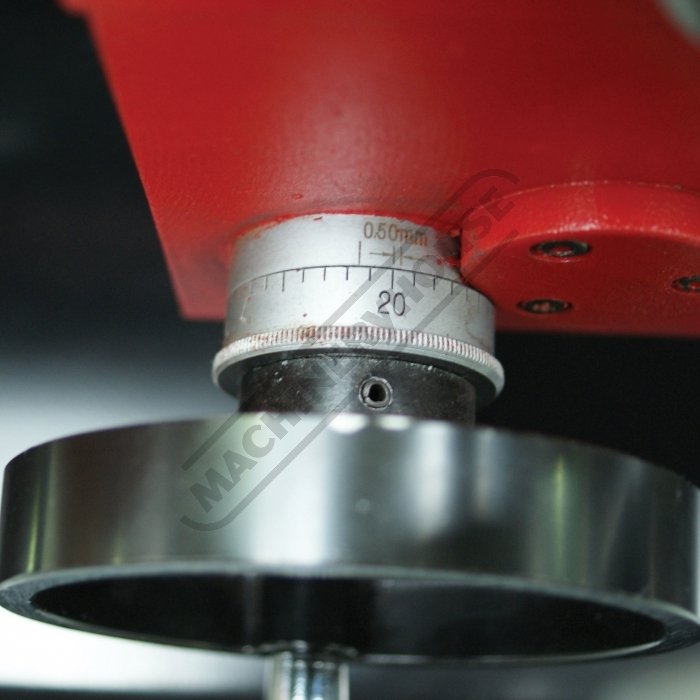

Leadscrew Hand Wheel
15 of 30

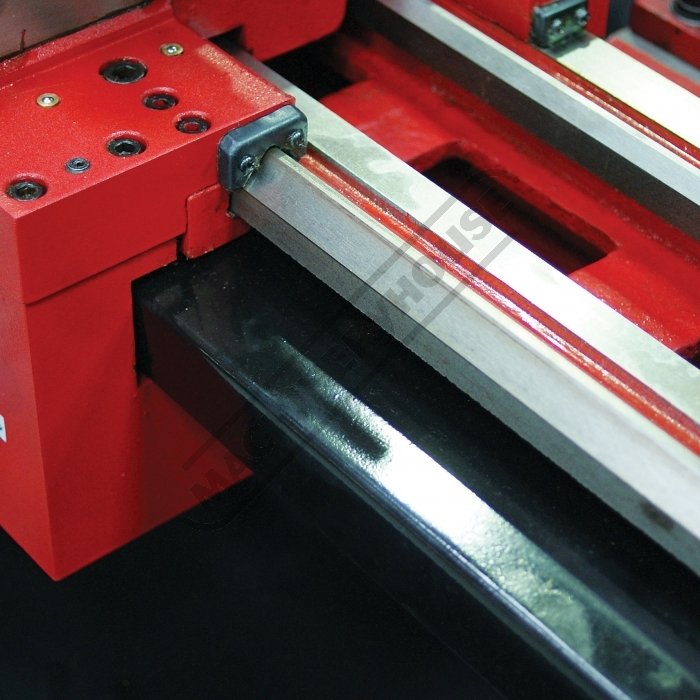

Leadscrew Covers
16 of 30

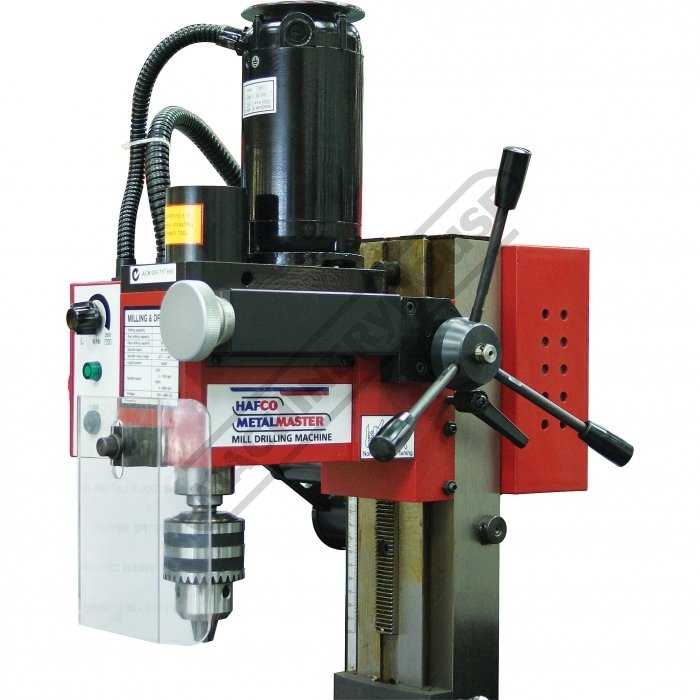

Head Right View
17 of 30

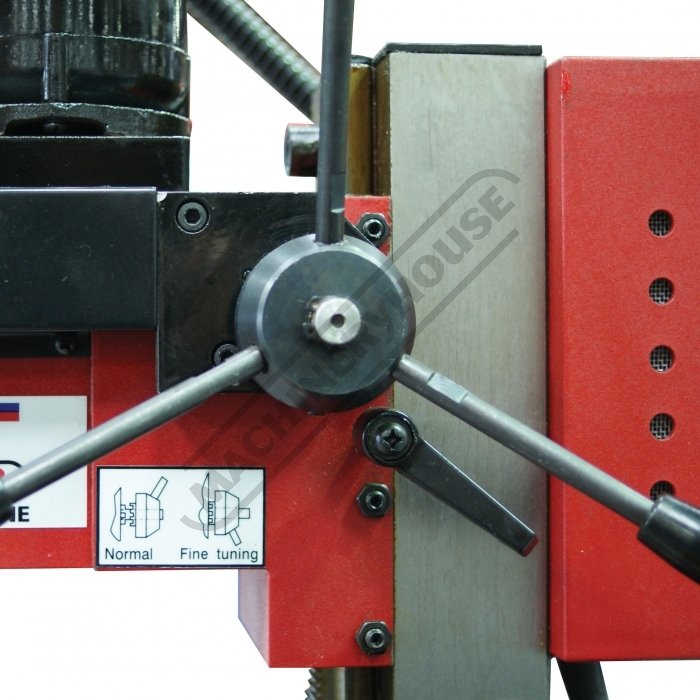

17 Quill Handle
18 of 30

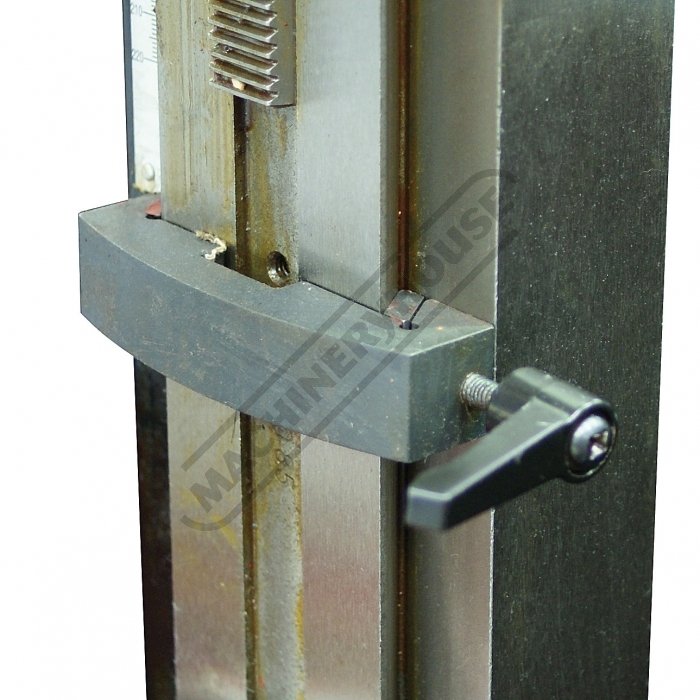

Head Support Lock
19 of 30

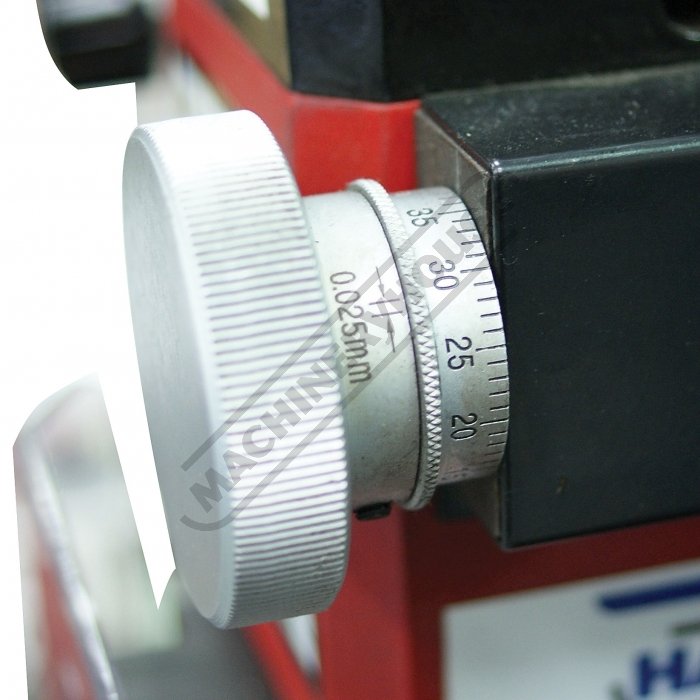

Fine Adjustment Dial
20 of 30

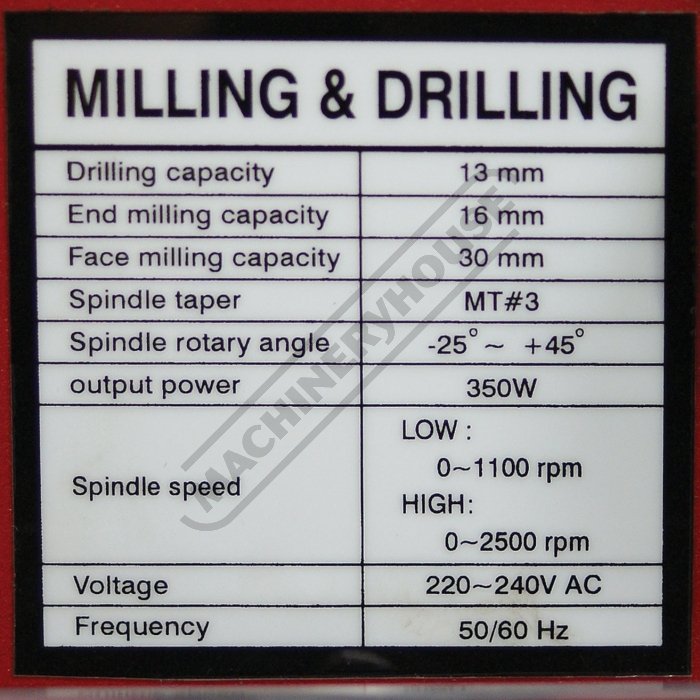

Capacities
21 of 30

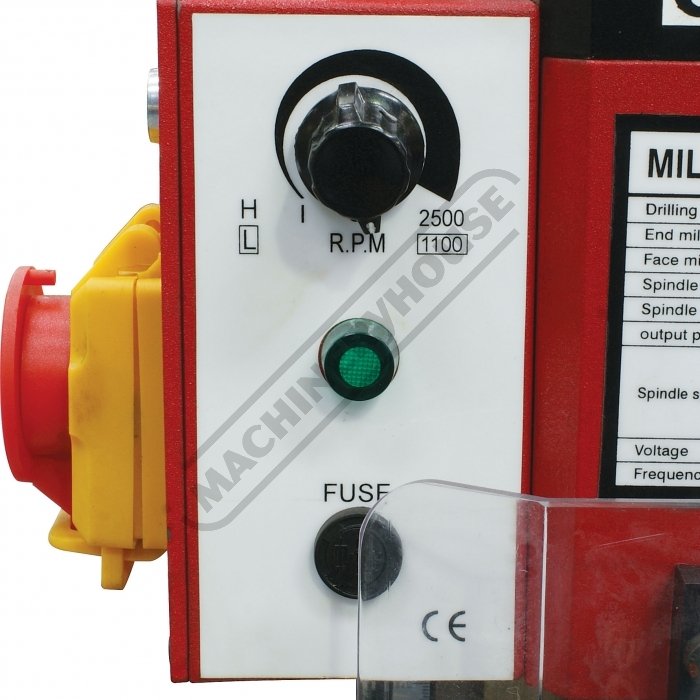

Variable Speed Control
22 of 30

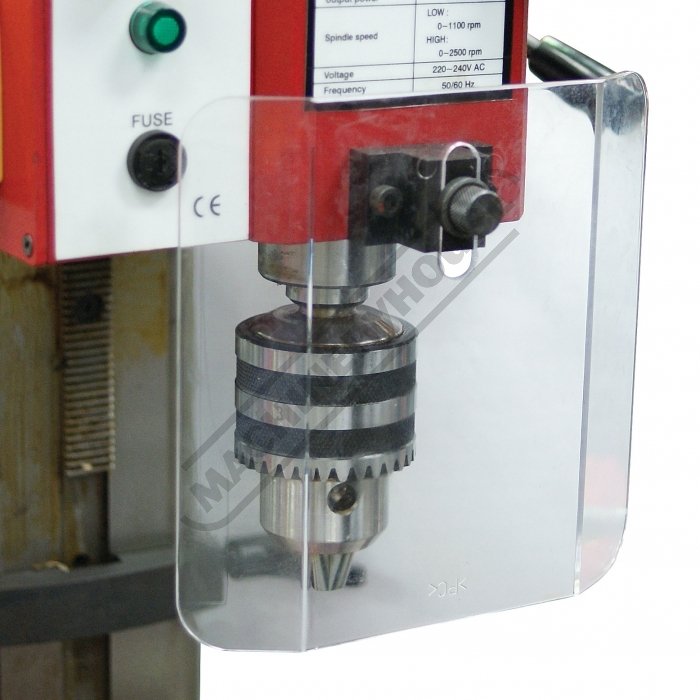

Chuck Guard
23 of 30

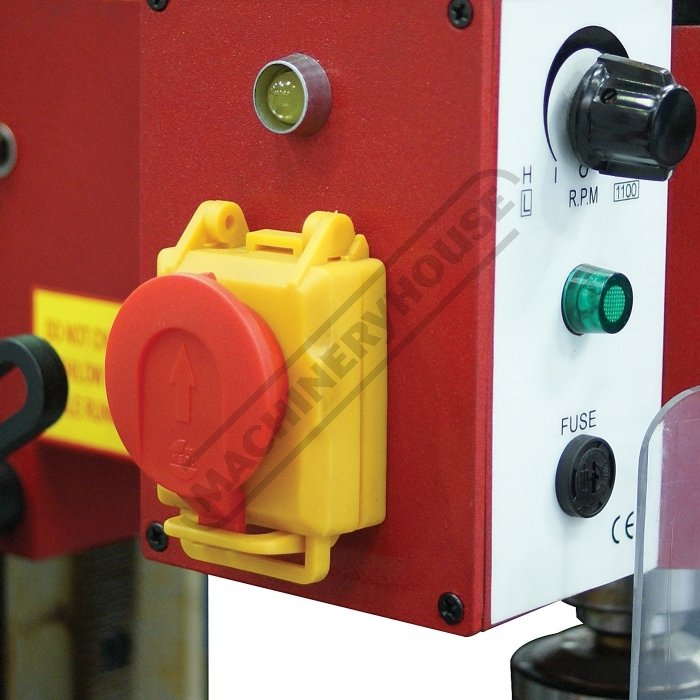

Stop Switch
24 of 30

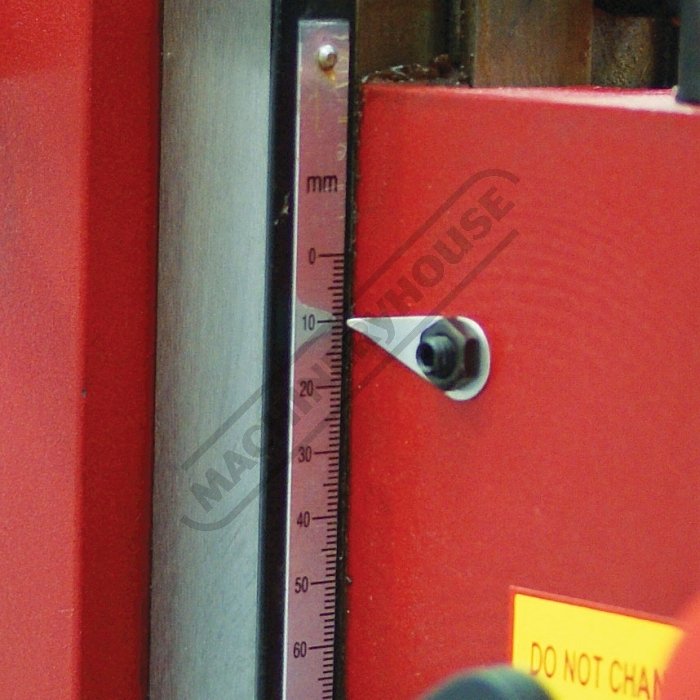

Height Indicator
25 of 30

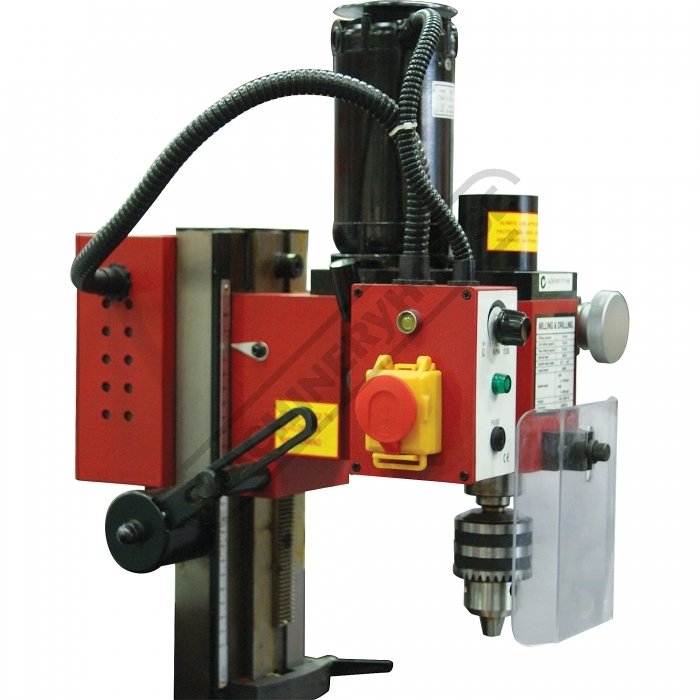

Head Left View
26 of 30

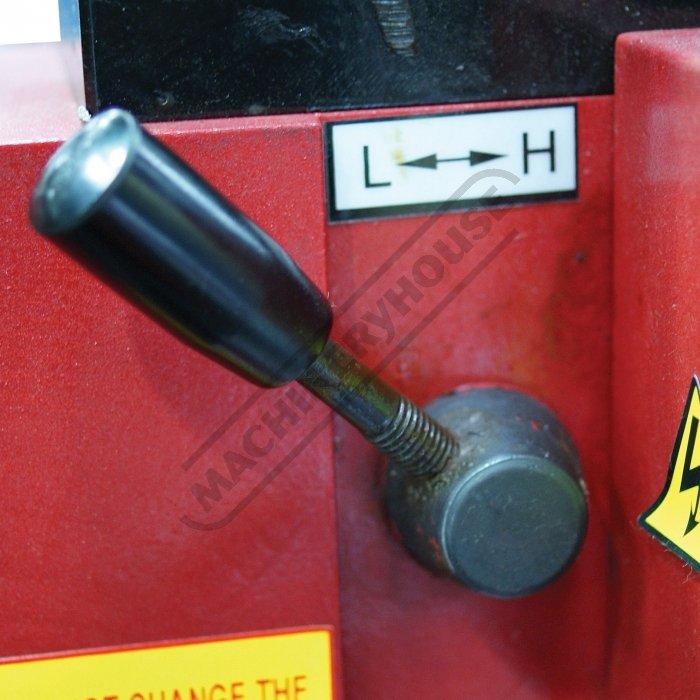

Low High Speed Lever
27 of 30

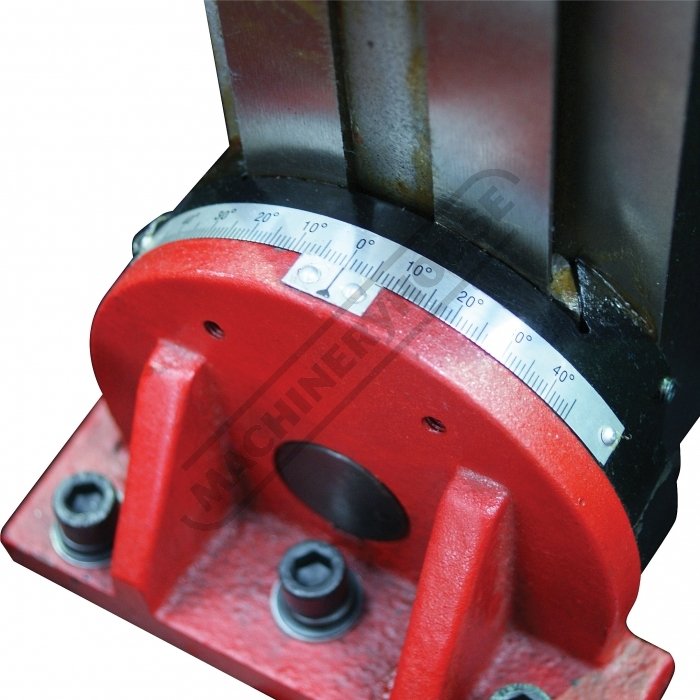

Swivel Head
28 of 30

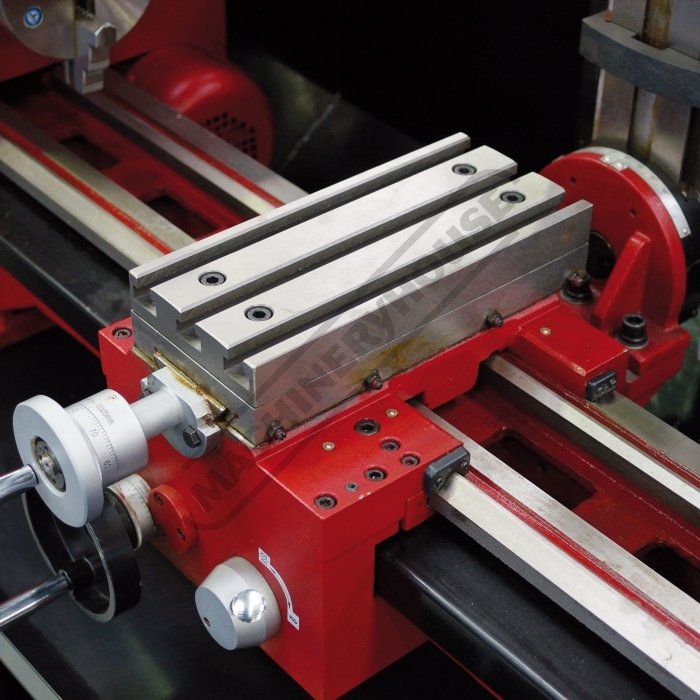

Milling Table
29 of 30

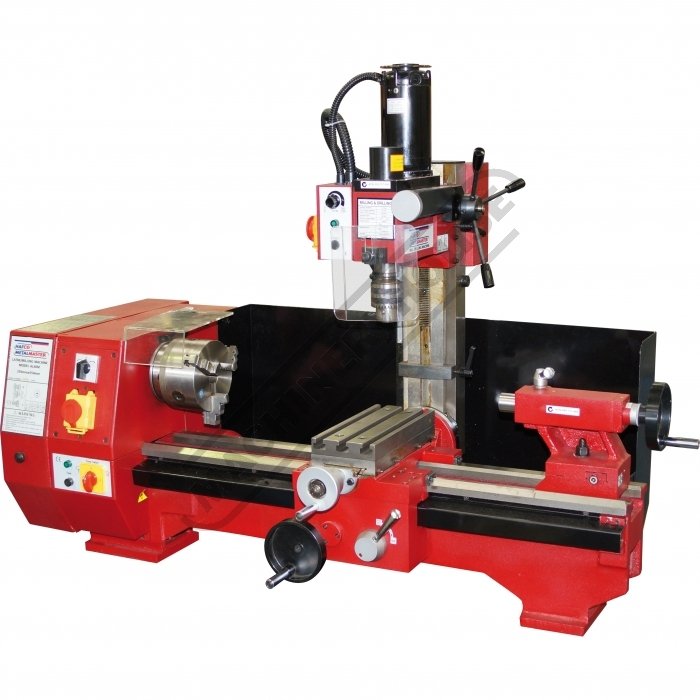

Shown with Milling Table
30 of 30
Discontinued
Order Code: K160
240V / 10A
1 Year Warranty
1 Year Warranty
Description
Lathe & Mill Drill Combination Package Deal - AL-60M (SIEG M6 = C6+M6MA)
250 x 500mm
Includes Fixed & Travelling Steadies
Overview
AL-60M Lathe Mill-Drill 250 x 500mm Combination Bench Lathe
A compact Lathe / Mill-Drill combination machine of very modern design with many convenient facilities, ideal for the enthusiastic model engineer or with limited space in the work shop. A very rigid cast iron bed with ground slide-ways gives a high level of precision.
Featuring as standard a longitudinal power feed, quick lock tailstock, both metric and imperial thread cutting capability and also including a milling head to turn this machine into a very capable small all round machine. This machine is suitable for bench mounting, but recommended the addition of the optional stand with swarf tray. We are sure this machine will please the model engineer.
A compact Lathe / Mill-Drill combination machine of very modern design with many convenient facilities, ideal for the enthusiastic model engineer or with limited space in the work shop. A very rigid cast iron bed with ground slide-ways gives a high level of precision.
Featuring as standard a longitudinal power feed, quick lock tailstock, both metric and imperial thread cutting capability and also including a milling head to turn this machine into a very capable small all round machine. This machine is suitable for bench mounting, but recommended the addition of the optional stand with swarf tray. We are sure this machine will please the model engineer.
Features
- LATHE:
- Ideal for small workshops
- Precision ground 'V' Bed
- Heavy duty A-section belt drive
- 550W induction lathe motor with reversing switch
- Powered long feed and thread cutting capabilities
- Rear splash tray is standard
- Sheet metal leadscrew cover
- Hinged belt cover with safety micro switch
- Chuck guard with safety micro switch
- Ball bearing oiling points
- Easy access fuse cover
- Adjustable cross and compound slide gib keys
- MILL:
- Supplied with a small ground and slotted milling table which attaches to the cross slide
- Head tilts ±45º
- 2-Speed gearbox for increased torque
- 370W electronic variable-speed controlled motor
- Slides utilise dovetail construction for maximum rigidity
Includes
- LATHE:
- 125mm 3-jaw chuck
- Face plate
- Fixed & travelling steadies
- 2 x dead centres
- Set of change gears, metric and imperial thread cutting
- Instruction booklet
- MILL:
- Milling table - Bolt on
- 13mm keyed drill chuck
- 3MT Arbor
- Set of spanners to suit
- Safety cutter guard
Optional Accessories
- 4 Jaw taper mount lathe chucks (L144)
- Stand to suit (L143)
Compare Product Range
Specifications
| ORDER CODE | K160 |
|---|---|
| MODEL | AL-60M |
| KIT Includes | M6 = C6 + M6MA Package |
| Lathe Specifications | LATHE SPECIFICATIONS |
| (mm)Tool Height To Suit | 12 |
| (mm)Distance Between Centres | 550 |
| (mm)Swing Over Bed | 250 |
| (mm)Swing Over Cross Slide | 150 |
| (mm)Centre Height | 125 |
| (mm)Spindle Bore | 20 |
| Spindle Nose Type | American Taper |
| (mm)Bed Width | 135 |
| (MT)Headstock Taper | 3 |
| (MT)Tailstock Taper | 2 |
| (mm)Cross Slide Travel | 105 |
| (mm)Compound Slide Travel | 75 |
| Leadscrew | Metric |
| (mm/rev)Longitudinal Feed (Z-Axis) | 0.1 - 0.2 |
| (mm)Metric Thread Range | 0.4 - 3.0 |
| (TPI)Imperial Thread Range | 10 - 44 |
| (mm)Three Jaw Chuck Size | 125 |
| Four Jaw Chuck Size | Optional |
| (No. / rpm)Spindle Speeds | 6 (125 - 2000) |
| (kW / hp)Motor Power - Lathe | 0.55 / 0.75 |
| (V / amp)Voltage / Amperage - Lathe | 240 / 10 |
| Mill Specifications | MILL SPECIFICATIONS |
| (MT)Spindle Taper | 3 |
| Column Type | Dovetail |
| (± Deg)Swivel Head (Left ~ Right) | -25 to 45 |
| (mm)Vertical Travel (Z-Axis) | 190 |
| (mm)Drilling Capacity | 13 |
| (mm)End Milling Capacity | 13 |
| (mm)Face Milling Capacity | 25 |
| (No. / rpm)Spindle Speeds Vertical | Variable (100-2500) |
| (kW / hp)Motor Power - Mill | 0.35 / 0.5 |
| (V / amp)Voltage / Amperage - Mill | 240 / 10 |
| (kg)Nett Weight | 205 |
