Lathe & Mill Drill Combination - AL-280P
400 x 409mm
L159
1 of 20

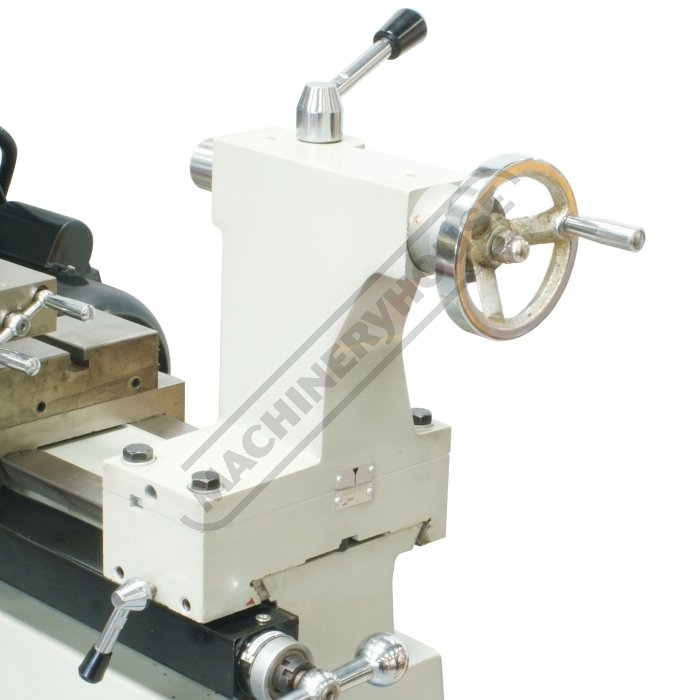

Tailstock
2 of 20
Longitudinal Feed Handle
3 of 20

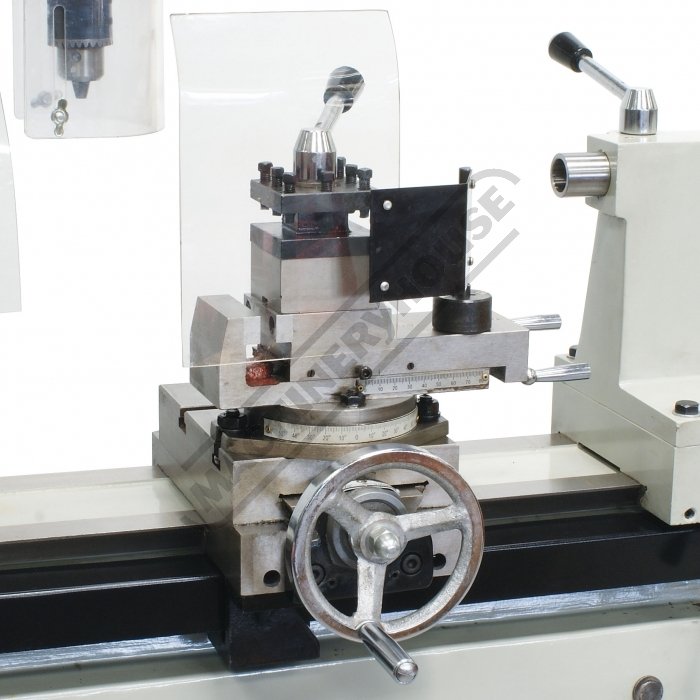

Saddle
4 of 20
Swivel Compound Vice
5 of 20

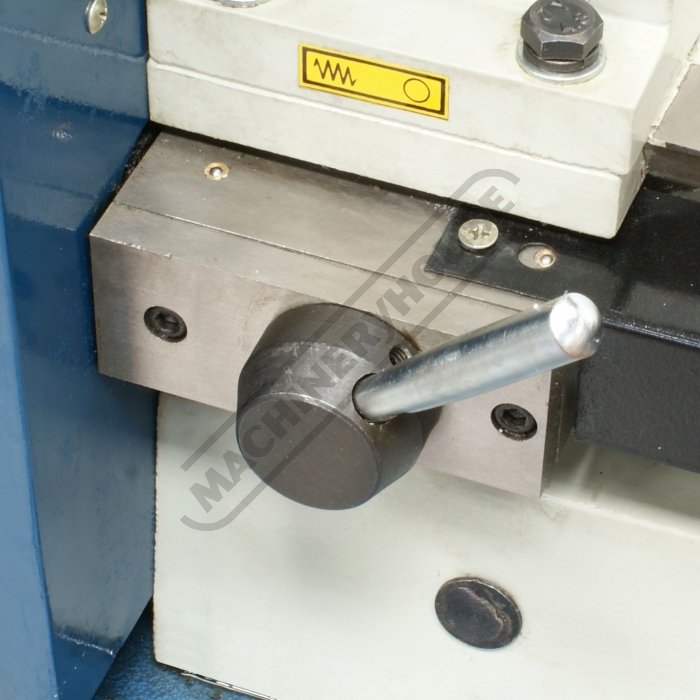

Auto Feed Egnagement Lever
6 of 20

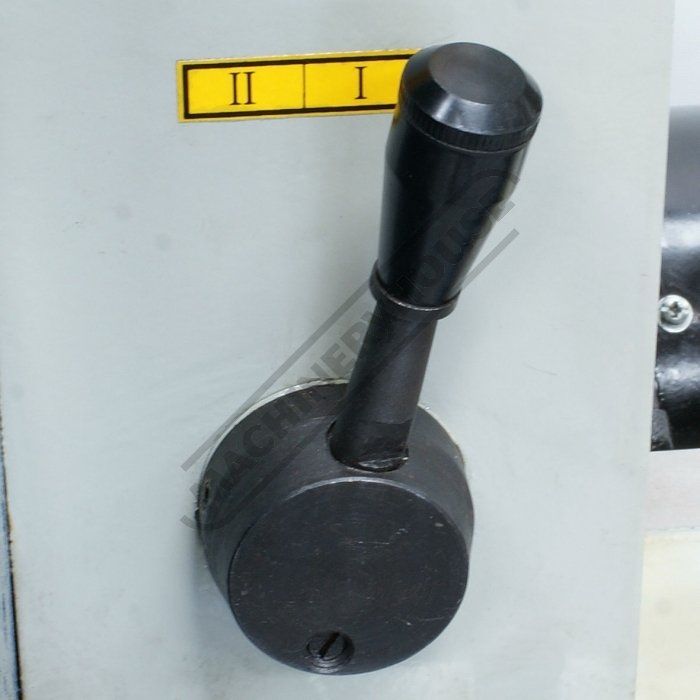

Thread Selection Lever
7 of 20
Lathe Spindle Speeds
8 of 20

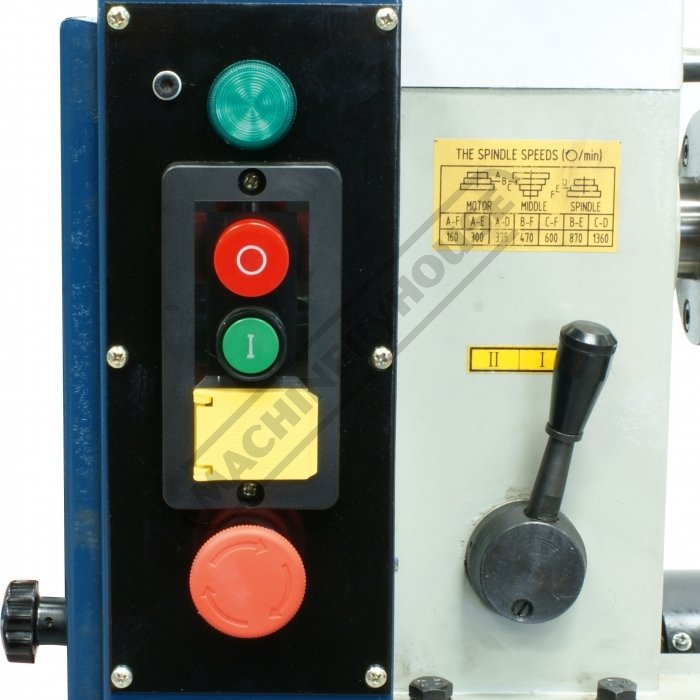

Control Panel
9 of 20

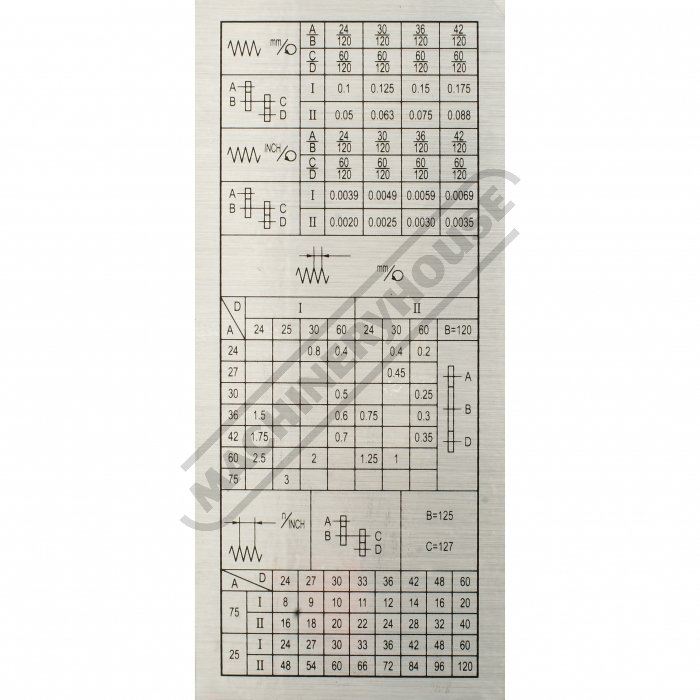

Thread and Feed Chart
10 of 20

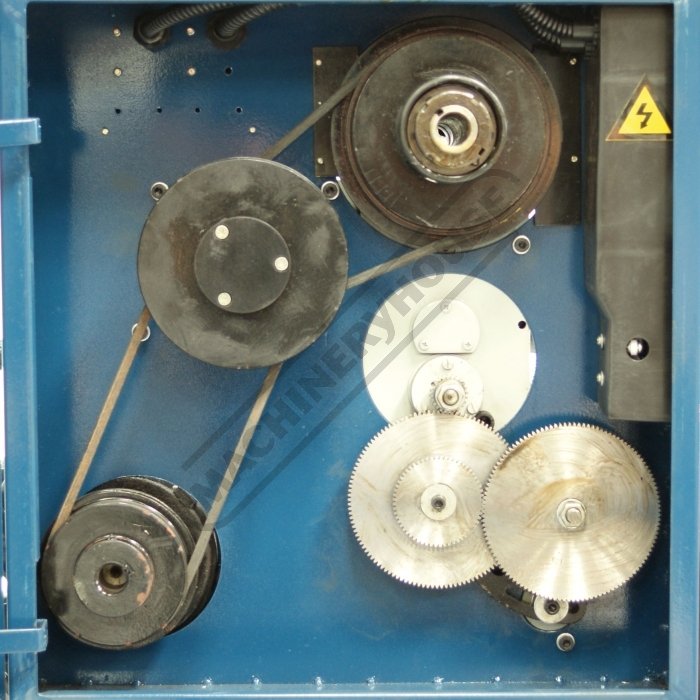

Belt and Gearbox Drive System
11 of 20

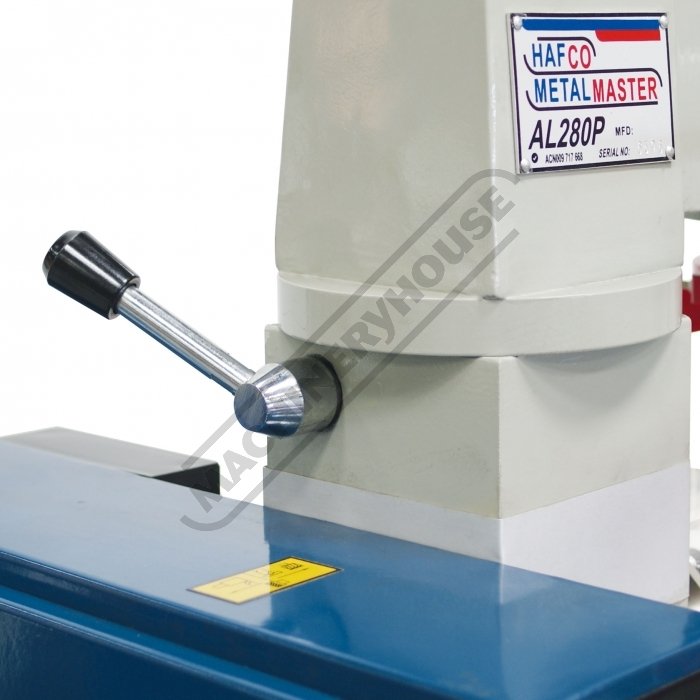

Swivel Drill Head Lock Lever
12 of 20

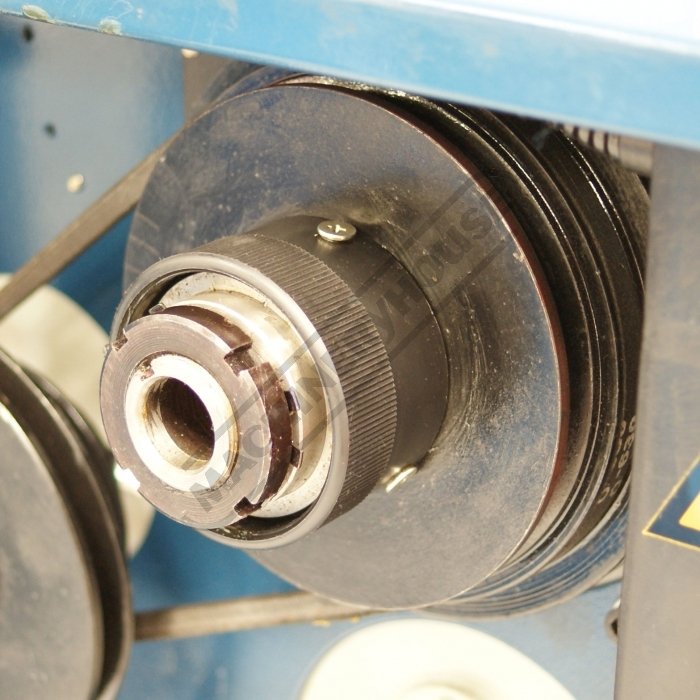

Lathe or Drill Engagement
13 of 20

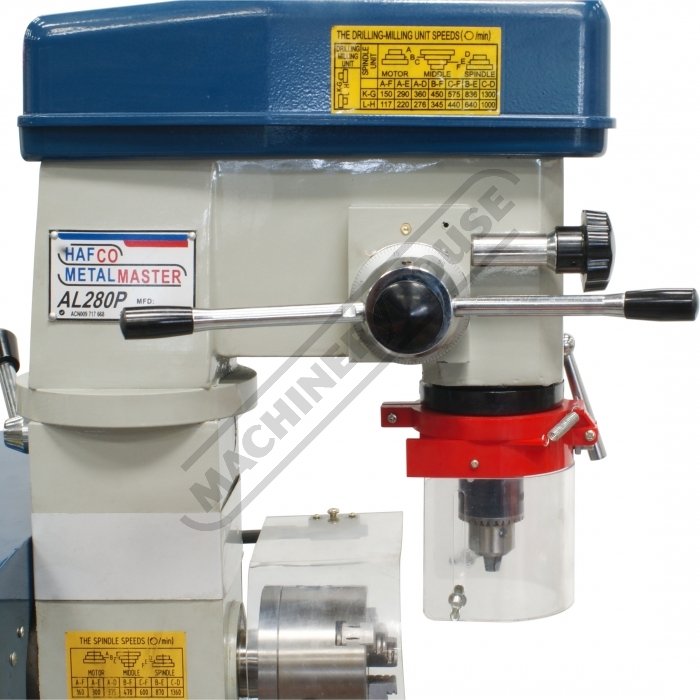

Drill and Mill Head
14 of 20

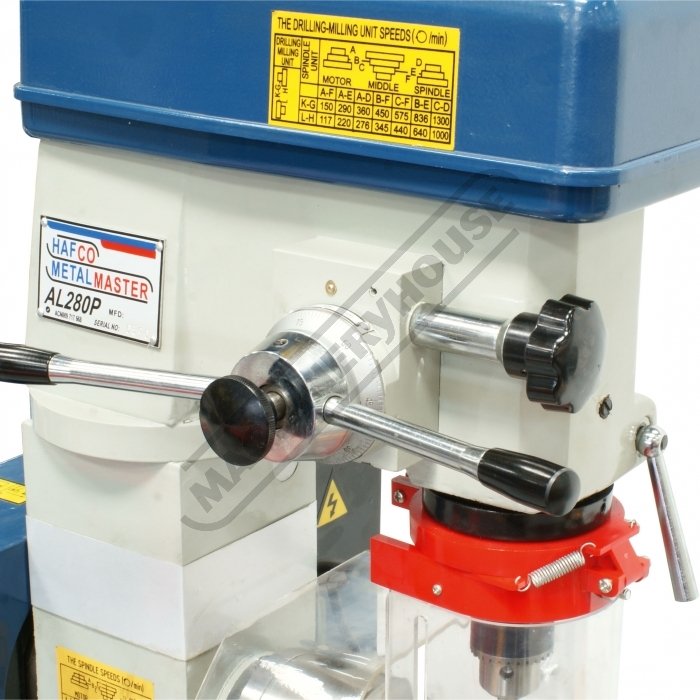

Quill Lever with Fine Adjustment
15 of 20

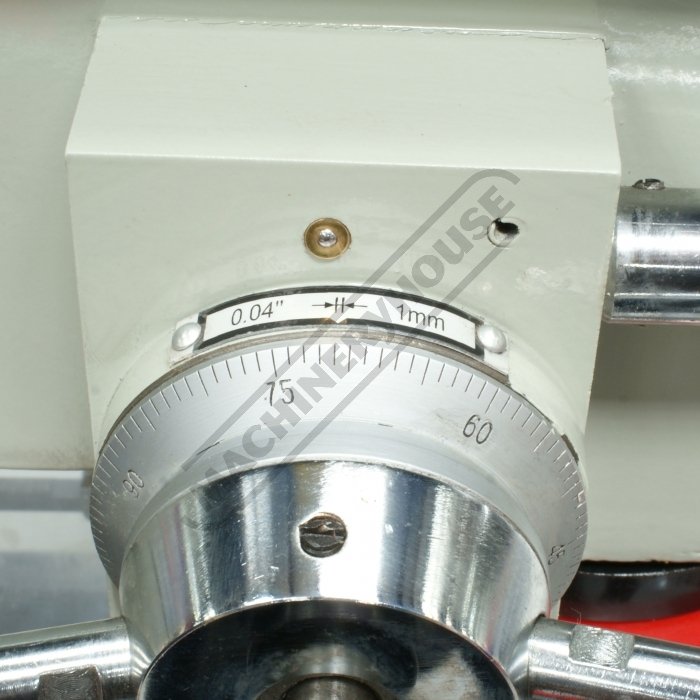

Quill Graduations
16 of 20

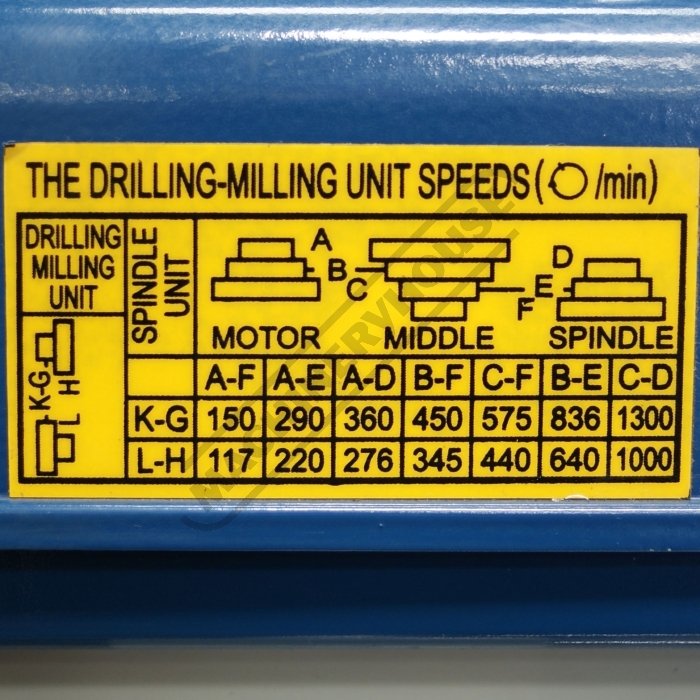

Drill Mill Spindle Speeds
17 of 20

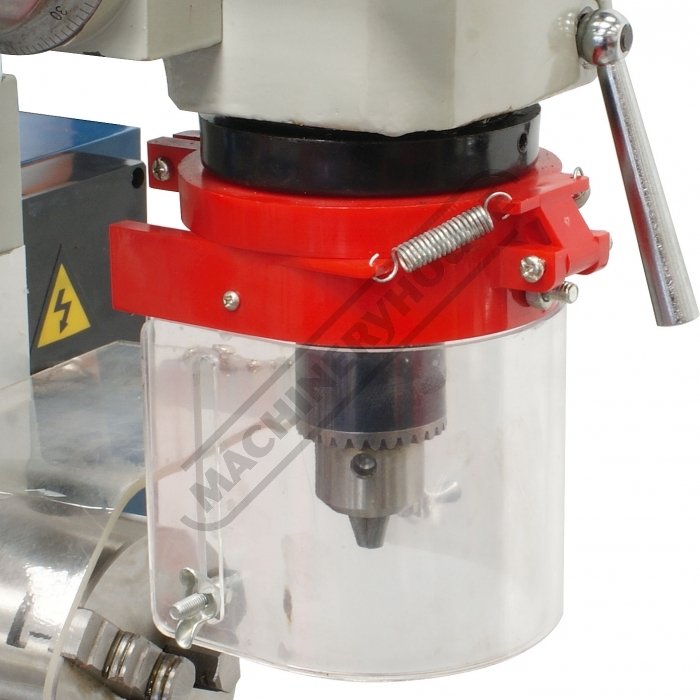

Drill Chuck Guard
18 of 20

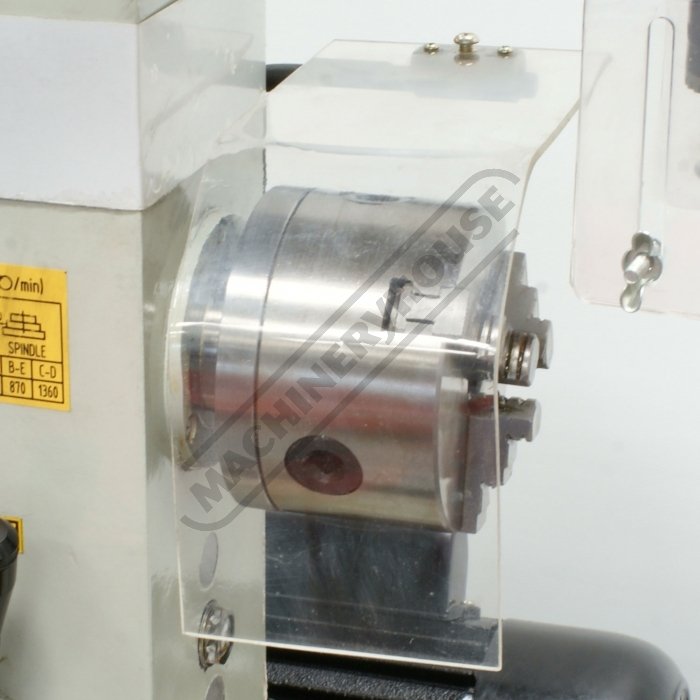

Lathe Chuck Guard
19 of 20

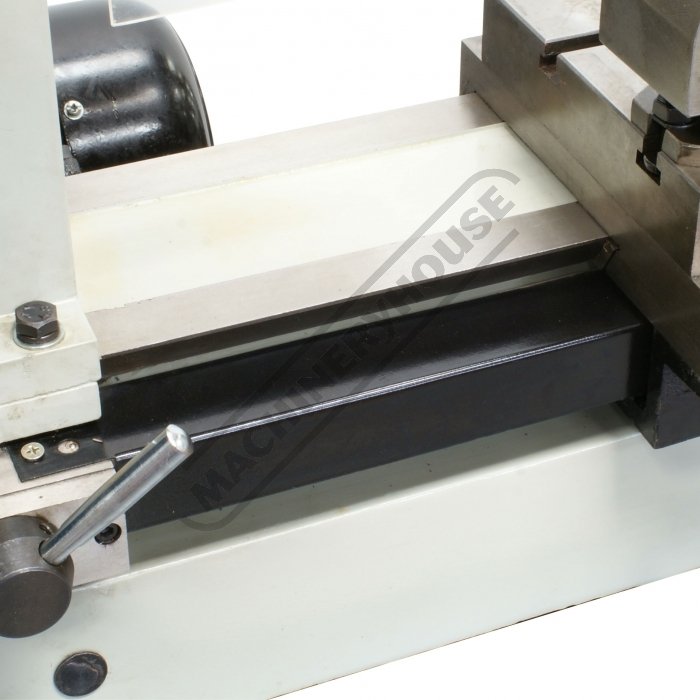

Leadscrew Cover
20 of 20
Discontinued
Order Code: L159
240V / 10A
1 Year Warranty
1 Year Warranty
Description
Lathe & Mill Drill Combination - AL-280P
400 x 409mm
Features
- Ideal for either the home hobby, or light engineering workshop
- The drill head swings 90º in both directions and has 14 spindle speeds
- Fine micro down feed is incorporated for milling operations
- Quick action spindle engage system transferring drive from lathe to mill
- Milling vice incorporated within compound slide
- Metric and imperial screw cutting
- Power long feed on saddle
- 3MT spindle and tailstock
- Chuck guards for lathe and drill chuck
- Sheet metal leadscrew cover
Includes
- 3-jaw chuck
- 4-jaw chuck back plate
- Dead centre
- Keyed drill chuck & arbor
- Set of change gears & toolbox
Compare Product Range
Specifications
| ORDER CODE | L159 |
|---|---|
| MODEL | AL-280P |
| Lathe Specifications | LATHE SPECIFICATIONS |
| (mm)Tool Height To Suit | 12 |
| (mm)Distance Between Centres | 409 |
| (mm)Swing Over Bed | 400 |
| (mm)Swing Over Cross Slide | 300 |
| (mm)Centre Height | 200 |
| (mm)Spindle Bore | 20 |
| Spindle Nose Type | Fixed |
| (mm)Bed Width | 140 |
| (MT)Tailstock Taper | 3 |
| (mm)Cross Slide Travel | 115 |
| (mm)Compound Slide Travel | 85 |
| Leadscrew | Metric |
| (mm/rev)Longitudinal Feed (Z-Axis) | 0.05 - 0.17 |
| (mm)Metric Thread Range | 0.2 - 3.0 |
| (TPI)Imperial Thread Range | 8-120 |
| (mm)Three Jaw Chuck Size | 100 |
| Four Jaw Chuck Size | Optional |
| (No. / rpm)Spindle Speeds | 7 (160 - 1360) |
| (kW / hp)Motor Power - Lathe | 0.55 / 0.75 |
| (V / amp)Voltage / Amperage - Lathe | 240 / 10 |
| Mill Specifications | MILL SPECIFICATIONS |
| (MT)Spindle Taper | 3 |
| Column Type | Fixed |
| (mm)Vertical Travel (Z-Axis) | Fixed |
| (mm)Drilling Capacity | 13 |
| (mm)End Milling Capacity | 13 |
| (mm)Face Milling Capacity | 25 |
| (No. / rpm)Spindle Speeds Vertical | 14 (125 - 1190) |
| (kW / hp)Motor Power - Mill | 0.55 / 0.75 |
| (V / amp)Voltage / Amperage - Mill | 240 / 10 |
| (kg)Nett Weight | 220 |
