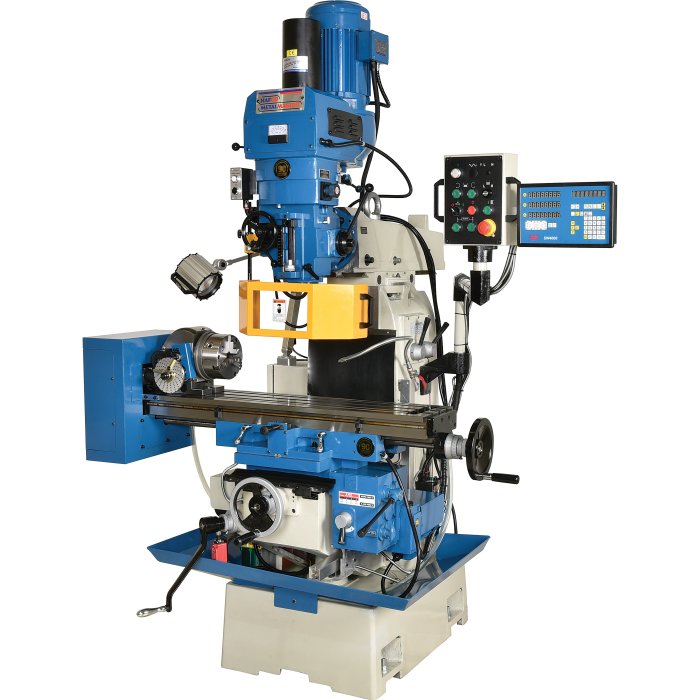

Industrial Turret Milling Machine - Horizontal & Vertical - BM-GEVS250
Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm
Includes DRO, BS-2 Universal Dividing Head & Pneumatic Drawbar System
M586E
1 of 35

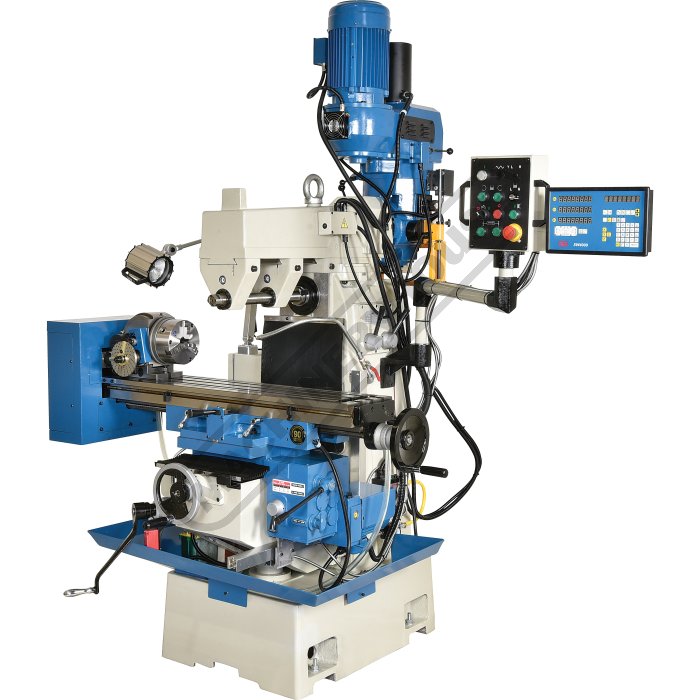

Horizontal Head Setup
2 of 35

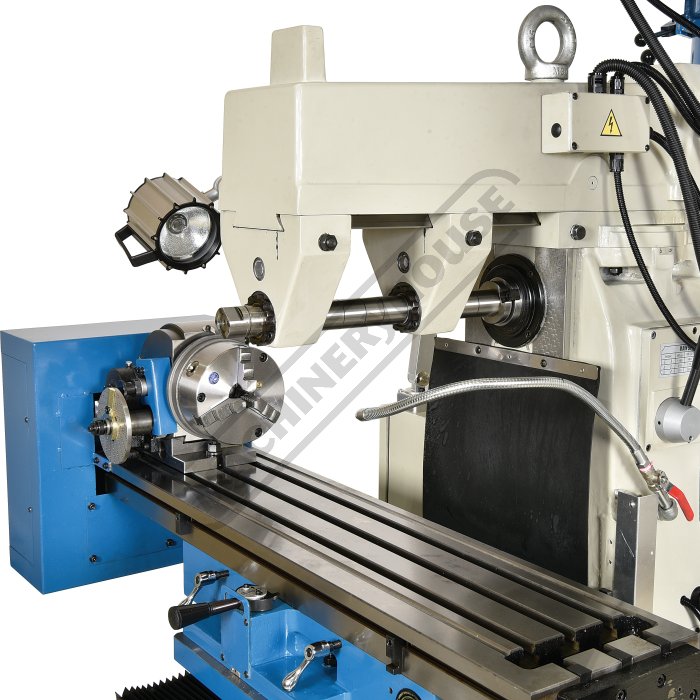

Horizontal Head Setup Close Up
3 of 35

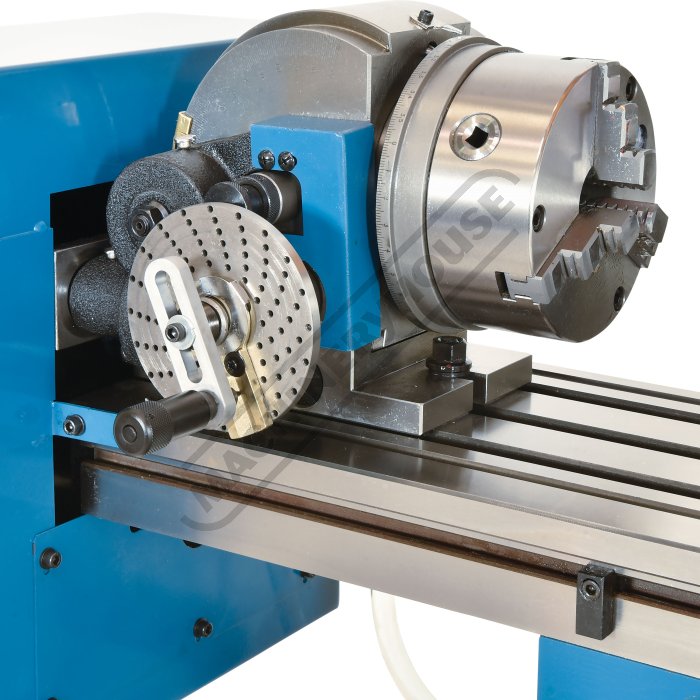

Universal Dividing Head
4 of 35

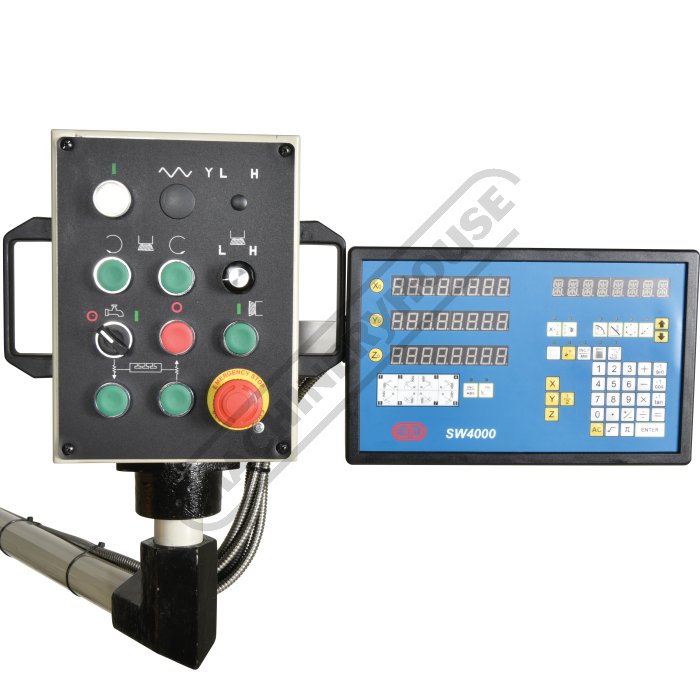

Swivel Arm Control Panel
5 of 35

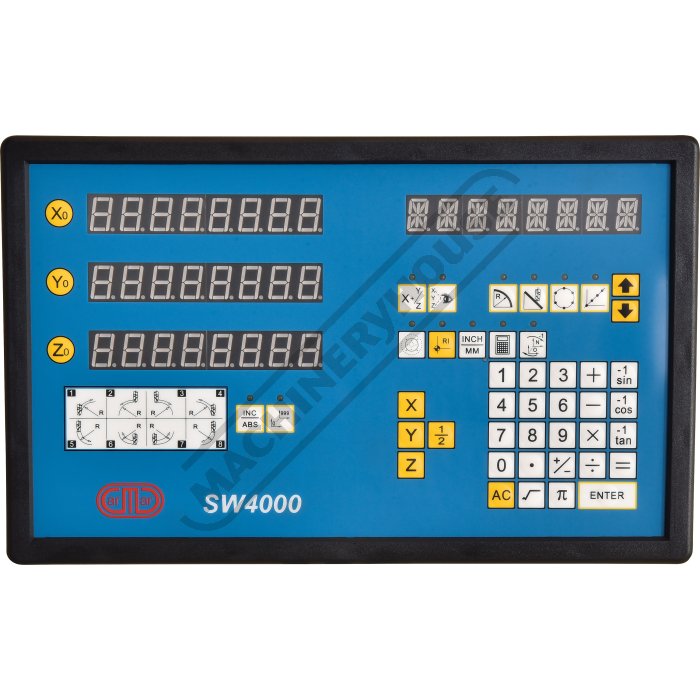

3 Axis Digital Read Out
6 of 35

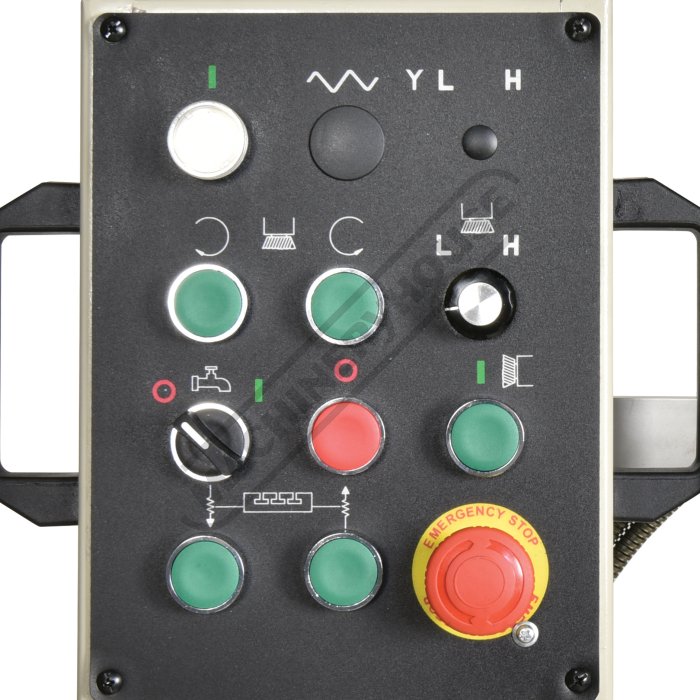

Control Panel
7 of 35

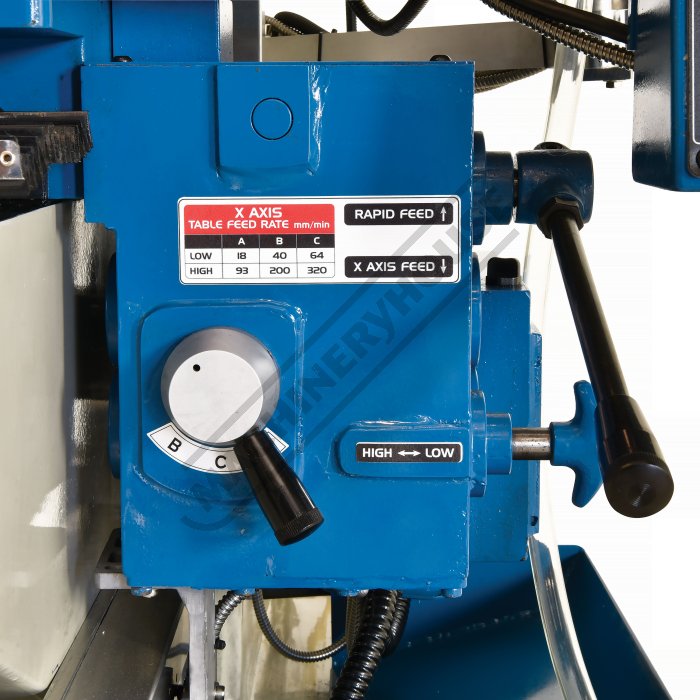

Gear Drive Table Feed
8 of 35

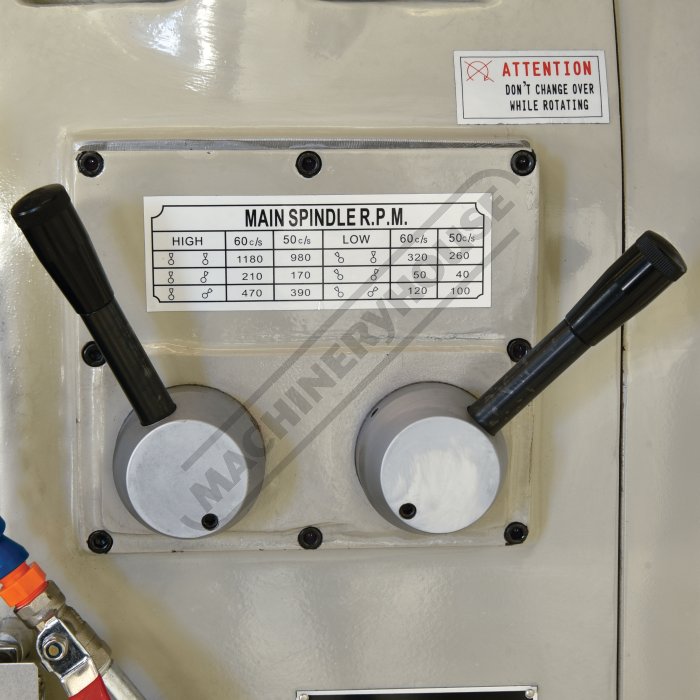

Horizontal Speed Selection Levers
9 of 35

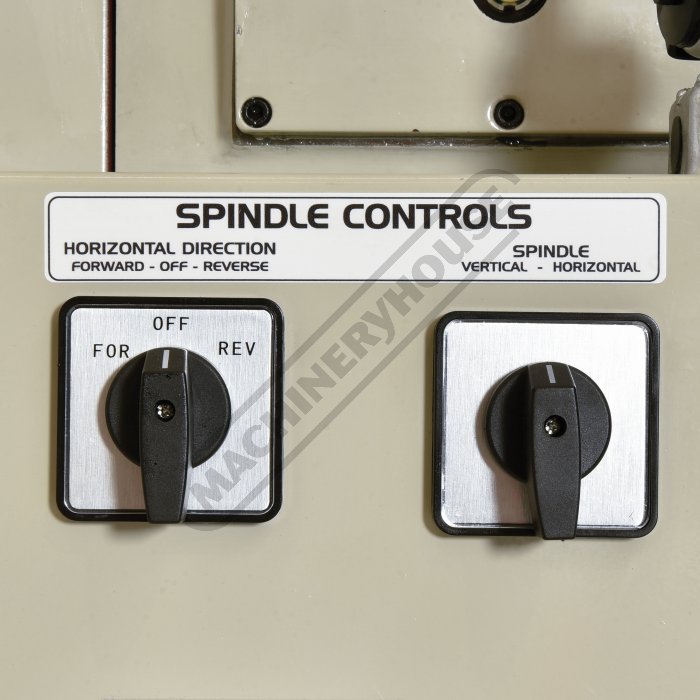

Spindle Controls
10 of 35

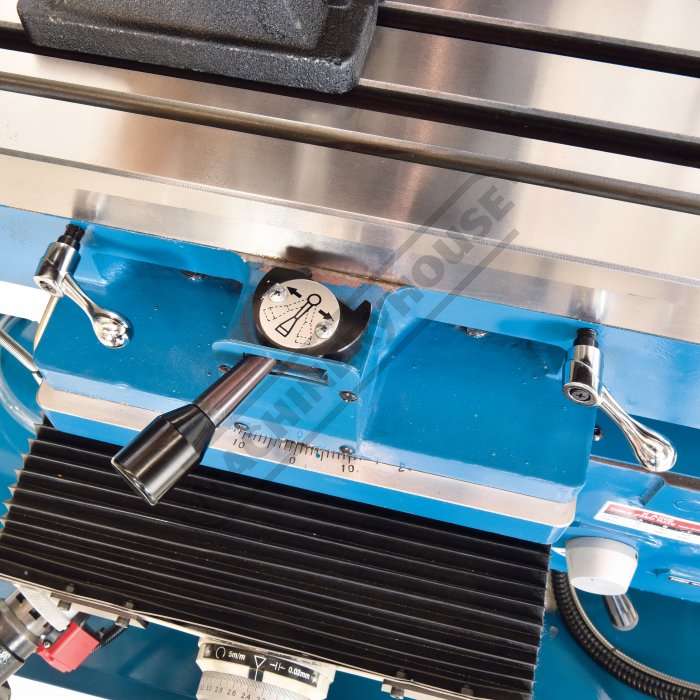

Swivel Table
11 of 35

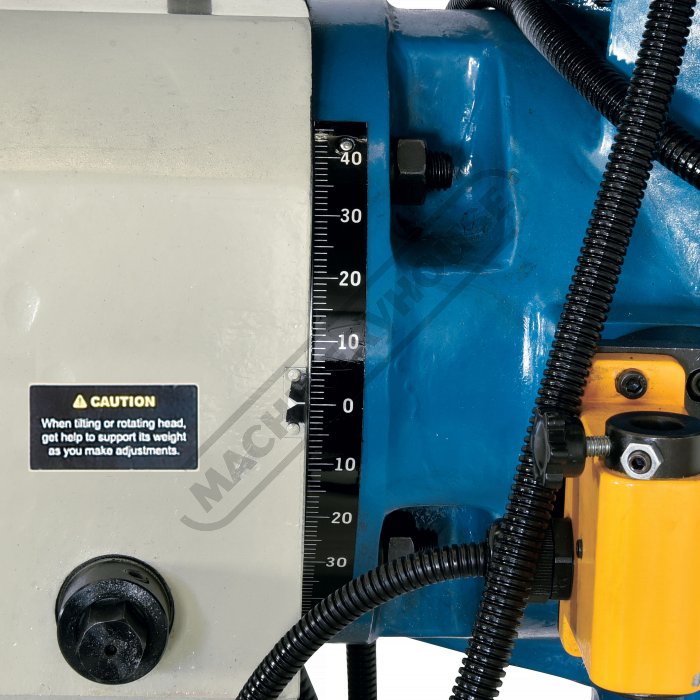

Tilting Mill Head Left & Right to 90 Degrees
12 of 35

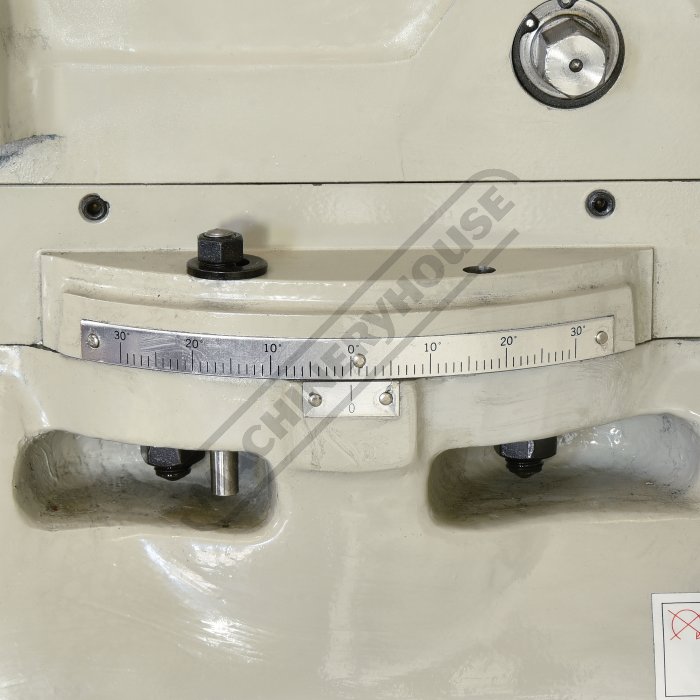

Rotating Horizontal Ram
13 of 35

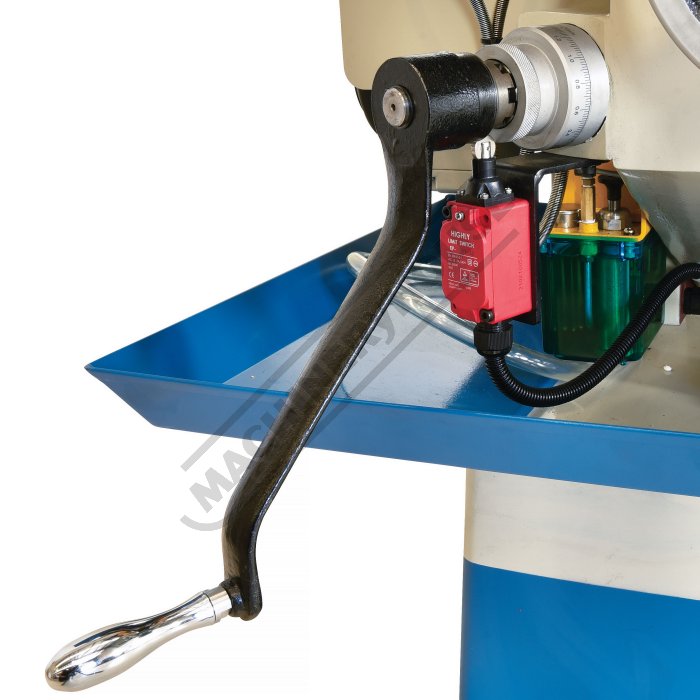

Z Axis Feed Handle with Micro
14 of 35

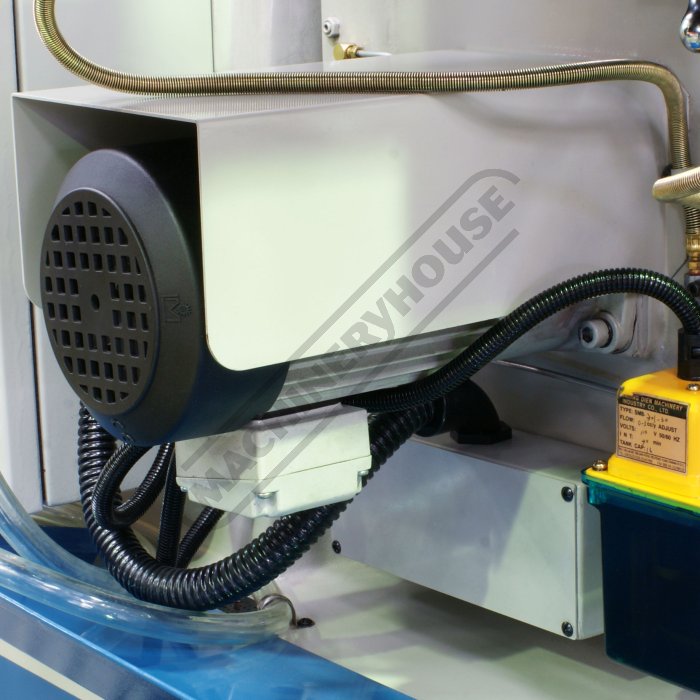

Z Axis Rapid Motor
15 of 35

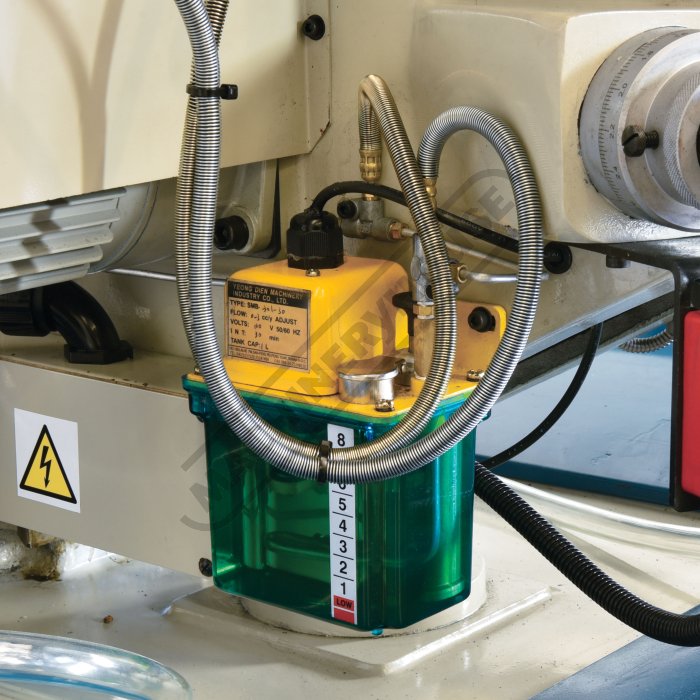

Automatic Slideway Lubrication System
16 of 35

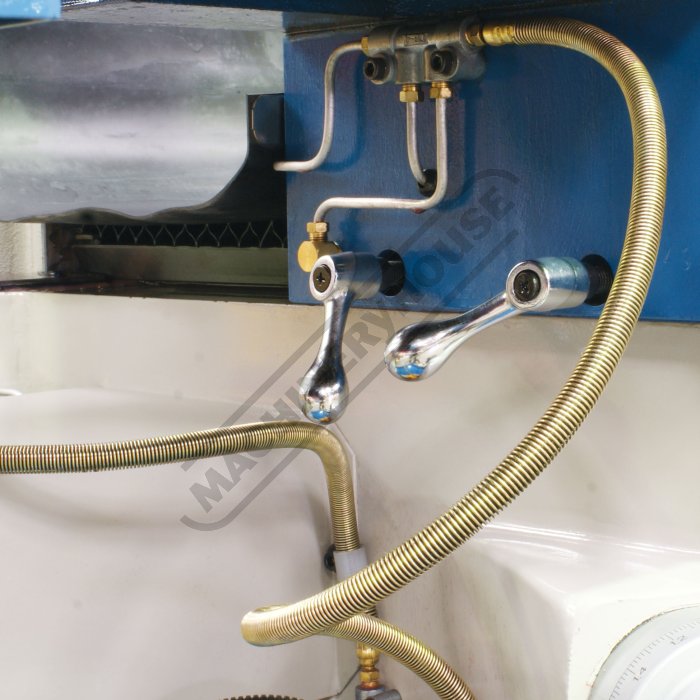

Y Axis Table Locks
17 of 35

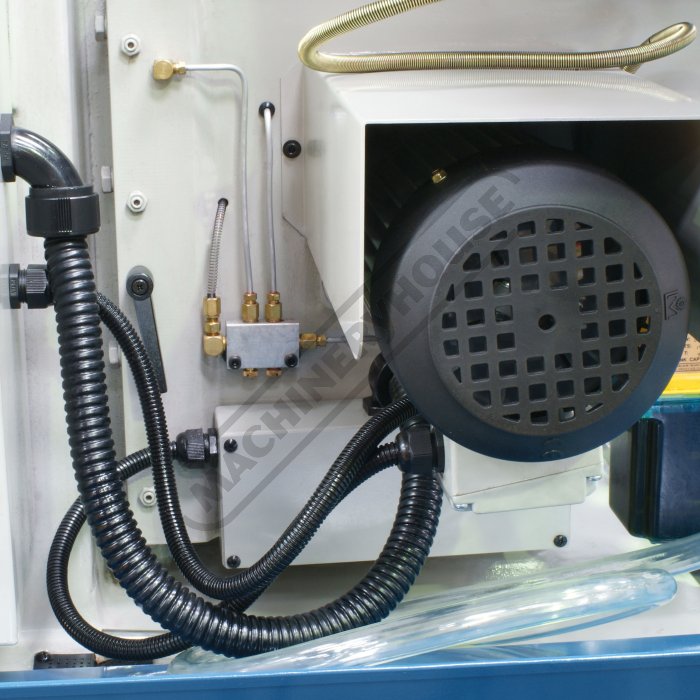

Oil Feeder Distribution Block
18 of 35

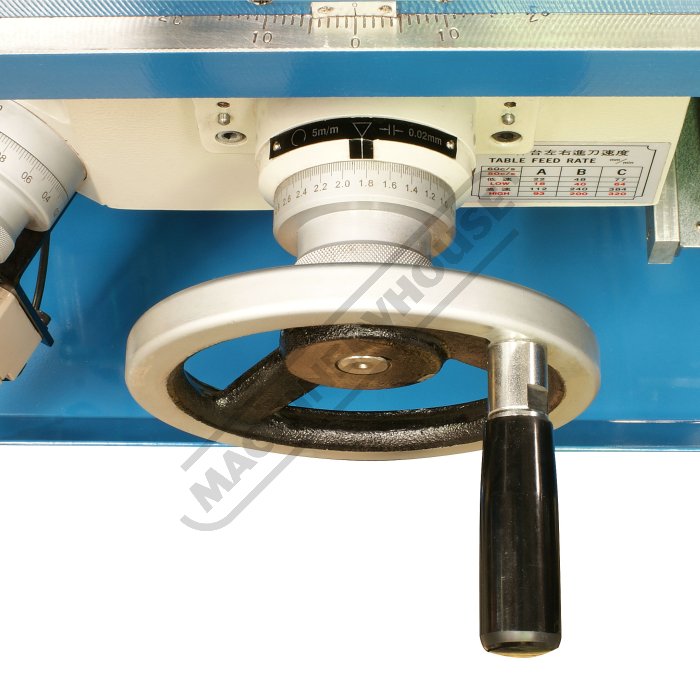

Y Axis Feed Handle
19 of 35

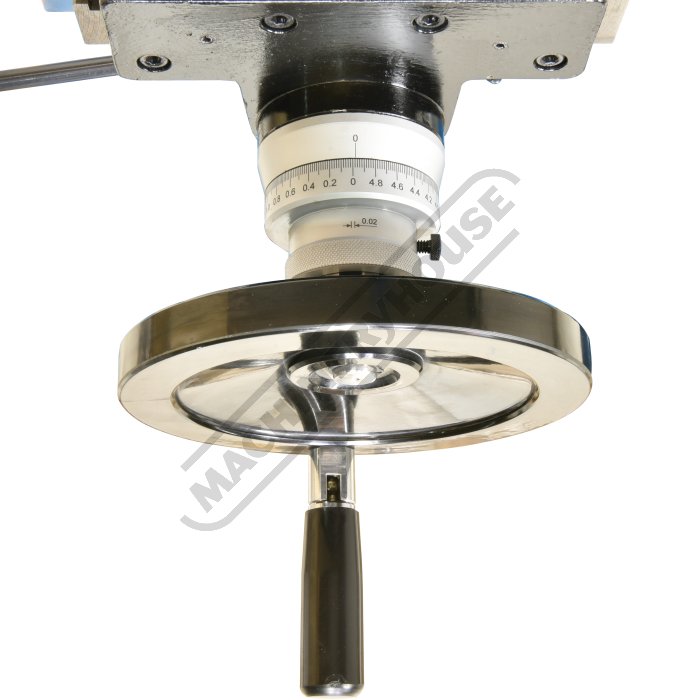

X Axis Feed Handle
20 of 35

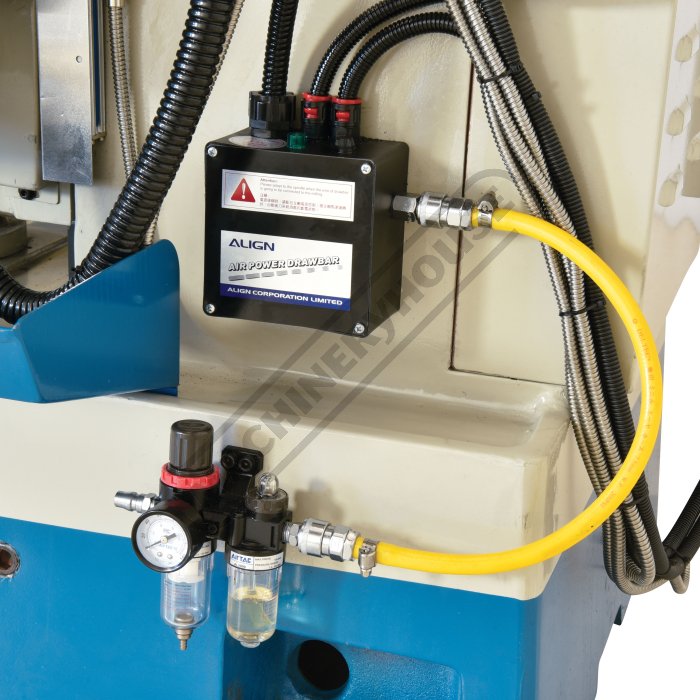

Air Powered Draw Bar System
21 of 35

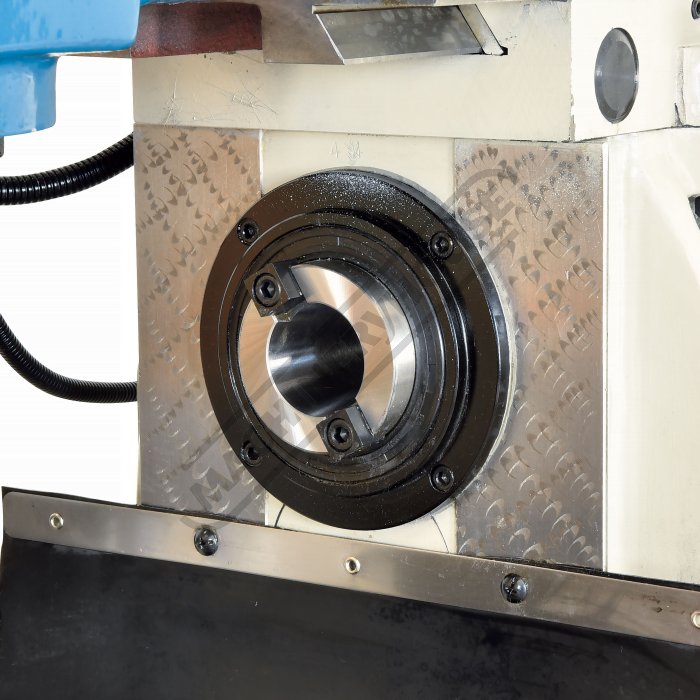

Horizontal Spindle
22 of 35

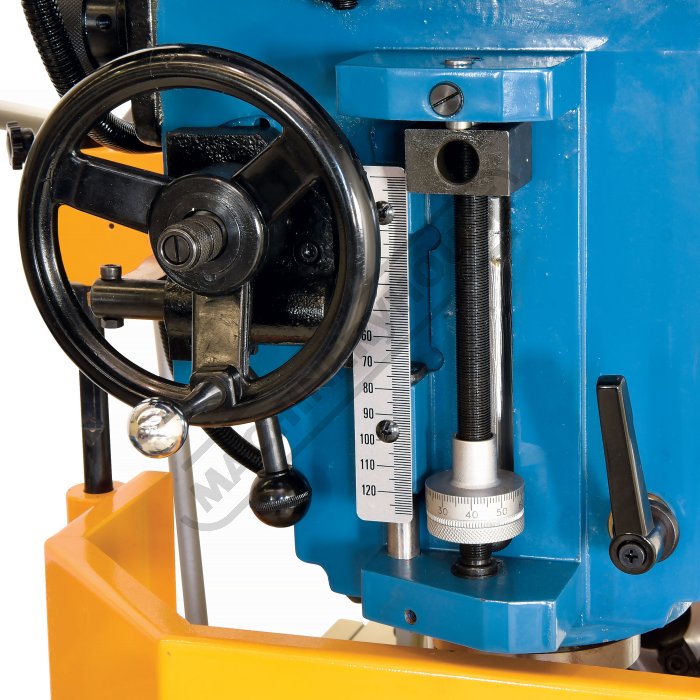

Quill Feed Depth Stop
23 of 35

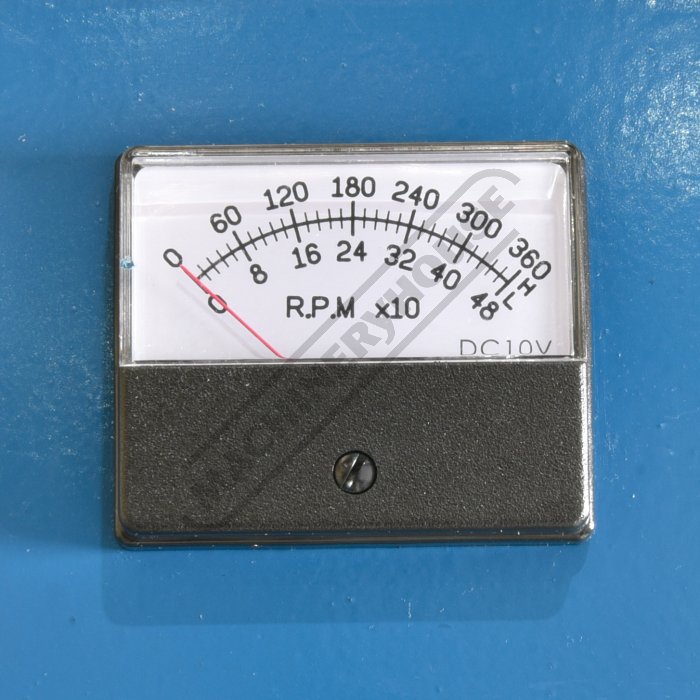

Variable Inverter Speed
24 of 35

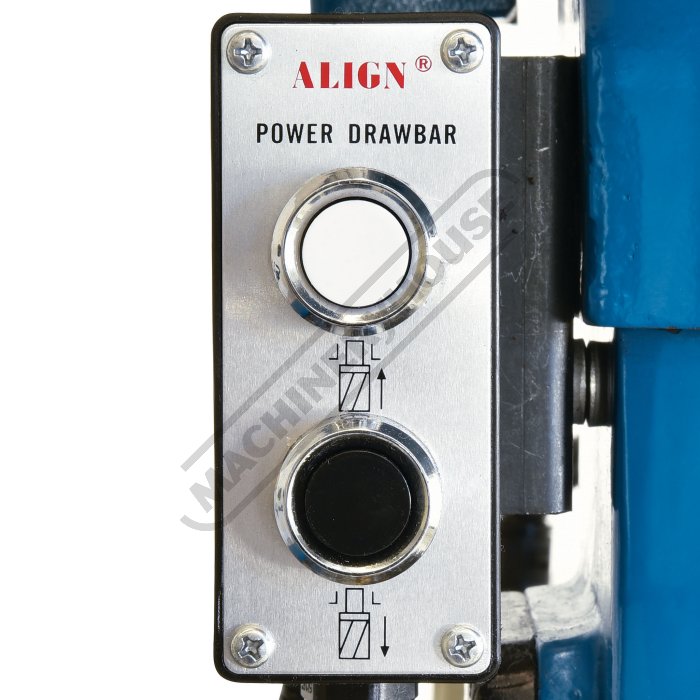

Air Powered Draw Bar Control
25 of 35

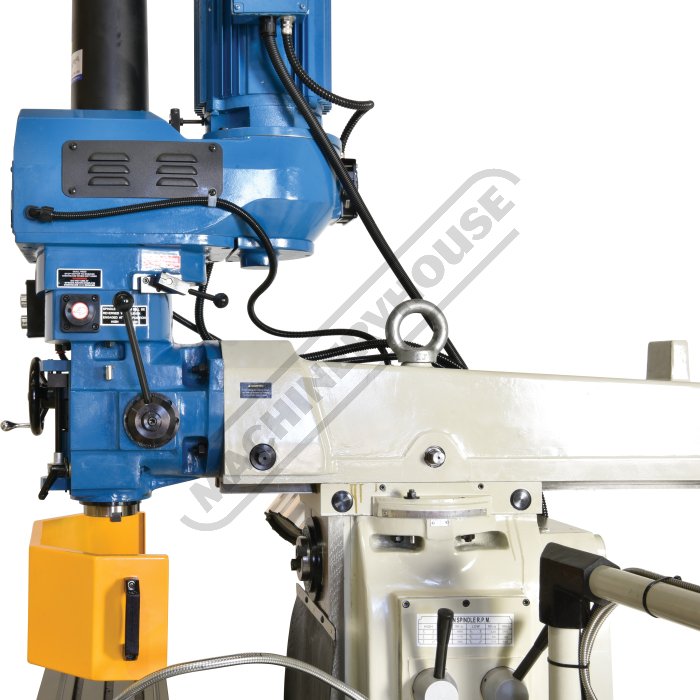

Mill Head Right Side View
26 of 35

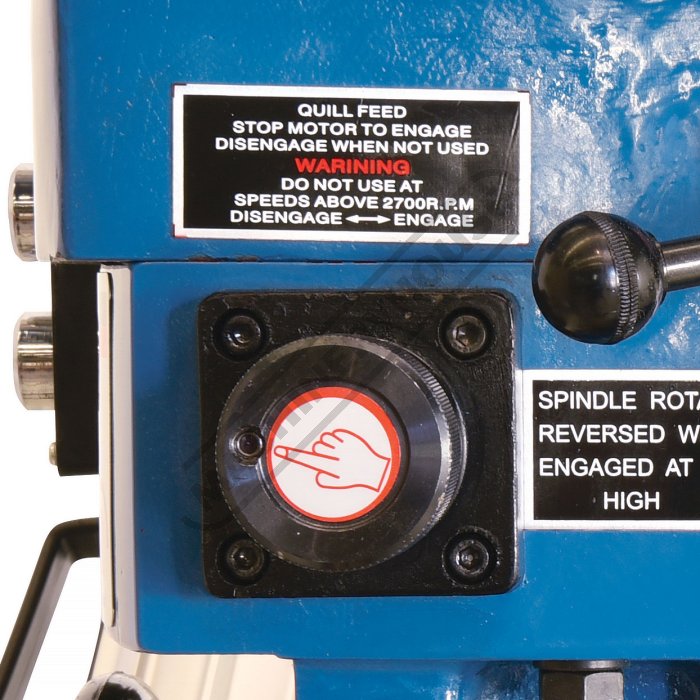

Quill Feed Engagement Dial
27 of 35

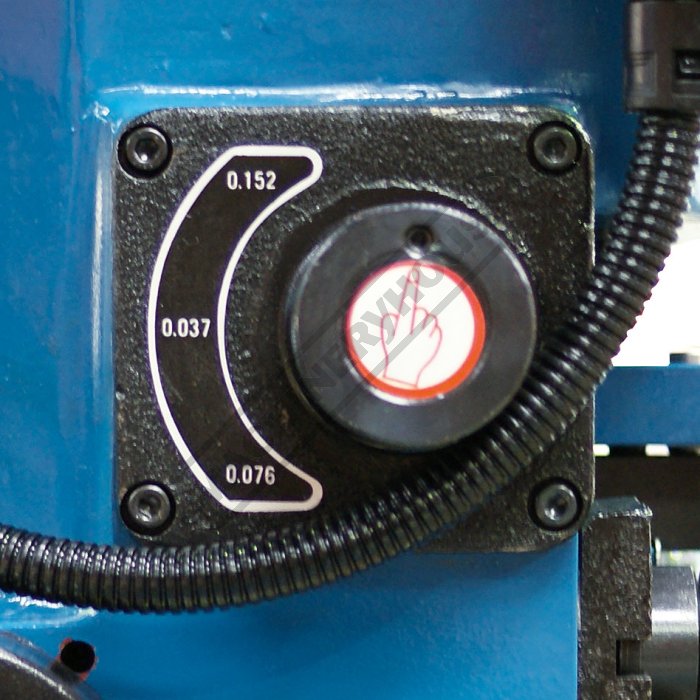

3 Speed Quill Feed
28 of 35

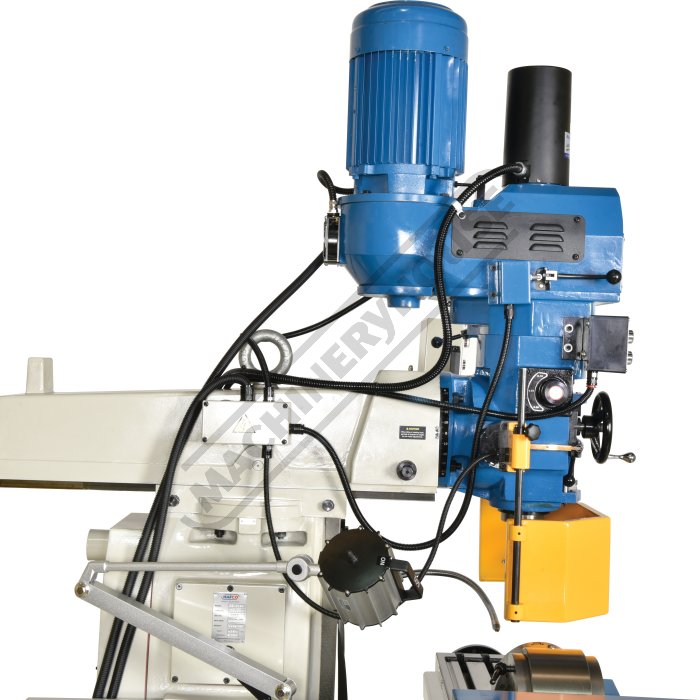

Mill Head Left Side View
29 of 35
High Low Spindle Speed Gear Lever
30 of 35

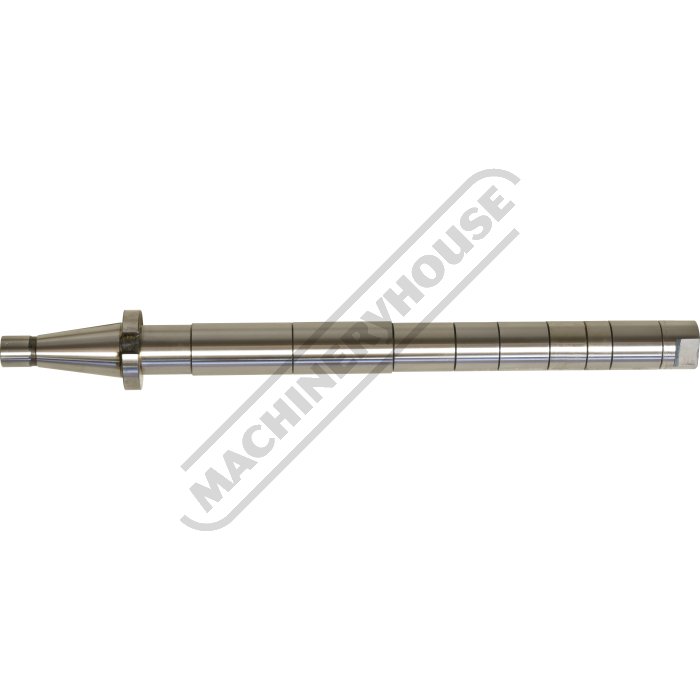

Includes Horizontal Arbor
31 of 35

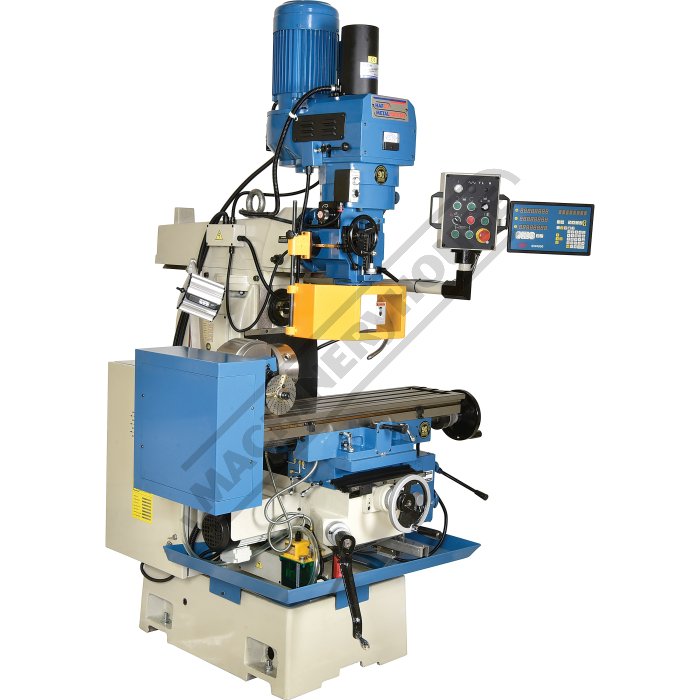

Left View
32 of 35

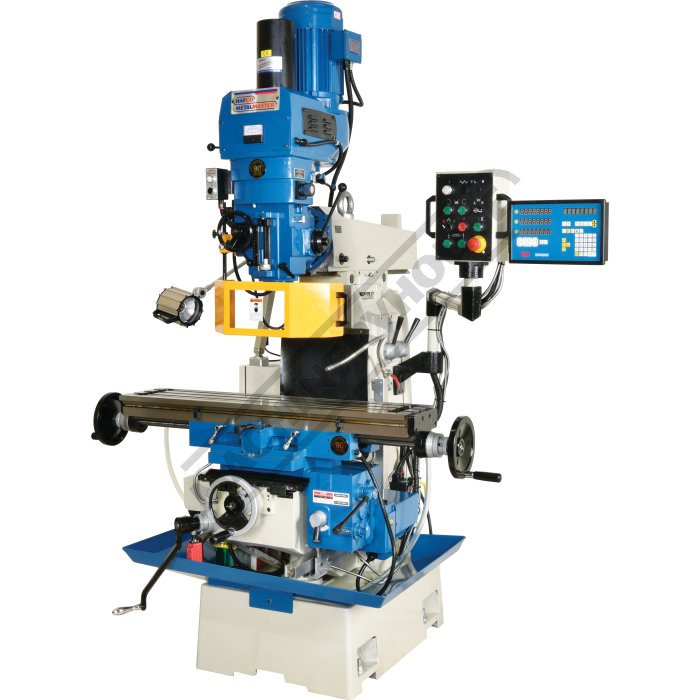

Removed Dividing Head
33 of 35

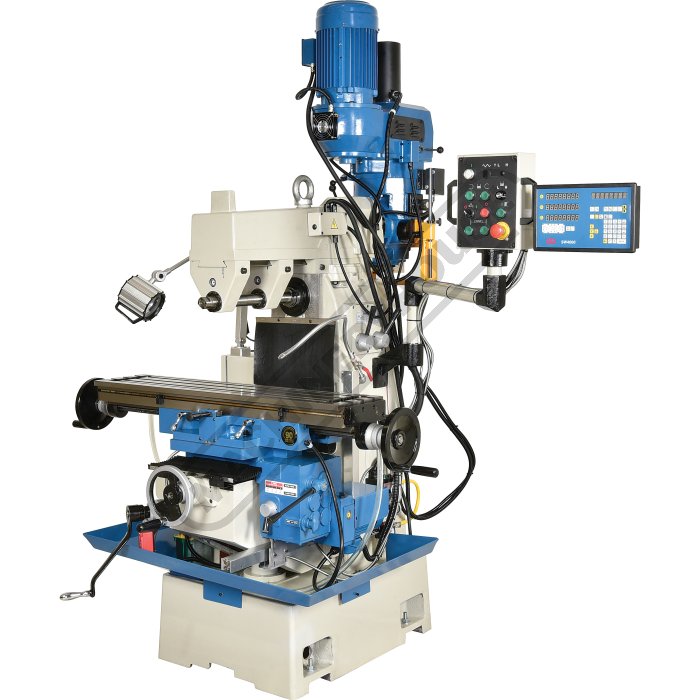

Removed Dividing Head Horizontal Head Setup
34 of 35

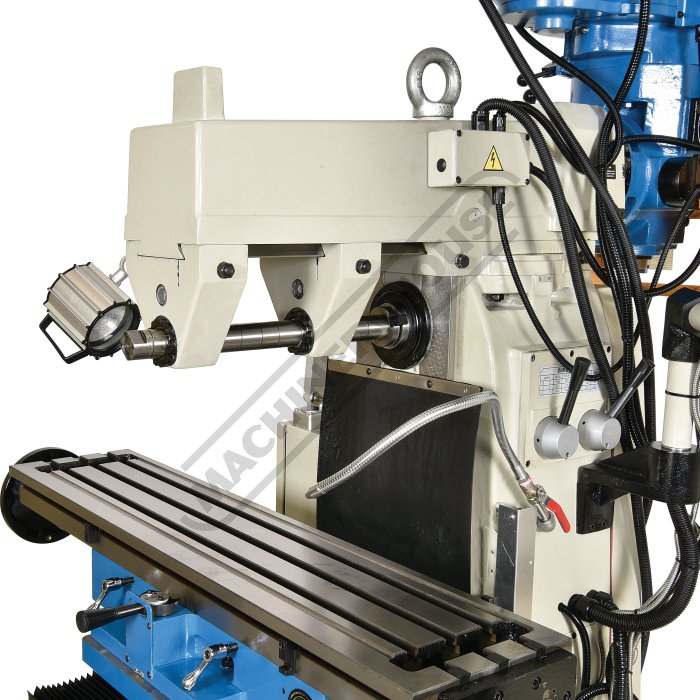

Removed Dividing Head Horizontal Head Setup Close Up
35 of 35
Order Code: M586E
Please Call
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Made in Taiwan
Description
Industrial Turret Milling Machine - Horizontal & Vertical - BM-GEVS250
Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm
Includes DRO, BS-2 Universal Dividing Head & Pneumatic Drawbar System
Features
- Vertical spindle, Yaskawa inverter variable speed drive 60 – 3600rpm
- Horizontal spindle, 40-980 rpm speeds controlled by gear selection levers with oil bath lubrication
- 5HP vertical & 3HP horizontal spindle motors provide exceptional machining power
- 1100 x 250mm hardened and ground worktable with ±45º left and right swivel
- NT40 spindle taper with Ø105mm chrome hardened and ground quill
- Automatic quill feed 0.037, 0.076, 0.152mm/rev
- Vertical mill head swivels ±45º to left and right
- Spindle guard with micro switch
- 3-Axis digital readout fitted
- Pneumatic draw bar system for quick and effortless tool change
- Heavy duty gear driven X Axis power-feed
- Z-Axis powered elevating motor
- Metric dial graduations @ 0.02mm for X , Y & Z-Axis
- Meehanite castings for superior rigidity
- Hardened and ground dovetail guideways
- Turcite-B coating on X & Y-Axis ways for wear resistance and smooth operation
- Auto lubrication system maintains proper lubrication to all slideways
- Universal BS-2 dividing head with chuck and guarding
Includes
- 3-Axis Digital Readout Fitted
- Automatic Lubrication System
- LED Lamp
- Coolant System
- Slide-way Covers
- Safety Cutter Guard
- Swarf Tray
- 1" Horizontal Arbor
- 2 x Horizontal Arbor Supports
- 2 x M16 Drawbars
Compare Product Range
Specifications
| ORDER CODE | M585E |
|---|---|
| MODEL | BM-GEVS250 |
| Digital Readout | 3-Axis Digital Readout |
| Spindle Taper | NT40 |
| (mm)Quill Travel / Diameter | 127 / 105 |
| (mm)Spindle to Table | 470 |
| Type of Slides | Dovetail (X,Y & Z) |
| (mm)Spindle to Column | 500 |
| (mm)Table Size | 1100 x 250 |
| (mm)T-Slot | 5/8" |
| (mm)Longitudinal Travel (X-Axis) | 700 |
| (mm)Cross Travel (Y-Axis) | 250 |
| (mm)Vertical Travel (Z-Axis) | 440 |
| (kg)Work Table Load Capacity | 300 |
| Swivel Head (Left - Right) | ±90º |
| (mm/rev)Quill Feed Rate/Rev | 0.037 / 0.076 / 0.152 |
| (No. / rpm)Spindle Speeds (Vertical) | Variable (60 - 3600) |
| (No. / rpm)Spindle Speeds (Horizontal) | 6 (40 - 980) |
| (kW / hp)Motor Power (Vertical) | 3.75 / 5 |
| (kW / hp)Motor Power (Horizontal) | 2.25 / 3 |
| (V / amp)Motor Voltage | 415 |
| (kg)Nett Weight | 1350 |
