Safeway Compact Hydraulic Vice - Angle Drive - CHV-160V-D
160mm Jaw Width
240mm Jaw Opening
V3225
1 of 1
On Sale
Order Code: V3225
ex-gst
inc-gst
$
3,356.00
$
3,859.40
$
2,688.70
$
3,092.00
1 Year Warranty
Made in Taiwan
Description
Safeway Compact Hydraulic Vice - Angle Drive - CHV-160V-D
160mm Jaw Width
240mm Jaw Opening
Overview
Drive can be operated from either the top of the vice or from the end.
Features
- Precision ground on all surfaces
- Flame-hardened bed to HRC 45
- Semi-sphere to eliminate jaw lift
- Swarf covers over leadscrew
- Toleranced for use as matched pairs
- Full hydraulic function is maintained
Compare Product Range
Specifications

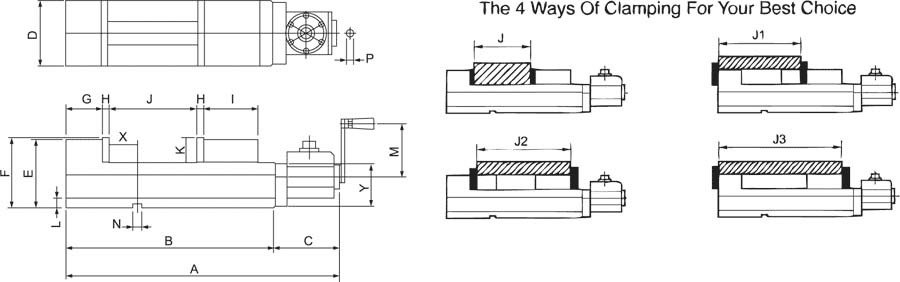

| ORDER CODE | V3225 |
|---|---|
| MODEL | CHV-160V-D |
| (mm)Jaw Width | 160 |
| (mm)D - Jaw Width | 161 |
| (mm)J - Jaw Opening | 240 |
| (mm)J1 - Jaw Opening with Optional Jaws | 240 - 320 |
| (mm)J2 - Jaw Opening with Optional Jaws | 240 - 360 |
| (mm)J3 - Jaw Opening with Optional Jaws | 240 - 470 |
| (mm)K - Jaw Height | 58 |
| (kgf)Pressure | 5500 |
| (mm)A | 667 |
| (mm)B | 495 |
| (mm)C | 172 |
| (mm)E | 160 |
| (mm)F | 163 |
| (mm)G | 85 |
| (mm)H | 15 |
| (mm)I | 130 |
| (mm)L | 22 |
| (mm)M | 125 |
| (mm)N | 18 |
| (mm)P | 14 |
| (mm)X | 65 |
| (mm)Y | 105 |
| (kg)Nett Weight | 58 |
On Sale - Back In Stock Soon
On Sale - Back In Stock Soon
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- (mm)Jaw Width
- (mm)D - Jaw Width
- (mm)J - Jaw Opening
- (mm)J1 - Jaw Opening with Optional Jaws
- (mm)J2 - Jaw Opening with Optional Jaws
- (mm)J3 - Jaw Opening with Optional Jaws
- (mm)K - Jaw Height
- (kgf)Pressure
- (mm)A
- (mm)B
- (mm)C
- (mm)E
- (mm)F
- (mm)G
- (mm)H
- (mm)I
- (mm)L
- (mm)M
- (mm)N
- (mm)P
- (mm)X
- (mm)Y
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- V320
- CHV-100V
- 100
- 101
- 125
- 125 - 190
- 125 - 230
- 125 - 320
- 48
- 3500
- 475
- 340
- 135
- 130
- 133
- 65
- 15
- 105
- 22
- 125
- 16
- 14
- 45
- 85
- 24
- $1,650.43
- $1,898.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- V321
- CHV-130V
- 130
- 131
- 180
- 180 - 240
- 180 - 290
- 180 - 380
- 52
- 4500
- 540
- 405
- 135
- 147
- 150
- 70
- 15
- 115
- 22
- 125
- 18
- 14
- 65
- 95
- 37
- $1,847.83
- $2,125.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- V321D
- CHV-130V-D
- 130
- 131
- 180
- ~
- ~
- ~
- 55
- 4500
- 577
- 405
- 172
- 147
- 150
- 70
- 15
- 115
- 22
- 125
- 18
- 14
- 65
- 95
- 37
- $2,433.04
- $2,798.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- V322
- CHV-160V
- 160
- 161
- 240
- 240 - 320
- 240 - 360
- 240 - 470
- 58
- 5500
- 630
- 495
- 135
- 160
- 163
- 85
- 15
- 130
- 22
- 125
- 18
- 14
- 65
- 105
- 58
- $2,101.74
- $2,417.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- V323
- CHV-200V
- 200
- 201
- 280
- 280 - 360
- 280 - 420
- 280 - 540
- 63
- 7000
- 705
- 570
- 135
- 170
- 173
- 90
- 18
- 150
- 22
- 125
- 18
- 14
- 82
- 110
- 80
- $2,688.70
- $3,092.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- V3225
- CHV-160V-D
- 160
- 161
- 240
- 240 - 320
- 240 - 360
- 240 - 470
- 58
- 5500
- 667
- 495
- 172
- 160
- 163
- 85
- 15
- 130
- 22
- 125
- 18
- 14
- 65
- 105
- 58
- $2,688.70
- $3,092.00
- ADD TO CART
