Dust Collector - DC-60
1200cfm - LPHV System
W396
1 of 1
Discontinued
Order Code: W396
240V / 10A
2 Years Warranty
2 Years Warranty
Made in Taiwan
Description

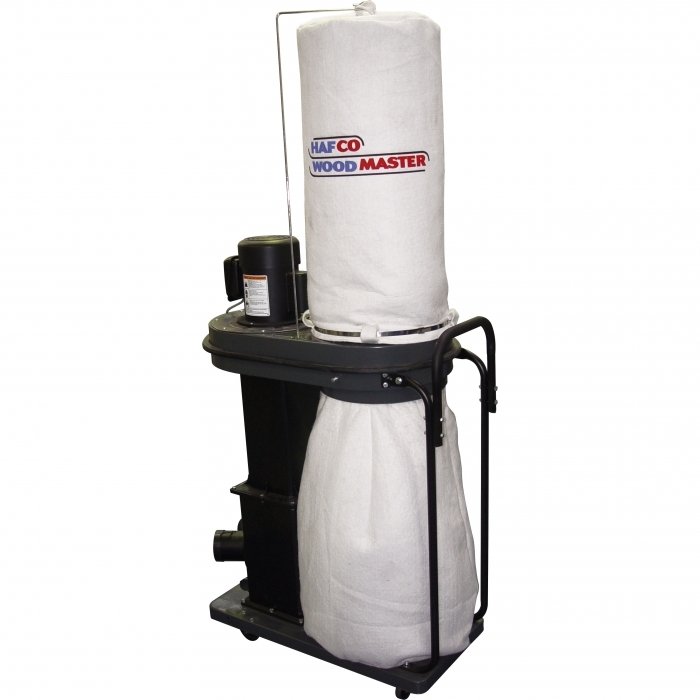

Dust Collector - DC-60
1200cfm - LPHV System
Overview
LPHV = Low Pressure High Volume System
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
Features
- 1.5kW (2HP) 240V motor
- 1200cfm air flow suction
- Floor sweeping attachment
- Portable on wheels
- 100mm(4") x twin inlets
- Quick-action clamps
- Quick-change drop in bottom bag
- 2 Micron Filter Bag
- MADE IN TAIWAN
Compare Product Range
Specifications
| ORDER CODE | W396 |
|---|---|
| MODEL | DC-60 |
| Type | Dust Collector |
| (CFM)Airflow | 1200 |
| (Yes / No)LPHV - Low Pressure High Volume | Yes |
| (Yes / No)HPLV - High Pressure Low Volume | No |
| (No. / mm)Inlets / Diameter | 2 x Ø100 |
| (kW / hp)Motor Power | 1.5 / 2 |
| (V / amp)Voltage | 240 / 10 |
| (kg)Nett Weight | 50 |
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- Type
- (CFM)Airflow
- (Yes / No)LPHV - Low Pressure High Volume
- (Yes / No)HPLV - High Pressure Low Volume
- (No. / mm)Inlets / Diameter
- (No. / mm)Outlets / Diameter
- (kW / hp)Motor Power
- (V / amp)Voltage
- (mm)Floor Space (W x D x H)
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- Back In Stock Soon
-
Compare
-
Wishlist
- W390
- DDC-50L
- Dust Collector
- ~
- ~
- ~
- ~
- ~
- ~
- 240 / 10
- ~
- ~
- $244.00
- $280.60
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W332
- DC-2
- Dust Collector
- 500
- Yes
- No
- 1 x Ø100
- ~
- 0.75 / 1
- 240 / 10
- 750 x 400 x 1550
- 30
- $240.00
- $276.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W886
- HD12
- Dust Collector
- 680
- Yes
- No
- 1 x Ø100
- ~
- 0. 56 / 0.75
- 240 / 10
- 900 x 520 x 1570
- 24
- $269.57
- $310.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W316
- CDS-2/3
- Cyclone Dust Separator
- ~
- No
- No
- 2 x Ø100
- Ø152 ~ 25mm
- ~
- ~
- 650 x 560 x 1700
- 19
- $451.30
- $519.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W394
- DC-3
- Dust Collector
- 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- 1000 x 700 x 1950
- 42
- $430.43
- $495.00
- ADD TO CART
- On Sale - Package Deal
-
Compare
-
Wishlist
- K047
- DCC-310
- Dust Collector Package
- 1200
- Yes
- No
- 2 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- 2000 x 700 x 1950
- 91
- $1,200.00
- $1,380.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W329
- DC-7
- Dust Collector
- 2300
- Yes
- No
- 3 x Ø100
- ~
- 2.25 / 3
- 240 / 10
- 1550 x 740 x 1930
- 51
- $565.22
- $650.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W331
- DC-90
- Dust Collector
- 3200
- Yes
- No
- 3 x Ø100
- ~
- 3.75 / 5
- 415
- 1600 x 800 x 2840
- 109
- $1,860.00
- $2,139.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W319
- CD-20
- Dust Collector &
Cyclone Separator - 910
- Yes
- No
- 3 x Ø100
- ~
- 1.5 / 2
- 240 / 10
- ~
- 130
- $1,900.00
- $2,185.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W320
- CD-30
- Dust Collector &
Cyclone Separator - 2204
- Yes
- No
- 3 x Ø100
- ~
- 2.2 / 3
- 240 / 15
- ~
- 152
- $2,694.78
- $3,099.00
- ADD TO CART
