Discontinued
Order Code: W850
Description

Planer & Thicknesser Combination - HSS Blades - Plana 3.0

260mm Wide Planer Capacity
250 x 210mm (W x H) Thicknesser Capacity
Overview

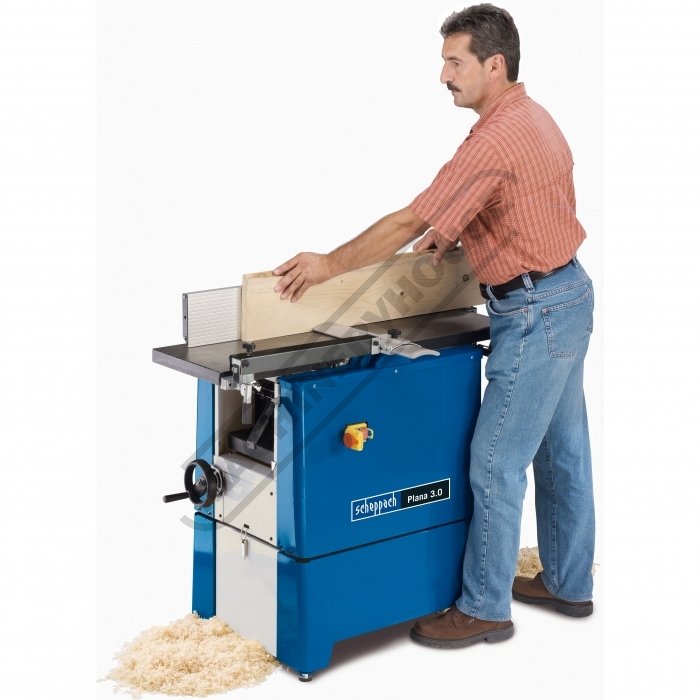

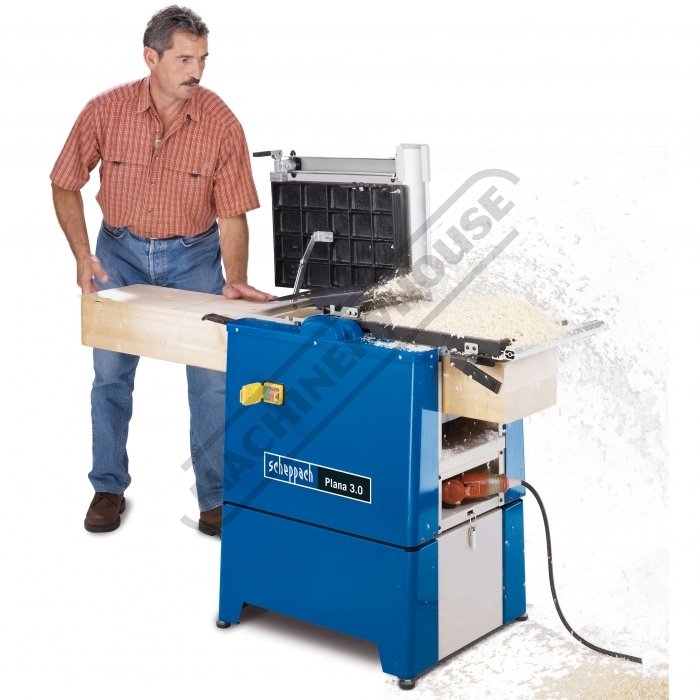

Whether stationary or mobile: the Plana 3.0 is the most efficient and cost effective planer & thicknesser available for the professional user, serious home wood workers and educational workshops.

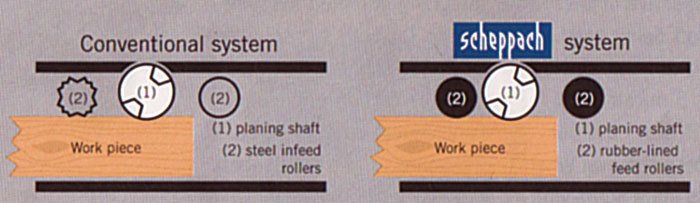

Sheppach's unique patented feed and cutting system, which ensures the best possible finish irrespective of the timbers used. Feed roller indentation marks are totally eliminated and the moderately set feed speed of 5m/min combined with 13,000 cuts per minute.

These special features are enhanced by superb power and stability.

Cast iron tables and powerful motor supply add to the outstanding performance of this robust classic machine.
Adjustment of the thickness table height can be set to within 1/10th mm allowing for a "super-fine" final finish. Perfect when you are working on wild grain timbers!
Whether you are looking for the best working capacity combined with best quality finish or economical price, you get it all with the new Sheppach Plana 3.0
Features
  • German design & technology
  • Heavy duty machines CAST IRON tables (easily and accurately adjustable)
  • Unique vulcanised rubber feed system on the thickness mode
  • 260mm planer width capacity

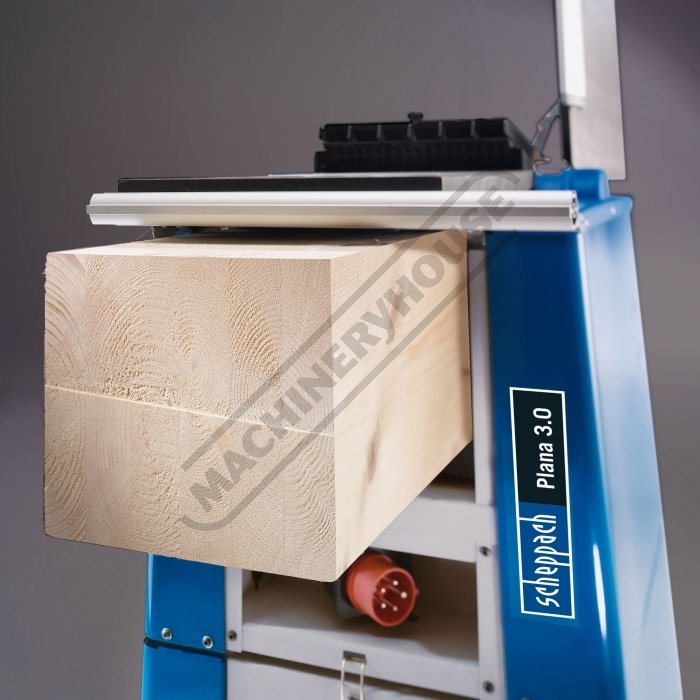

  • 250 x 210mm thicknesser capacity
  • 100mm dust collector port
  • 3mm stock removal
  • Powerful 3HP motor for constant feed in both hard and soft timbers
  • Large professional planing fence
  • Cast Iron thickness table adjustment to 1/10mm for super fine finishing
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (mm)Planer Capacity
  • (HSS / Carb)Cutter Head Type
  • (mm)Table Length - Planer
  • (mm)Table Height - Planer
  • (mm)Length of Infeed Planer Table
  • (mm)Length of Outfeed Planer Table
  • (mm)Fence Length x Height
  • (mm)Thicknesser Capacity
  • (mm)Table Length - Thicknesser
  • (m/min)Feed Speed
  • (mm)Cutter Block Diameter
  • (rpm)Cutter Block Speed
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (mm)Floor Space (W x D x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale W611
  • Compare
  • Wishlist
  • W611
  • PT-254S
  • 254
  • Carbide Inserts
  • 1110
  • 810
  • 525
  • 525
  • 1080 x 130
  • 254 x 190
  • 700 (with roller extension support)
  • 5
  • 70
  • 4800
  • 2.2 / 3
  • 240 / 10
  • 1100 x 600 x 940
  • 216
  • $3,000.00
  • $3,450.00
  • ADD TO CART
  • On Sale - Back In Stock Soon W612
  • Compare
  • Wishlist
  • W612
  • PT-305S
  • 305
  • Carbide Inserts
  • 1380
  • 850
  • 715
  • 635
  • 1200 x 150
  • 310 x 225
  • 740 (with roller extension support)
  • 5
  • 70
  • 4800
  • 3 / 4
  • 240 / 15A
  • 1385 x 705 x 1000
  • 303
  • $4,400.00
  • $5,060.00
  • ADD TO CART
  • Discontinued W850
  • Compare
  • Wishlist
  • W850
  • Plana 3.0
  • 260
  • HSS Blades
  • 1050
  • 680
  • ~
  • ~
  • ~
  • 250 x 210
  • ~
  • 5
  • ~
  • ~
  • 2.25 / 3
  • 240 / 15
  • 1300 x 730 x 1000
  • 180
  • N/A
  • N/A
  • ENQUIRE
