High Precision 3 Jaw Self Centering Lathe Chuck - SK-6
Ø167mm
Front or Rear Back Plate Mount
C7003
1 of 6
Back Plate Mount
2 of 6

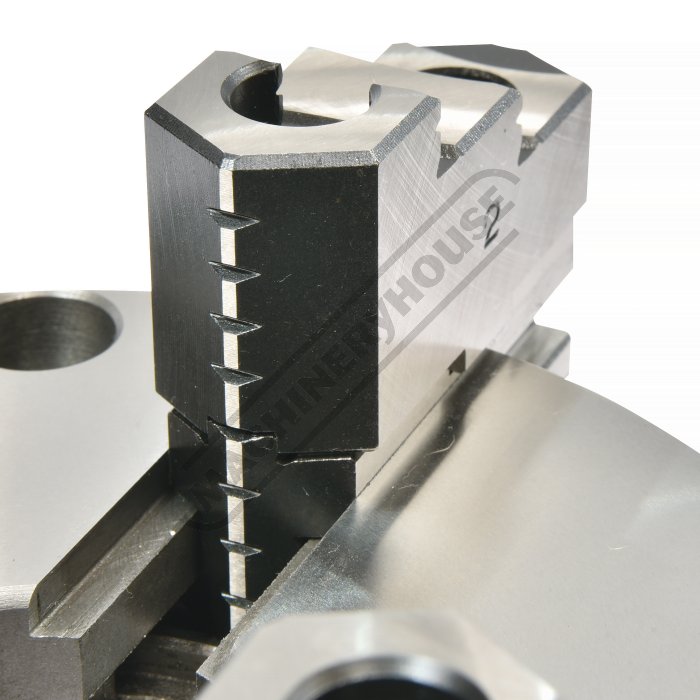

Jaw Front Profile
3 of 6

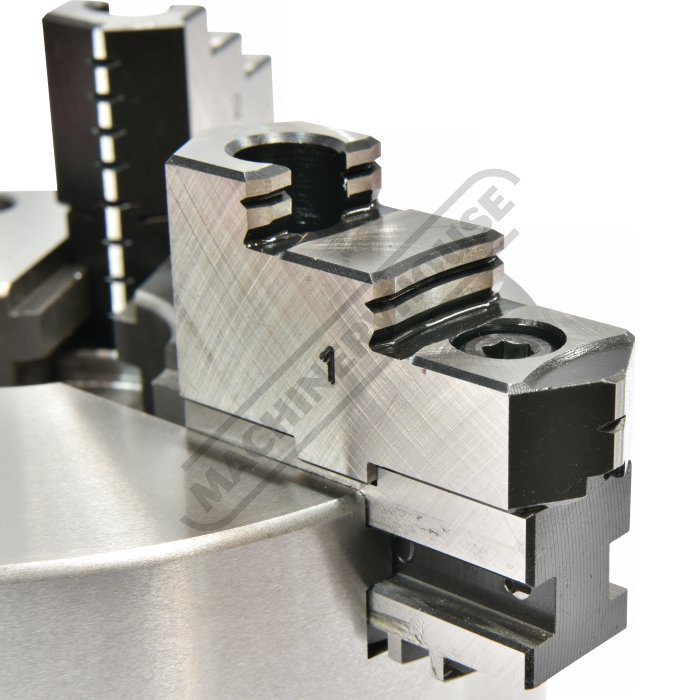

Interchangable Jaws
4 of 6

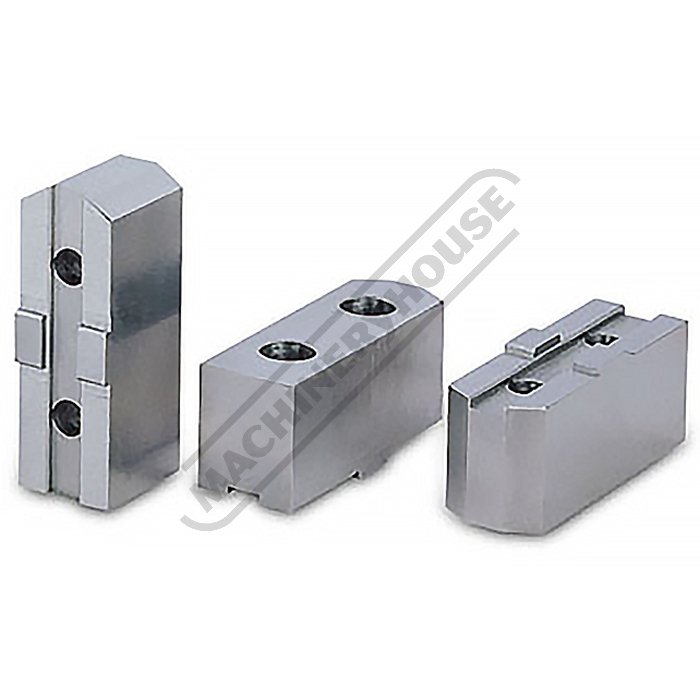

Optional Soft Jaws
5 of 6

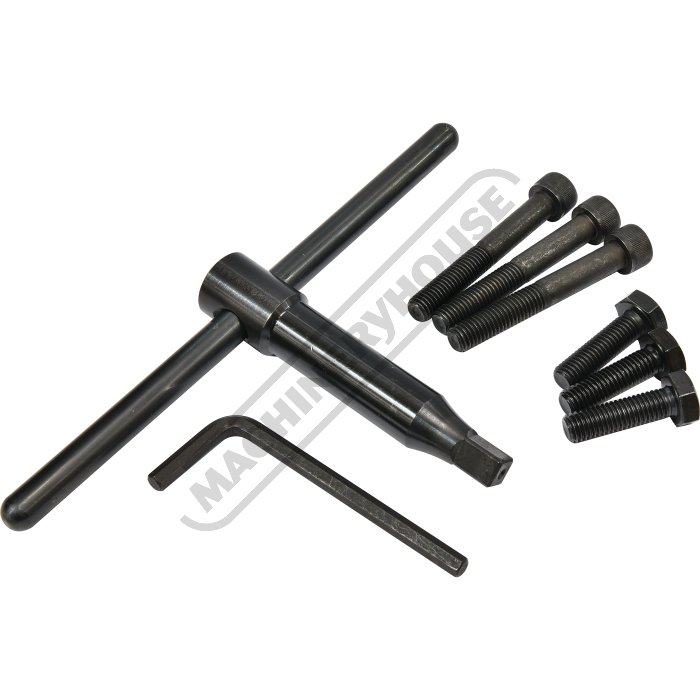

Included Accessories
6 of 6
On Sale
Order Code: C7003
ex-gst
inc-gst
$
842.00
$
968.30
$
673.04
$
774.00
1 Year Warranty
Made in Taiwan
Description
High Precision 3 Jaw Self Centering Lathe Chuck - SK-6
Ø167mm
Front or Rear Back Plate Mount
Overview
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.
Features
- 3 Jaw self centering lathe chuck
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R
- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 2000rpm)
- Plain back suitable for front or rear back plate mounting
- Optional bolt on soft jaws are available
Includes
- Chuck key

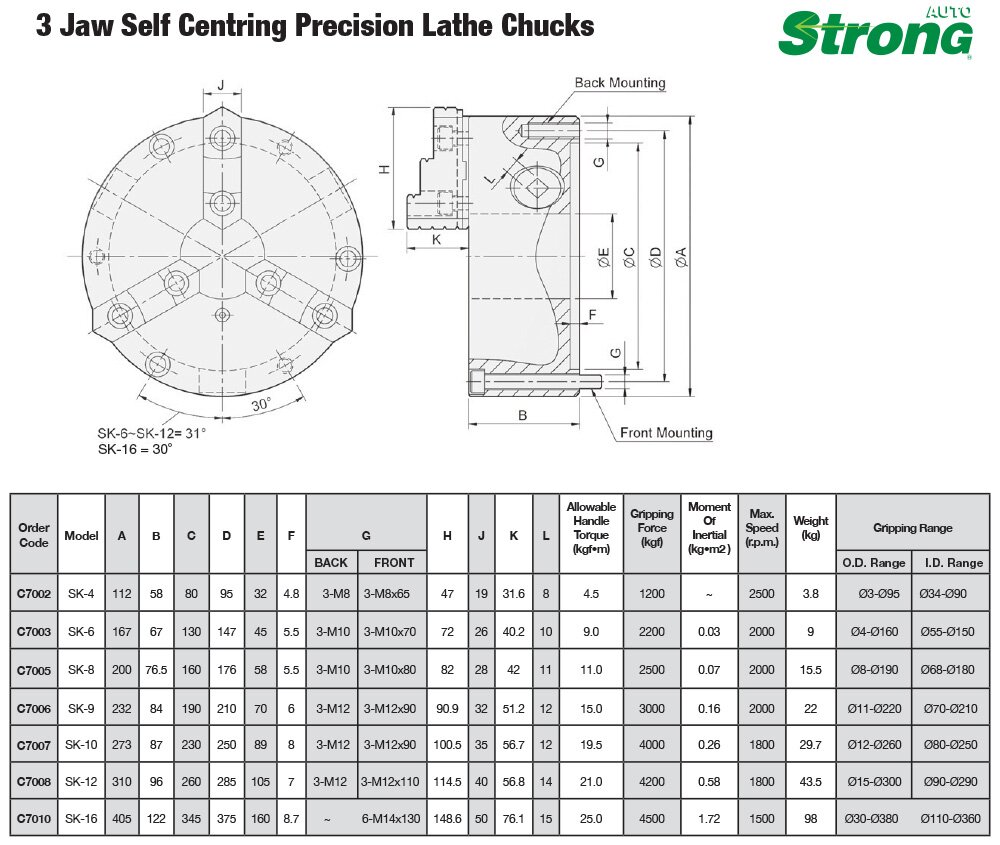

Compare Product Range
Specifications
| ORDER CODE | C7003 |
|---|---|
| Model | SK-6 |
| (mm)Chuck Size | Ø167 |
| (mm)Bore / Through Hole Size | Ø45 |
| Mounting Type | Back Plate |
| ((kgf))Gripping Force | 2200 |
| (mm)Gripping Range OD | Ø4 - 160 |
| (mm)Gripping Range ID | Ø55 - 150 |
| (rpm)Max Speed Rating | 2000 |
| (Kg)Nett Weight | 9 |
On Sale
On Sale
- Compare:
- Wishlist:
- ORDER CODE
- Model
- (mm)Chuck Size
- (mm)Bore / Through Hole Size
- Mounting Type
- ((kgf))Gripping Force
- (mm)Gripping Range OD
- (mm)Gripping Range ID
- (rpm)Max Speed Rating
- (Kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale - Special Order
-
Compare
-
Wishlist
- C7002
- SK-4
- Ø112
- Ø32
- Back Plate
- 1200
- Ø3 - 95
- Ø34 - 90
- 2500
- 3.8
- $581.74
- $669.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7003
- SK-6
- Ø167
- Ø45
- Back Plate
- 2200
- Ø4 - 160
- Ø55 - 150
- 2000
- 9
- $673.04
- $774.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7005
- SK-8
- Ø200
- Ø58
- Back Plate
- 2500
- Ø8 - 190
- Ø68 - 180
- 2000
- 16
- $830.43
- $955.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7006
- SK-9
- Ø232
- Ø70
- Back Plate
- 3000
- Ø11 - 220
- Ø70 - 210
- 2000
- 24
- $967.83
- $1,113.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7007
- SK-10
- Ø273
- Ø89
- Back Plate
- 4000
- Ø12 - 260
- Ø80 - 250
- 1800
- 32
- $1,289.57
- $1,483.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7008
- SK-12
- Ø310
- Ø105
- Back Plate
- 4200
- Ø15 - 300
- Ø90 - 290
- 1800
- 46
- $1,807.83
- $2,079.00
- ADD TO CART
- On Sale - Special Order
-
Compare
-
Wishlist
- C7010
- SK-16
- Ø405
- Ø160
- Back Plate
- 4500
- Ø30 - 380
- Ø110 - 360
- 1500
- 100
- $4,900.00
- $5,635.00
- ADD TO CART
