High Precision 3 Jaw Self Centering Lathe Chuck - SK-9
Ø232mm
Front or Rear Back Plate Mount
C7006
1 of 2
Optional Soft Jaws
2 of 2
On Sale
Order Code: C7006
ex-gst
inc-gst
$
1,208.00
$
1,389.20
$
967.83
$
1,113.00
1 Year Warranty
Made in Taiwan
Description
High Precision 3 Jaw Self Centering Lathe Chuck - SK-9
Ø232mm
Front or Rear Back Plate Mount
Overview
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.
Features
- 3 Jaw self centering lathe chuck
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R
- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 2000rpm)
- Plain back suitable for front or rear back plate mounting
- Optional bolt on soft jaws are available
Includes
- Chuck key
Compare Product Range

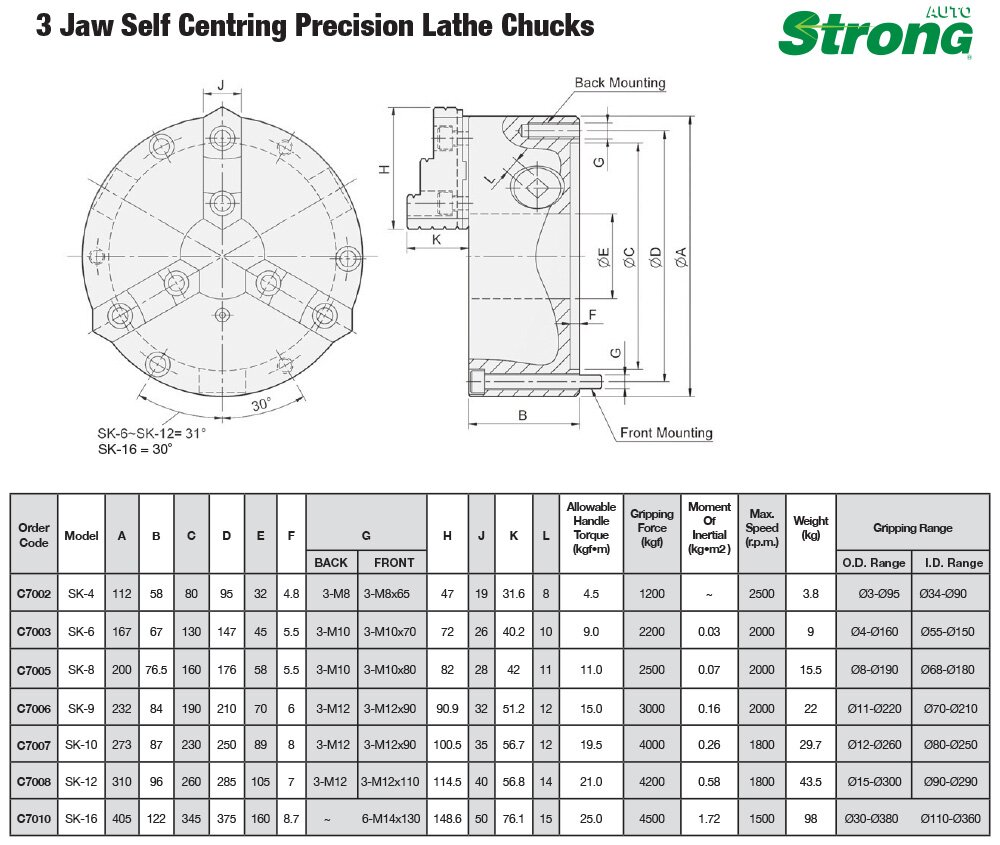

Specifications
| ORDER CODE | C7006 |
|---|---|
| Model | SK-9 |
| (mm)Chuck Size | Ø232 |
| (mm)Bore / Through Hole Size | Ø70 |
| Mounting Type | Back Plate |
| ((kgf))Gripping Force | 3000 |
| (mm)Gripping Range OD | Ø11 - 220 |
| (mm)Gripping Range ID | Ø70 - 210 |
| (rpm)Max Speed Rating | 2000 |
| (Kg)Nett Weight | 24 |
