Lathe - Boring Ring for Chuck Soft Jaws
Ø6" (Ø150mm)
L763
1 of 1
On Sale - Back In Stock Soon
Order Code: L763
ex-gst
inc-gst
$
306.00
$
351.90
$
243.48
$
280.00
1 Year Warranty
Made in Taiwan
Description

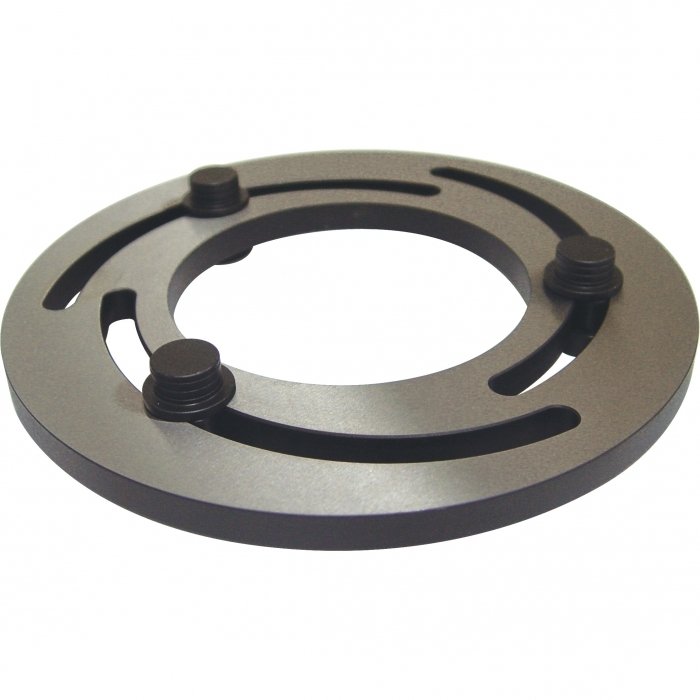

Lathe - Boring Ring for Chuck Soft Jaws
Ø6" (Ø150mm)
Overview
To suit any lathe that uses soft jaws. The ring is used to hold the jaws in place so the the soft jaws can be machined to a certain size.
Material SCM440
Material SCM440
Features
- Maintains a high level of accuracy
- The operation process is as follows
- 1. Set the jaws to the correct position that will allow the diameter required to be machined.
- 2. Adjust the boring ring so that the pins are located in the recessed hols in the jaws.
- 3. Lock the chuck so that the boring ring is clamped.
- 4. Machine the jaws to the required size.
- 5. Unlock the chuck and remove the boring ring
- 6. If the process is followed the jaws will repeat the accuracy each time the chuck is closed onto the work piece.
Compare Product Range

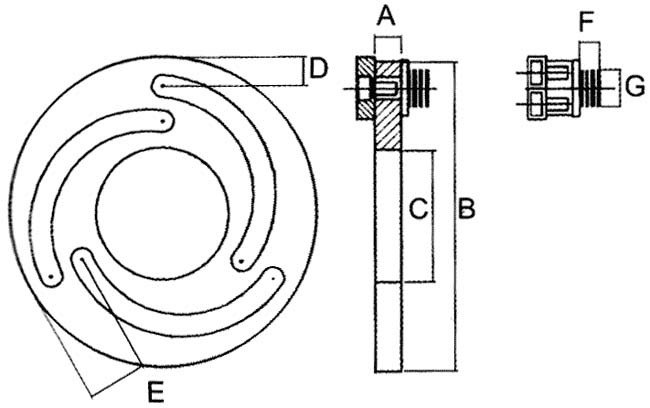

Specifications
| ORDER CODE | L763 |
|---|---|
| (inch)Size | 6" |
| (mm)A | 12 |
| (mm)B | 168 |
| (mm)C | 80 |
| (mm)D | 12 |
| (mm)E | 32 |
| (mm)F | 9 |
| (mm)G | 16.5 |
| (kg)Nett Weight | 1.6 |
- Compare:
- Wishlist:
- ORDER CODE
- (inch)Size
- (mm)A
- (mm)B
- (mm)C
- (mm)D
- (mm)E
- (mm)F
- (mm)G
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- L765
- 5"
- 12
- 140
- 60
- 12
- 28
- 9
- 13
- 1.1
- $243.48
- $280.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- L763
- 6"
- 12
- 168
- 80
- 12
- 32
- 9
- 16.5
- 1.6
- $243.48
- $280.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- L761
- 8"
- 12
- 218
- 115
- 15
- 36
- 9
- 18.5
- 2.4
- $283.48
- $326.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- L762
- 10"
- 12
- 258
- 150
- 17
- 40
- 9
- 18.5
- 3.1
- $312.17
- $359.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- L764
- 12"
- 15
- 316
- 188
- 21
- 50
- 9
- 21.5
- 6
- $460.00
- $529.00
- ADD TO CART
