Inside Micrometers - Small Tube Type - 25-150
50-500mm
Metric
Q150
1 of 5

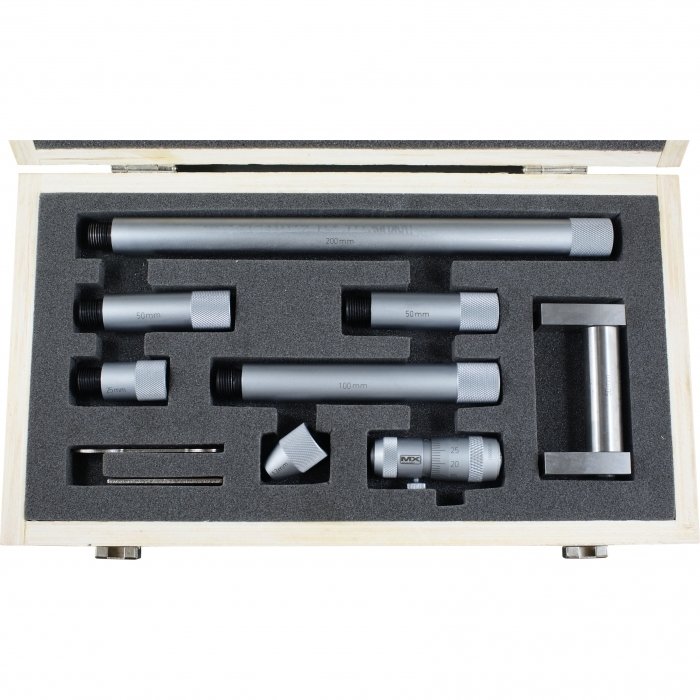

Set
2 of 5

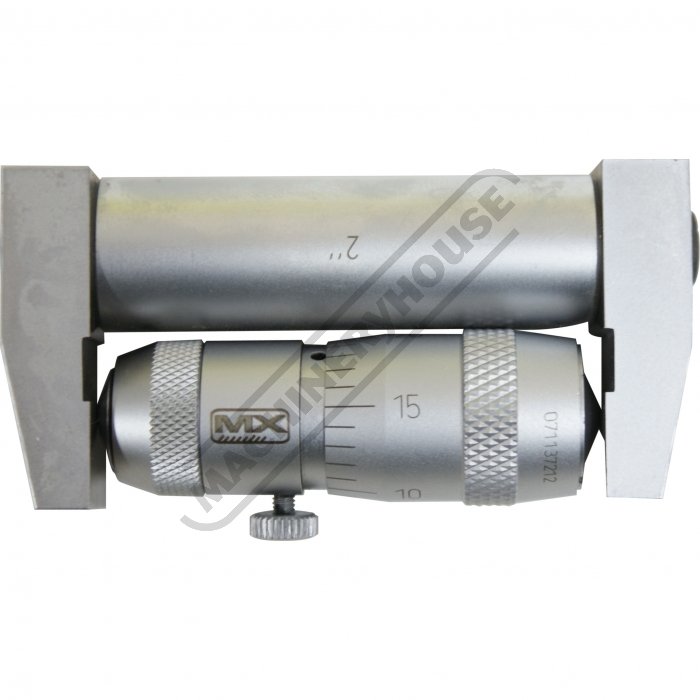

Figure 1
3 of 5

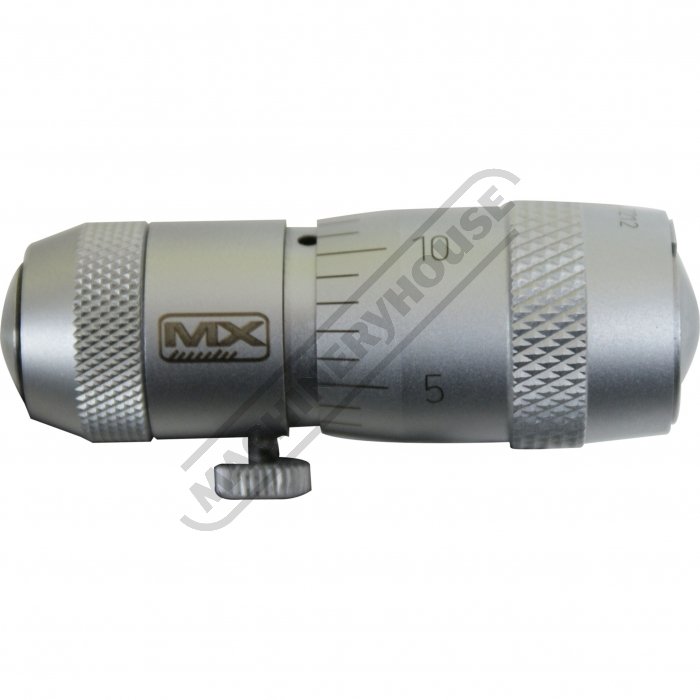

Figure 2
4 of 5

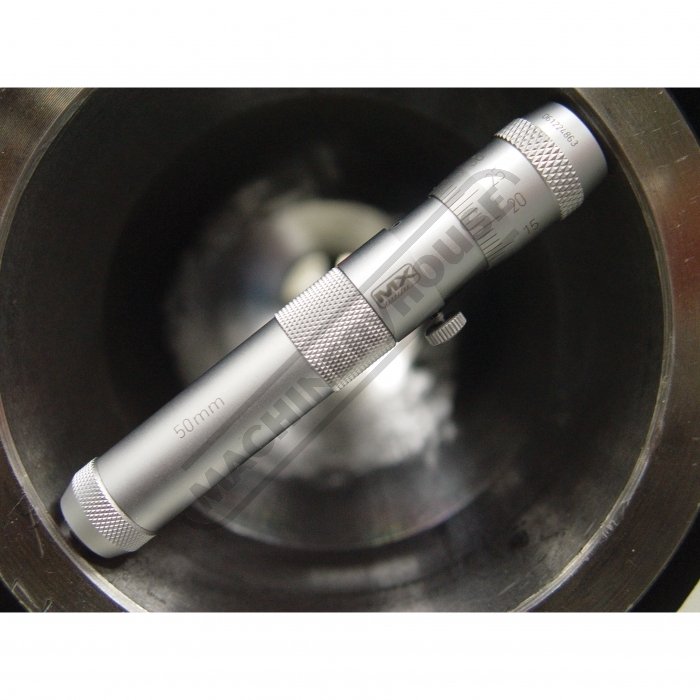

Internal Measuring
5 of 5
On Sale
Order Code: Q150
ex-gst
inc-gst
$
428.00
$
492.20
$
342.61
$
394.00
1 Year Warranty
Description
Inside Micrometers - Small Tube Type - 25-150
50-500mm
Metric
Overview
Measumax series 25 inside micrometers are a tube type and have a wide measuring range. Any one single tube inside micrometer can replace many bar type.
Features
- The combining of extension rods provide a wide measuring range
- Supplied with a standard caliper gauge for zero setting
- Carbide measuring faces. Positive locking clamp
- Diameter of extension rods: Ø15.5mm
- Graduation: 0.01mm
- Accuracy: Metric ±(3+n+L/50)µm.(n=number of rods, L= maximum measuring length)
Compare Product Range
Specifications
| ORDER CODE | Q150 |
|---|---|
| (mm / inch)Range | 50 - 500 |
| (mm / inch)Micrometer Head | 50 - 63 |
| (mm / inch)Graduation | 0.01mm |
| Extension Rods | 13,25,50 (2pce),100, 200 |
- Compare:
- Wishlist:
- ORDER CODE
- (mm / inch)Range
- (mm / inch)Micrometer Head
- (mm)Head Travel
- (mm / inch)Graduation
- Extension Rods
- (mm)Rod Diameter
- (µm)Accuracy
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- Q1491
- 50 - 300
- 50 - 63
- ~
- 0.01mm
- 13, 25, 50 (2pce), 100
- ~
- ~
- $272.17
- $313.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- Q1495
- 2 - 12"
- 2 - 2.5"
- ~
- 0.001"
- 0.5", 1", 2" (2pce), 4"
- ~
- ~
- $272.17
- $313.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- Q150
- 50 - 500
- 50 - 63
- ~
- 0.01mm
- 13,25,50 (2pce),100, 200
- ~
- ~
- $342.61
- $394.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- Q155
- 100 - 1300
- 100 - 125
- 25
- 0.01mm
- 25, 50, 100, 200, 2x400mm
- 22
- (3+n+L/50)
- $1,164.35
- $1,339.00
- ADD TO CART
