Large Tube Type - Inside Micrometer - 25-155
100-1300mm
Q155
1 of 5
Figure 1
2 of 5
Figure 2
3 of 5

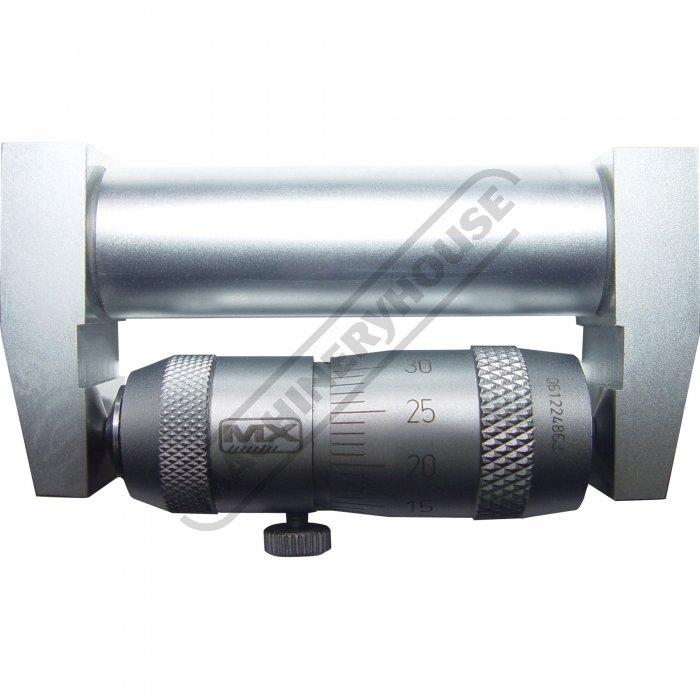

Setting
4 of 5

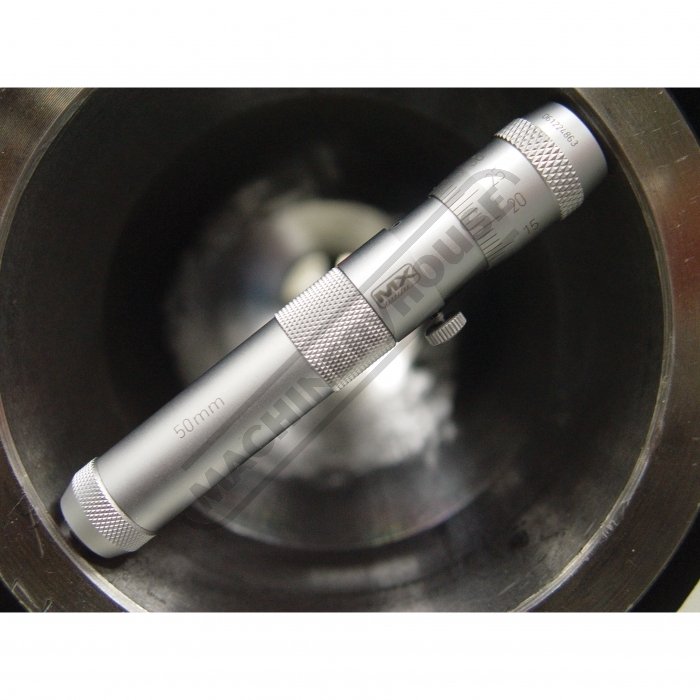

Internal Measuring
5 of 5
On Sale - Back In Stock Soon
Order Code: Q155
ex-gst
inc-gst
$
1,452.00
$
1,669.80
$
1,164.35
$
1,339.00
1 Year Warranty
Description
Large Tube Type - Inside Micrometer - 25-155
100-1300mm
Overview
Measumax series 25 inside micrometers are tube type with high rigidity for large diameter measuring.
Features
- The anvil and the spindle are hardened and precision ground
- Spindle thread is hardened and precision ground
- Carbide measuring faces
- Each interchangeable rod is marked with the range
- Large diameter rod for rigidity
- Graduation: 0.01mm
- Accuracy : Metric (7+n+L/50)µm (L=Max. measuring length, n=number of rods)
Compare Product Range
Specifications
| ORDER CODE | Q155 |
|---|---|
| (mm / inch)Range | 100 - 1300 |
| (mm / inch)Micrometer Head | 100 - 125 |
| (mm)Head Travel | 25 |
| (mm / inch)Graduation | 0.01mm |
| Extension Rods | 25, 50, 100, 200, 2x400mm |
| (mm)Rod Diameter | 22 |
| (µm)Accuracy | (3+n+L/50) |
