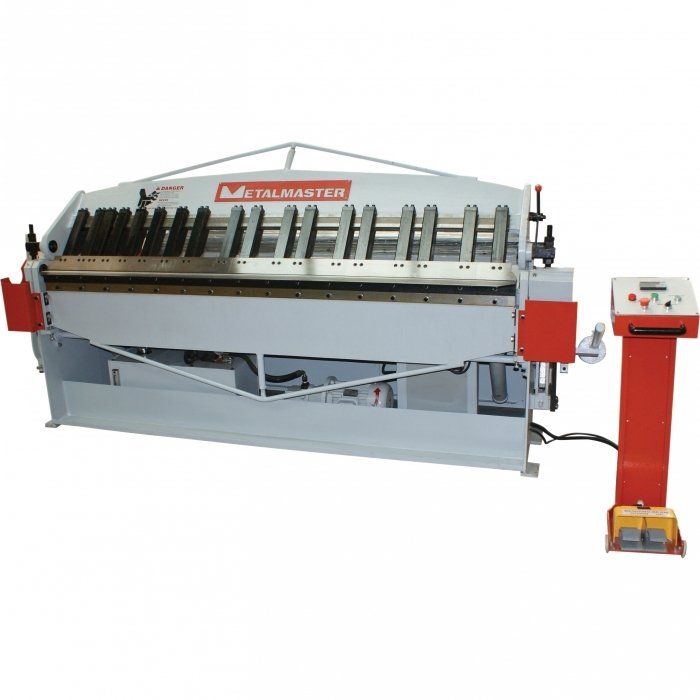

Hydraulic NC Panbrake - PB-820Y
2500 x 2mm Mild Steel Bending Capacity
S583A
1 of 6

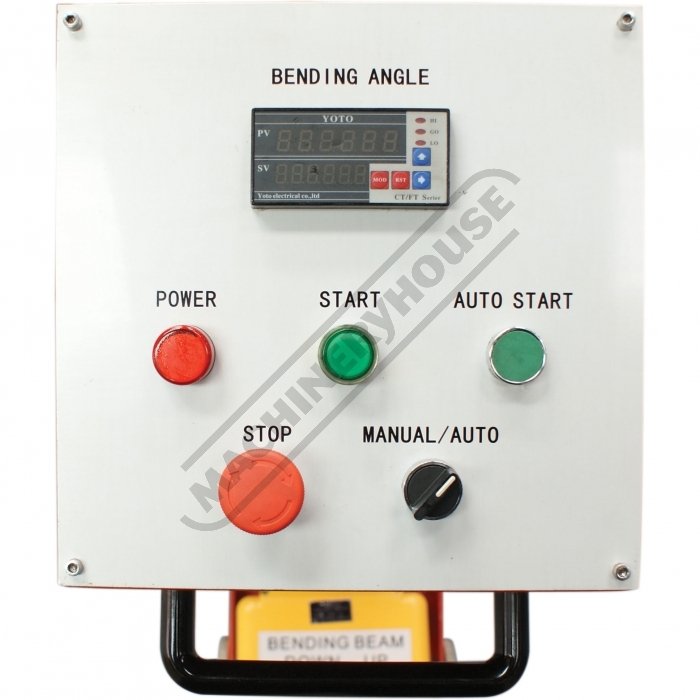

Control Panel
2 of 6

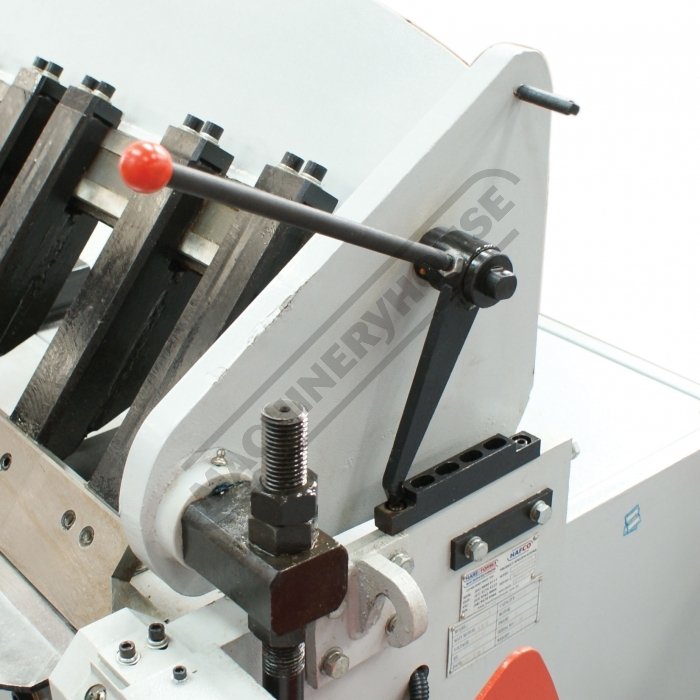

Top Beam Support Stop Lever
3 of 6

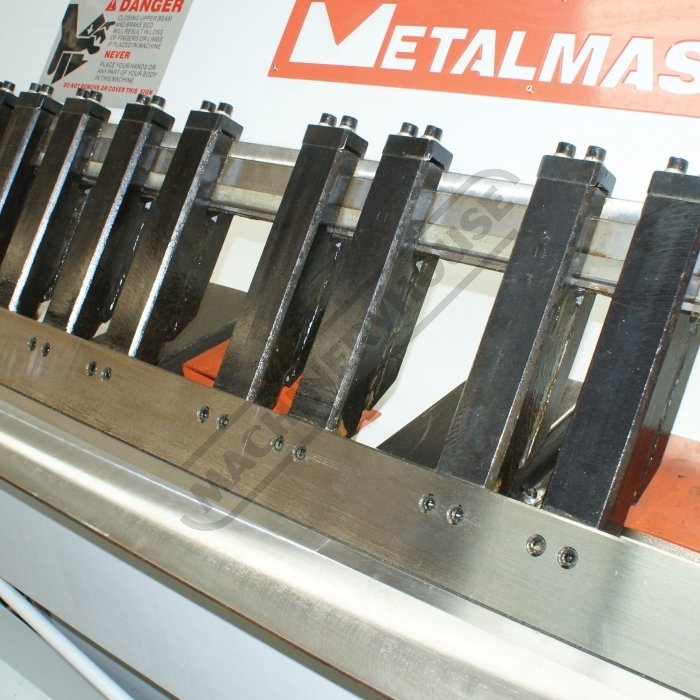

Removable Fingers
4 of 6

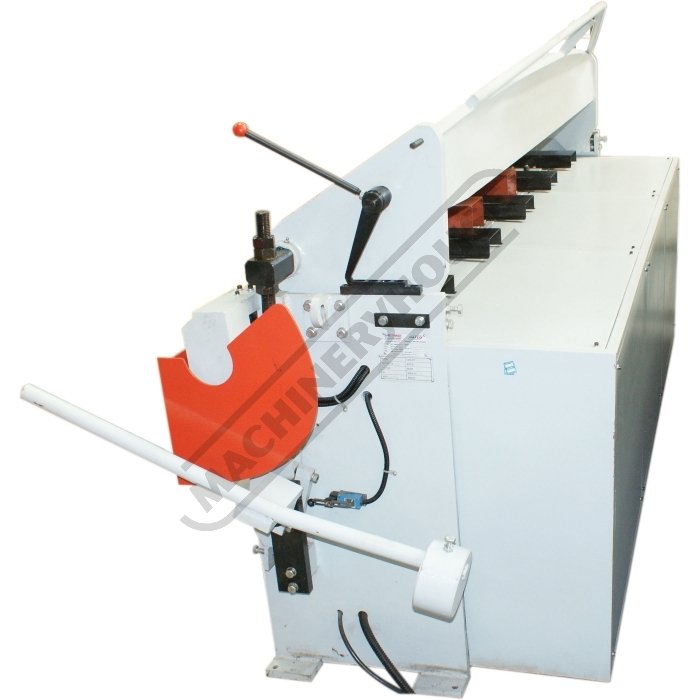

Side View
5 of 6

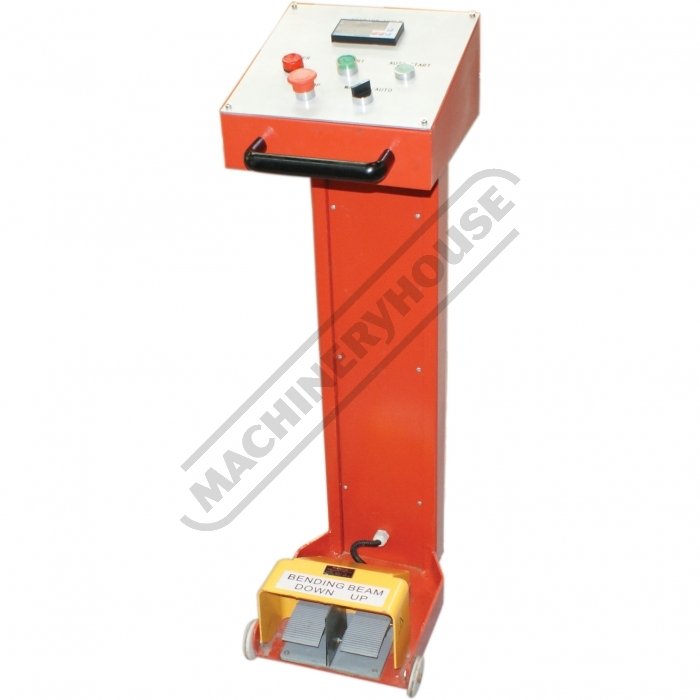

Roving Foot Controls
6 of 6
Discontinued
Order Code: S583A
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Hydraulic NC Panbrake - PB-820Y
2500 x 2mm Mild Steel Bending Capacity
Features
- 2500mm x 2mm capacity
- Easy to use single angle programmable control incorporating digital readout for angles from 0-125º
- Auto cycle: after clamping bottom beam will bend to pre-set angle and return
- Hydraulic bending with manual material clamp
- Roving foot pedal incorporates control panel for maximum flexibility
- Extended fingers allows bending of pans or boxes to a depth of 230mm
- Ground segmented fingers can be repositioned to suit many applications
- Heavy duty steel fabricated frame provides accurate bends
- Safety top beam support stop lever located on right side of machine
- Quick action beam adjustment for varying material thickness
- Includes an adjustable rear manual backgauge, also adjustable for tapered material
- Mild steel capacity is rated on hot rolled material with 250MPA
- Pre-Commissioning:
- 1. Panbrake bender is run & tested prior delivery
- 2. Hydraulic oil is included with machine
Compare Product Range
Specifications
| ORDER CODE | S583A |
|---|---|
| MODEL | PB-820Y |
| Controller Type | Digital Single Program |
| (mm)Bending Length | 2500 |
| (mm)Mild Steel Capacity | 2 |
| (mm)Stainless Steel Capacity | 1.2 |
| Material Clamping Type | Manual Clamp |
| Material Bending Type | Hydraulic Bend |
| (deg)Bending Angle Indicator | 0-125º |
| (mm)Backgauge Travel | 1000 |
| (kW / hp)Motor | 3.75 / 5 |
| (V / amp)Voltage / Amperage | 415 |
| (kg)Nett Weight | 1700 |
