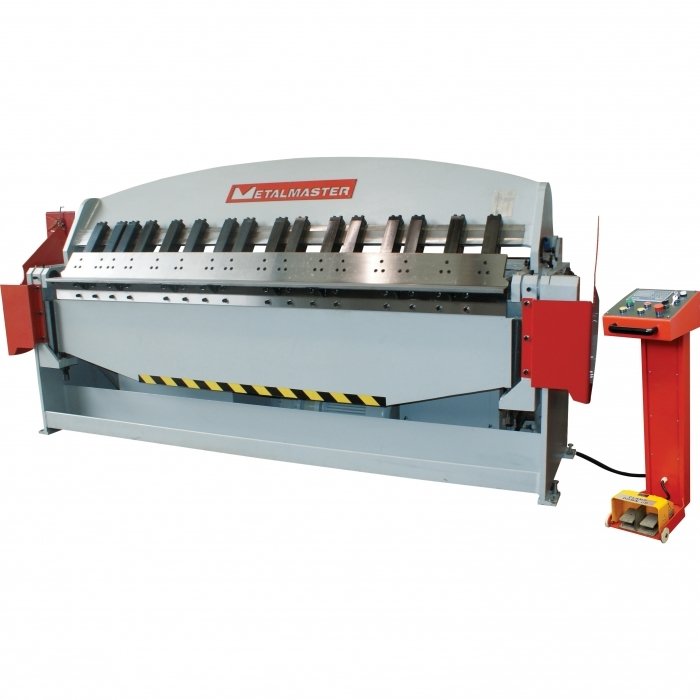

Hydraulic NC Panbrake - NC-89 Control - PB-1030
3050 x 3.2mm Mild Steel Bending Capacity
S585
1 of 7

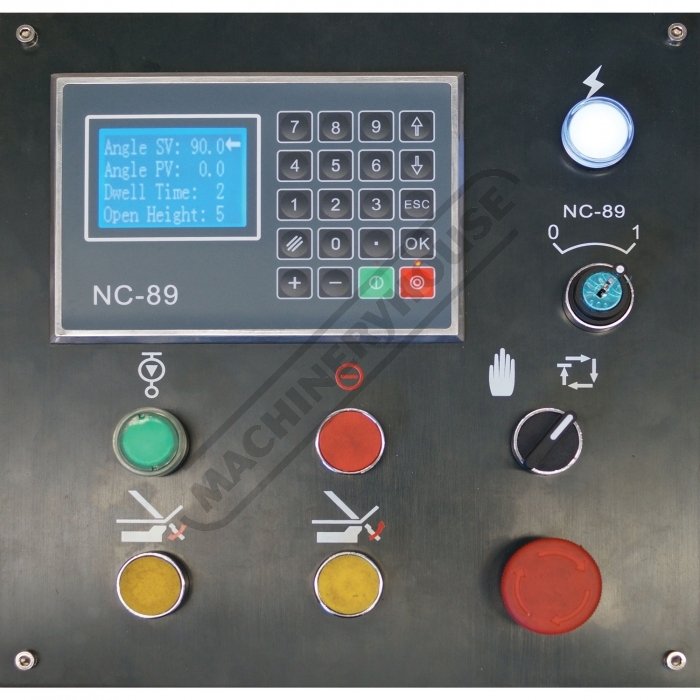

NC-89 Control Panel
2 of 7

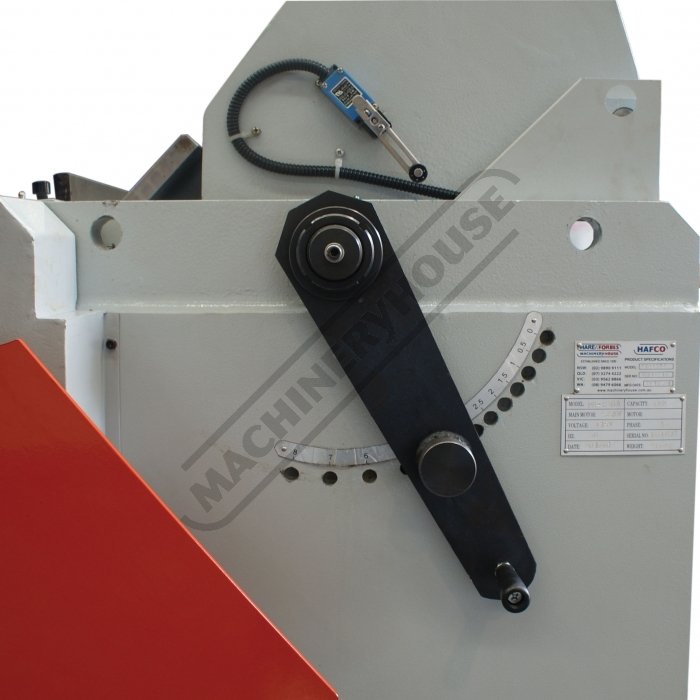

Rapid Blade Adjustment For Material Thickness
3 of 7

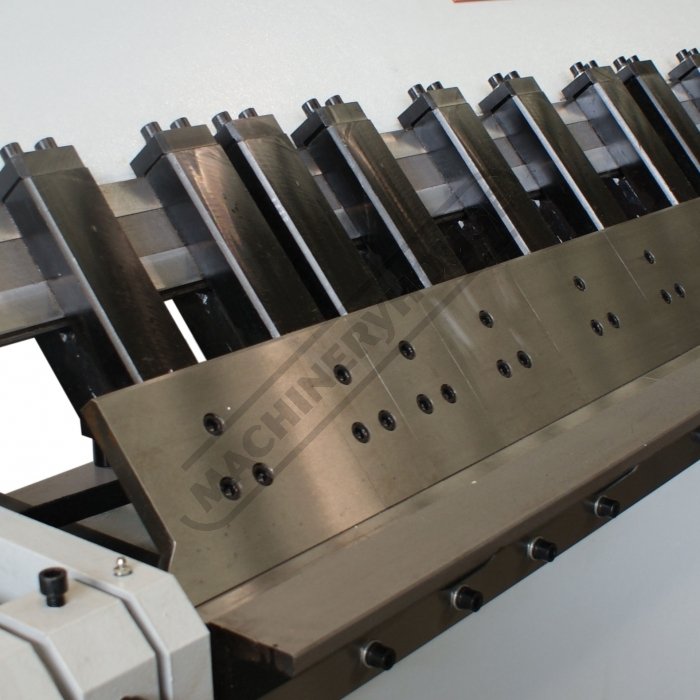

Removable Fingers
4 of 7

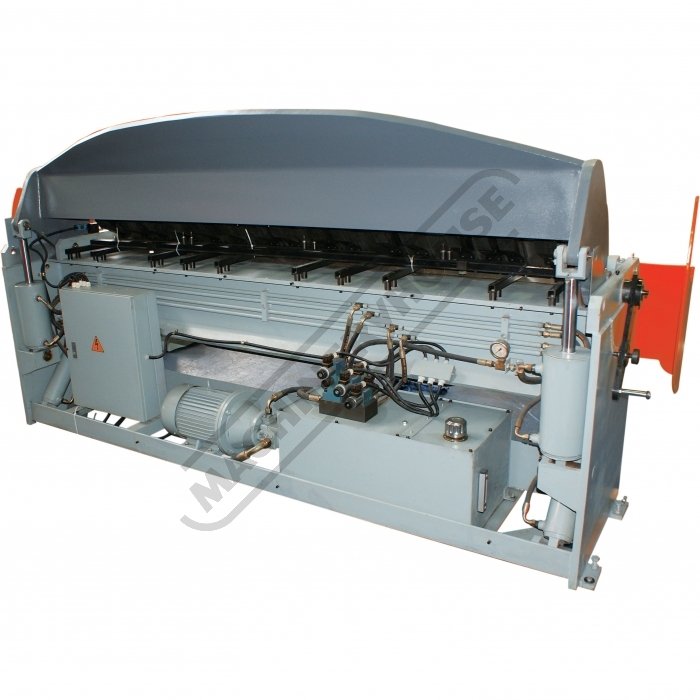

Hydraulic System
5 of 7

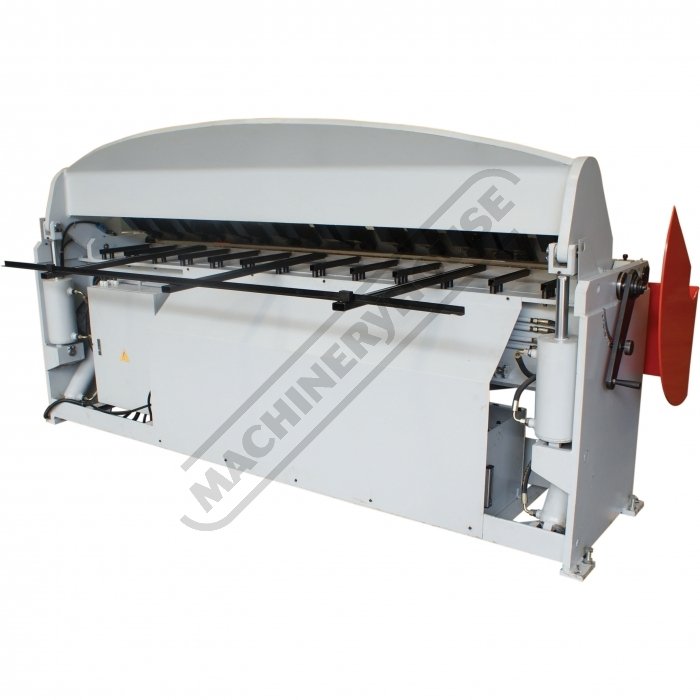

Back View
6 of 7

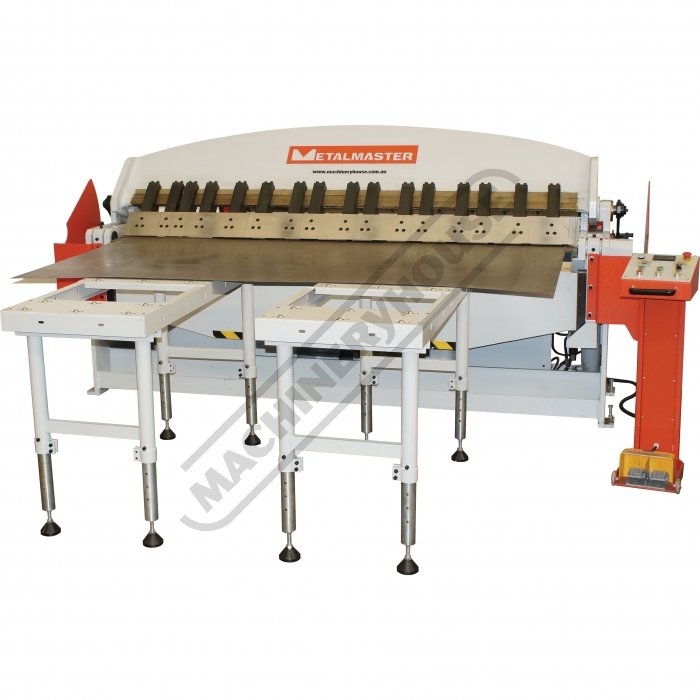

Shown with Optional Ball Transfer Tables - Order Code (L840)
7 of 7
Discontinued
Order Code: S585
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Hydraulic NC Panbrake - NC-89 Control - PB-1030
3050 x 3.2mm Mild Steel Bending Capacity
Features
- 3050mm x 3.2mm bending capacity
- NC-89 digital single angle programmable control for angles from 0-125º
- Auto cycle: after clamping bottom beam will bend to pre-set angle and return, head unclamps to set position
- Quick action rapid head adjustment to optimise bend radius on 1-3.2mm material thickness
- Heavy duty steel fabricated construction
- Roving foot pedal incorporates control panel for maximum flexibility
- High quality components ensure reliable performance for years of continuous operation
- NC-89 controlled opening height adjustment
- NC-89 controlled dwell timer ensures consistent bending angle
- Extended fingers allows bending of pans or boxes to a depth of 200mm
- Includes an adjustable rear manual backgauge, also adjustable for tapered material
- Mild steel capacity is rated on hot rolled material with 250MPA
- Pre-Commissioning:
- 1. Panbrake bender is run & tested prior delivery
- 2. Hydraulic oil is included with machine
Compare Product Range
Specifications
| ORDER CODE | S585 |
|---|---|
| MODEL | PB-1030 |
| Controller Type | NC-89 Single Program |
| (mm)Bending Length | 3050 |
| (mm)Mild Steel Capacity | 3.2 |
| (mm)Stainless Steel Capacity | 1.6 |
| Material Clamping Type | Hydraulic Clamp |
| Material Bending Type | Hydraulic Bend |
| (deg)Bending Angle Indicator | 0-125º |
| (mm)Backgauge Travel | 1000 |
| (kW / hp)Motor | 5.5 / 7.5 |
| (V / amp)Voltage / Amperage | 415 |
| (kg)Nett Weight | 3258 |
