Description

Chisel Morticer - M-25

160mm timber width capacity
Overview
Manufactured in Taiwan

This heavy-duty chisel morticer handles up to 25mm in softwood, featuring a cast iron frame and a fabricated steel stand. A single handwheel controls both longitudinal and lateral table movements, eliminating table "skewing," a common issue in other models. The material clamp adjusts for various workpiece widths, while the multi-position down-feed lever ensures comfortable operation with optimal leverage.

A gas strut in the rear column enables smooth headstock travel and allows "parking" at any position. The large cast iron table includes a tall rear fence and an easily adjustable depth stop for consistent accuracy. Designed for busy workshops, this reliable machine delivers years of precise, trouble-free performance.
Features
  • Morticer capacity: 25mm chisel in softwood & 19mm chisel in hardwood
  • 160mm timber width capacity
  • 125mm head stroke
  • Heavy cast iron construction

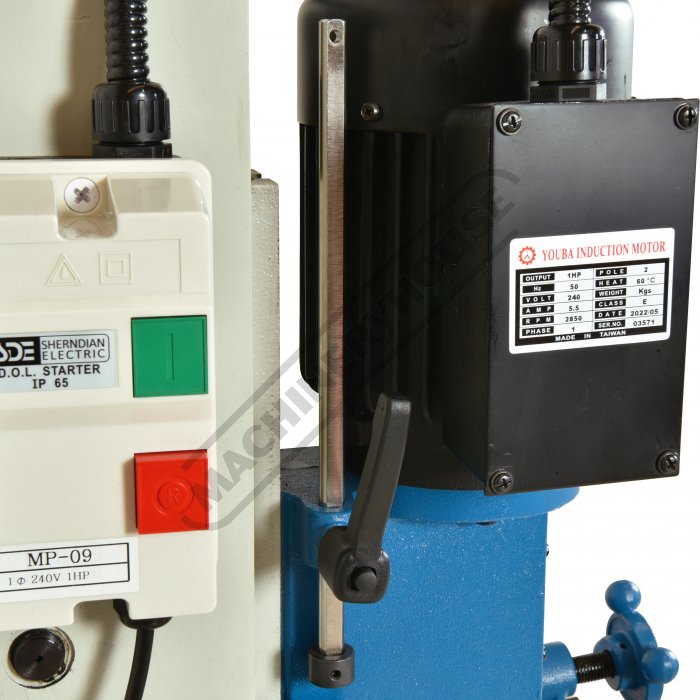

  • 3-position job clamp & depth stop

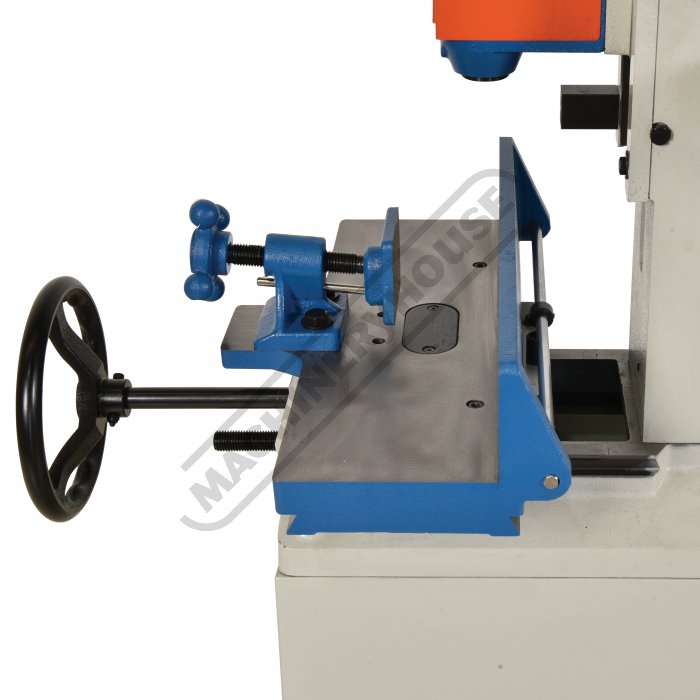

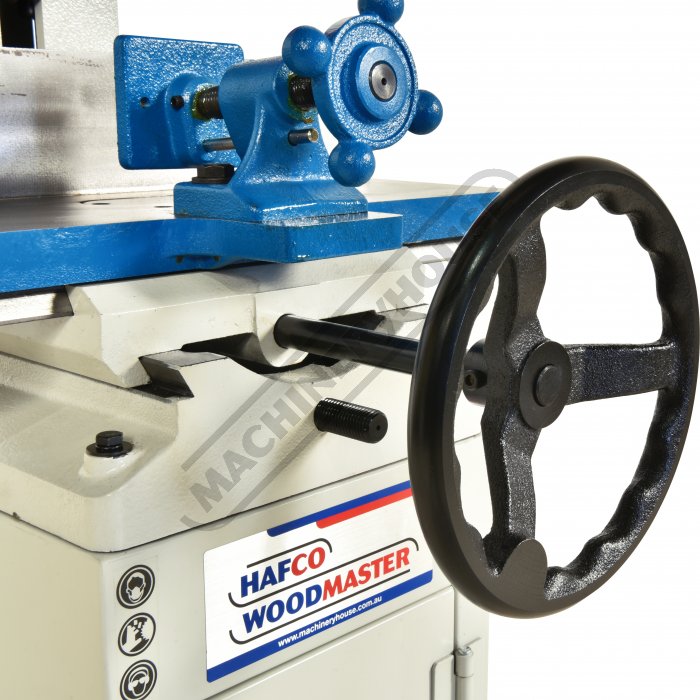

  • Long and cross hand wheel movement
  • Gast strut supports head for smooth movement
  • Adjustable table length stop mounted to rear of table
  • 255 x 180mm table movement
  • Magnetic safety switch
  • Overall height 1700mm
  • 0.75kW / 1hp 240V motor
  • Quality Taiwanese Manufacturer
Includes
  • 1 x collar reducing bushes: Ø28.5 - Ø19mm (OD -I D)
  • 1 x collar reducing bushes: Ø30.2 - Ø15.9mm (OD - ID)

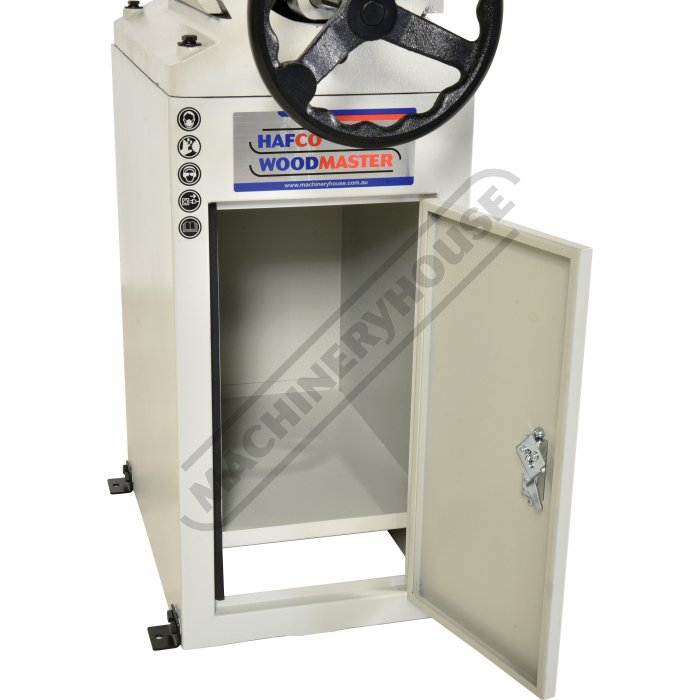

  • Stand with storage cabinet
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (mm)Timber Capacity
  • (mm)Table Movement
  • (mm)Vertical Head Stroke
  • (mm)Collar Reducing Bush (ID)
  • (kW / hp)Motor Power
  • (V)Voltage
  • (mm)Floor Space (W x D x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale W347
  • Compare
  • Wishlist
  • W347
  • M-16
  • 125
  • 160 x 46
  • 120
  • Ø19
  • 0.37 / 1/2
  • 240
  • 470 x 500 x 750
  • 46
  • $500.00
  • $575.00
  • ADD TO CART
  • On Sale W3465
  • Compare
  • Wishlist
  • W3465
  • Chisa 7.0
  • 145
  • 170 x 140
  • 220
  • Ø19 & Ø20.65
  • 0.75 / 1
  • 240
  • 1200 x 770 x 1650
  • 98
  • $1,404.35
  • $1,615.00
  • ADD TO CART
  • On Sale W345
  • Compare
  • Wishlist
  • W345
  • M-25
  • 160
  • 255 x 180
  • 125
  • Ø19 & Ø15.9
  • 0.75 / 1
  • 240
  • 940 x 750 x 1720
  • 160
  • $2,600.00
  • $2,990.00
  • ADD TO CART
