Motorised Plate Curving Rolls - MRM-S 1550x130
1550 x 6mm Mild Steel Capacity
3 Roll Initial Pinch Design, Hardened Rolls, Motorised Up/Down Rear Roll
S7965
1 of 2
On Sale - Special Order
Order Code: S7965
ex-gst
inc-gst
$
33,550.00
$
38,582.50
$
32,900.00
$
37,835.00
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Made in TURKIYE
Description

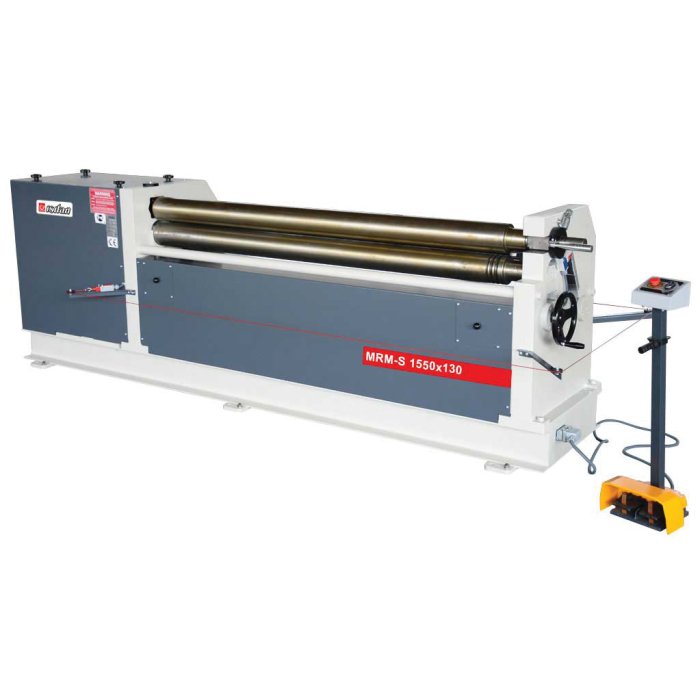

Motorised Plate Curving Rolls - MRM-S 1550x130
1550 x 6mm Mild Steel Capacity
3 Roll Initial Pinch Design, Hardened Rolls, Motorised Up/Down Rear Roll
Overview
The Isitan MRM-S 1550x130 3 Roll Initial Pinch Plate Rolling machines have a heavy duty, steel welded frame construction for superior rigidity and are used for applications up to a maximum material thickness of 6mm mild steel.
The asymmetric design provides pre-bending capability on the machine and the swing out top roll allows for removal of complete cylindrical components.
Other models ranging up to 3050mm working length are available.
The asymmetric design provides pre-bending capability on the machine and the swing out top roll allows for removal of complete cylindrical components.
Other models ranging up to 3050mm working length are available.
Features
- SAE 150 quality certified steel rolls with high tensile strength
- Induction hardened rolls suitable for stainless steel
- Steel welded main frame
- Conical bending device
- Digital readout display for rear roll position
- Motorised up & down on rear roll
- Manual pinching of bottom roll
- Manual handwheel adjustment of the pre-bending roll
- Swing out top roll for removal of complete cylinders
- Central lubrication system
- Safety cut out trip wire
- Brake motor standard for precision bending
- Mobile control panel
- Mild steel capacity is rated on hot rolled material with 250MPA
Compare Product Range
Specifications
| ORDER CODE | S7965 |
|---|---|
| MODEL | MRM-S 1550x130 |
| Curving System Type | Initial Pinch |
| (mm)Curving Material Length | 1550 |
| (mm)Curving Plate Thickness - Mild Steel | 6 |
| (mm)Minimum Rolling Diameter | 195 |
| (mm)Roll Diameter | 130 |
| (kW / hp)Motor Power | 2.2 / 3 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Dimensions (LxWxH) | 3250 x 650 x 1020 |
| (kg)Nett Weight | 1400 |
