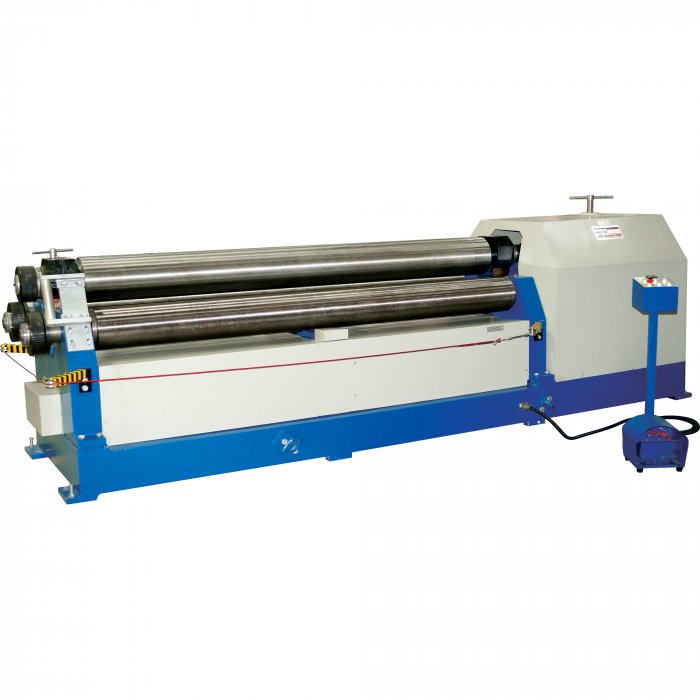

Motorised Plate Curving Rolls - PR-3108
3100 x 8mm Mild Steel Capacity
Includes Section Rolls
S770
1 of 10

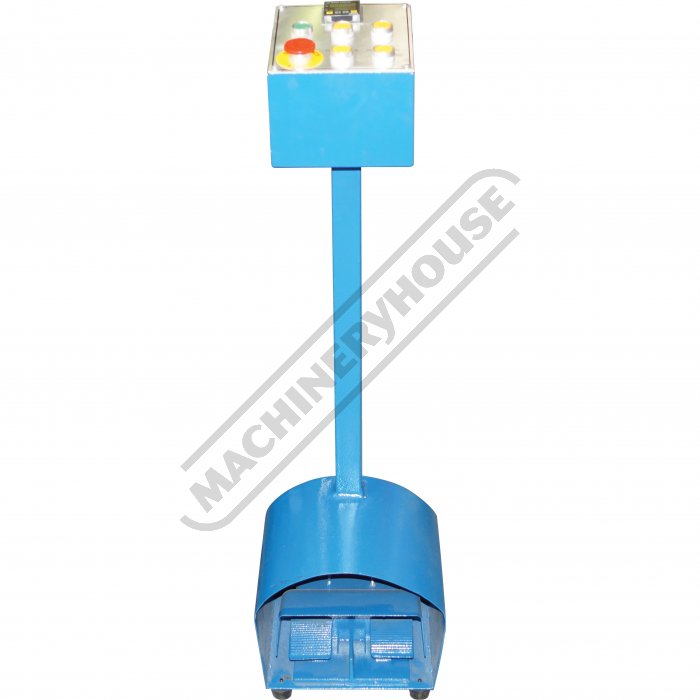

Foot Control
2 of 10

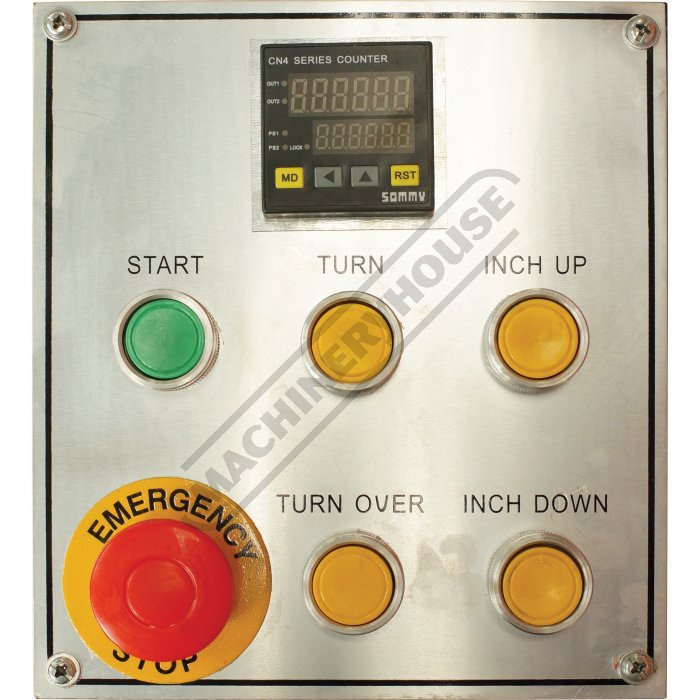

Control Panel
3 of 10

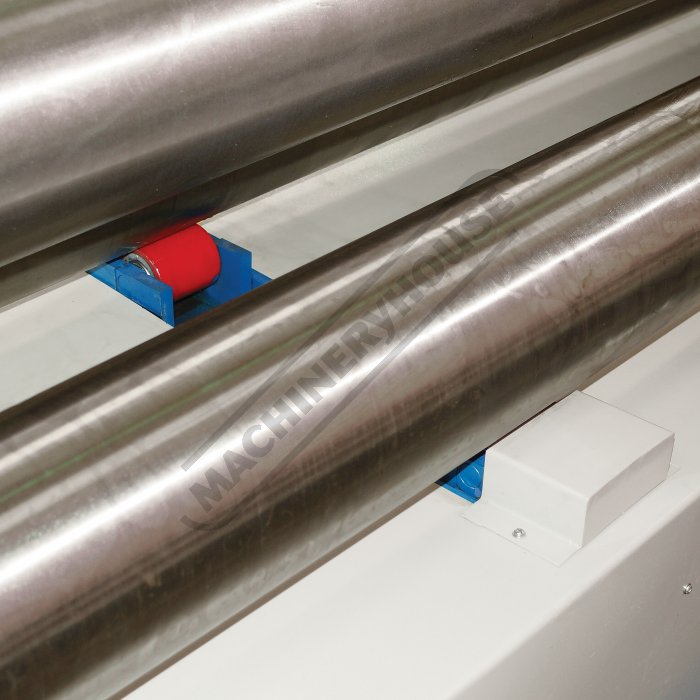

Support Rollers
4 of 10

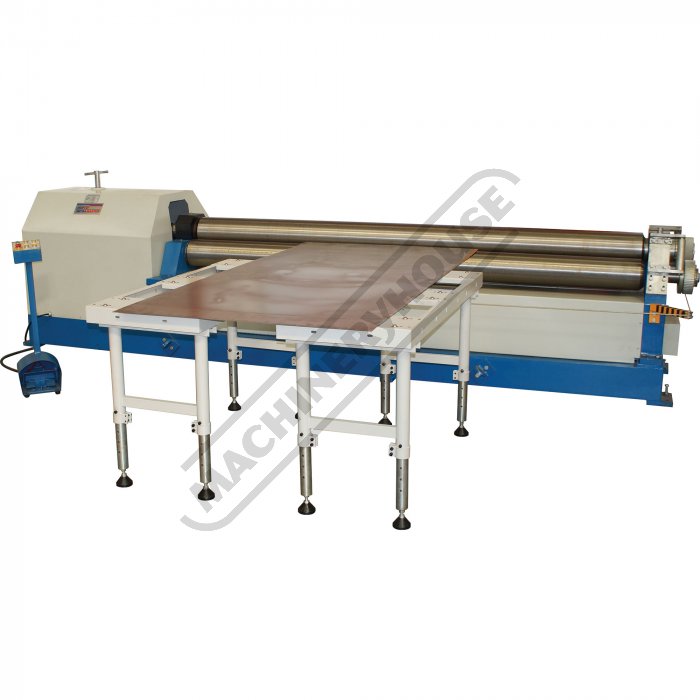

Shown with Optional Ball Transfer Tables
5 of 10

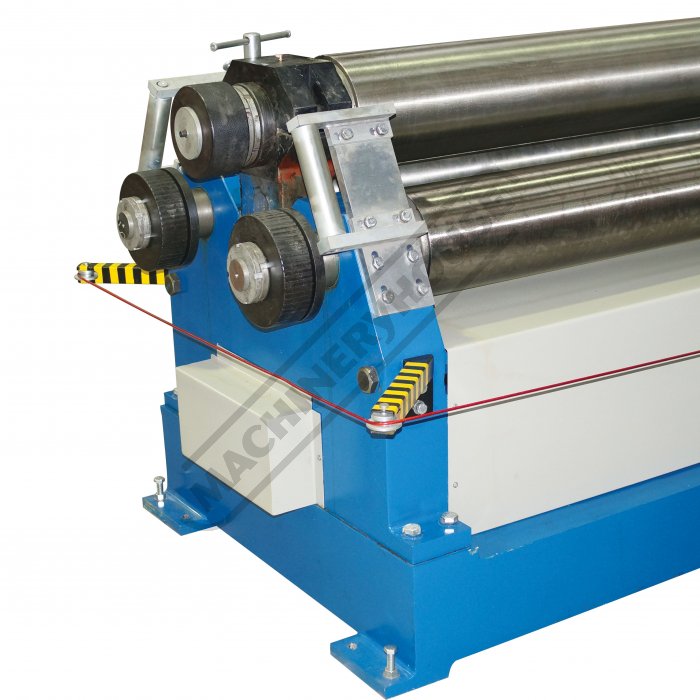

Section Roll End with Flat Bar and Pipe Dies
6 of 10

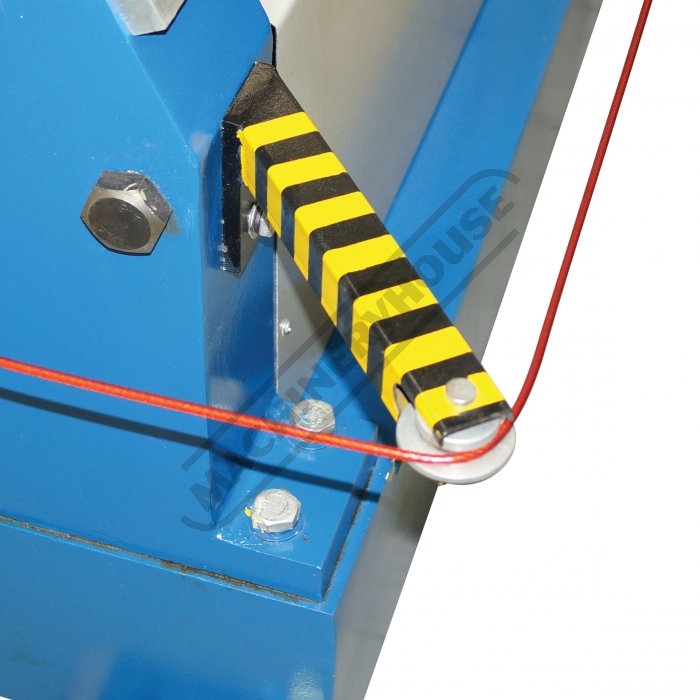

Safety Wire Interlock System
7 of 10

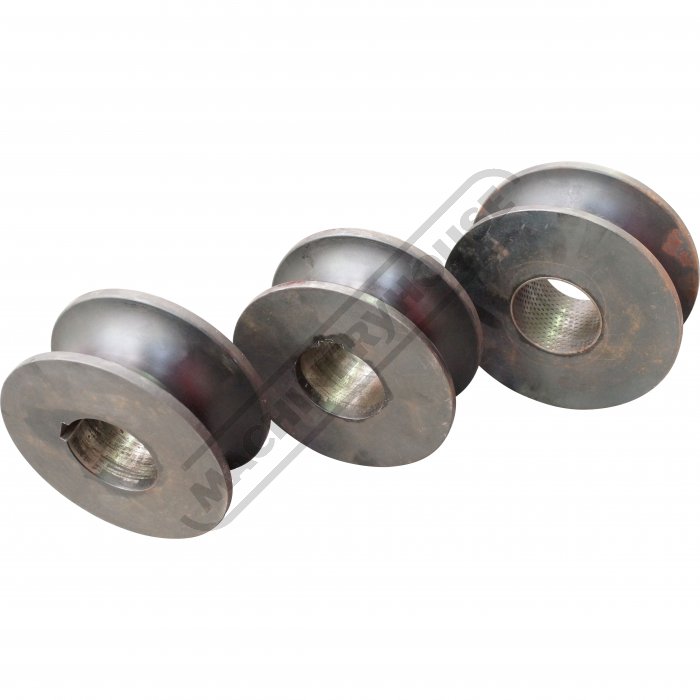

Pipe Dies
8 of 10

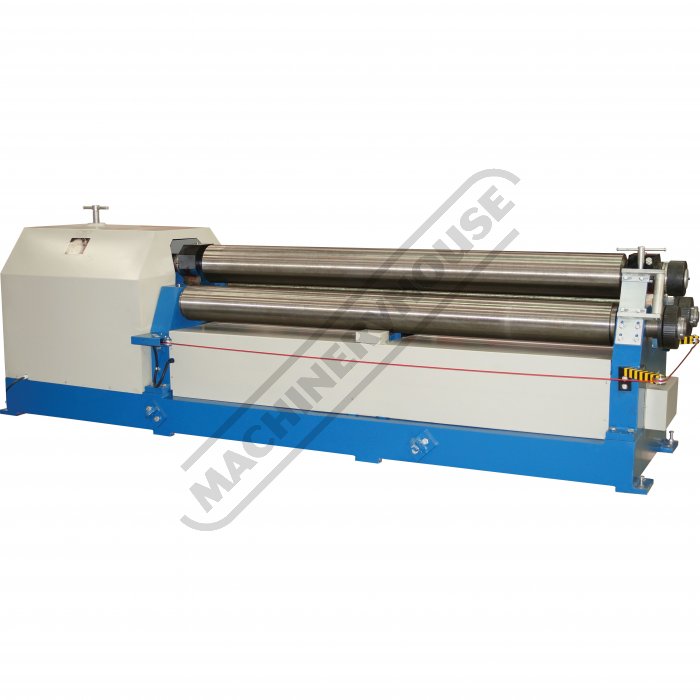

Rear View New
9 of 10

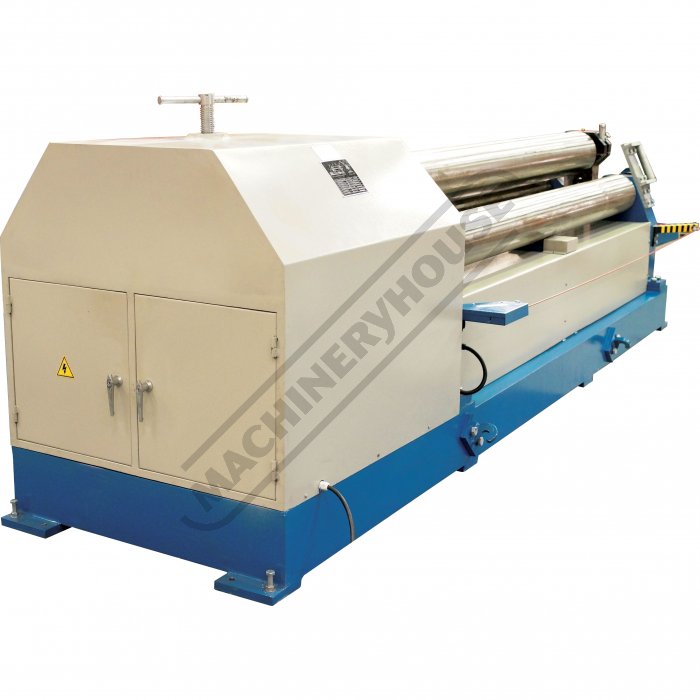

Left Rear View
10 of 10
On Sale - Back In Stock Soon
Order Code: S770
ex-gst
inc-gst
$
31,050.00
$
35,707.50
$
30,500.00
$
35,075.00
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Motorised Plate Curving Rolls - PR-3108
3100 x 8mm Mild Steel Capacity
Includes Section Rolls
Features
- Two rolls powered by gearbox and gear system
- Swing out end enables complete cylinder to be removed
- Heavy duty steel welded main frames
- Mobile control panel with foot pedals
- Precision ground rolls with wiring grooves
- Safety wire interlock system with emergency shut-off
- Motorised up & down top roll for curving adjustment
- Includes Section roll system with flat bar and pipe dies
- Mild steel capacity is rated on hot rolled material with 250MPA
Includes
- 2" (50mm) NB pipe dies
- 60 x 5mm flat bar or 60 x 60 x 5mm angle dies
Compare Product Range
Specifications
| ORDER CODE | S770 |
|---|---|
| MODEL | PR-3108 |
| Curving System Type | Pyramid |
| (mm)Curving Material Length | 3100 |
| (mm)Curving Plate Thickness - Mild Steel | 8 |
| (mm)Minimum Rolling Diameter | 400 |
| (mm)Roll Diameter | 210 |
| (kW / hp)Motor Power | 5.5 / 7.37 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Dimensions (LxWxH) | 4700 x 1100 x 1450 |
| (kg)Nett Weight | 4500 |
