Home Sheet Metal & Fabrication Press brakes NC Press brakes S908GL

Hydraulic NC Pressbrake - PB-135B

135T x 4000mm - Includes Laser Safety Guarding

Estun NC-E21 Control 2-Axis with Hardened Ballscrew Backgauge

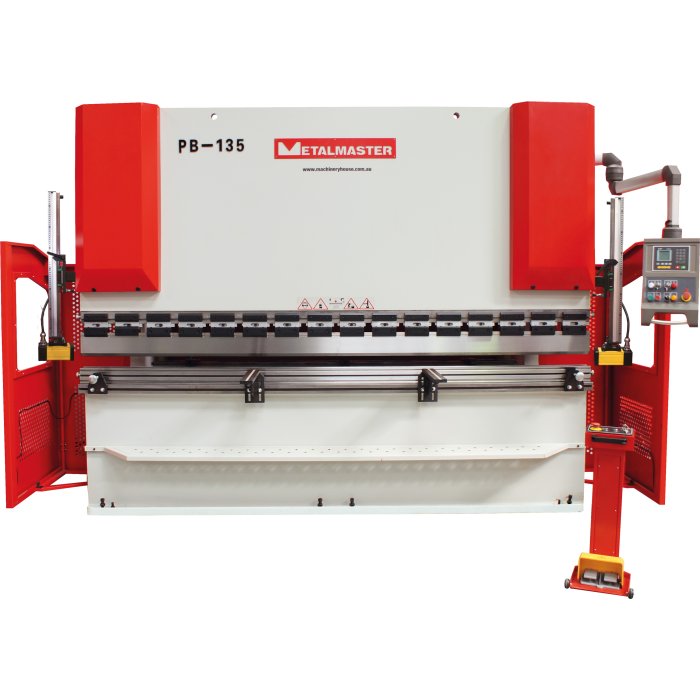

S908GL 1 of 23

Enclosed Rear Safety Guarding 2 of 23

NC Estun E21 Controller 3 of 23

NC Estun E21 4 of 23

Left Laser 5 of 23

Right Laser 6 of 23

Laser Alignment Guide 7 of 23

Adjustable Travel Limit Control 8 of 23

Laser Guarding system In Use 9 of 23

Adjustable Sliding Front Sheet Supports 10 of 23

LM Guide Ballscrew Backgauge 11 of 23

LM Guide Ballscrew Backgauge 12 of 23

Top-Bottom Tooling 13 of 23

Intermediate Clamps 14 of 23

Adjustable Top Tool Taper Wedge System 15 of 23

Segmented Top Punch 16 of 23

One Piece 4 Sided Die 17 of 23

Synchronised Torsion Bar 18 of 23

Mobile Foot Control 19 of 23

Mobile Foot Control Top Buttons 20 of 23

Rear Doors Safety Micro Switch 21 of 23

Adjustable Pressure Control 22 of 23

Tonnage Calculation Chart 23 of 23

METALMASTER

On Sale

Order Code: S908GL

ex-gst

inc-gst

^$ 54,230.00

^$ 62,364.50

^$ 52,000.00

^$ 59,800.00

415V / (NO PLUG)
1 Year Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads Spare Parts

Description

Hydraulic NC Pressbrake - PB-135B

135T x 4000mm - Includes Laser Safety Guarding

Estun NC-E21 Control 2-Axis with Hardened Ballscrew Backgauge

Overview

MetalMaster Quality Pressbrakes feature high durability, and provide precision bending capabilities. The Pressbrake main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.

MetalMaster Pressbrakes are produced in a high volume production process and therefore are able to be manufactured cost effectively, resulting in an affordable price, representing value for money and quicker return on investment.

All electrical components are of European quality supplied by, Telemecanique, Merlin Gerin and ABB.

Features

ESTUN E21 NC Controller
Stores up to 40 programs with 25 bending steps per program
Position control of Backgauge
Backgauge retract function
Bottom stroke dwell timer
Work piece counting
One-key backup / restore
LCD Display

LASER GUARDING -
Laser guarding provides close proximity operator protection allowing faster bending cycles, promoting higher productivity
The Laser system is compliant with requirements of EN61496-1, EN61496-2, ISO 13849-1 Ple, as well as AS/NZS 4024.1503
Australian designed electrical system featuring dual channel monitoring on all essential machine functions
Top beam speed & stopping performance are all real time monitored to ensure compliance with safety regulations

METALMASTER Pressbrakes -
Dual Hydraulic rams balanced by a heavy duty torsion bar, Electronically controlled by the E21 NC control assuring accuracy & repeatability.
High performance side mount back gauge with linear guides & ballscrew provides fast and accurate positioning
Segmented heavy duty 86° top punch
European style punch holder with an adjustable wedge clamping system for crowning
Multi vee ('V') bottom die is made from one solid 4000mm die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.
Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed, sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
Metal safety guarding surrounding the machine with rear sliding door fitted with micro switch ensuring operator safety.
Hydraulic pressure gauge with quick adjust pressure control & over pressure protection allows the operator to accurately set the pressure required for different material thickness.
The vertical supporting slides are treated to provide greater wear resistance and increased accuracy.
Reinforced side frames providing addition support strength to machine throat
Includes laser guarding system
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Pressbrake is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes

ESTUN NC- E21 control mounted on a swivel pendant for optimal ergonomics
LED superior bright work lights provides clearer view to workpiece
Sliding front sheet support arms
Mobile dual operation foot control
86 Degree Top Punch with Segments (4x800, 1x365, 1x200, 1x100, 1x50, 1x40, 1x20, 1x15, 1x10)
Top tooling tool intermediate holder system with wedge type adjustment
Multi V bottom die block 95 x 95mm with a range of V's between 4mm~65mm
Premium side mount linear way ballscrew backgauge with 520mm travel
Metal constructed safety guarding surrounding machine

Specifications

Compare Product Range

Specifications

ORDER CODE	S908GL
MODEL	PB-135B
(Type)Control Unit	Estun NC-E21
(Ton)Nominal Pressure - Tonnage	135
(kN)Nominal Pressure - Kilonewtons	1250
(mm)Length of Work Table	4000
(mm)Distance Between Columns	3200
(mm)Throat Depth	420
(mm)Maximum Open Height	390
(mm)Ram Stroke	130
(No.)Machine Axis	2
(Type)Safety Guarding System	Laser System
(mm)Backgauge Travel	520
(kW / hp)Motor Power	7.5 / 10
(V)Motor Voltage	415
(kg)Nett Weight	10350
