Hydraulic Guillotine - HG-840M

Manual Backgauge & Includes Rapid Blade Adjustment

S926 1 of 23

Front View 2 of 23

Control Panel 3 of 23

Cut Stroke Adjustment Dial 4 of 23

Quick Action Blade Clearance Adjustment Operation 5 of 23

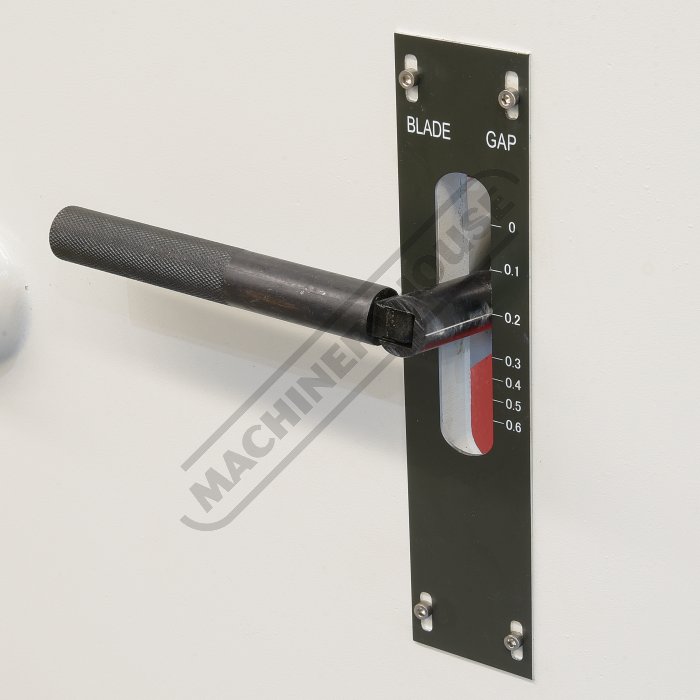

Quick Action Blade Clearance Adjustment Swivel Handle 6 of 23

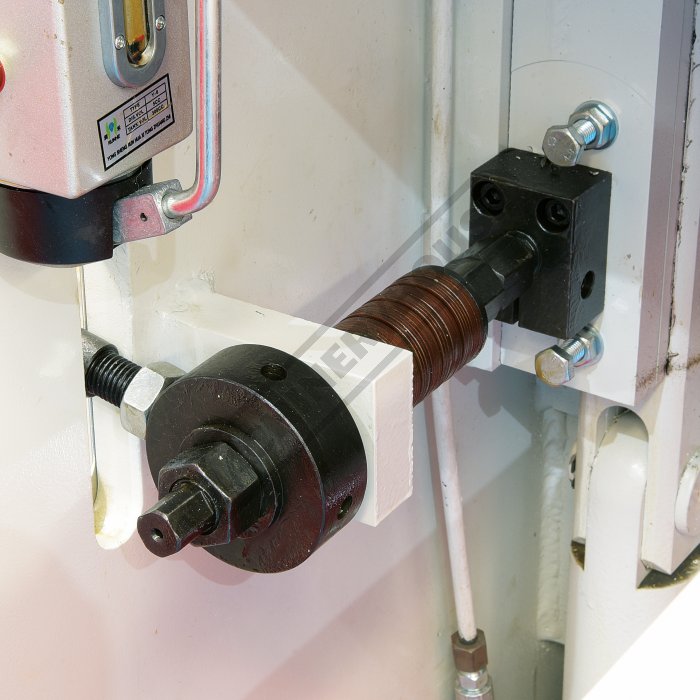

Quick Action Blade Clearance Adjustment 7 of 23

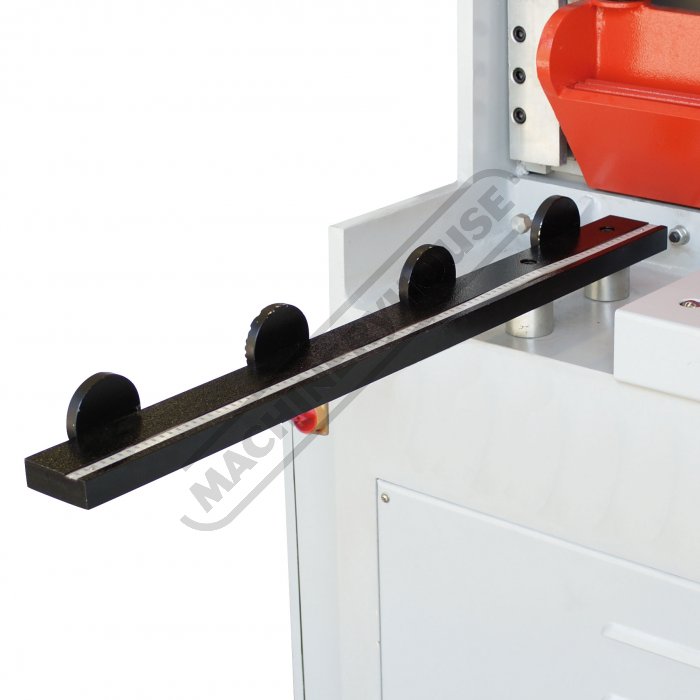

Squaring Arm 8 of 23

Squaring Arm with Measuring Scale 9 of 23

Front Sheet Supports 10 of 23

Front Sheet Supports with Roller Bearings 11 of 23

Material Transfer Balls on the Table 12 of 23

Manual Back Gauge 13 of 23

Backgauge with Digital Readout 14 of 23

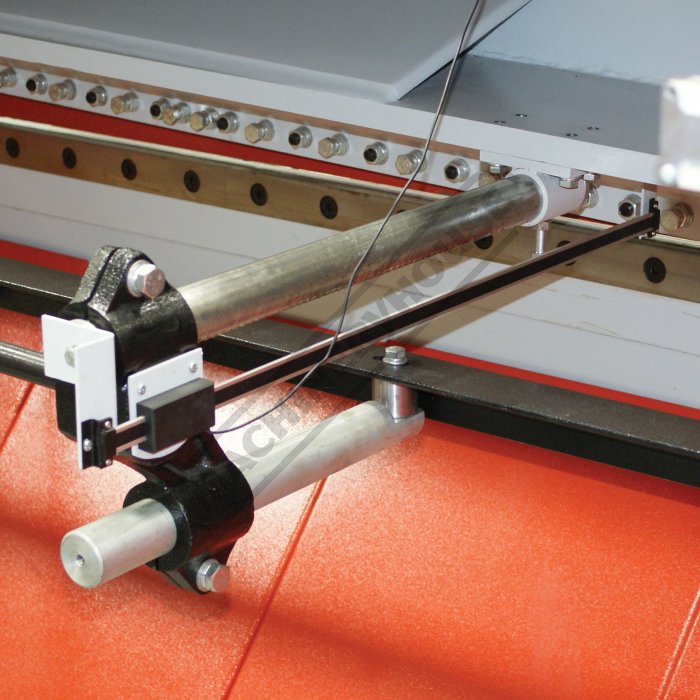

Backgauge Scale for Digital Readout 15 of 23

Backgauge Digital Readout 16 of 23

3 Safety Electric Photo Sensors 17 of 23

Safety Omron E3ZS Rear Light Sensor Guarding 18 of 23

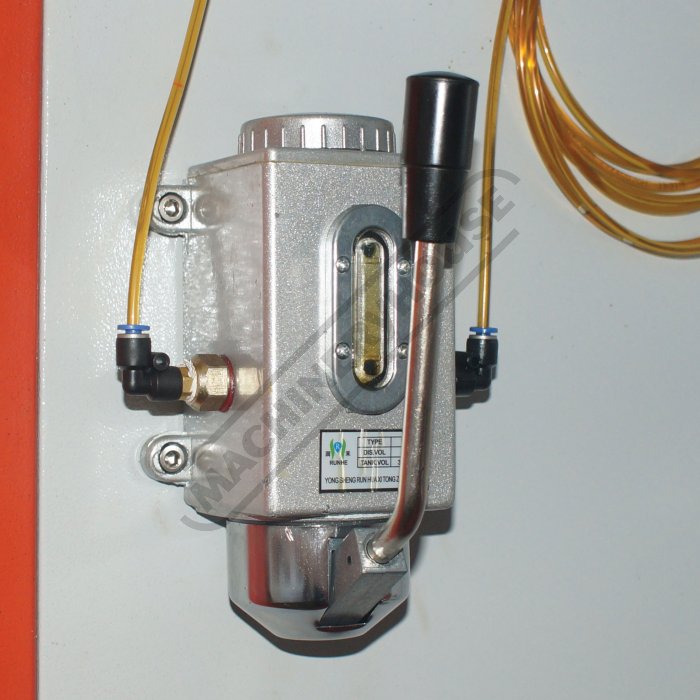

One Shot Lubrication 19 of 23

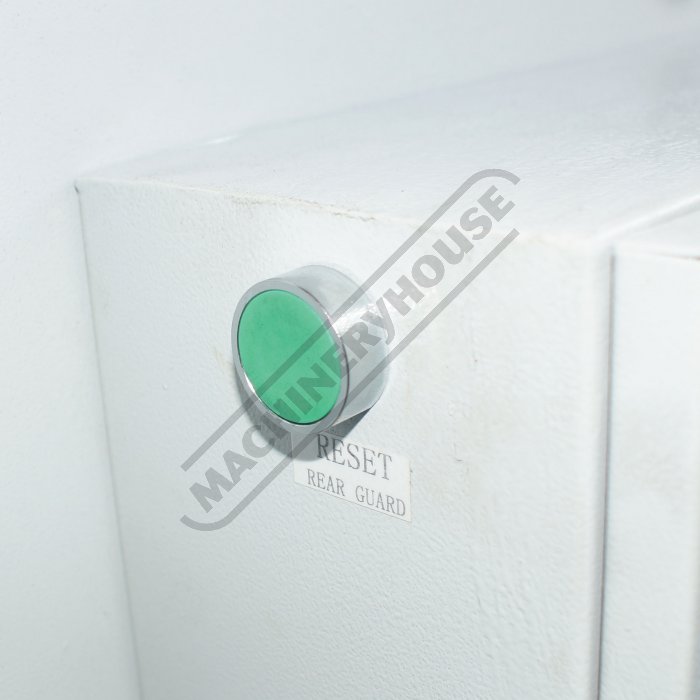

Rear Guard Reset Button 20 of 23

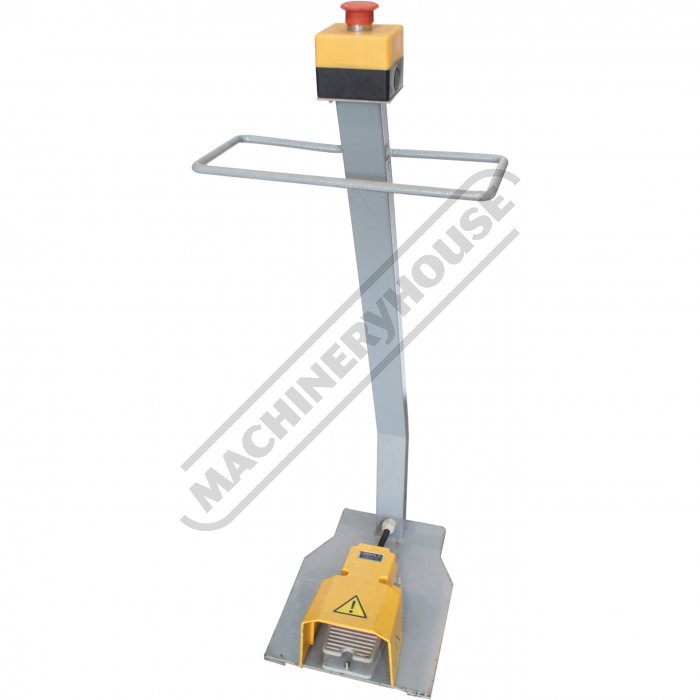

Mobile Foot Control 21 of 23

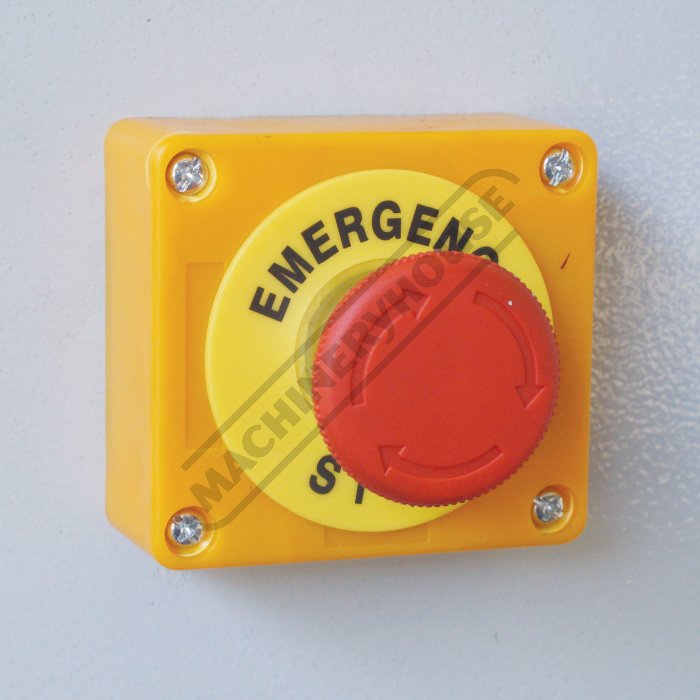

Emergency Stop Switch 22 of 23

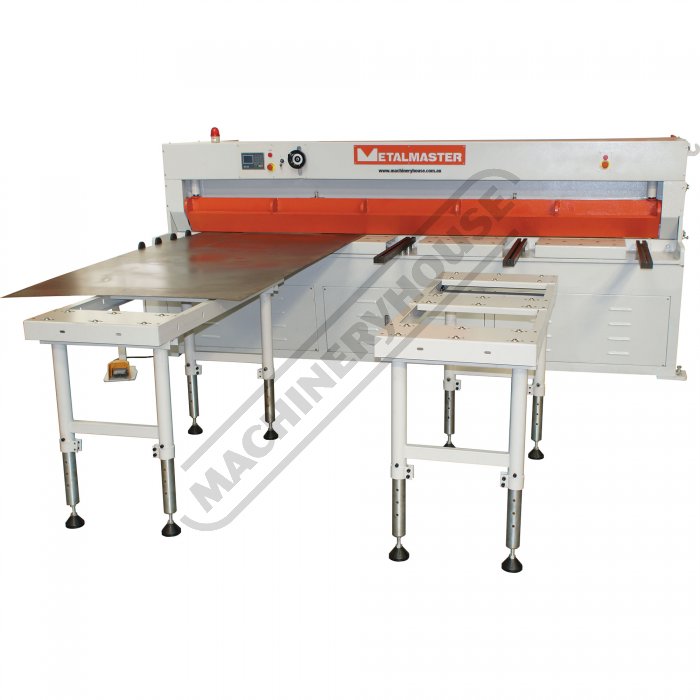

Shown with Optional Ball Transfer Tables - Order Code (L840) 23 of 23

Discontinued

Order Code: S926

415V / (NO PLUG)
1 Year Warranty

Compare

Wishlist

Description

2500 x 4mm Mild Steel Shearing Capacity

Manual Backgauge & Includes Rapid Blade Adjustment

2500mm x 4mm cutting capacity
5.5kW / 7.5hp 415V motor
Quick action blade clearance adjustment for shearing material 1 - 4mm
Hydraulic material clamping for accurate shearing
One shot lubrication pump & reservoir for slideway protection
Manual backgauge with digital scale display unit
Roving foot pedal control
Clamp beam design allows clear view to shadow line on material
Blades made from 9CrSi material suitable for cutting stainless steel
Transfer balls inserted into work table allowing larger sheets to be easily positioned to the cut position and squaring arm
Front sheet supports with ball bearing guides preventing material damage when setting up
Safety three safety photo electric light beams on rear guarding
Safety reset rear guarding button mounted to back of electrical box
Heavy duty under driven machine construction
Equipped with shadow line lighting-alignment device
Mild steel capacity is rated on hot rolled material with 250MPA

Specifications

ORDER CODE	S926
MODEL	HG-840M
(mm)Shearing Capacity - Mild Steel	4
(mm)Shearing Capacity - Stainless Steel	2.5
(mm)Shearing Length	2500
(Type)Backgauge	Manual
(mm)Backgauge Travel	760
Quick Action Blade Clearance Adjustment	Yes
(SPM)Strokes / min	12
(deg)Blade Angle	2º
(kW / hp)Motor Power	5.5 / 7.5
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	2590
