Portable Hand Spot Welder - TECNA® 7913 - 240V
#7913
6kVA (2 + 2mm Maximum Steel Thickness)
W0931
1 of 1
On Sale - Special Order
Order Code: W0931
ex-gst
inc-gst
$
3,990.00
$
4,588.50
$
3,900.00
$
4,485.00
240V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Made in Italy
Description
Portable Hand Spot Welder - TECNA® 7913 - 240V
#7913
6kVA (2 + 2mm Maximum Steel Thickness)
Overview

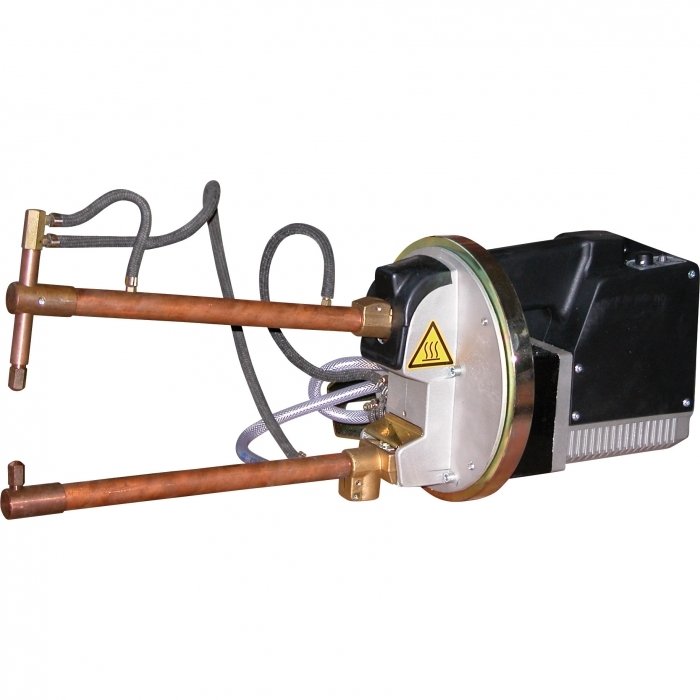

NOTE: Arms sold separately (image shows optional arms for image purposes only)
The TECNA 7913 hand held Spot Welder is light weight, reliable and simple to operate units for the smash repair and sheet metal fabrication industries. There are a variety of arms available for this unit enabling a range of applications.
The 7913 has the added advantage of coming standard with a timer. A compensation circuit starts the timer only when there is a proper range of current which allows welding on oxidised sheets or materials with a painted surface. The 7913 is available in 240V or 415V, water cooled, hand held Spot Welder designed for heavy duty body repairs and light production work
The TECNA 7913 hand held Spot Welder is light weight, reliable and simple to operate units for the smash repair and sheet metal fabrication industries. There are a variety of arms available for this unit enabling a range of applications.
The 7913 has the added advantage of coming standard with a timer. A compensation circuit starts the timer only when there is a proper range of current which allows welding on oxidised sheets or materials with a painted surface. The 7913 is available in 240V or 415V, water cooled, hand held Spot Welder designed for heavy duty body repairs and light production work
Features
- The 7913 is available in 240V or 415V, water cooled, hand held spot welder, designed for heavy duty body repairs and light production work.
- Ideal for panel work body repairs and sheet metal
- Heavy duty spot welder
- Water cooled
- Please Note:
- This machine is not supplied with a 240 volt plug
Compare Product Range
Specifications
| ORDER CODE | W0931 |
|---|---|
| MODEL | ART 7913 - 240V |
| (Type)Unit & Operation | Portable Hand Held |
| (mm)Maximum Welding Thickness | 2 + 2 |
| (kVA)Maximum Welding Power | 16 |
| (kVA)Nominal Power @ 50% | 2 |
| (Yes / No)Welding Timer | Yes |
| (mm)Throat Depth (Min/Max) | 150 ~ 500 (Optional Arms) |
| (mm)Arms Gap | 94 |
| (Yes / No)Water Cooling Capable | Yes |
| (amp)Main Fuse | 16 |
| (V / amp)Voltage / Amperage | 240 / 20 |
| (mm)Dimensions (L x W x H) | 108 x 475 x 203 |
| (kg)Nett Weight | 11 |
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- (Type)Unit & Operation
- (mm)Maximum Welding Thickness
- (kVA)Maximum Welding Power
- (kVA)Nominal Power @ 50%
- (Yes / No)Welding Timer
- (mm)Throat Depth (Min/Max)
- (mm)Electrode Stroke @ 230mm
- (mm)Electrode Stroke @ 550mm
- (mm)Arms Gap
- (Yes / No)Water Cooling Capable
- (amp)Main Fuse
- (V / amp)Voltage / Amperage
- (mm)Dimensions (L x W x H)
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- W092
- ART 7900
- Portable Hand Held
- 2 + 2
- 13
- 2
- Yes
- 125
- ~
- ~
- 96
- No
- 16
- 240 / 15
- 440 x 100 x 250
- 11
- $1,408.70
- $1,620.00
- ADD TO CART
- On Sale - Special Order
-
Compare
-
Wishlist
- W093
- ART 7913
- Portable Hand Held
- 2 + 2
- 16
- 2
- Yes
- 150 ~ 500 (Optional Arms)
- ~
- ~
- 94
- Yes
- 16
- 415
- 108 x 475 x 203
- 11
- $3,552.17
- $4,085.00
- ADD TO CART
- On Sale - Special Order
-
Compare
-
Wishlist
- W0931
- ART 7913 - 240V
- Portable Hand Held
- 2 + 2
- 16
- 2
- Yes
- 150 ~ 500 (Optional Arms)
- ~
- ~
- 94
- Yes
- 16
- 240 / 20
- 108 x 475 x 203
- 11
- $3,900.00
- $4,485.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W075
- TECNA® 4640
- Pedestal Foot - Manual
- 2.5 + 2.5
- 35
- 16
- Yes
- 230 - 550
- 8 - 44
- 15 - 85
- 225
- Yes
- 32
- 415
- 300 x 750 x 1200
- 135
- $6,680.00
- $7,682.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W076
- TECNA® 4643
- Pedestal Foot - Manual
- 3 + 3
- 68
- 25
- Yes
- 230 - 550
- 8 - 44
- 15 - 85
- 220
- Yes
- 50
- 415
- 300 x 750 x 1500
- 145
- $7,680.00
- $8,832.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- W077
- TECNA® 4648
- Pedestal Foot - Pneumatic
- 3 + 3
- 68
- 25
- Yes
- 230 - 550
- 8 - 44
- 15 - 85
- 220
- Yes
- 50
- 415
- 300 x 750 x 1500
- 143
- $10,000.00
- $11,500.00
- ADD TO CART
