Dust Collector - DC-25
1HP
680cfm - LPHV System
W3325
1 of 7

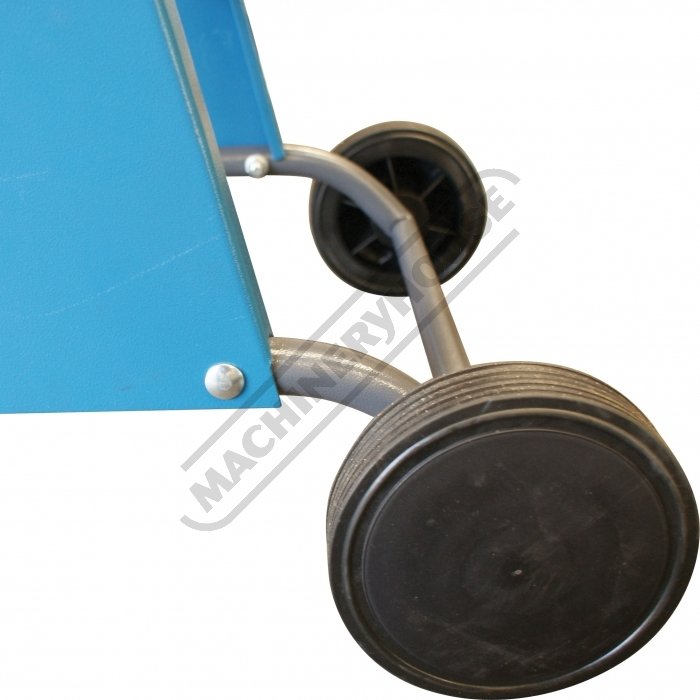

Portable on Wheels
2 of 7

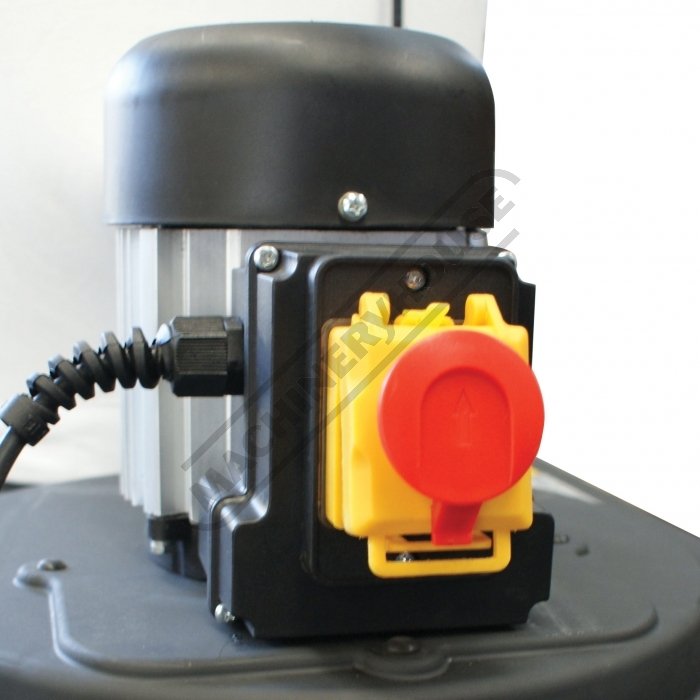

Safety Stop Switch
3 of 7

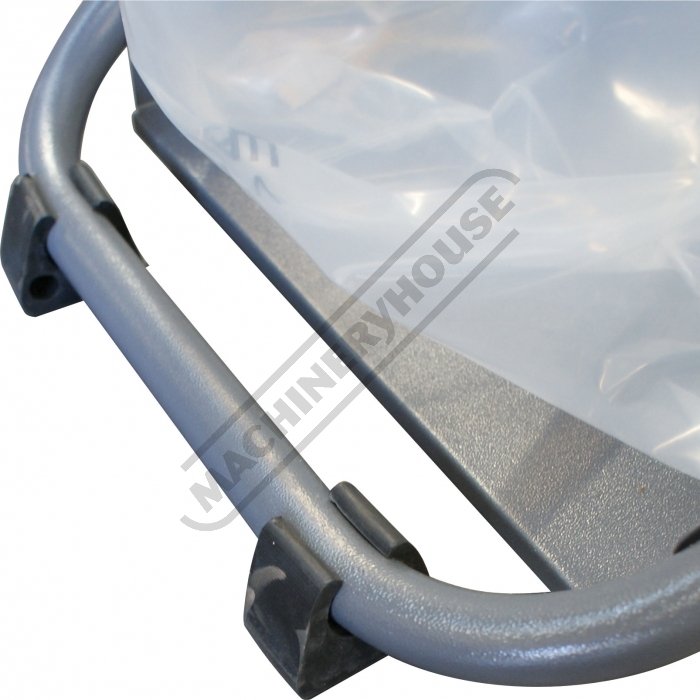

Rubber Stops
4 of 7

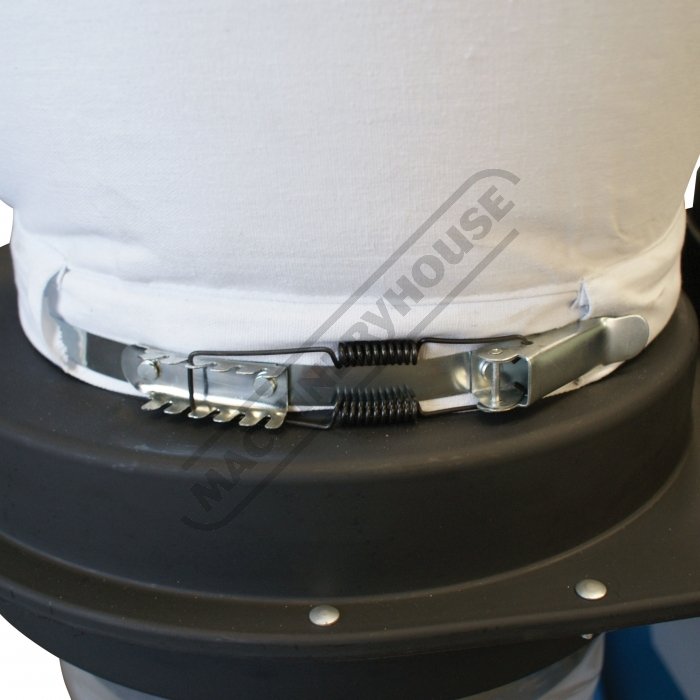

Quick Action Clamp
5 of 7

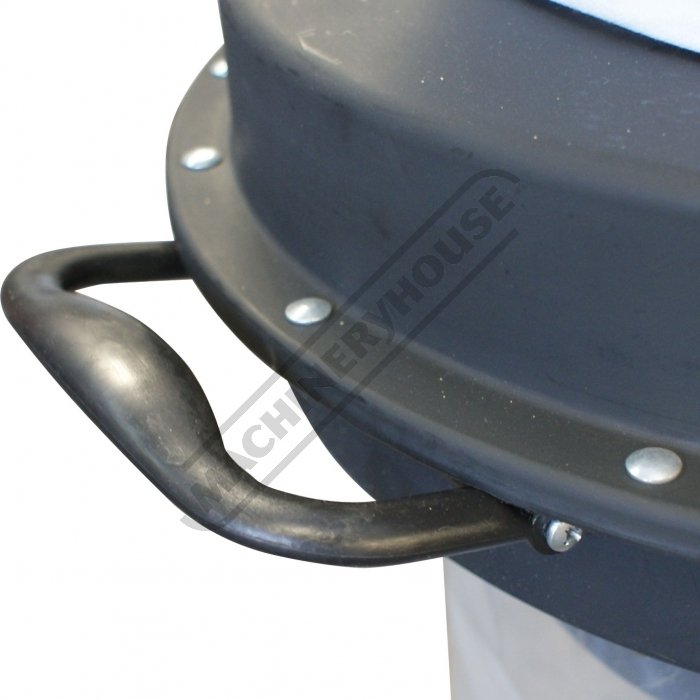

Solid Handle
6 of 7

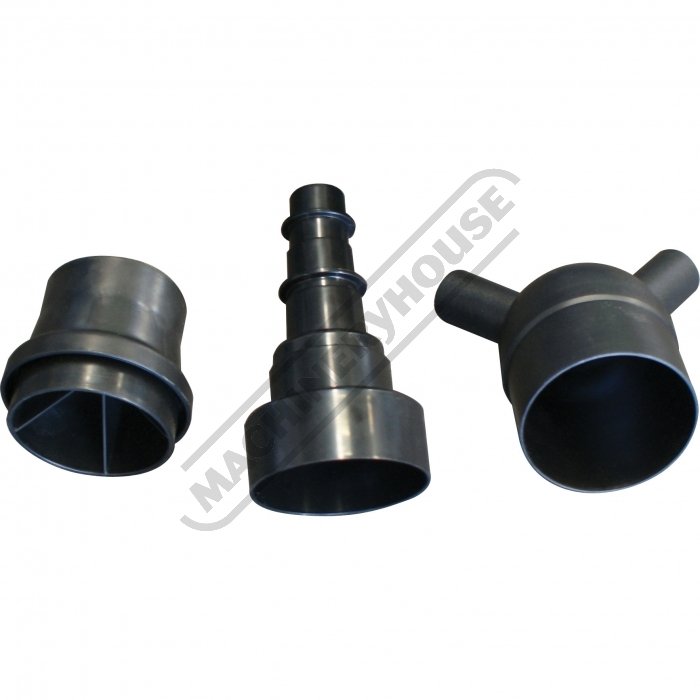

Included Reducer Attachments
7 of 7
Discontinued
Order Code: W3325
240V / 10A
2 Years Warranty
2 Years Warranty
Description
Dust Collector - DC-25
1HP
680cfm - LPHV System
Overview
LPHV = Low Pressure High Volume System
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
Features
- Portable on wheels, with conveniently placed handle for easy manoeuvrability
- 680cfm air flow suction
- 100mm(4") x single inlet
- Quick-action clamp
- Includes , 3 x reducer attachments
- 0.75kW (1HP) 240V motor
Compare Product Range
Specifications
| ORDER CODE | W3325 |
|---|---|
| MODEL | DC-25 |
| Type | Dust Collector |
| (CFM)Airflow | 680 |
| (Yes / No)LPHV - Low Pressure High Volume | Yes |
| (Yes / No)HPLV - High Pressure Low Volume | No |
| (No. / mm)Inlets / Diameter | 1 x Ø100 |
| (kW / hp)Motor Power | 0.75 / 1 |
| (V / amp)Voltage | 240 / 10 |
| (kg)Nett Weight | 28 |
