Panel Saw - ST-250

Ø254mm Saw Blade

W450 1 of 10

Mitre Guide 2 of 10

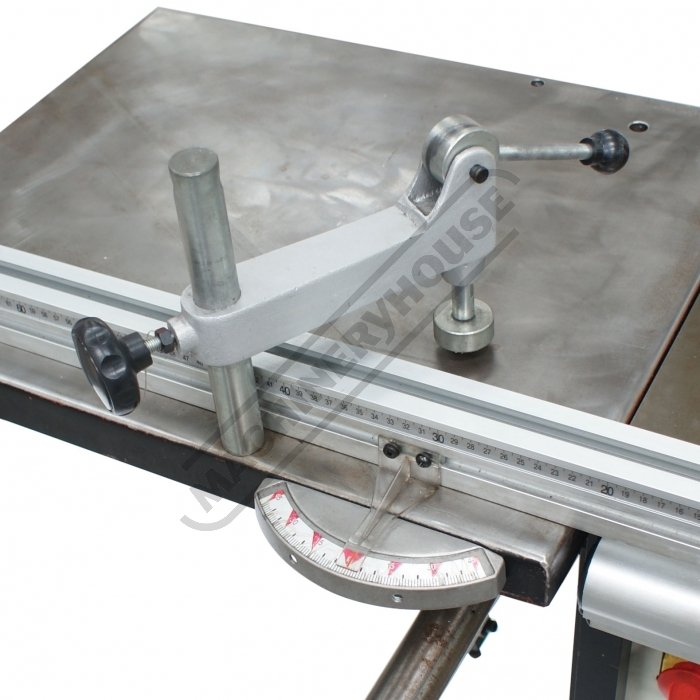

Sliding Table with Mitre Guide and Material Clamp 3 of 10

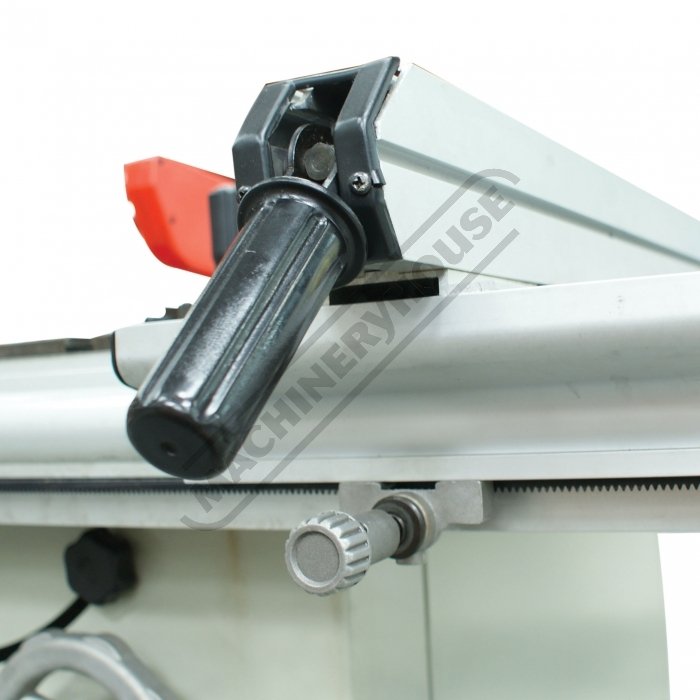

Micro Adjustment on Rip Fence 4 of 10

Magnetic Safety Switch 5 of 10

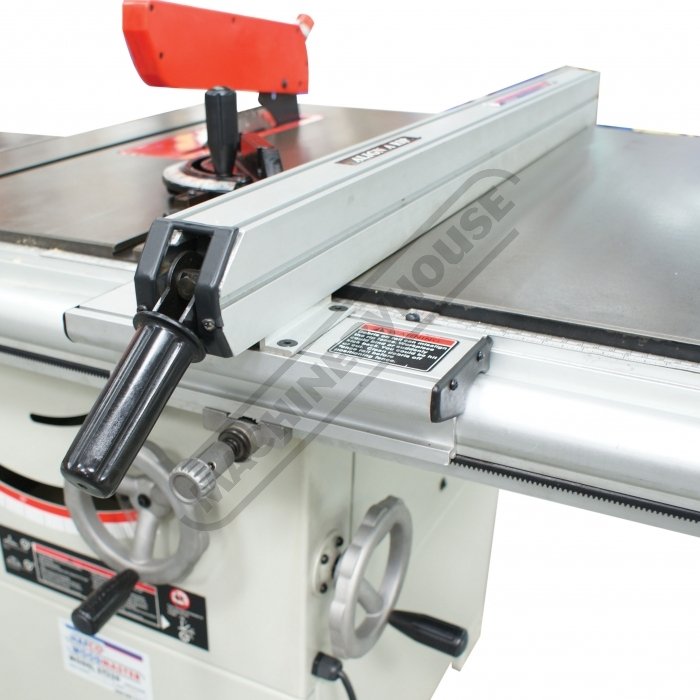

Rip Fence 6 of 10

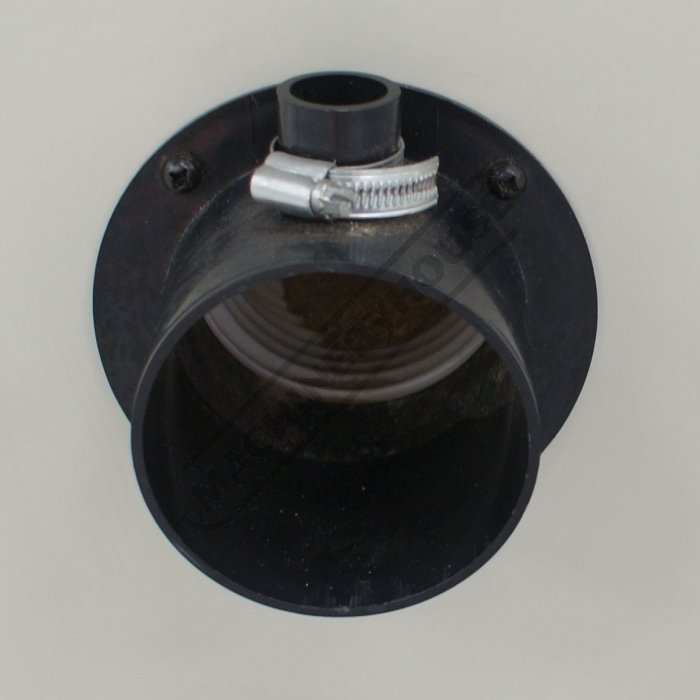

100mm Dust Chute 7 of 10

1250mm Travel Sliding Work Table 8 of 10

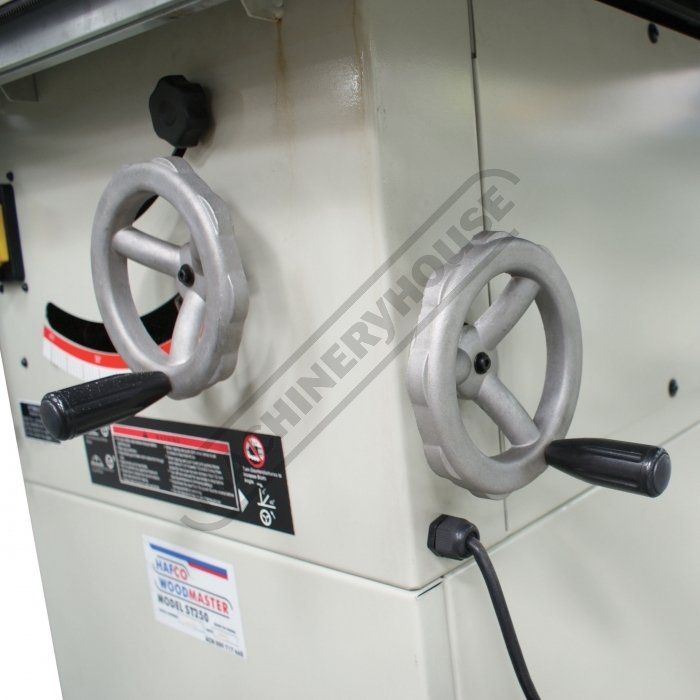

Blade Adjustment Handles 9 of 10

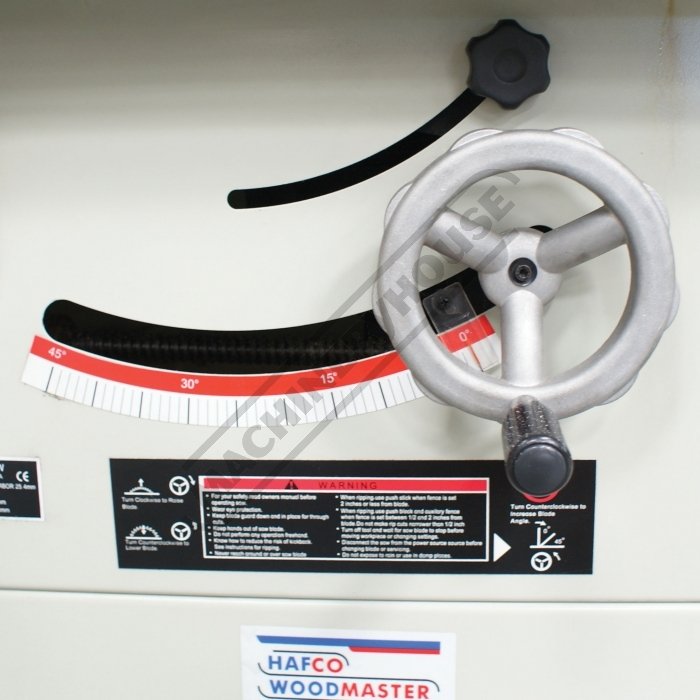

Blade Angle Adjustment 10 of 10

Discontinued

Order Code: W450

240V / 15A
2 Years Warranty

Compare

Wishlist

Description

Ø254mm Saw Blade

Cast iron work table
1250mm travel sliding work table with mitre guide & work clamp
Rise and fall spindle
75mm depth of cut
100mm dust collector port
Dust proof magnetic switch
254mm diameter saw blade with 45˚ tilting arbor
Powerful 2.2kW / 3hp 240V induction motor
Includes heavy duty rip fence with micro-adjustment, operated left or right of blade
Complete with stand, TCT blade and sliding table
Dust extraction at the top of the blade as well as a 100mm chute from the enclosed stand

Specifications

ORDER CODE	W450
MODEL	ST-250
(mm)Blade Diameter	Ø254
(mm)Table Size (W x H)	560 x 800
(mm)Table Size With Extensions	865 x 800
(mm)Max. Depth Of Cut 90º & 45º	75 / 60
Tilt Arbor To 45º	Yes
(mm)Sliding Table Stroke	1300
(mm)Cross Cut with Flip Over Stop	1000
(mm)Cross Cut with Extension Stop	1410
(mm)Rip Capacity	600
(kW / hp)Motor Power	2.2 / 3
(V / amp)Voltage / Amperage	240 / 15
(mm)Floor Space Required (W x D x H)	1840 x 2160 x 1100
(kg)Weight (nett)	190
