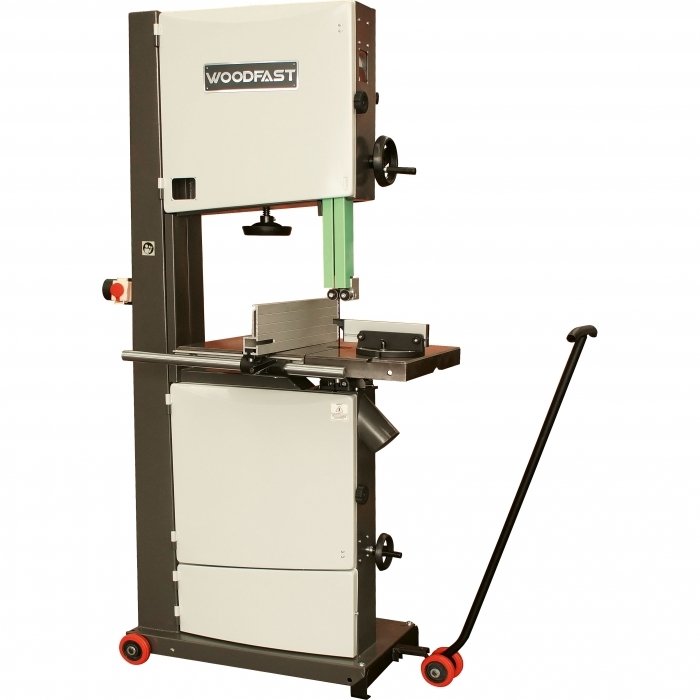

Wood Band Saw - MBS500
465mm Throat Depth x 285mm Height Capacity
W691
1 of 15

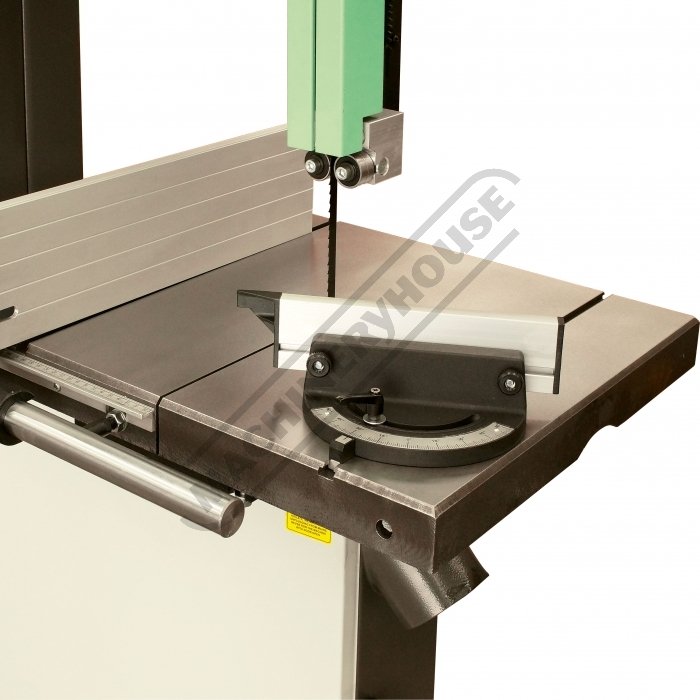

Cast Iron Table
2 of 15
Mitre Guide
3 of 15

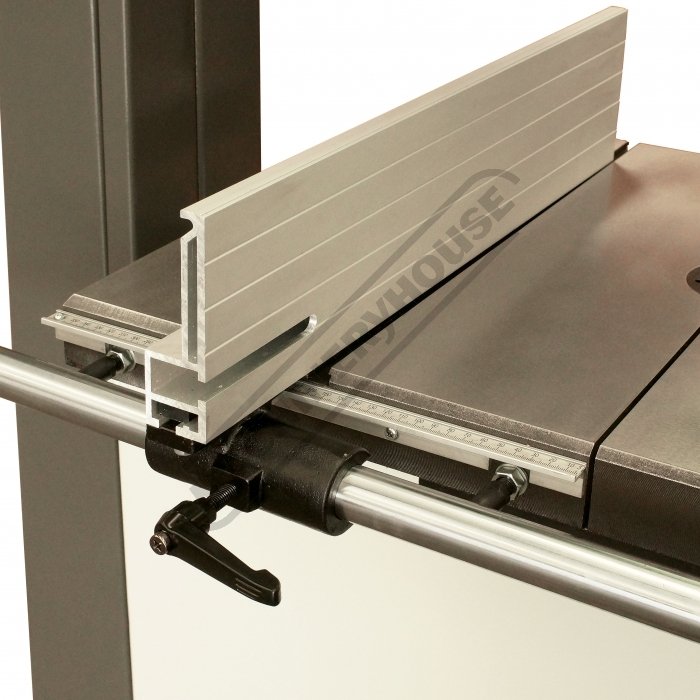

Sliding Fence
4 of 15

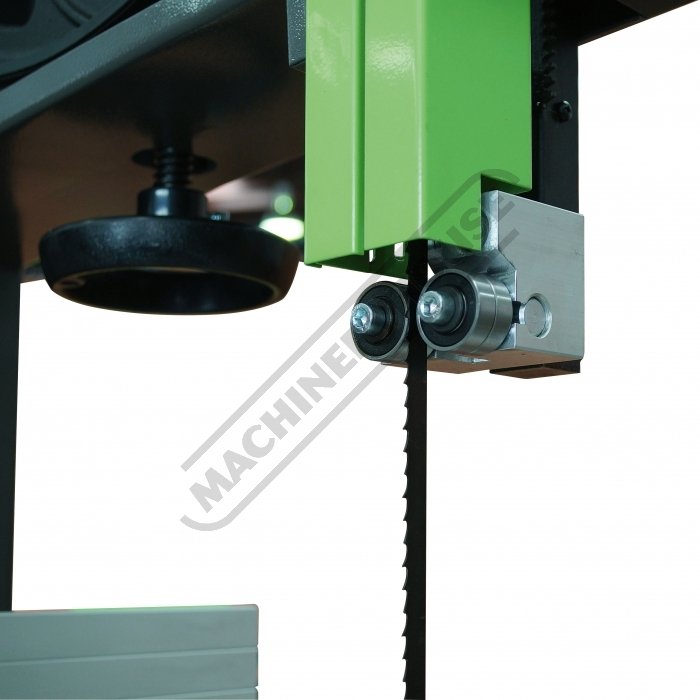

Top Roller Bearing Guide
5 of 15

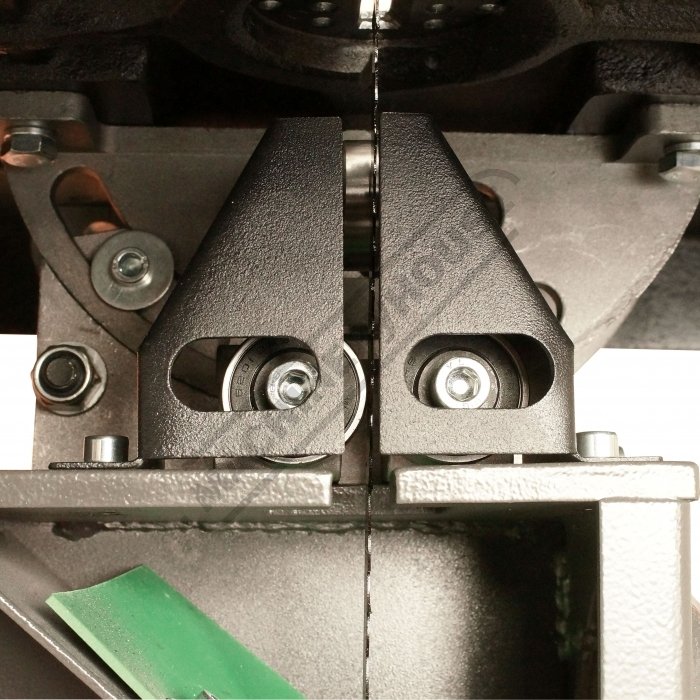

Bottom Roller Bearing Guides
6 of 15

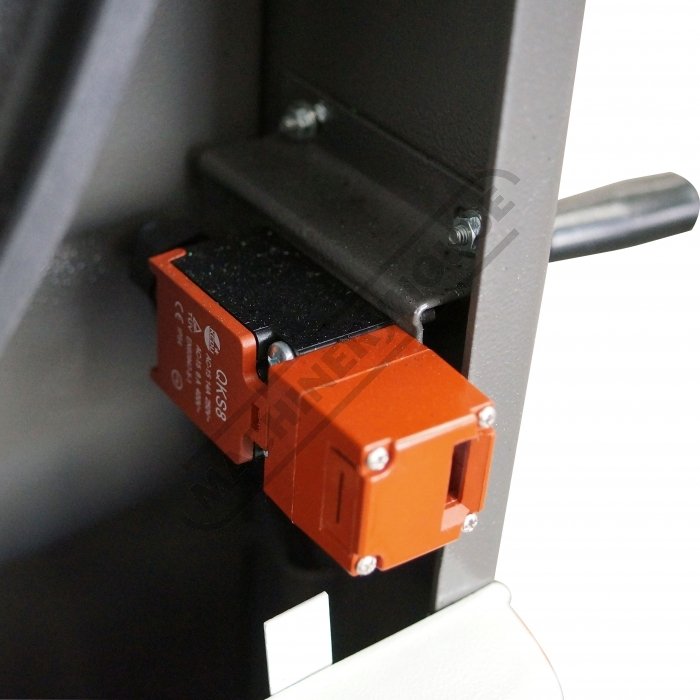

Safety Electrical Cut Out On Doors
7 of 15

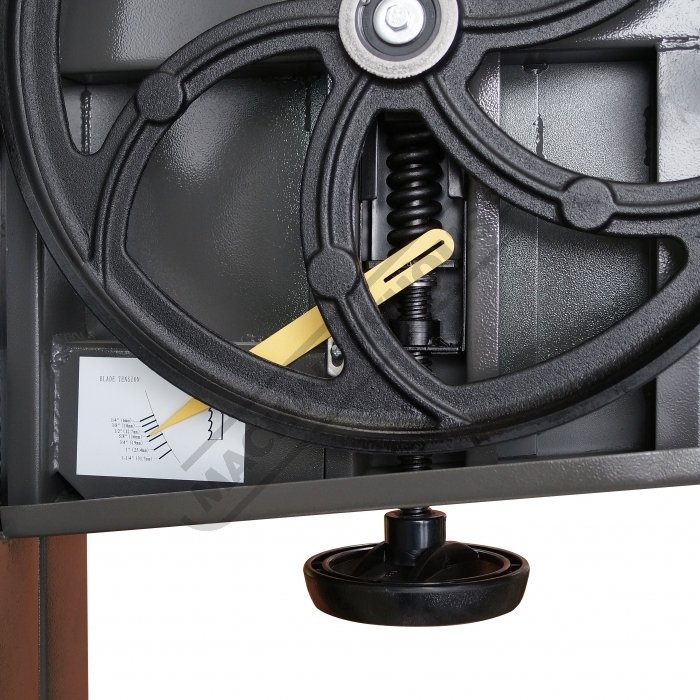

Blade Tension Hand Wheel And Guide
8 of 15

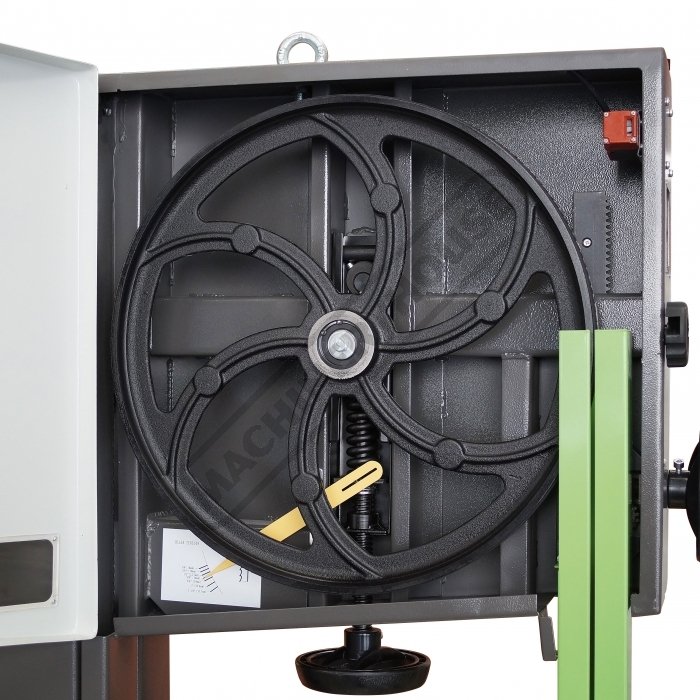

Heavy Duty Blade Wheels
9 of 15

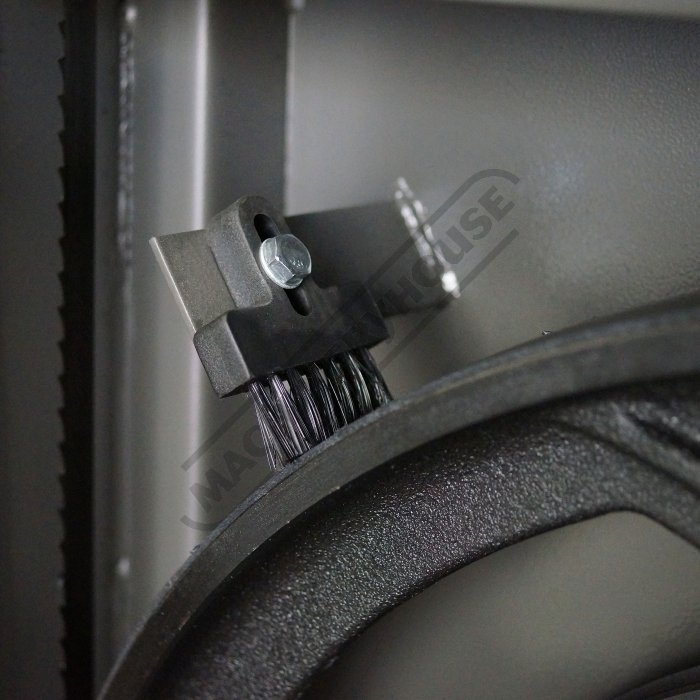

Wheel Cleaning Brush
10 of 15
Electrical Emergency Stop
11 of 15
Main Power On Off Magnetic Switch
12 of 15

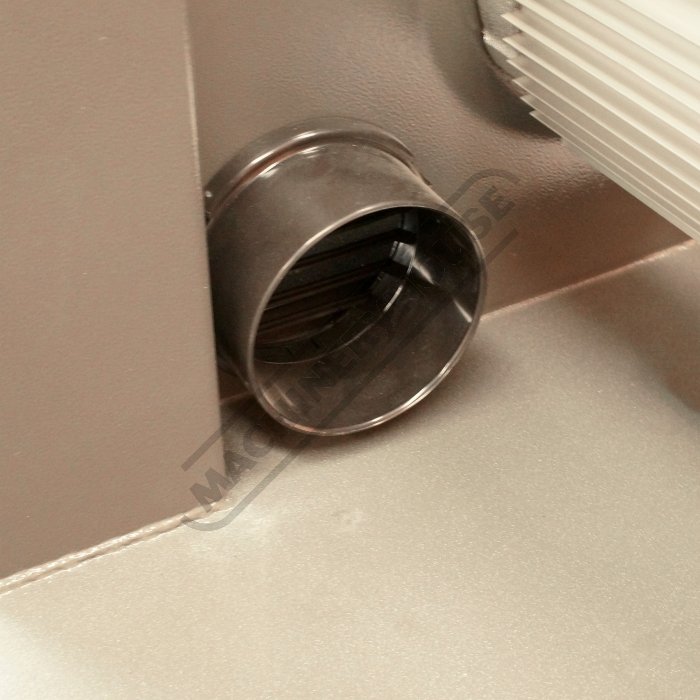

100mm Dust Port
13 of 15

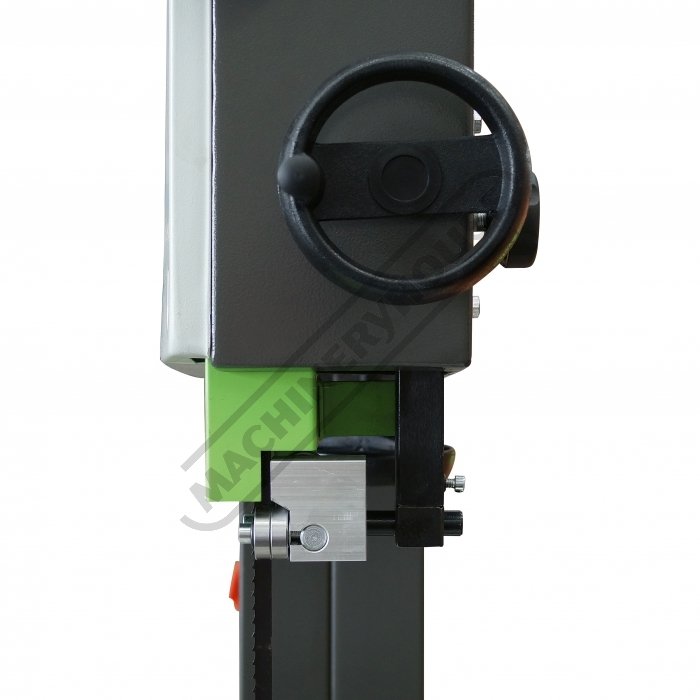

Blade Height Adjustement Wheel
14 of 15

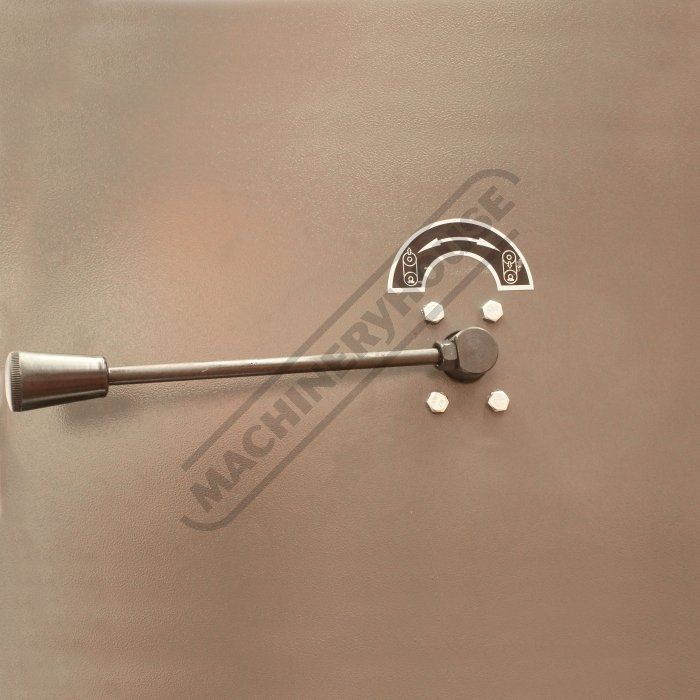

Quick Action Blade Tension System
15 of 15
Discontinued
Order Code: W691
240V / 15A
2 Years Warranty
2 Years Warranty
Description
Wood Band Saw - MBS500
465mm Throat Depth x 285mm Height Capacity
Features
- 1500W/ 2hp 240V motor
- Safety magnetic switch with emergency stop
- Curved hinged blade guards with safety micro-switches
- 1-Piece steel fabricated frame
- Roller blade guides
- 2 blade speeds, 380 & 800m/min
- Quick-release blade tension mechanism
- Blade tension sight indicator
- Rack & pinion adjustment on top blade guide
- Cast iron table tilts to 45°
- Twin 100mm dust chutes
- Includes mitre guide & mobile wheel kit
Includes
- Mitre guide
- Quick Lock Rip fence
- Mobile wheel kit
Compare Product Range
Specifications
| ORDER CODE | W691 |
|---|---|
| MODEL | MBS500 |
| (mm)Wheel Diameter (Ø) | 470 |
| (mm)Throat Capacity | 465 |
| (mm)Height Capacity | 285 |
| (mm)Table Size | 630 x 480 |
| Frame Type | Steel |
| (kW / hp)Motor Power | 1.5 / 2 |
| (V / amp)Voltage / Amperage | 240 / 15 |
| (Suits)Blade Code | W4335 / W4336 |
| (mm)Blade Size (L x W x T) | 3607 x 25 x 0.90 |
| (kg)Nett Weight | 175 |
