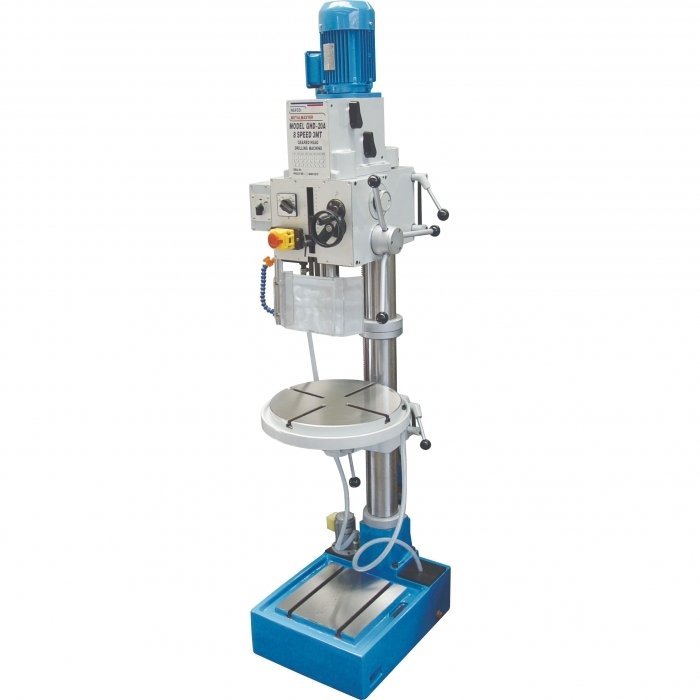

Industrial 3MT Geared Head Drilling Machine - GHD-20A
Ø31.5mm Drilling Capacity
Includes Automatic Feed
D134
1 of 14

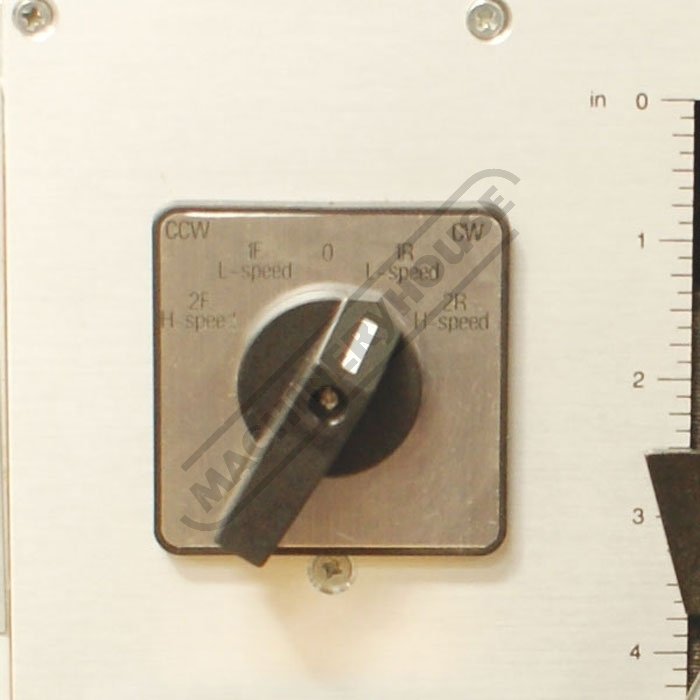

High Low with Forward and Reverse Switch
2 of 14

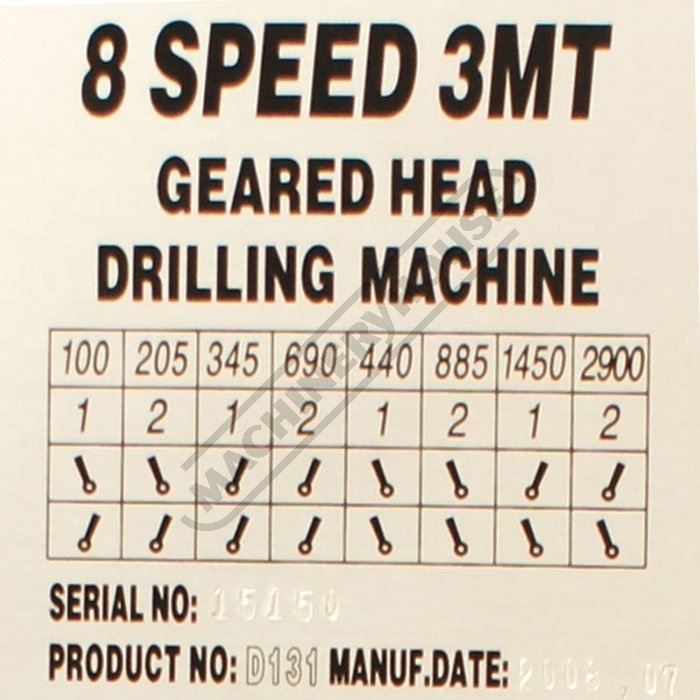

8 Drilling Speeds From 100 2900rpm
3 of 14

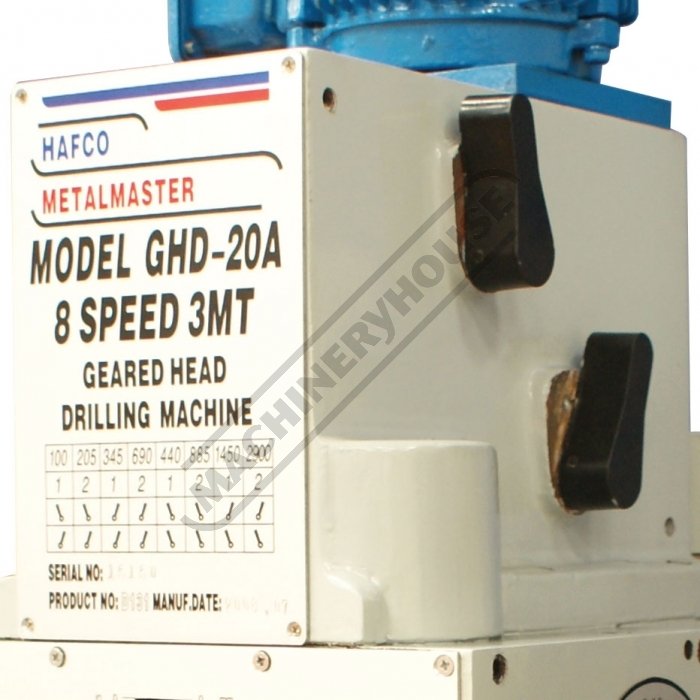

Gear Selection Levers
4 of 14

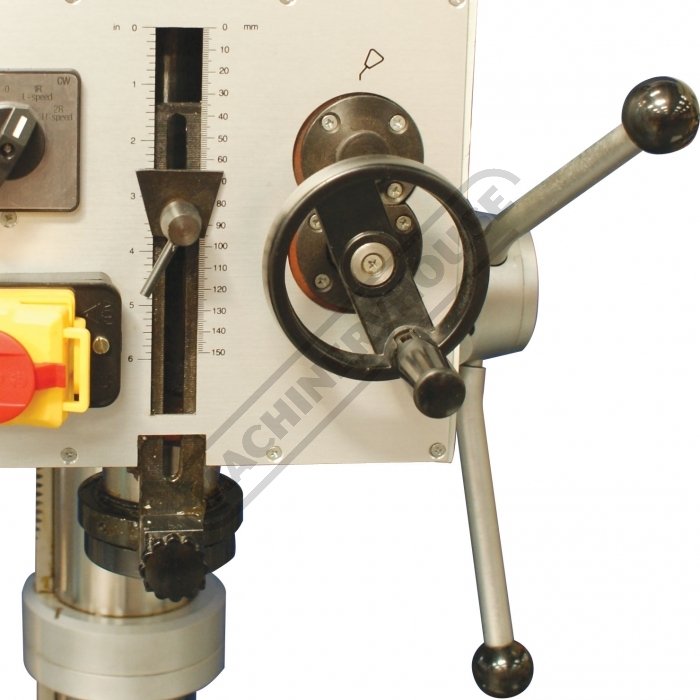

Micro Down Feed Adjustment
5 of 14

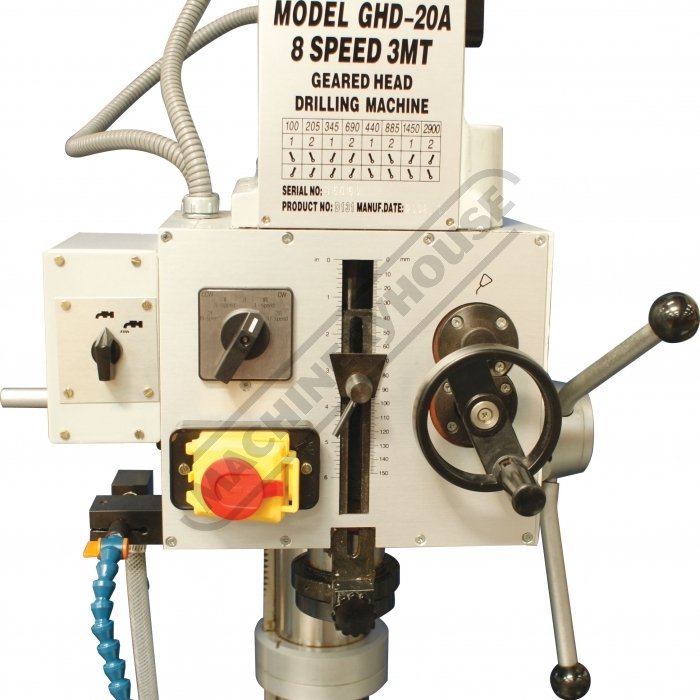

Head Controls
6 of 14

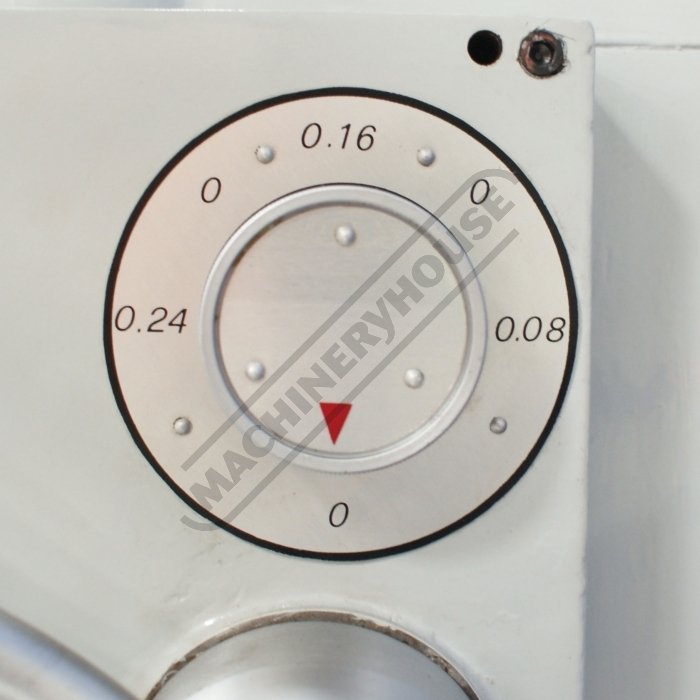

Automatic Feed Range
7 of 14

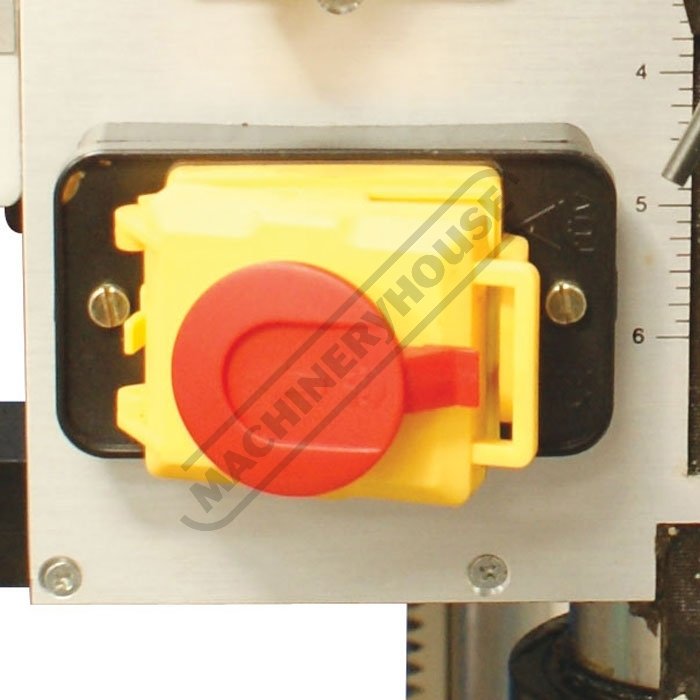

Emergency Stop Switch and Overload Protection
8 of 14

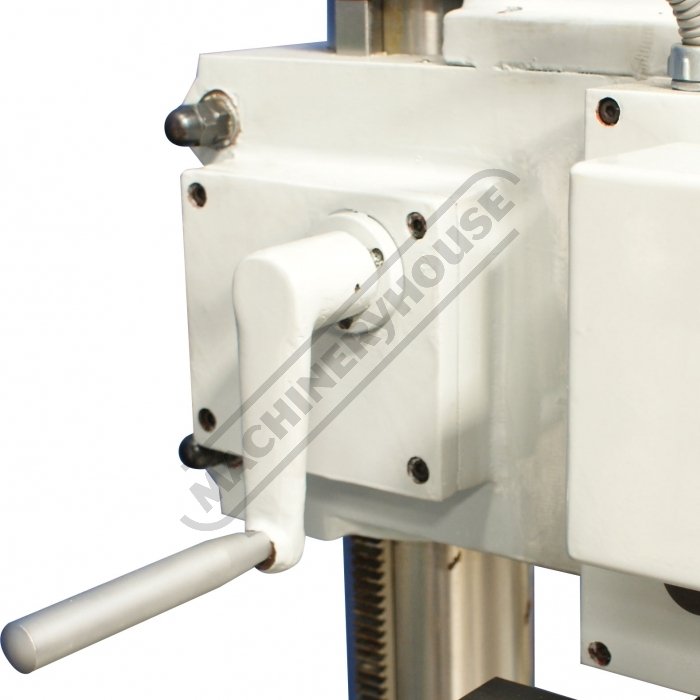

Rack and Pinion Wind Up Drill Head
9 of 14

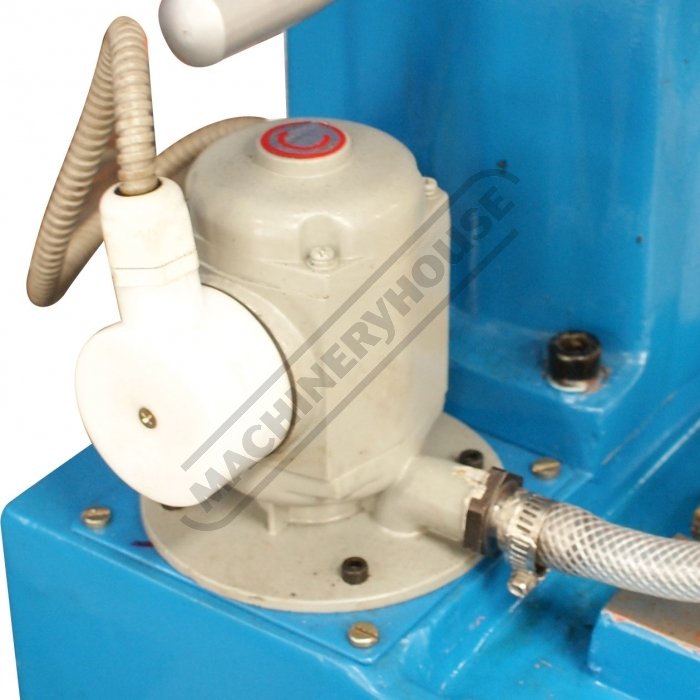

Coolant Pump System
10 of 14

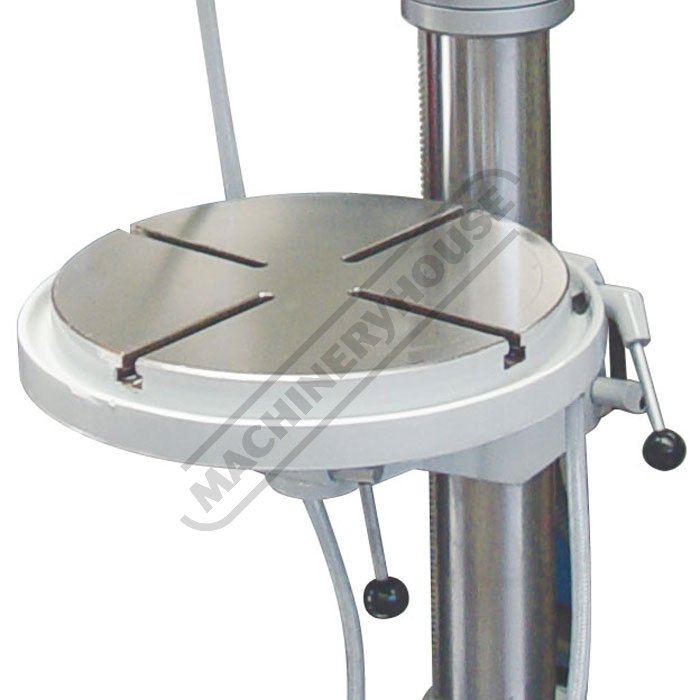

T Slotted Work Table Rotates 360 degrees
11 of 14

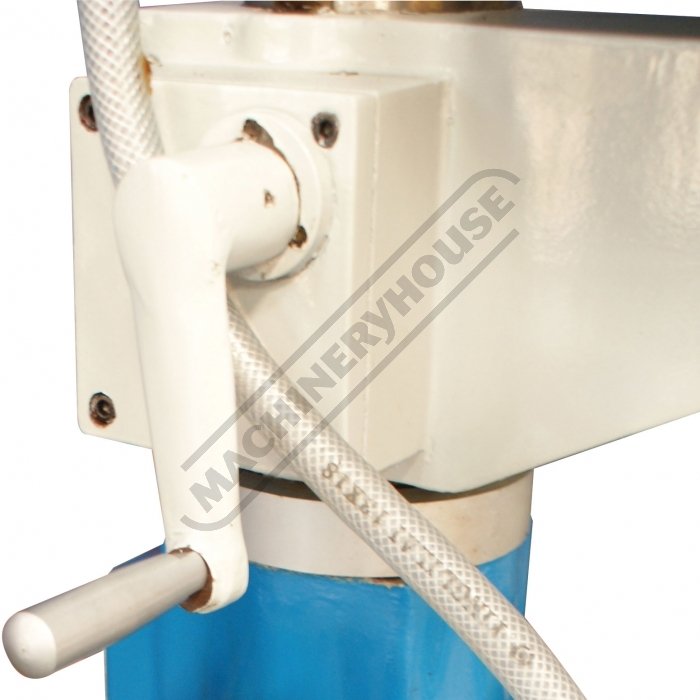

Rack and Pinion Wind Up Table
12 of 14

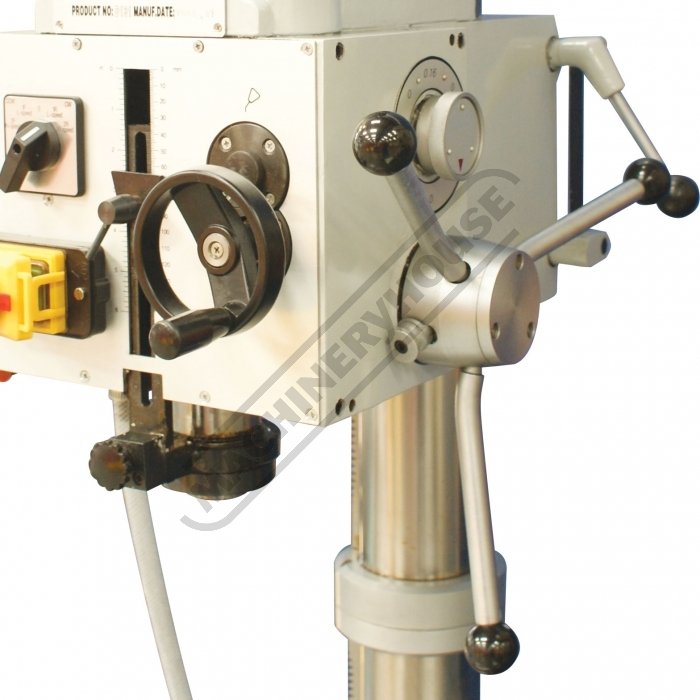

Quill Handle
13 of 14

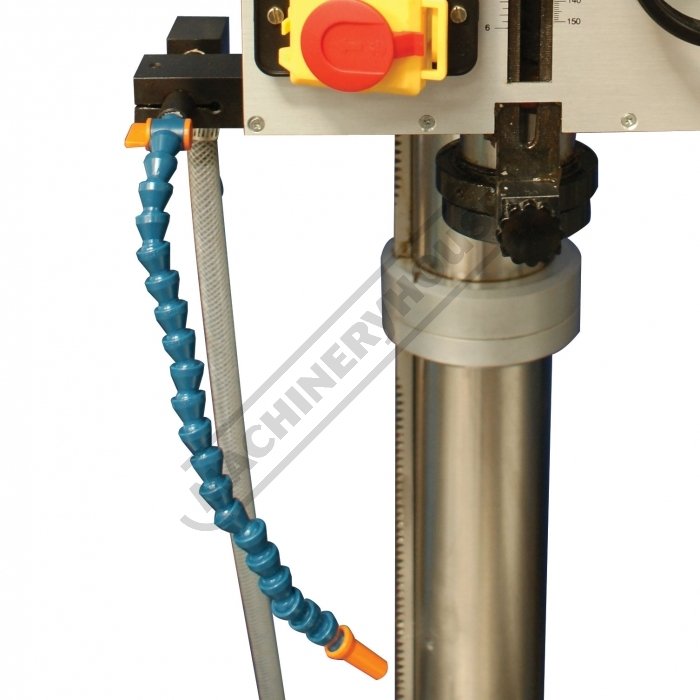

Coolant Nozzle
14 of 14
Discontinued
Order Code: D134
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Industrial 3MT Geared Head Drilling Machine - GHD-20A
Ø31.5mm Drilling Capacity
Includes Automatic Feed
Features
- Ideal for industrial workshop use
- Geared head drilling machine with 3 morse taper spindle
- 8 drilling speeds from 100-2900rpm
- Automatic feed range (0.08, 0.16, 0.24mm/rev)
- Micro down feed adjustment
- Emergency stop switch and overload protection
- Adjustable accurate depth setting for increased productivity
- Thick walled column ensuring greater rigidity
- Rack and pinion wind-up table
- Rack and pinion wind-up drill head
- T slotted work table and base
Includes
- Coolant pump system
- 16mm keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills
Compare Product Range
Specifications
| ORDER CODE | D134 |
|---|---|
| MODEL | GHD-20A |
| (mm)Drilling Capacity | Ø31.5 |
| (MT)Spindle Taper | 3 |
| (mm)Spindle Travel | 140 |
| (mm)Throat Depth | 220 |
| (mm)Quill Diameter | 60 |
| (mm)Column Diameter | 100 |
| (mm)Spindle To Table | 630 |
| (mm)Spindle To Base | 1070 |
| (Type)Table | Round |
| (mm)Table Size | 390 |
| (mm)T-Slot Size | 14 |
| (mm/rev)Automatic Quill Feed | 0.08, 0.16, 0.24 |
| (Includes)Coolant System | Yes |
| (No.)Spindle Speed Steps | 8 |
| (rpm)Spindle Speed Range | 100 ~ 2900 |
| (kW / hp)Motor Power | 0.9 / 1.2 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Full Height | 2000 |
| (kg)Nett Weight | 408 |
