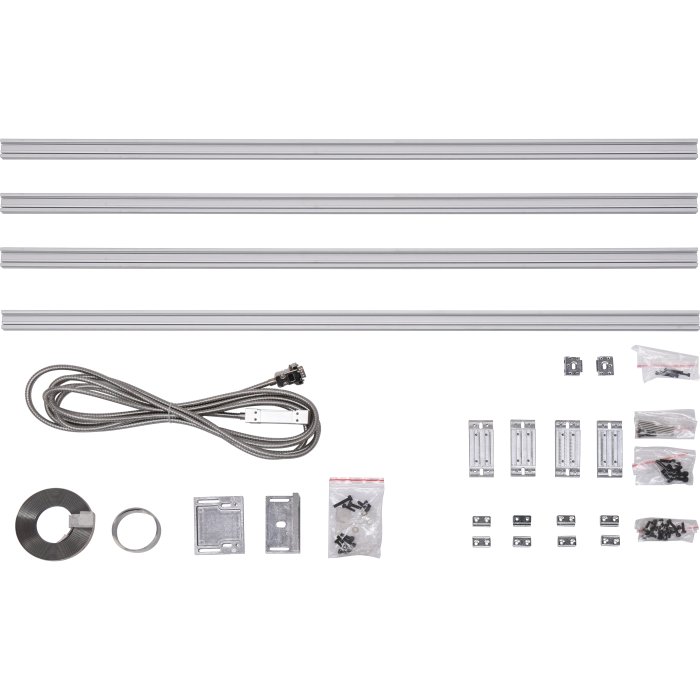

4000mm Magnetic Digital Readout Scale - DM4000
Waterproof to IP67
5µm Resolution
D752
1 of 12

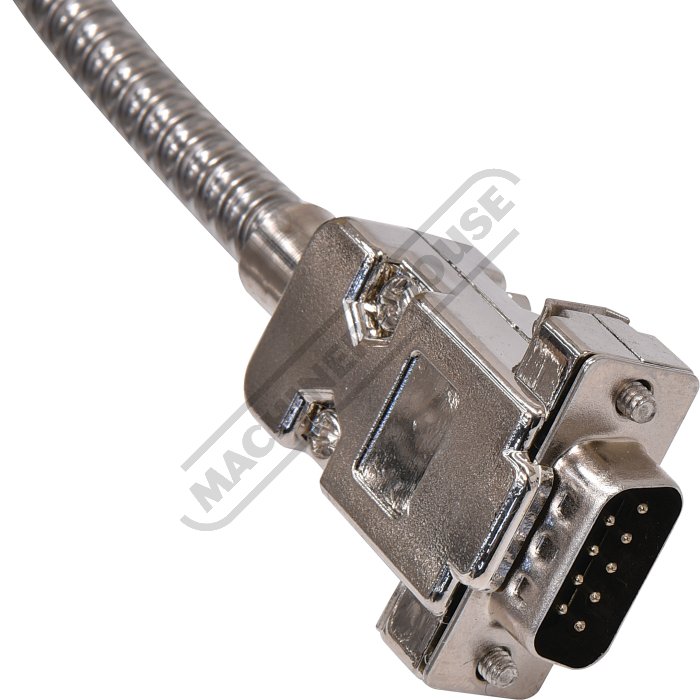

Dsub 9 Male Plug
2 of 12

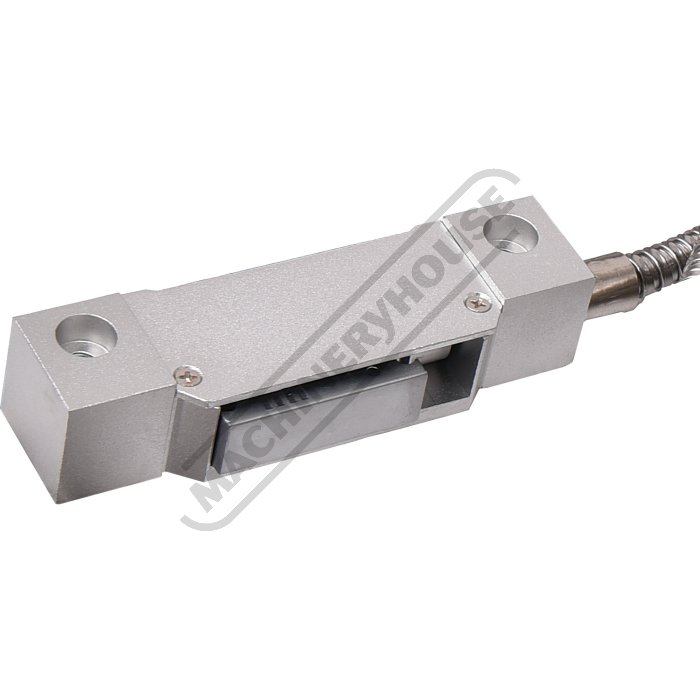

Reader
3 of 12

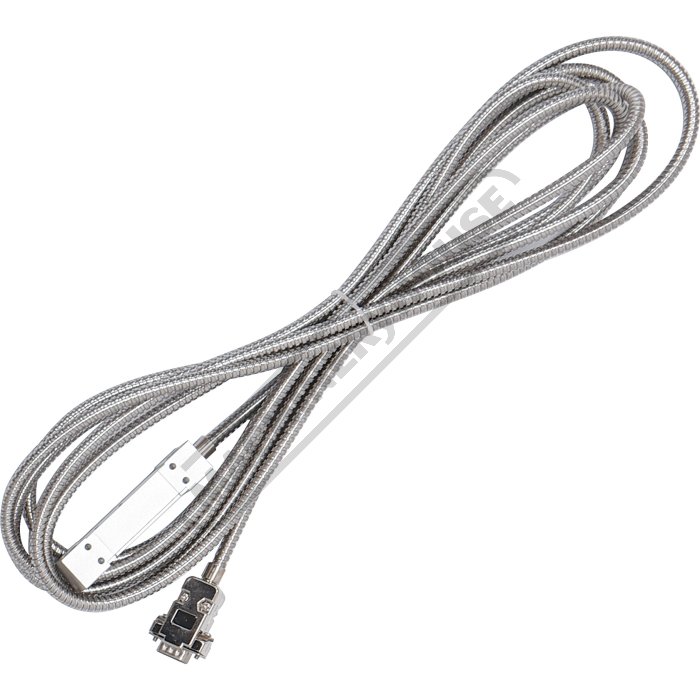

Extension Cable
4 of 12

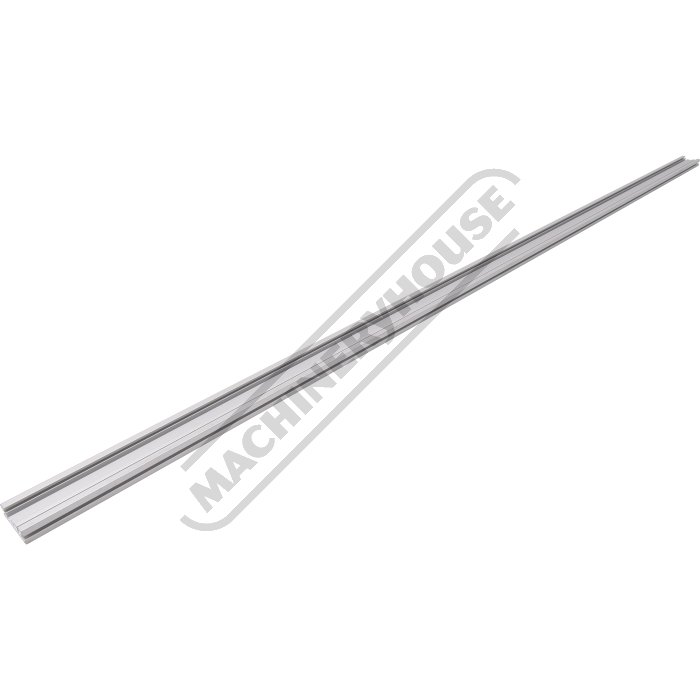

Aluminium Extrusion Length
5 of 12

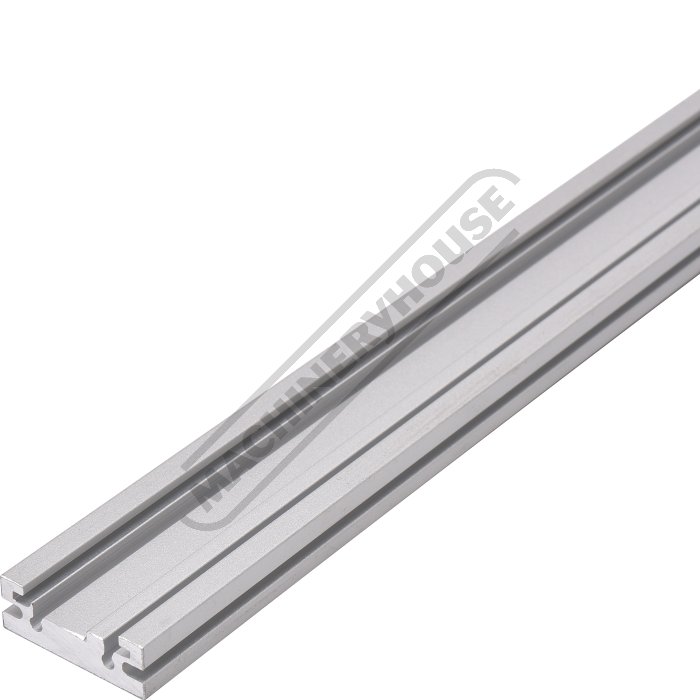

Aluminium Extrusion
6 of 12

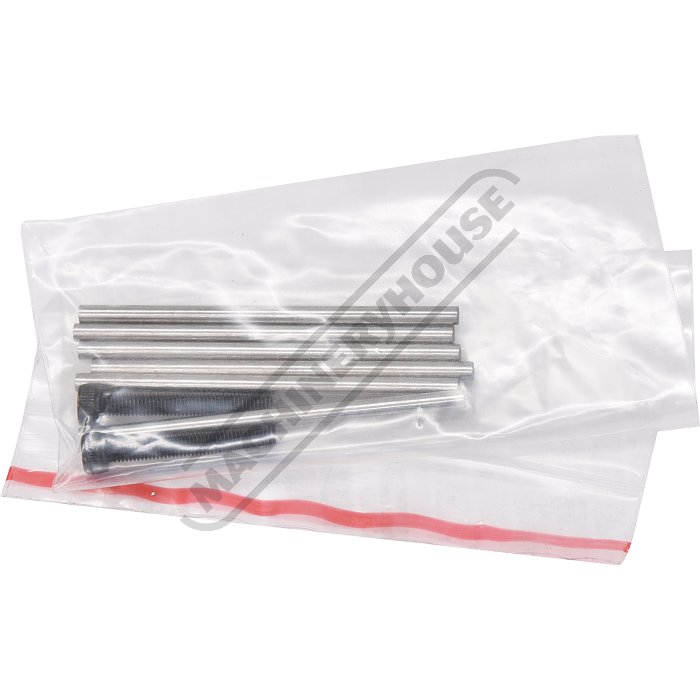

Aluminium Extrusion Joiner Pins
7 of 12

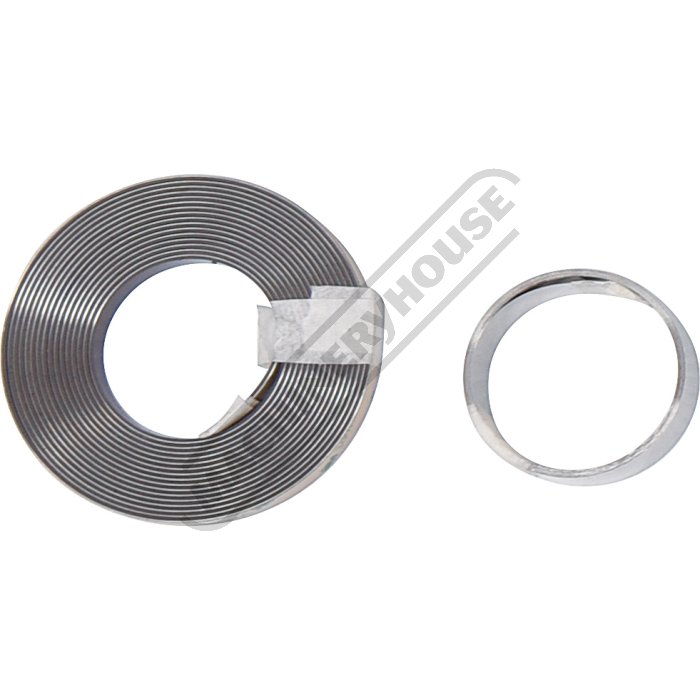

Magnetic Tape and Metal Protective Strip
8 of 12

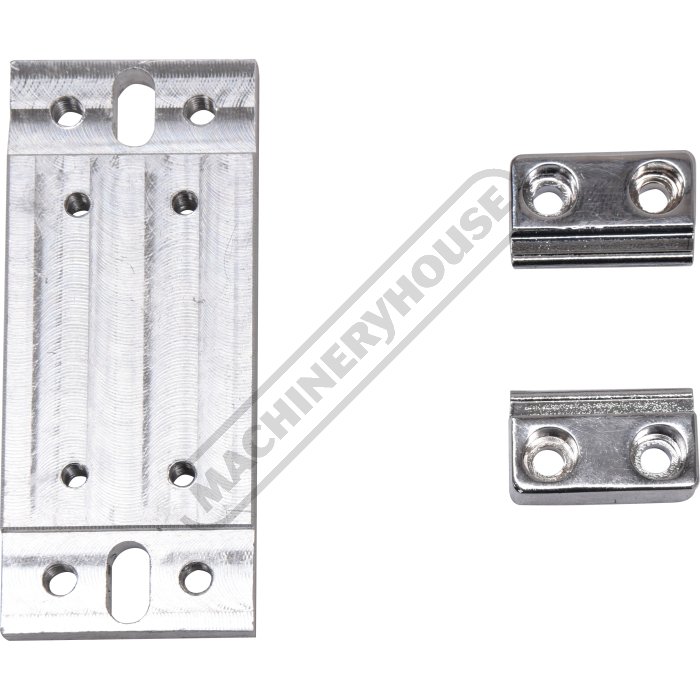

Scale Holder Bracket
9 of 12

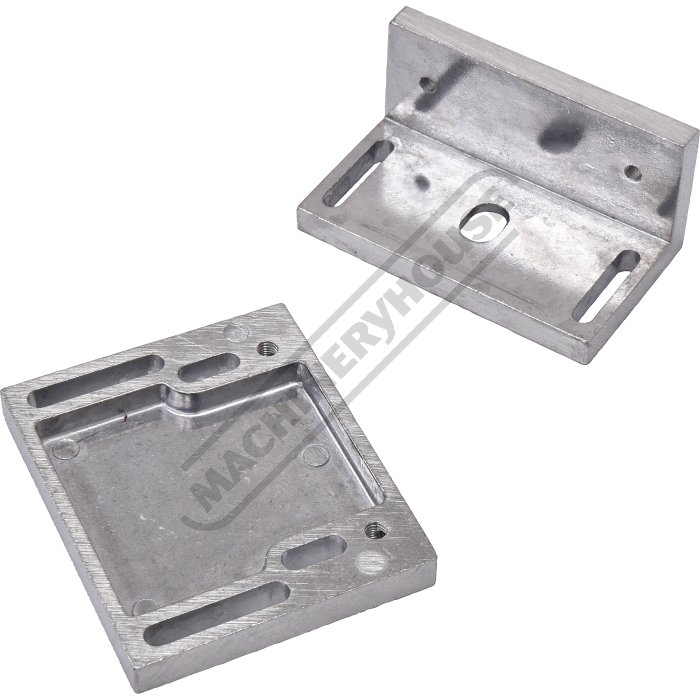

Brackets
10 of 12

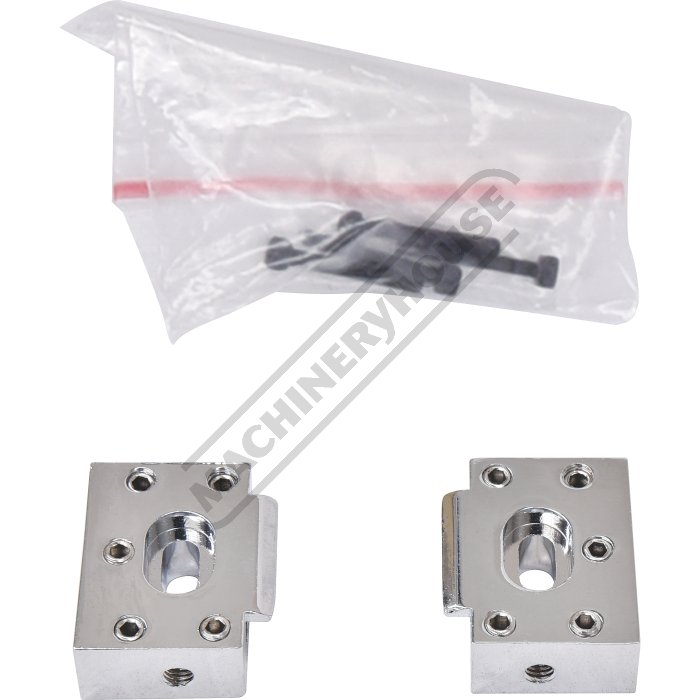

End Caps
11 of 12

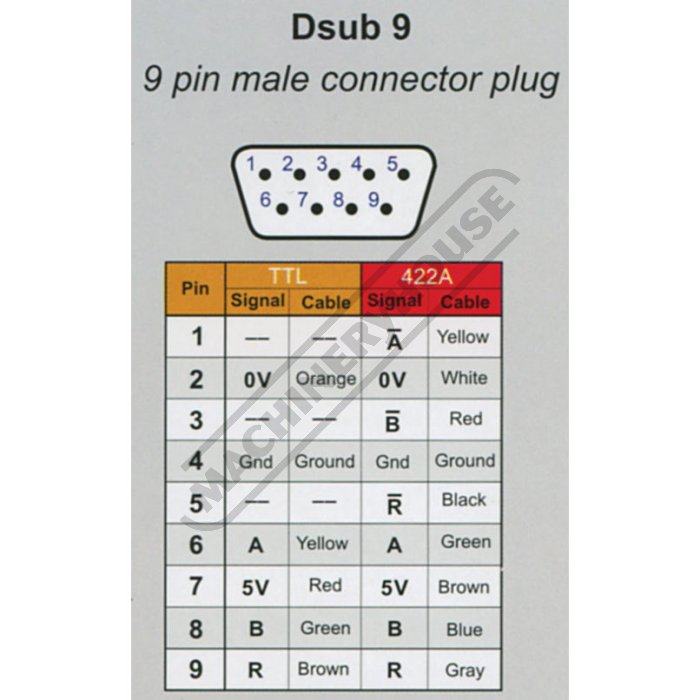

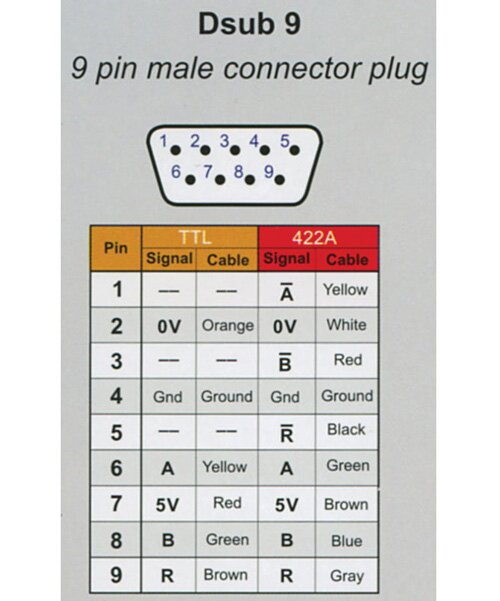

Dsub9 Wiring Diagram
12 of 12
On Sale - Back In Stock Soon
Order Code: D752
ex-gst
inc-gst
$
2,428.00
$
2,792.20
$
1,945.22
$
2,237.00
1 Year Warranty
Description
4000mm Magnetic Digital Readout Scale - DM4000
Waterproof to IP67
5µm Resolution
Overview
Hafco magnetic scales are robust and accurate, and can be used in very harsh environment such as stone cutting, large machine tools,laser cutting machinery, water cutting machines as well as inspection applications.
Features
- Compatible with Easson digital readout displays
- Water proof to IP67
Compare Product Range
Specifications
| ORDER CODE | D752 |
|---|---|
| Type | Magnetic Scale |
| (mm)Travel - Maximum | 4000 |
| (mm)Overall Length (L) | 4120 |
| (µm)Scale Resolution | 5 |
| (Metre)Cable Length | 5 |
| (mm)Width x Height (W x H) | 28 x 46 |
| (Yes / No)Backing Support Plate | No |
