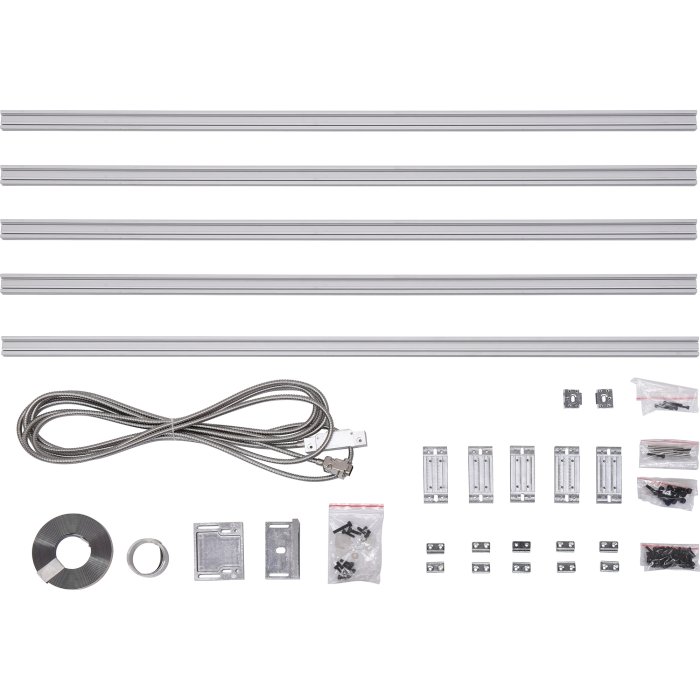

5000mm Magnetic Digital Readout Scale - DM5000
Waterproof to IP67
5µm Resolution
D755
1 of 11

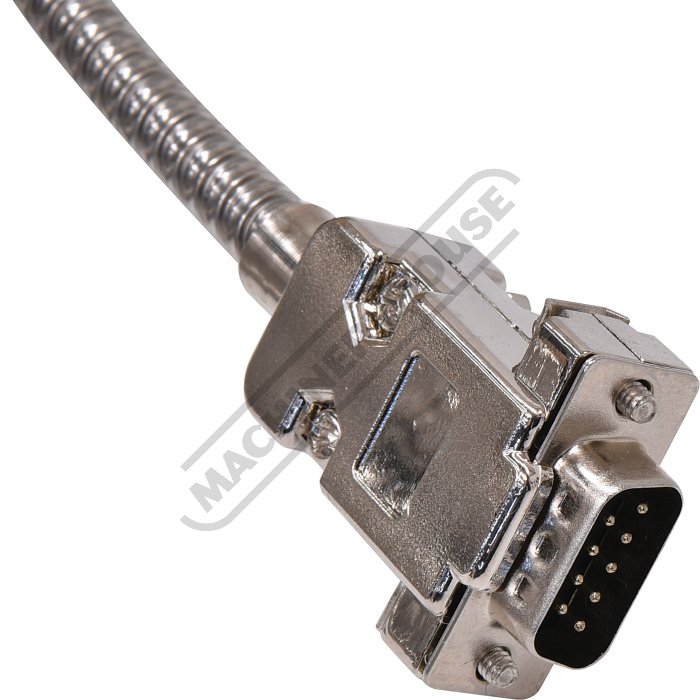

Dsub 9 Male Plug
2 of 11

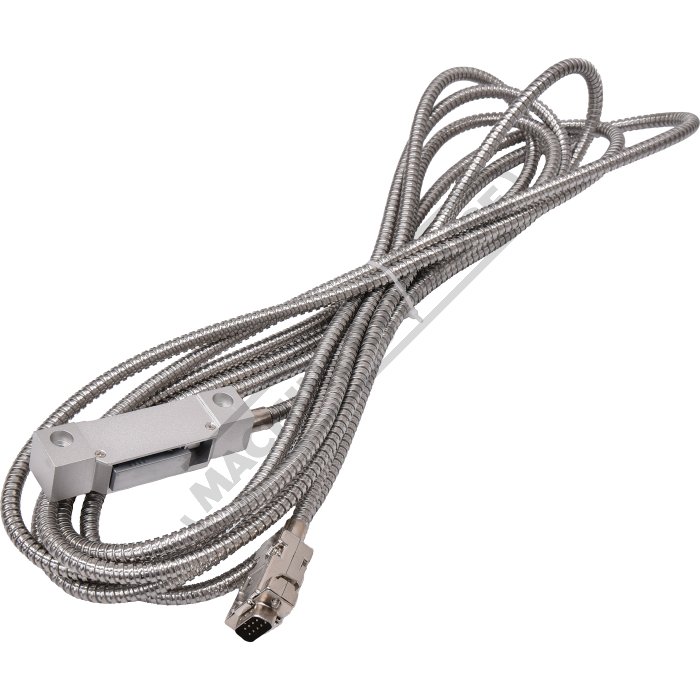

Dsub 9 and Reader Head Extension Cable
3 of 11

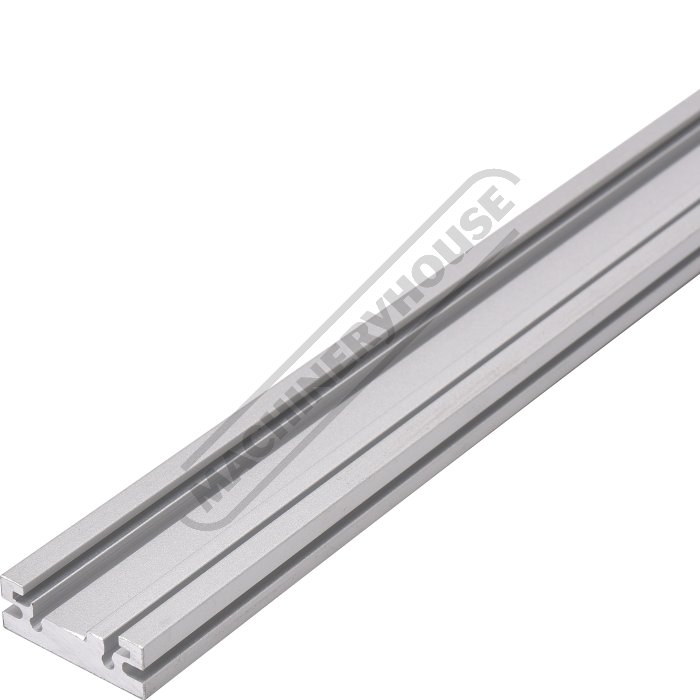

Aluminium Extrusion
4 of 11

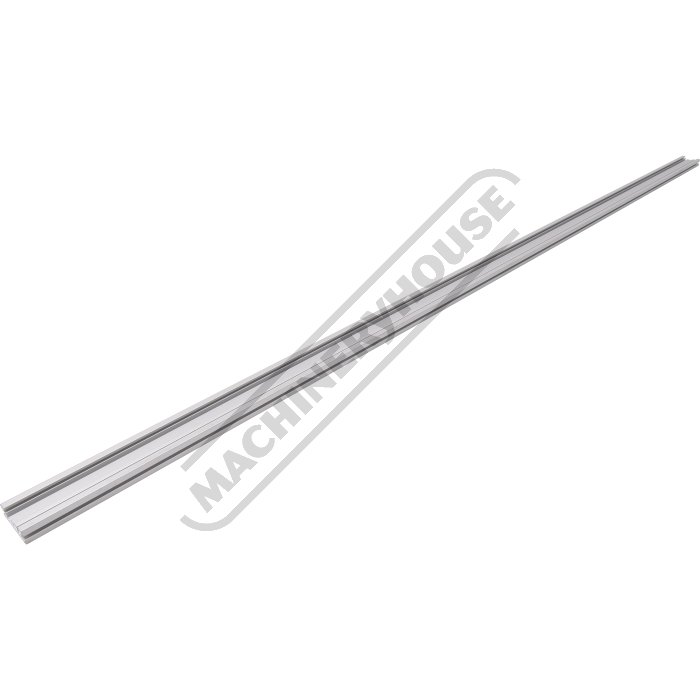

Aluminium Extrusion Length
5 of 11

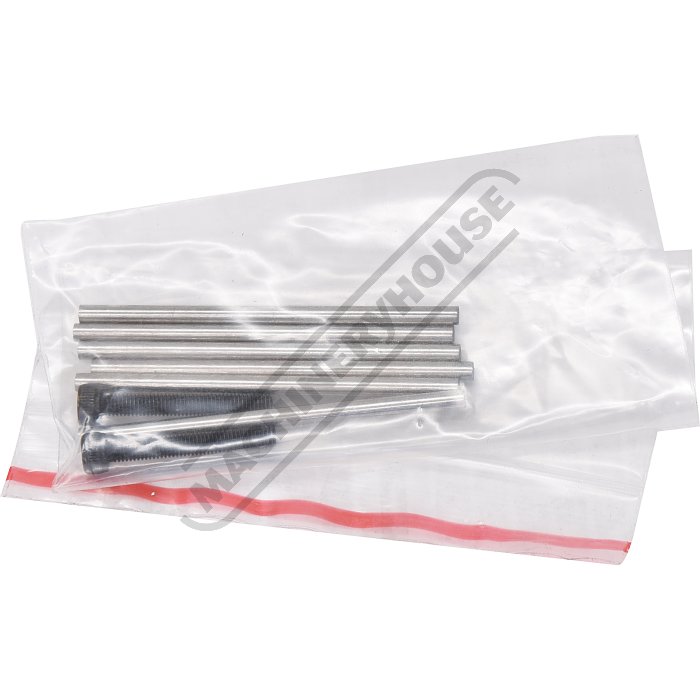

Aluminium Extrusion Joiner Pins
6 of 11

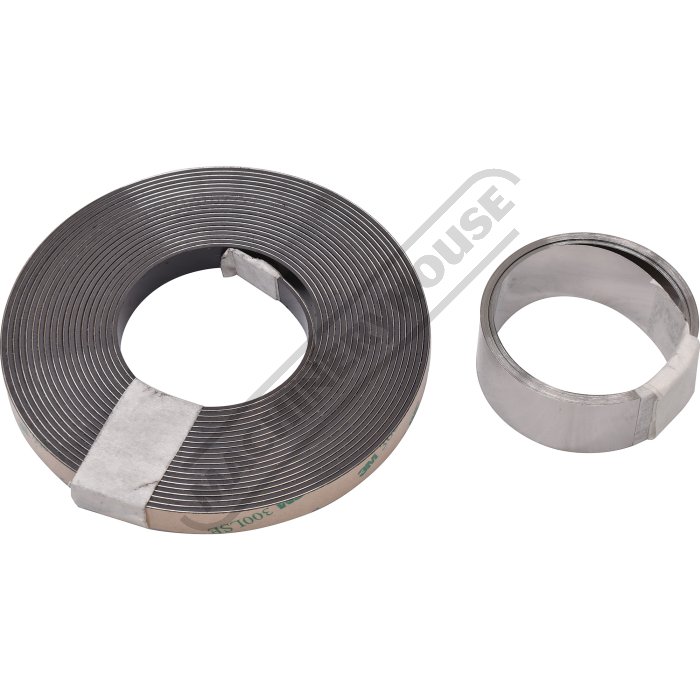

Magnetic Tape and Metal Protective Strip
7 of 11

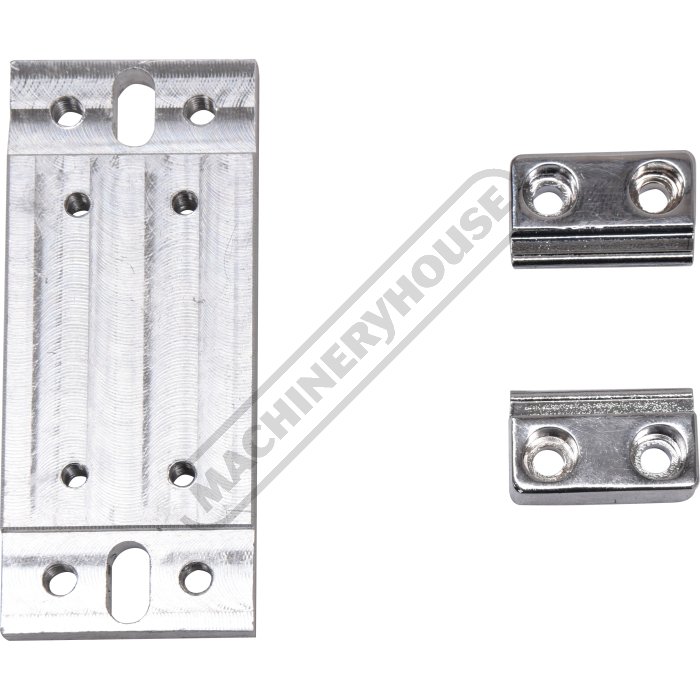

Scale Holder Bracket
8 of 11

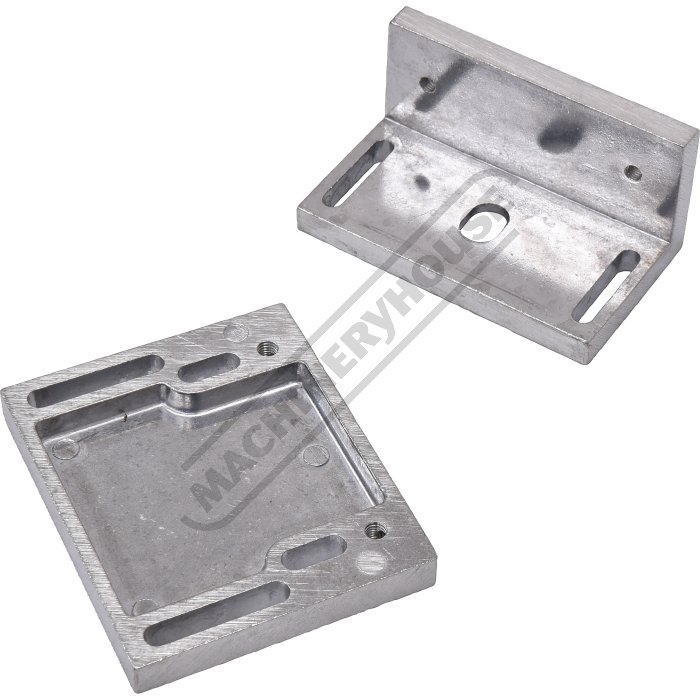

Brackets
9 of 11

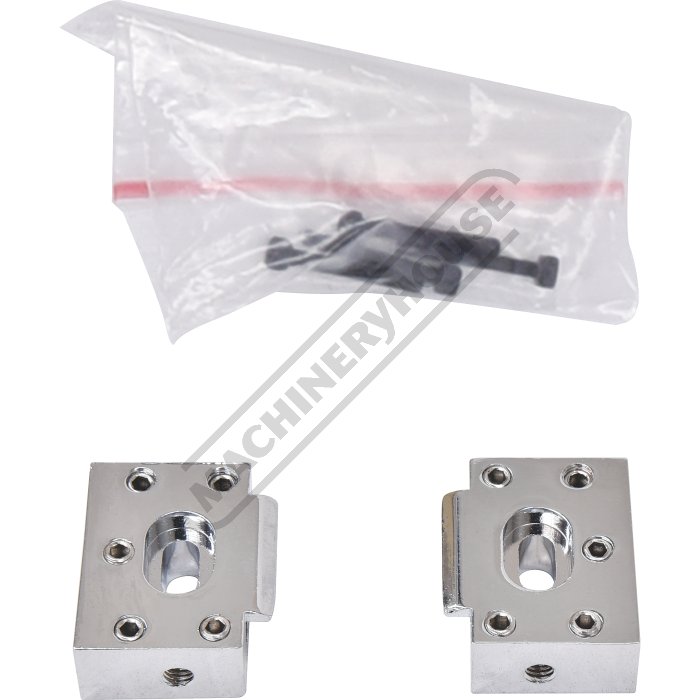

End Caps
10 of 11

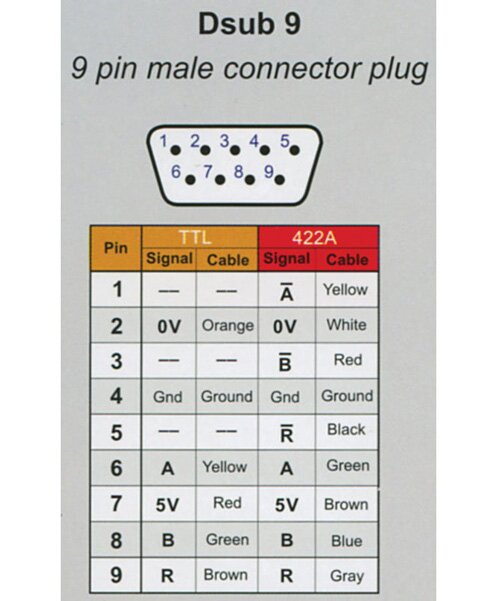

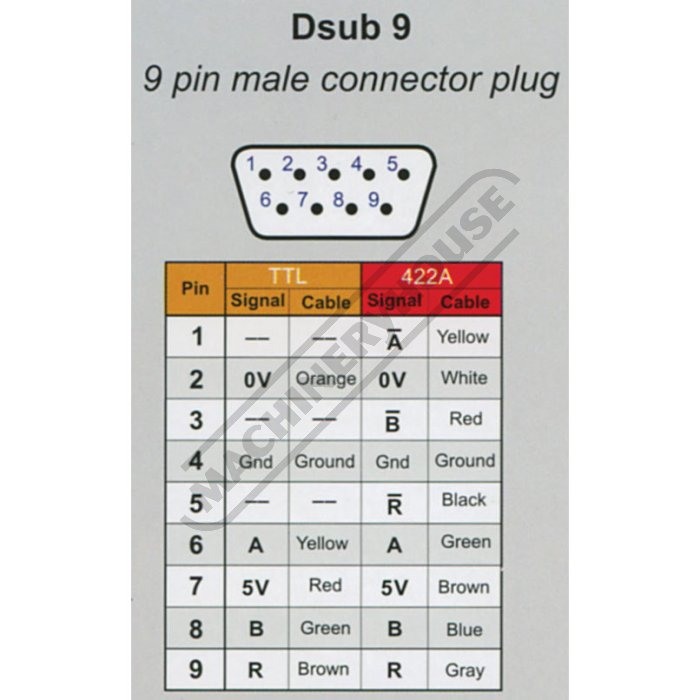

Dsub9 Wiring Diagram
11 of 11
On Sale - Back In Stock Soon
Order Code: D755
ex-gst
inc-gst
$
2,794.00
$
3,213.10
$
2,238.26
$
2,574.00
1 Year Warranty
Description
5000mm Magnetic Digital Readout Scale - DM5000
Waterproof to IP67
5µm Resolution
Overview
Hafco magnetic scales are robust and accurate, and can be used in very harsh environment such as stone cutting, large machine tools,laser cutting machinery, water cutting machines as well as inspection applications.
Features
- Compatible with Easson digital readout displays
- Water proof to IP67
Compare Product Range
Specifications
| ORDER CODE | D755 |
|---|---|
| Type | Magnetic Scale |
| (mm)Travel - Maximum | 5000 |
| (mm)Overall Length (L) | 5120 |
| (µm)Scale Resolution | 5 |
| (Metre)Cable Length | 5 |
| (mm)Width x Height (W x H) | 28 x 46 |
| (Yes / No)Backing Support Plate | No |
