10000mm Magnetic Digital Readout Scale - DM10000
Waterproof to IP67
5µm Resolution
D7559
1 of 7

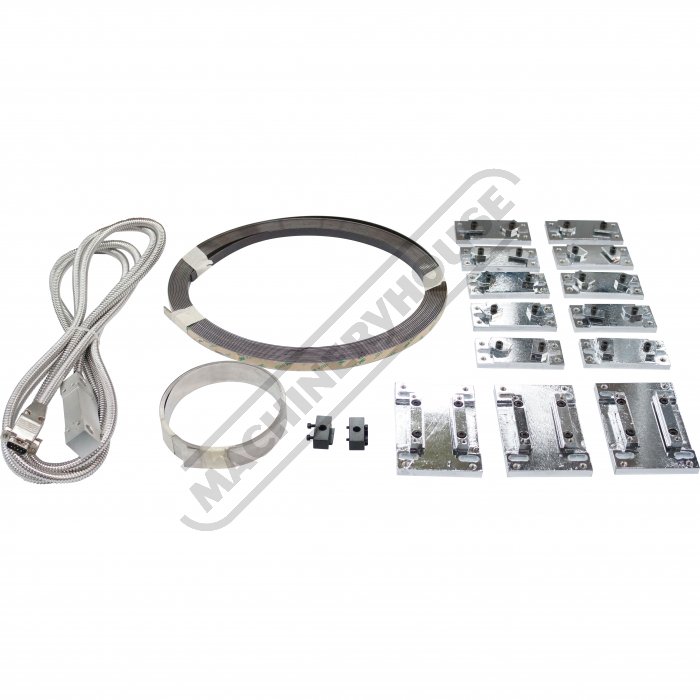

Parts
2 of 7

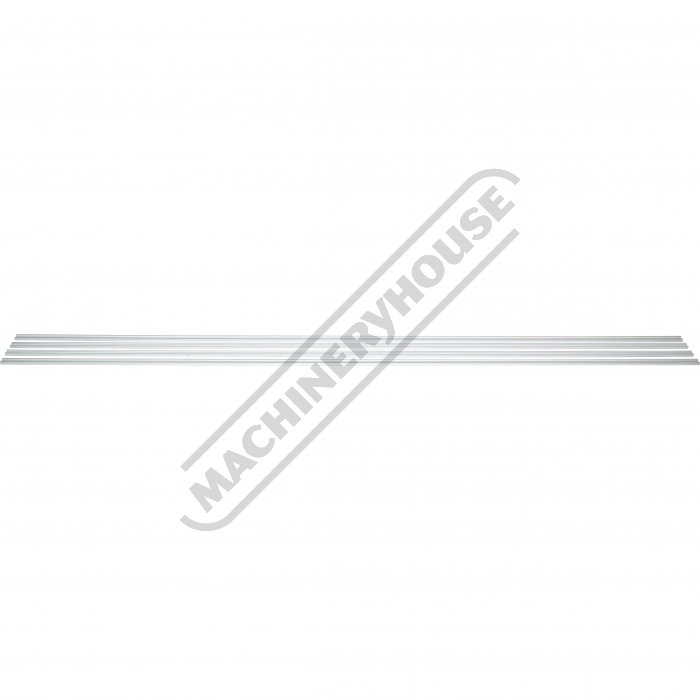

Aluminium Rails
3 of 7

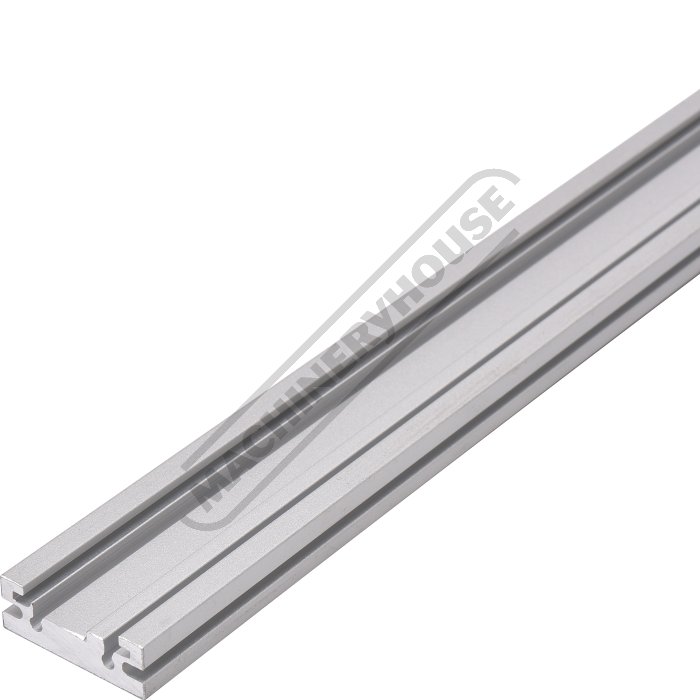

Aluminium Extrusion
4 of 7

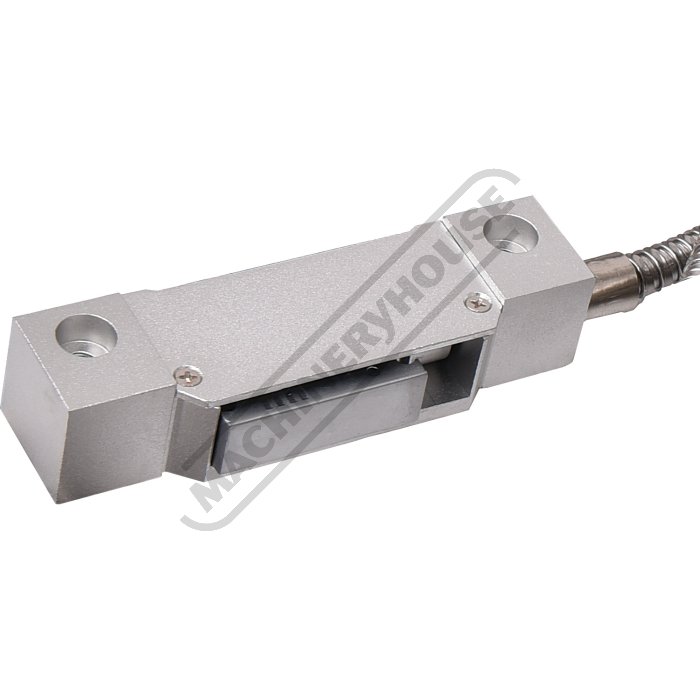

Reader
5 of 7

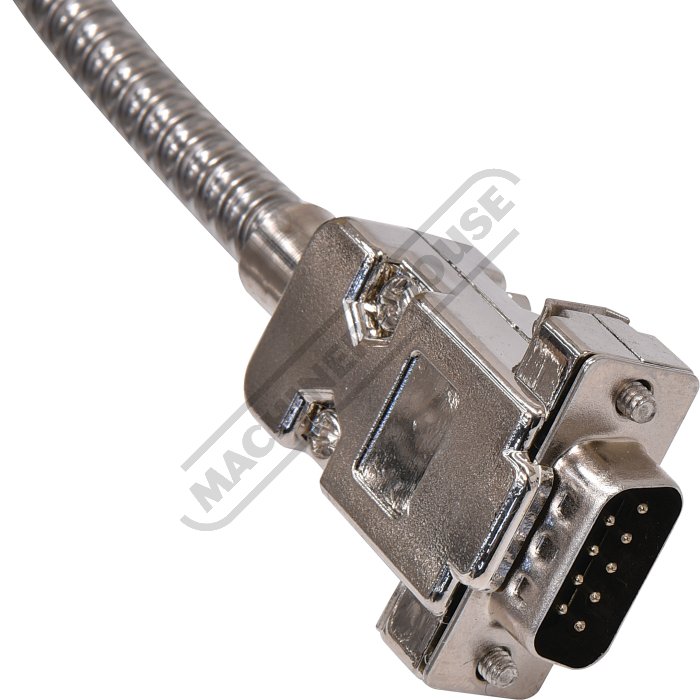

Dsub 9 Male Plug
6 of 7

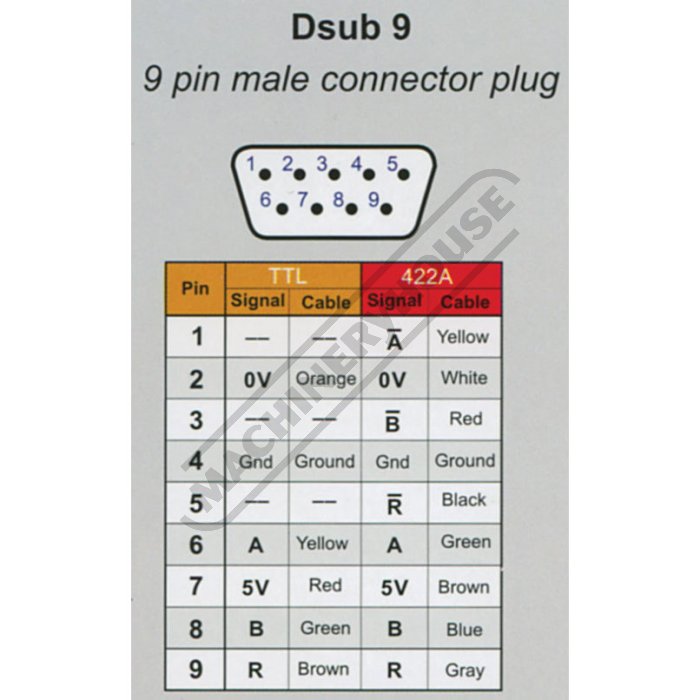

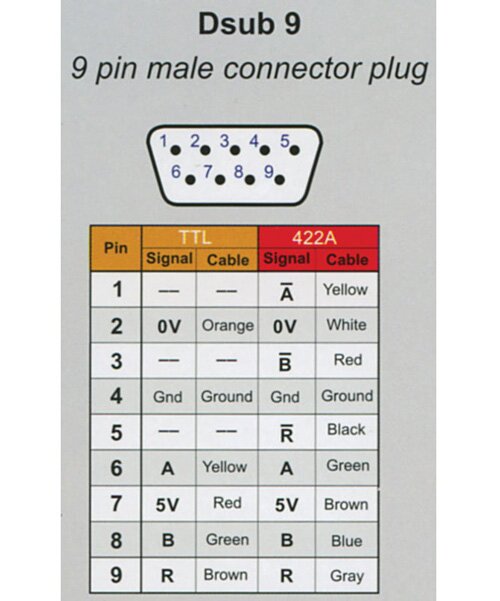

Dsub9 Wiring Diagram
7 of 7
On Sale
Order Code: D7559
ex-gst
inc-gst
$
3,722.00
$
4,280.30
$
3,300.00
$
3,795.00
1 Year Warranty
Description
10000mm Magnetic Digital Readout Scale - DM10000
Waterproof to IP67
5µm Resolution
Overview
Hafco magnetic scales are robust and accurate, and can be used in very harsh environment such as stone cutting, large machine tools,laser cutting machinery, water cutting machines as well as inspection applications.
Features
- Compatible with Easson digital readout displays
- Water proof to IP67
Compare Product Range
Specifications
| ORDER CODE | D7559 |
|---|---|
| Type | Magnetic Scale |
| (mm)Travel - Maximum | 10000 |
| (mm)Overall Length (L) | 10120 |
| (µm)Scale Resolution | 5 |
| (Metre)Cable Length | 5 |
| (mm)Width x Height (W x H) | 28 x 46 |
| (Yes / No)Backing Support Plate | No |
