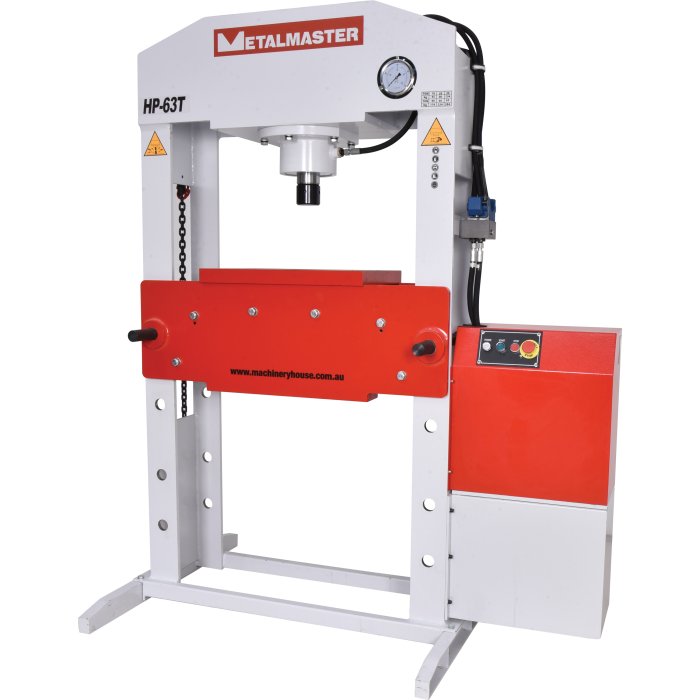

Industrial Motorised Hydraulic Press - 63 Tonne - HP-63T
Welded Steel Frame Construction
Includes Heavy Steel Worktable & Bending Blocks
P400
1 of 11

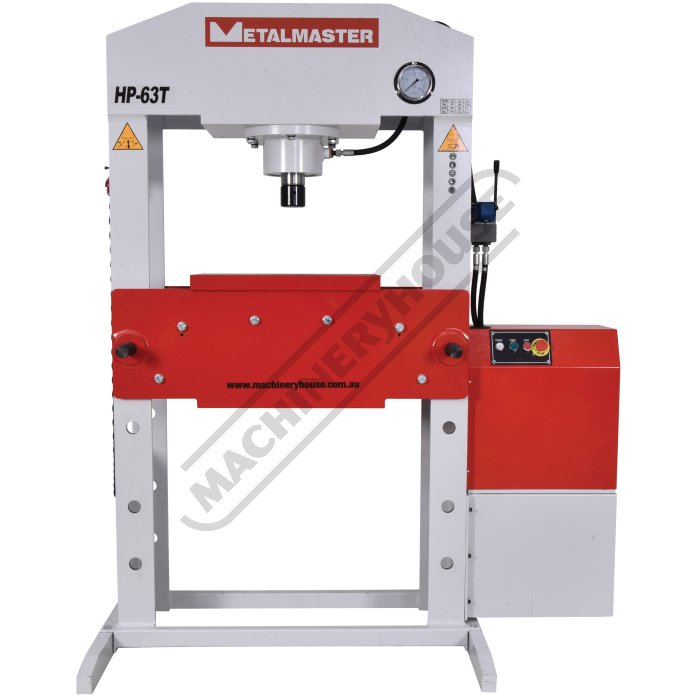

Front View
3 of 11

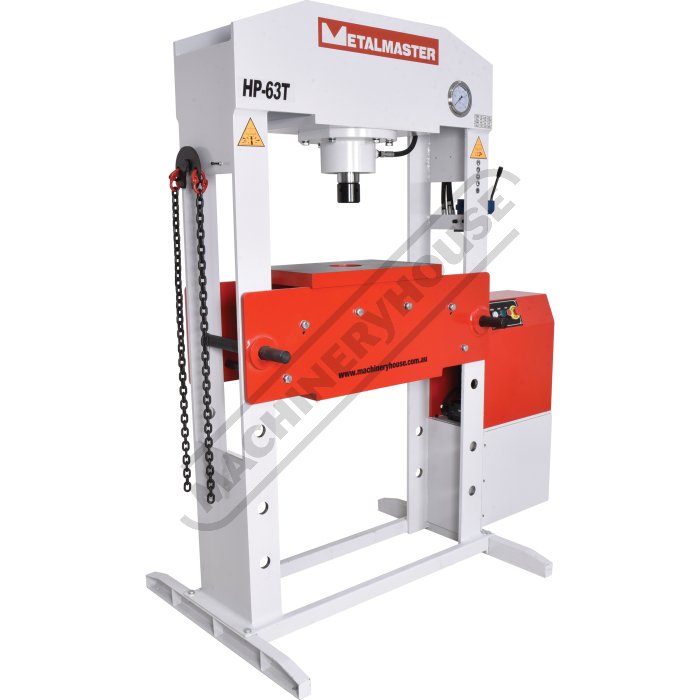

Left View
4 of 11

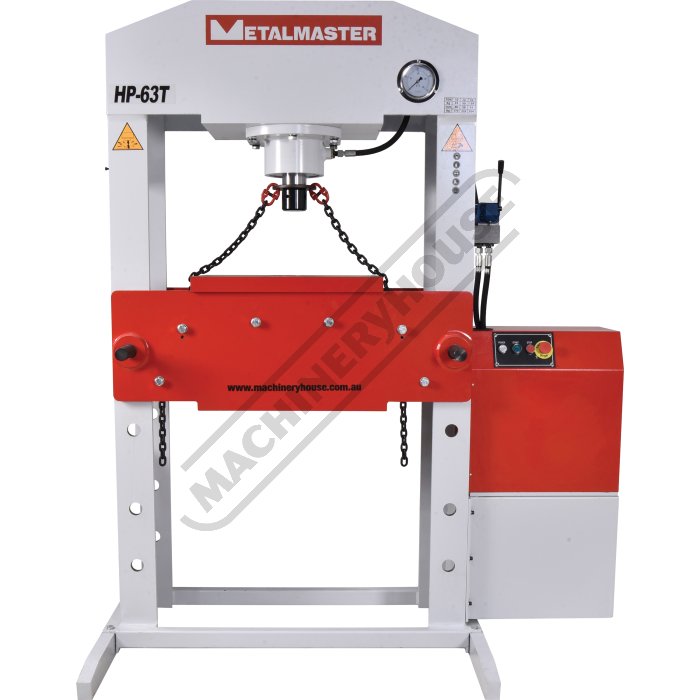

Table Height Adjustment Change
5 of 11

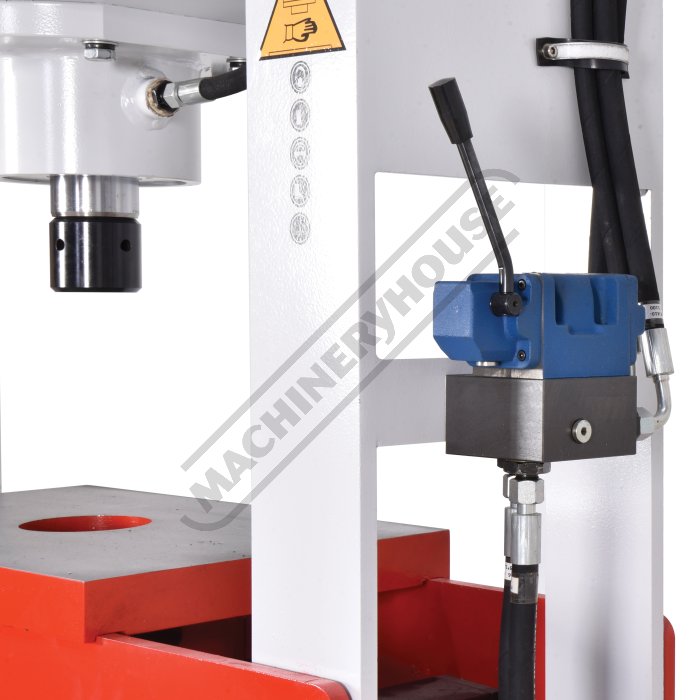

Ram Control
6 of 11

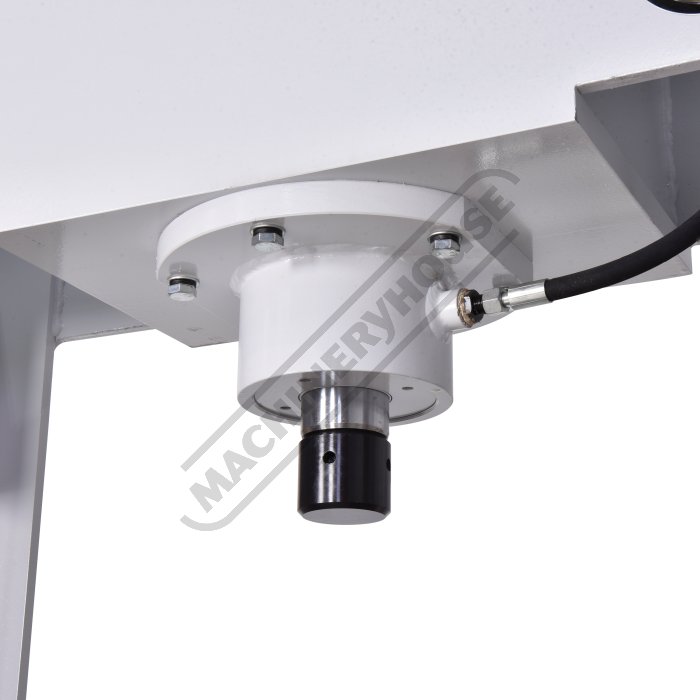

Hydraulic Ram
7 of 11

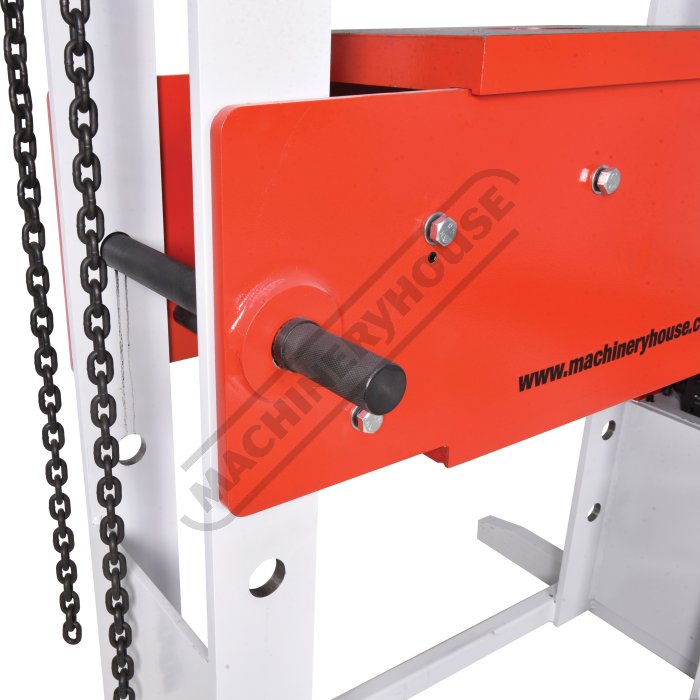

Table Pin
8 of 11

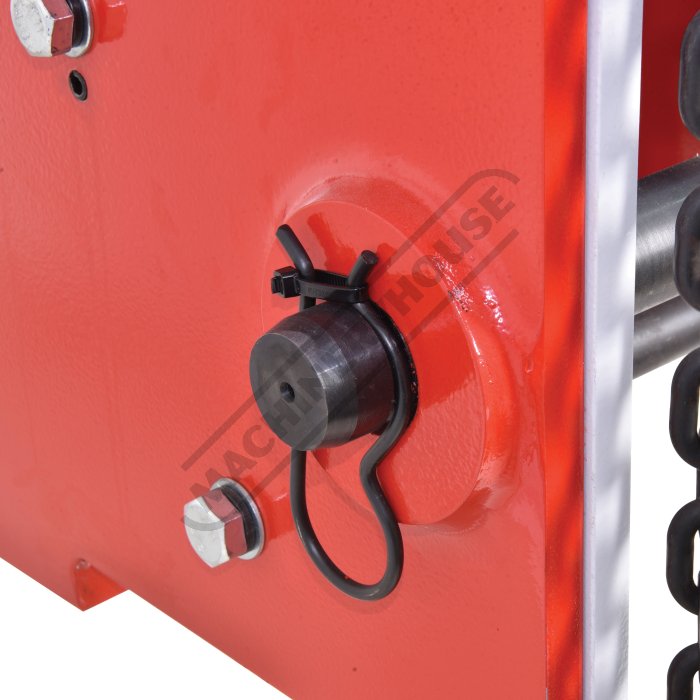

Pin Safety Clip
9 of 11

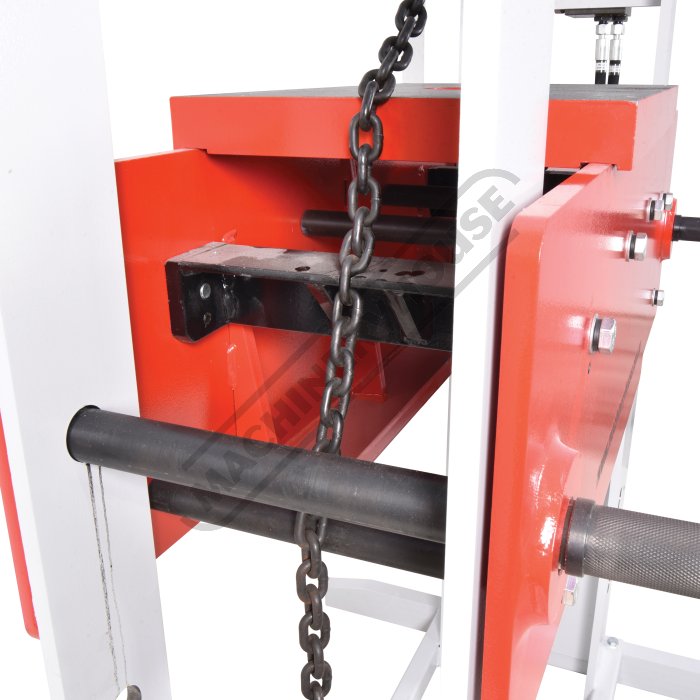

Table Height Adjustment Chain Slots
10 of 11

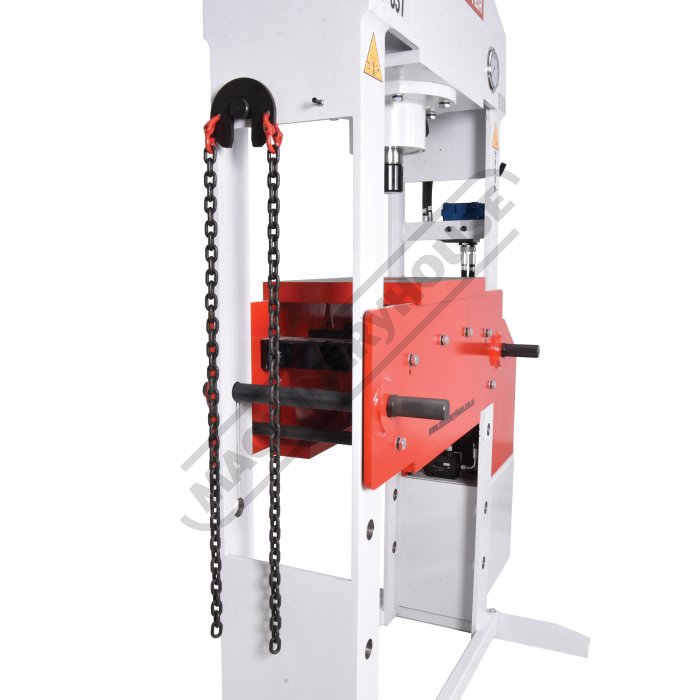

Adjustment Chain
11 of 11
On Sale
Order Code: P400
ex-gst
inc-gst
$
6,332.00
$
7,281.80
$
5,800.00
$
6,670.00
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Industrial Motorised Hydraulic Press - 63 Tonne - HP-63T
Welded Steel Frame Construction
Includes Heavy Steel Worktable & Bending Blocks
Overview
The Metalmaster HP-63T, 63 Tonne electric/hydraulic press is ideal for pressing, bending, forming, straightening and a whole variety of operations. The hydraulic system is equipped with a pressure guage and a joystick lever to control the operation. A heavy one piece steel workplate and a pair of pressing blocks are supplied as standard equipment.
Features
- H frame design with welded steel frame construction
- Electric/Hydraulic operation provides smooth, consistent pressing action
- Joystick control for ram stroke and return
- 300mm Ram stroke
- Ram speed down 7.7mm/sec, returns 6.5mm/sec
- Pressure gauge fitted for easy control of pressing operations
- Height adjustable worktable with 5 adjustment positions
- Heavy one piece steel work plate and pressing blocks
- Work table height easily adjusted with the assiatnce of the ram
- Reinforced table support holes with high tensile setting pins
- Safety overload valve
- Powerful TEFC motor
- Ideal for any industrial workshop for the repair of axles, shafts, & press fit of bearings & bushings
Includes
- Heavy one piece steel work plate
- Pair of double sided pressing blocks (Vee & Flat)
- Table raising and lowering chains
Compare Product Range
Specifications
| ORDER CODE | P400 |
|---|---|
| MODEL | HP-63T |
| (Tonne)Pressing Capacity | 63 |
| (Type)Hydraulic Ram Operation | Motorised System |
| (Yes / No)Sliding Ram (left-right) | No |
| (mm)Width Between Front Posts | 895 |
| (mm)Width Between Side Posts | 275 |
| (mm)Table Top Opening - (Front to Back) | 325 |
| (mm)Ram To Table (Max.) | 900 |
| (mm)Cylinder Stroke | 300 |
| (mm)Ram Diameter | Ø80 |
| (kW / hp)Motor Power | 4 / 5.3 |
| (V)Voltage | 415 |
| (mm)Floor Space (W x D x H) | 1700 x 1000 x 2080 |
| (kg)Nett Weight | 869 |
