Collet Chucks ER - BT30, BT40, BT50 (MAS403) T208

BT40 x ER20-70 Collet Chuck

Ø2-Ø13mm Range
15,000rpm Speed Rating
T208 1 of 1
TOOLMASTER
On Sale
Order Code: T208
ex-gst
inc-gst
$ 148.00
$ 170.20
$ 116.52
$ 134.00
1 Year Warranty
Made in Taiwan
1
Add to Cart
Enquire
Price Match
Compare
Wishlist
Print
Description
Description

BT40 x ER20-70 Collet Chuck

Ø2-Ø13mm Range
15,000rpm Speed Rating
Overview
All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)
Features
  • Precision ground
  • Manufactured to MAS403BNT40
  • M16 Pull Stud thread
  • 70mm extension from the gauge line
  • Locking spanner not included
Specifications
Downloads
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:

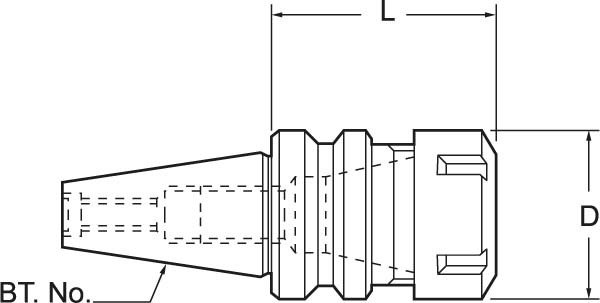

  • ORDER CODE
  • MODEL
  • (rpm)Speed Rating
  • (BT)Taper
  • (mm)Capacity
  • (mm)L
  • (mm)D
  • (ER)Collet Type
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale T332
  • Compare
  • Wishlist
  • T332
  • BT30 x ER32-60
  • 25,000
  • BT30
  • 2 - 20
  • 60
  • 50
  • ER32
  • 0.8
  • $116.52
  • $134.00
  • ADD TO CART
  • On Sale T203
  • Compare
  • Wishlist
  • T203
  • BT40 x ER16-70
  • 15,000
  • BT40
  • 0.5 - 10
  • 70
  • 28
  • ER16
  • 1.3
  • $116.52
  • $134.00
  • ADD TO CART
  • On Sale T204
  • Compare
  • Wishlist
  • T204
  • BT40 x ER16-100
  • 15,000
  • BT40
  • 0.5 - 10
  • 100
  • 28
  • ER16
  • 1.4
  • $126.96
  • $146.00
  • ADD TO CART
  • On Sale T208
  • Compare
  • Wishlist
  • T208
  • BT40 x ER20-70
  • 15,000
  • BT40
  • 2 - 13
  • 70
  • 34
  • ER20
  • 1.7
  • $116.52
  • $134.00
  • ADD TO CART
  • On Sale T209
  • Compare
  • Wishlist
  • T209
  • BT40 x ER20-100
  • 15,000
  • BT40
  • 2 - 13
  • 100
  • 34
  • ER20
  • 1.7
  • $126.96
  • $146.00
  • ADD TO CART
  • On Sale - Back In Stock Soon T214
  • Compare
  • Wishlist
  • T214
  • BT40 x ER25-70
  • 15,000
  • BT40
  • 2 - 16
  • 100
  • 42
  • ER25
  • 1.7
  • $126.96
  • $146.00
  • ADD TO CART
  • On Sale - Back In Stock Soon T215
  • Compare
  • Wishlist
  • T215
  • BT40 x ER25-100
  • 15,000
  • BT40
  • 2 - 16
  • 100
  • 42
  • ER25
  • 1.7
  • $136.52
  • $157.00
  • ADD TO CART
  • On Sale T220
  • Compare
  • Wishlist
  • T220
  • BT40 x ER32-70
  • 15,000
  • BT40
  • 2 - 20
  • 70
  • 50
  • ER32
  • 1.7
  • $97.39
  • $112.00
  • ADD TO CART
  • On Sale T224
  • Compare
  • Wishlist
  • T224
  • BT40 x ER32-100
  • 15,000
  • BT40
  • 2 - 20
  • 100
  • 50
  • ER32
  • 1.8
  • $136.52
  • $157.00
  • ADD TO CART
  • On Sale T226
  • Compare
  • Wishlist
  • T226
  • BT40 x ER40-80
  • 15,000
  • BT40
  • 3 - 26
  • 80
  • 63
  • ER40
  • 1.8
  • $146.96
  • $169.00
  • ADD TO CART
  • On Sale T228
  • Compare
  • Wishlist
  • T228
  • BT40 x ER40-100
  • 15,000
  • BT40
  • 3 - 26
  • 100
  • 63
  • ER40
  • 1.8
  • $155.65
  • $179.00
  • ADD TO CART
  • On Sale - Back In Stock Soon T448
  • Compare
  • Wishlist
  • T448
  • BT50 x ER32-100
  • 10,000
  • BT50
  • 3 - 20
  • 100
  • 50
  • ER32
  • 5.0
  • $224.35
  • $258.00
  • ADD TO CART
  • On Sale T450
  • Compare
  • Wishlist
  • T450
  • BT50 x ER40-100
  • 10,000
  • BT50
  • 3 - 26
  • 100
  • 63
  • ER40
  • 5.0
  • $243.48
  • $280.00
  • ADD TO CART
