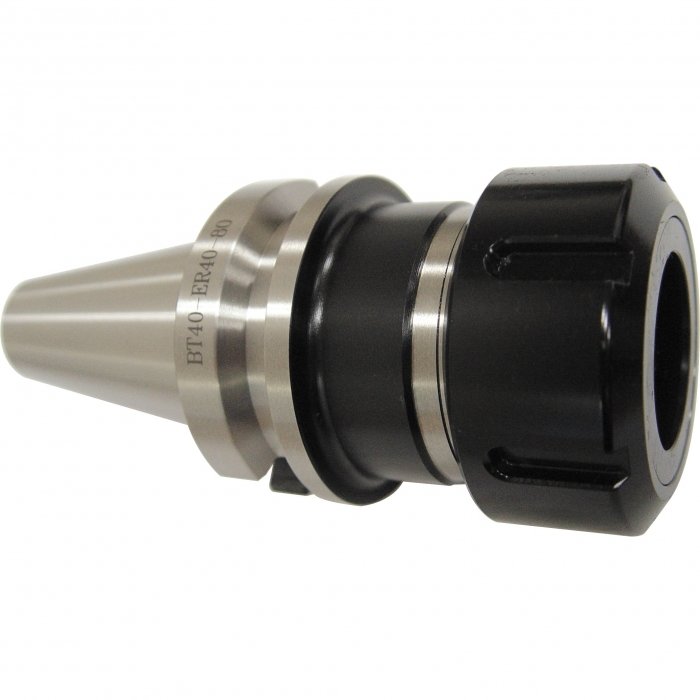

BT40 x ER40-80 Collet Chuck
Ø3-Ø26mm Range
15,000rpm Speed Rating
T226
1 of 1
On Sale
Order Code: T226
ex-gst
inc-gst
$
184.00
$
211.60
$
146.96
$
169.00
1 Year Warranty
Made in Taiwan
Description
BT40 x ER40-80 Collet Chuck
Ø3-Ø26mm Range
15,000rpm Speed Rating
Overview
All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)
Features
- Precision ground
- All ER40 collet chucks are fitted with ball bearing nuts
- Manufactured to MAS403BT40 standard
- M16 Pull Stud thread
- 80mm extension from the gauge line
- Locking spanner not included
Compare Product Range
Specifications
| ORDER CODE | T226 |
|---|---|
| MODEL | BT40 x ER40-80 |
| (rpm)Speed Rating | 15,000 |
| (BT)Taper | BT40 |
| (mm)Capacity | 3 - 26 |

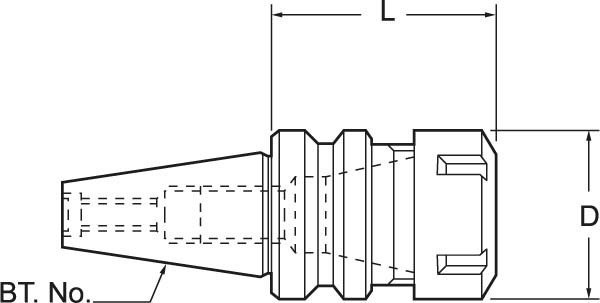

| (mm)L | 80 |
| (mm)D | 63 |
| (ER)Collet Type | ER40 |
| (kg)Nett Weight | 1.8 |
