Panel Saw - TS250RS

350 x 800mm Cast Iron Table

Ø254mm Saw Blade & Includes 1250mm Sliding Table

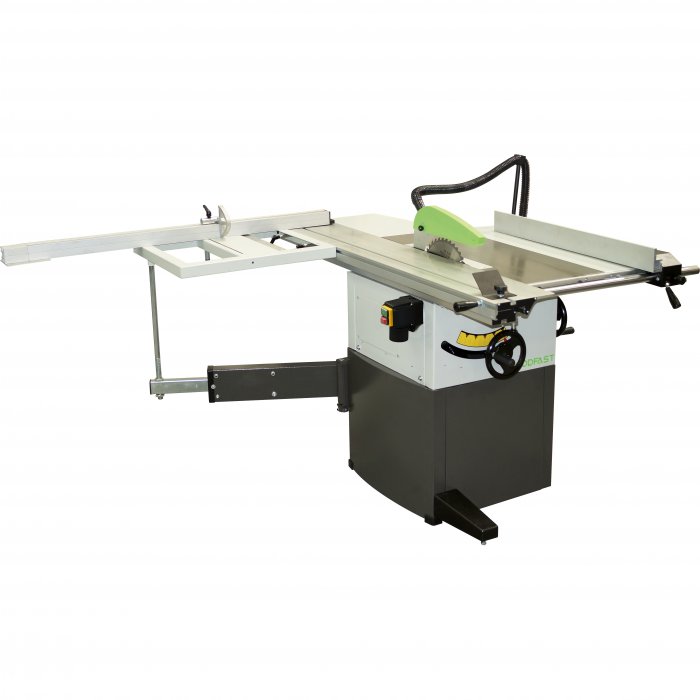

W688 1 of 13

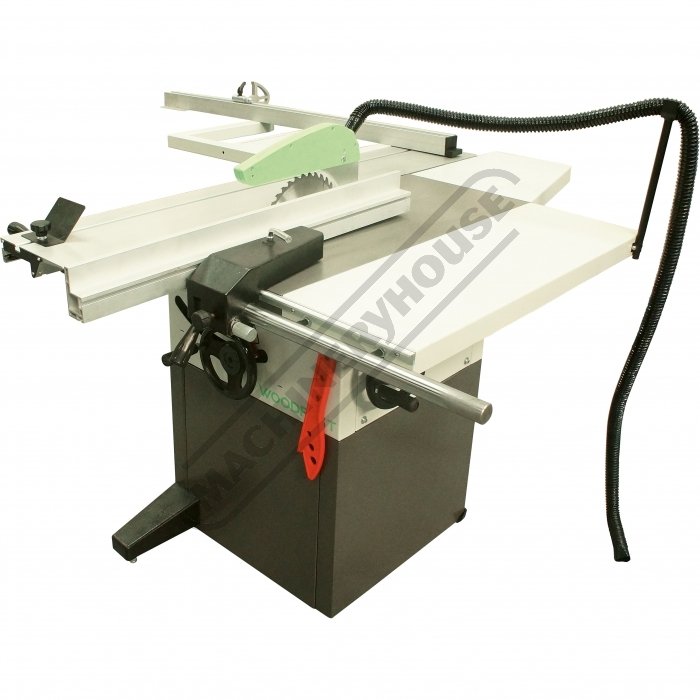

Right View 2 of 13

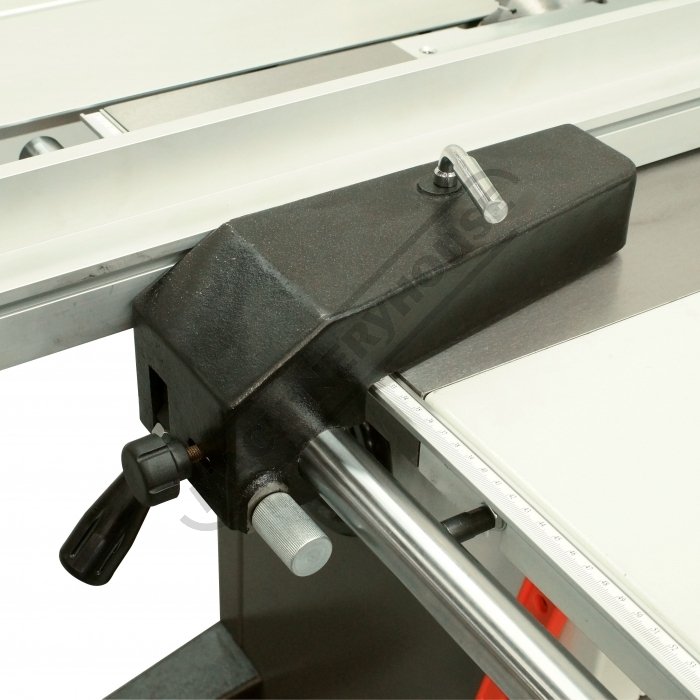

Heavy Duty Rip Fence Guide 3 of 13

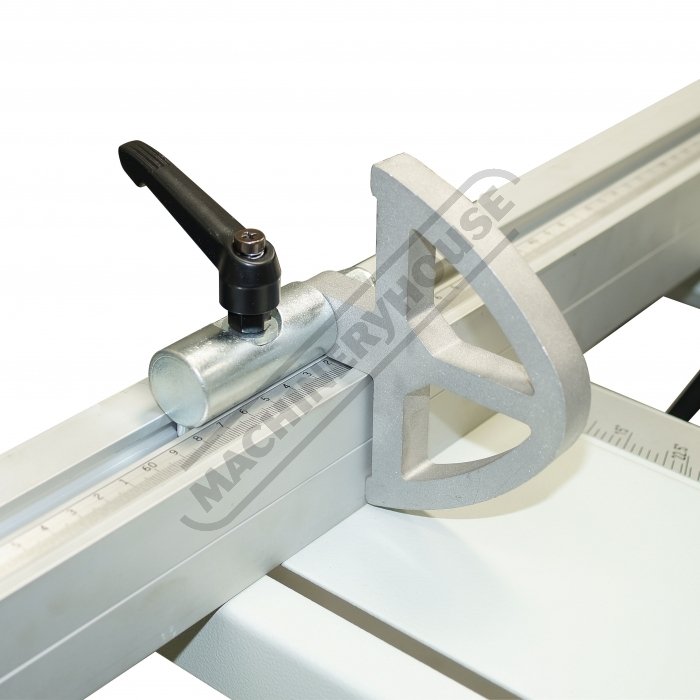

Mitre Guide Fence with Flip Over Stop 4 of 13

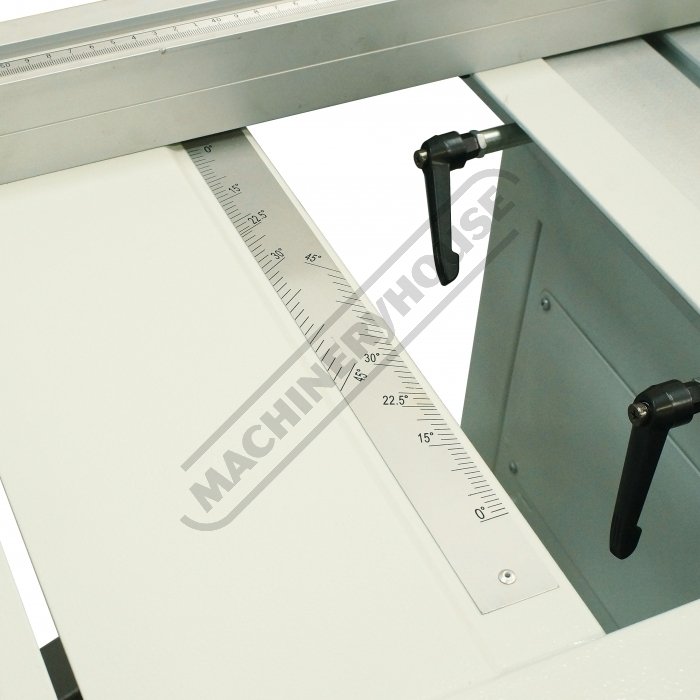

Degree Scale On Sliding Fence 5 of 13

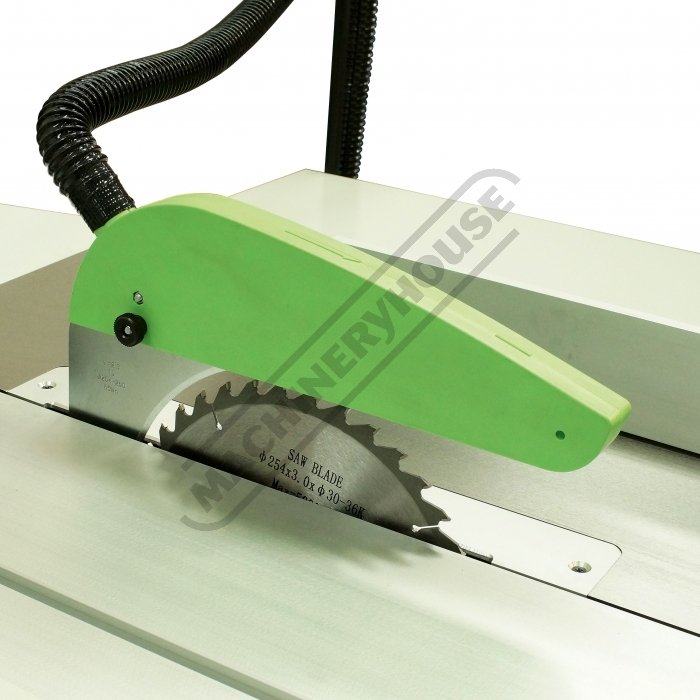

Blade 6 of 13

Switch 7 of 13

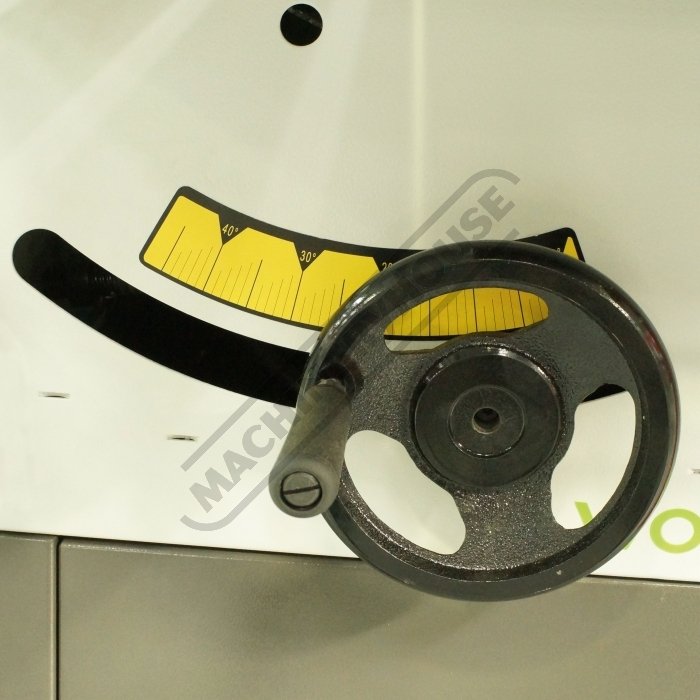

Blade Adjustment Handle 8 of 13

Push Stick 9 of 13

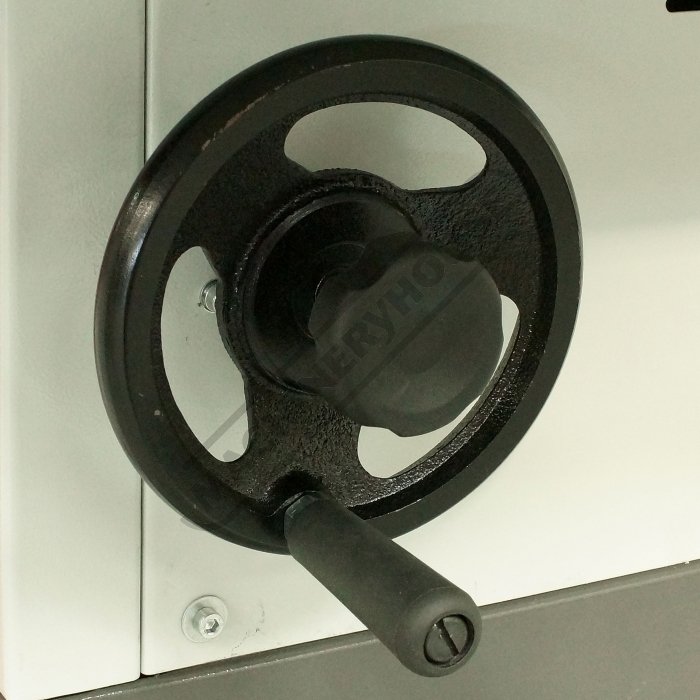

Blade Rise And Fall Handle 10 of 13

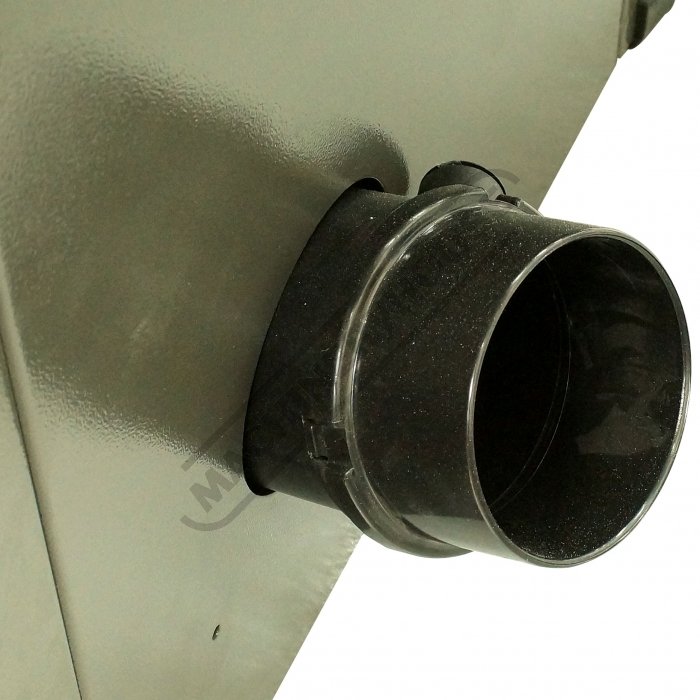

Dust Chute 11 of 13

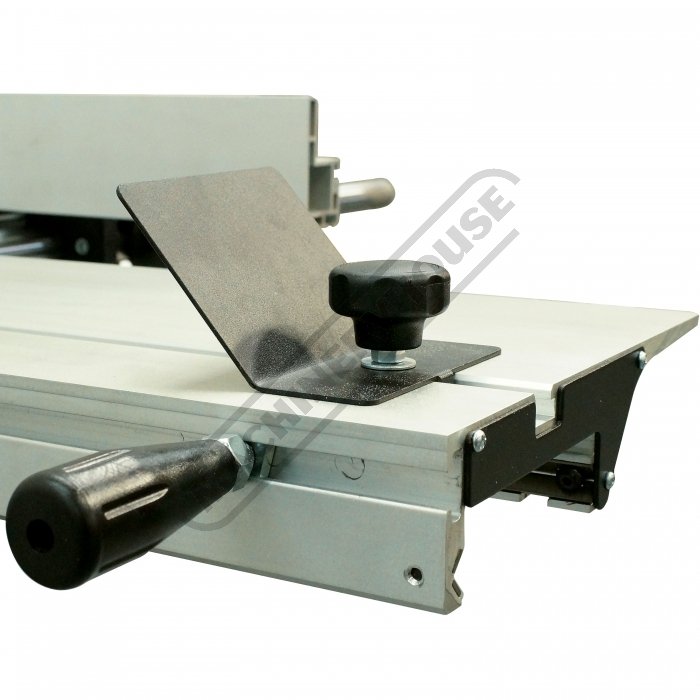

Adjustment Material Stop 12 of 13

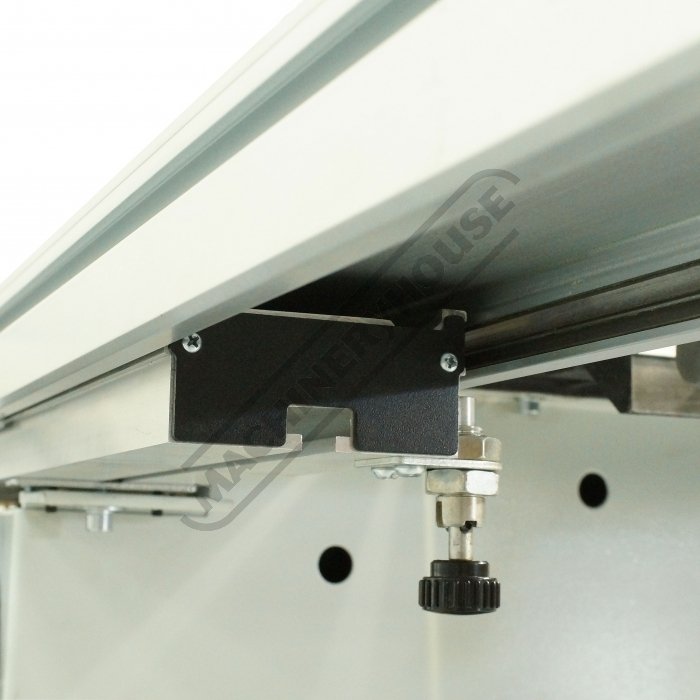

Aluminium Extrusion Box Design Slide 13 of 13

WOODFAST

Discontinued

Order Code: W688

240V / 10A
2 Years Warranty

Sorry, this Product is no longer available
Click Here To View All Panel Saws & Table Saws

Compare

Wishlist

Description Specifications Compare Accessories Downloads Spare Parts

Description

Panel Saw - TS250RS

350 x 800mm Cast Iron Table

Ø254mm Saw Blade & Includes 1250mm Sliding Table

Overview

The backbone of any joinery workshop is having a great quality saw bench. The Woodfast TS250RS panel saw is a great example of that and is well known in the industry for its overall sturdiness, accuracy, powerful drive motor, reliable and simple to operate.

The TS250RS panel saw has a hefty cast iron table with heavy gauge steel side extension table and the box section stand. The 254mm saw blade gives a cutting depth of up to 80mm at 90˚& 54mm at 45˚ and adequately powered by a 1.5kW / 2hp - 240V 10-amp induction motor. Another useful feature is that is can cross cut up to 2280mm and incorporates a flip over stop for convenience whilst also allowing up to 610mm ripping capacity.

The professional aluminium box extrusion sliding worktable can smoothly travel up to 1250mm in one motion with minimal friction of effort required. The cast iron table with right side extension support measures an attractive 1210 x 620mm in total. Dust can be removed via a 100mm dust port outlet at rear of machine and the saw guard when connected to a suitable high-volume extraction system.

Features

254mm diameter saw blade with 45˚ tilting arbor
80mm @ 90º, 54mm @ 45º depth of cut
1.5kW / 2hp 240V motor
Ideal for the serious home user who wants to accurately process solid wood but also has the need to rip larger sheets
Professional aluminium sliding work table with 1250mm travel ensures smooth & minimal friction travel
2280mm cross cut with adjustable flip over stop
1200 x 238mm sliding table size
350 x 800mm cast iron table (with steel extensions 620 x 1210mm)
Rise and fall spindle
610mm ripping capacity
30mm dust extraction outlet on blade guard as well as a 100mm chute from the enclosed stand
Includes heavy duty aluminium extrusion rip fence with fine adjustment

Specifications

Compare Product Range

Specifications

ORDER CODE	W688
MODEL	TS250RS
(mm)Blade Diameter	Ø254
(mm)Table Size (W x H)	350 x 800
(mm)Table Size With Extensions	620 x 1210
(mm)Max. Depth Of Cut 90º & 45º	80 / 54
Tilt Arbor To 45º	Yes
(mm)Sliding Table Stroke	1250
(mm)Cross Cut with Flip Over Stop	1230
(mm)Cross Cut with Extension Stop	1230 - 2280
(mm)Rip Capacity	610
(kW / hp)Motor Power	1.5 / 2
(V / amp)Voltage / Amperage	240 / 10
(mm)Floor Space Required (W x D x H)	3150 x 2600 x 1150
(kg)Weight (nett)	170
