1020mm Sino Digital Readout Scale - MK-300-1020/5U
Standard Scale
5µm Resolution
D5231
1 of 4
Reader Head
2 of 4
DSub9 Male Plug
3 of 4

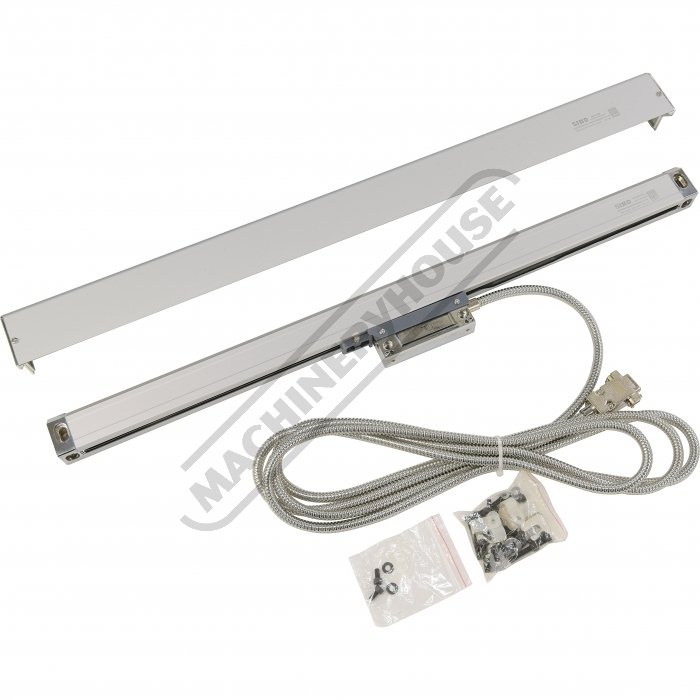

Included Parts
4 of 4
Discontinued
Order Code: D5231
1 Year Warranty
Description
1020mm Sino Digital Readout Scale - MK-300-1020/5U
Standard Scale
5µm Resolution
Overview
Sino MK series DRO scales offer an affordable low cost solution for your Lathe or Milling machine digital readout requirements. Scales lengths available in a range from 170mm to 1020mm.
Compact scales available ranging from 170mm to 270mm specially designed to suit X-Axis travels on Lathes.
Compact scales available ranging from 170mm to 270mm specially designed to suit X-Axis travels on Lathes.
Features
- Scale body made from extruded aluminium with wiper seals
- Glass scale with 5µm resolution
- 3m connection cable with 9 pin D-Sub connector
- The slide carrier of the MK series scales uses Japanese NSK bearings to provide high precision, low noise and long service life
- Includes cover & mounting screws
- Optional mounting backing plates available for ease of installation on non-machined surfaces
- An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets
Optional Accessories
- Mounting backing plate to suit (D5251) available for ease of installation on non-machined surfaces
Compare Product Range
Specifications
| ORDER CODE | D5231 |
|---|---|
| Type | Standard Scale |
| (mm)Travel - Maximum | 1020 |
| (µm)Scale Resolution | 5 |
| (Metre)Cable Length | 3 |
| (Yes / No)Backing Support Plate | No |
