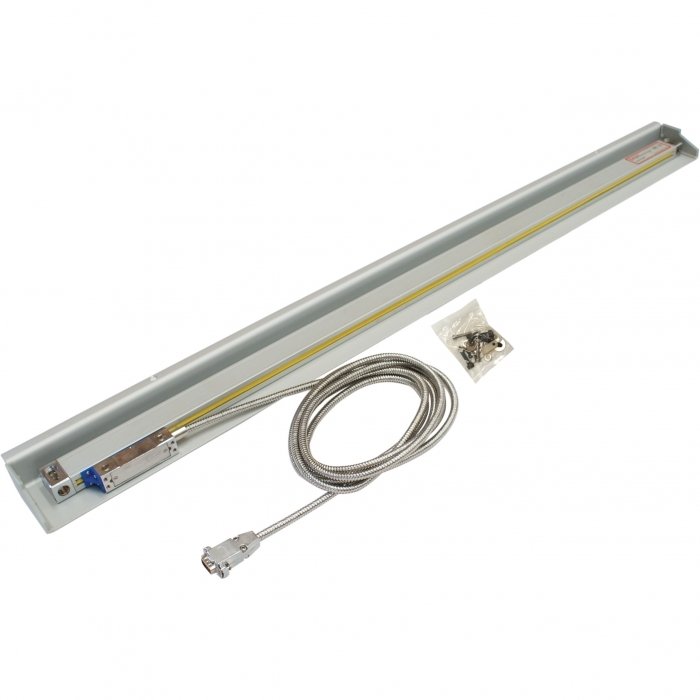

750mm Easson Digital Readout Scale
GS10 Standard Scale
5µm Resolution
D731
1 of 6

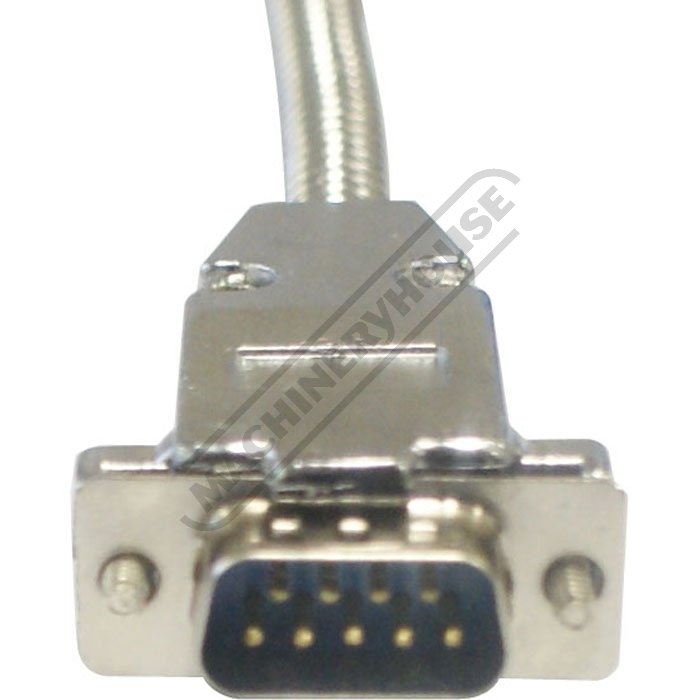

DSub9 Male Plug
2 of 6

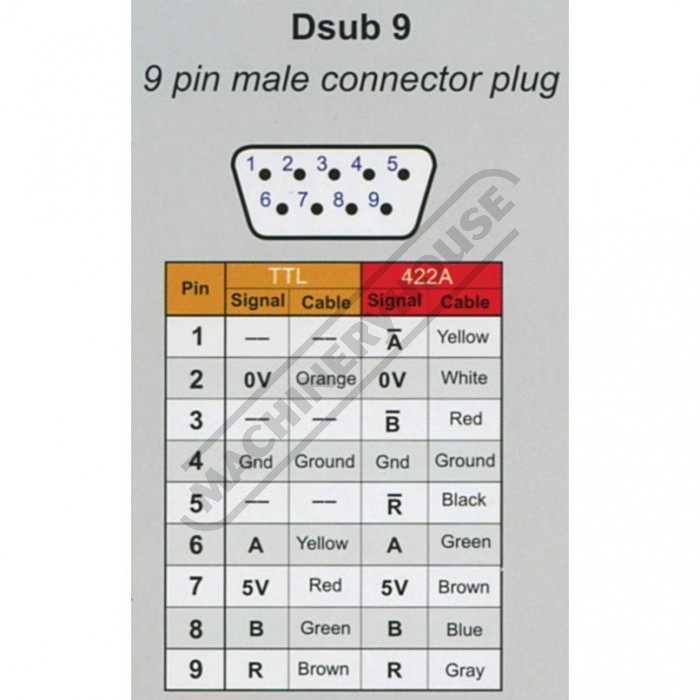

Dsub9 Wiring Diagram
3 of 6

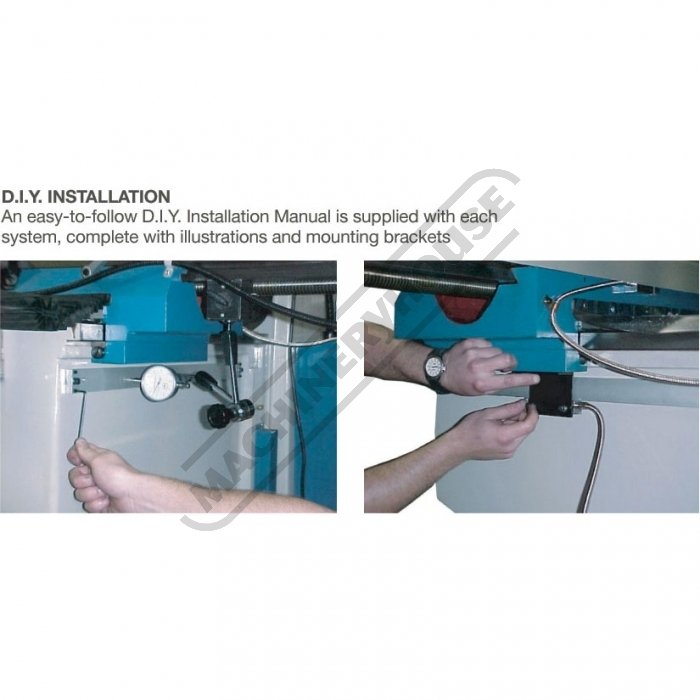

DIY Installation
4 of 6

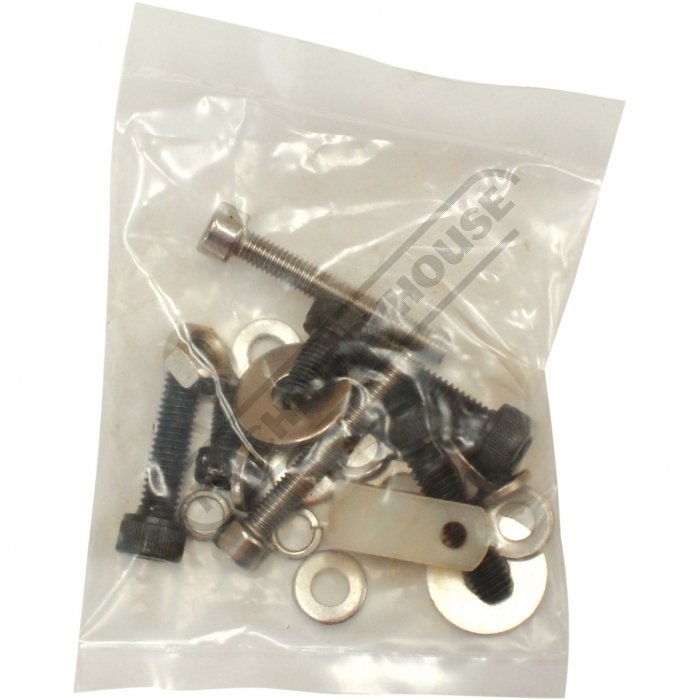

Parts
5 of 6

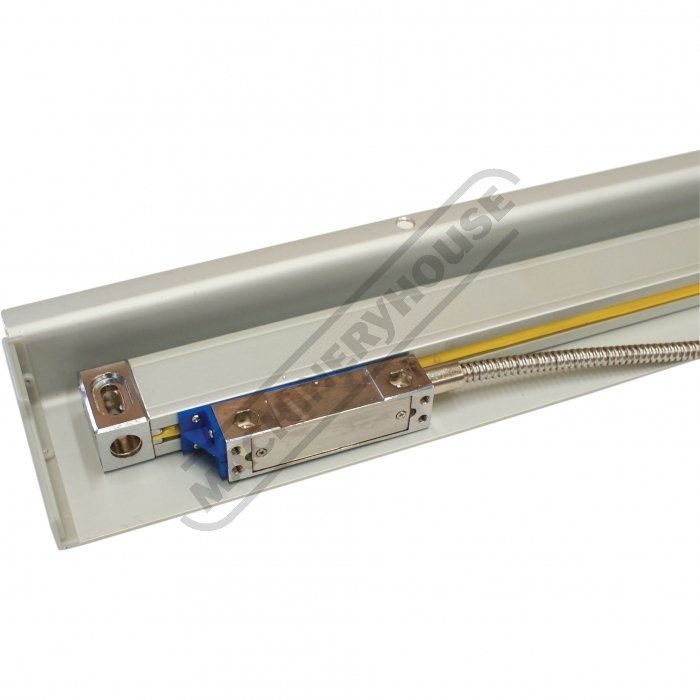

Close Up
6 of 6
Discontinued
Order Code: D731
1 Year Warranty
Description
750mm Easson Digital Readout Scale
GS10 Standard Scale
5µm Resolution
Overview
Easson GS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation
Features
- DOUBLE SEAL DESIGNED SCALES:
- The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.
- 100% LASER CALIBRATION:
- All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.
- ADVANCED OPTICAL MEASURING SYSTEM:
- The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
- The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.
- D.I.Y. INSTALLATION:
- An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.
Compare Product Range

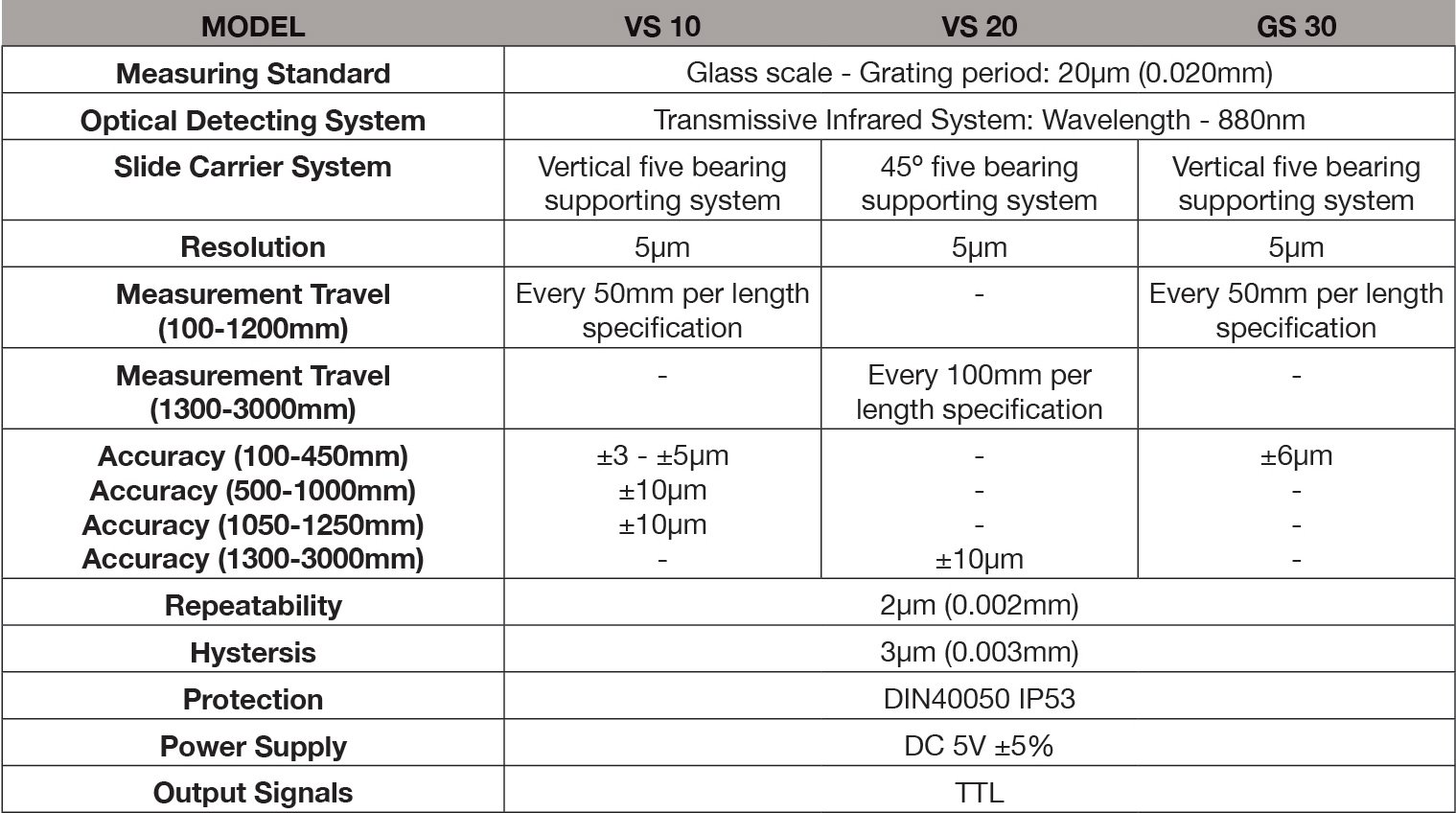

Specifications
| ORDER CODE | D731 |
|---|---|
| Type | GS10 Standard Scale |
| (mm)Travel - Maximum | 750 |
| (mm)Overall Length (L) | 897 |
| (µm)Scale Resolution | 5 |
| (µm)Accuracy | ±10 |
| (Metre)Cable Length | 3 |

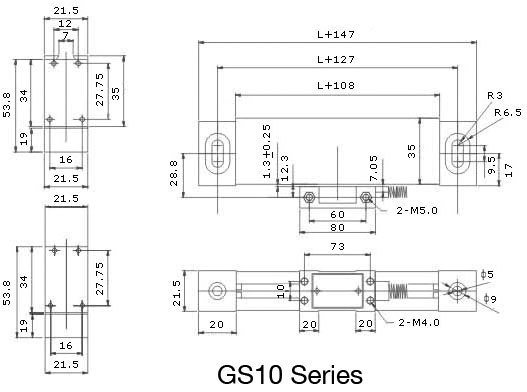

| (mm)Width x Height (W x H) | 21.5 x 34 |
| (Yes / No)Backing Support Plate | No |
