Workshop Turret Milling Machine Horizontal - Vertical - HM-52

Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm

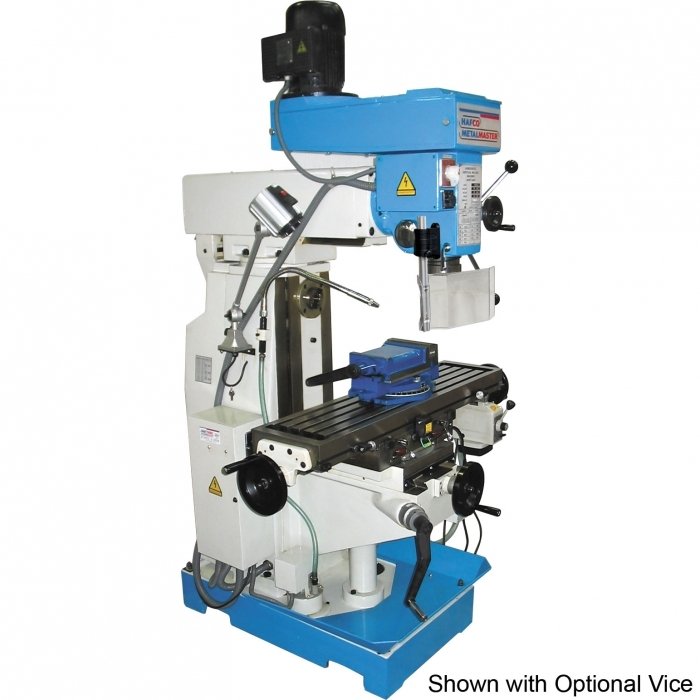

M161 1 of 17

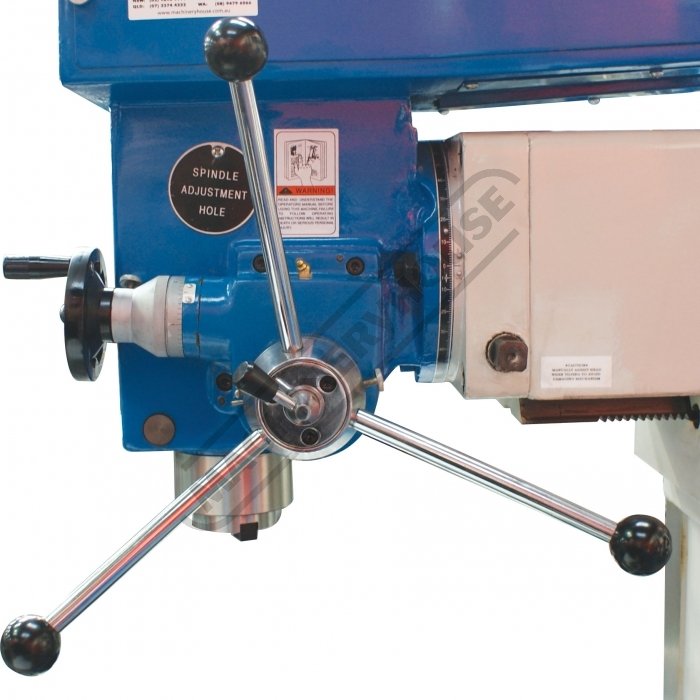

Quill Feed Handle and Fine Feed Dial 2 of 17

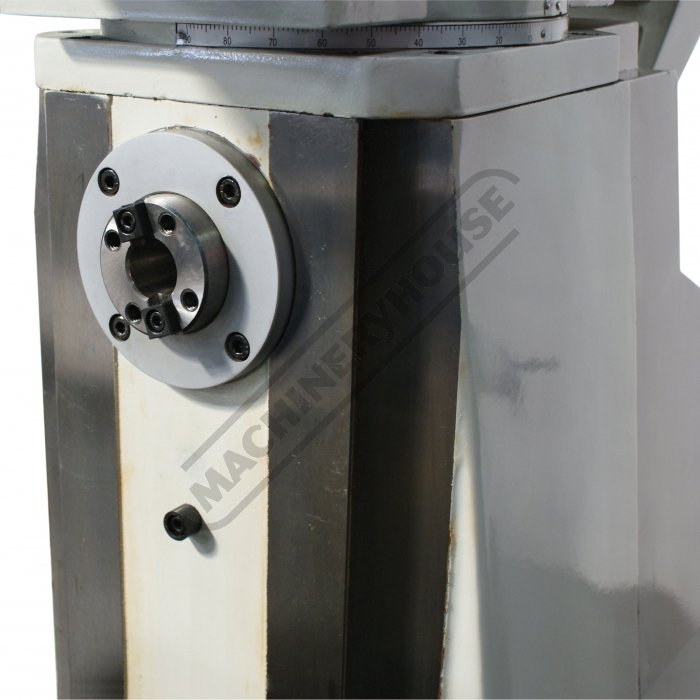

Horizontal Spindle 3 of 17

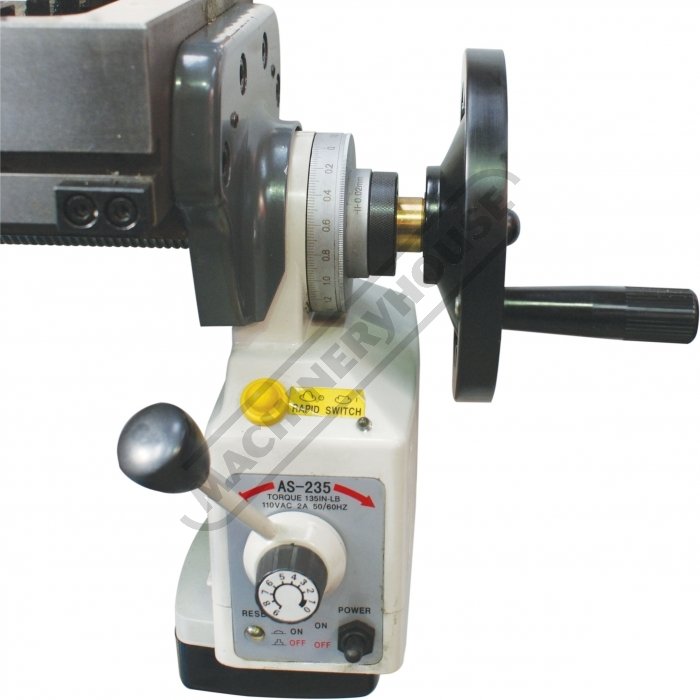

X Axis Power Feed with Rapid 4 of 17

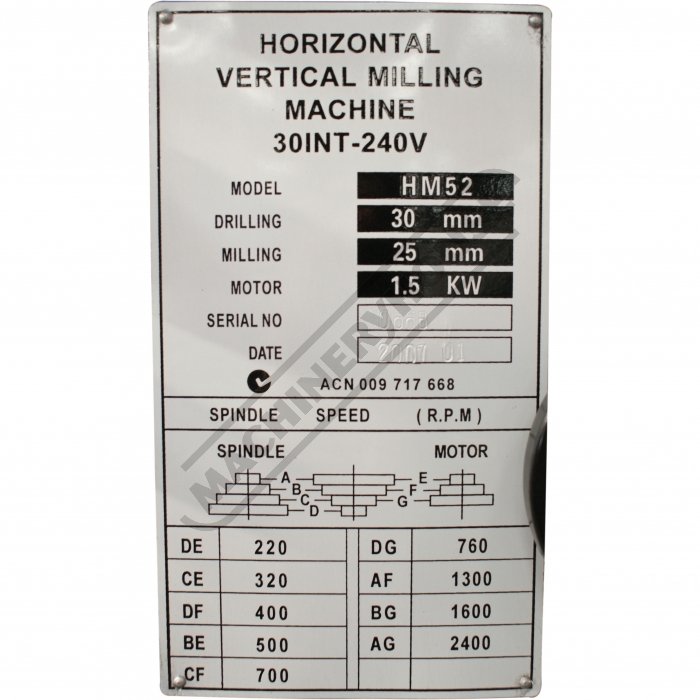

Spindle Speed Chart 5 of 17

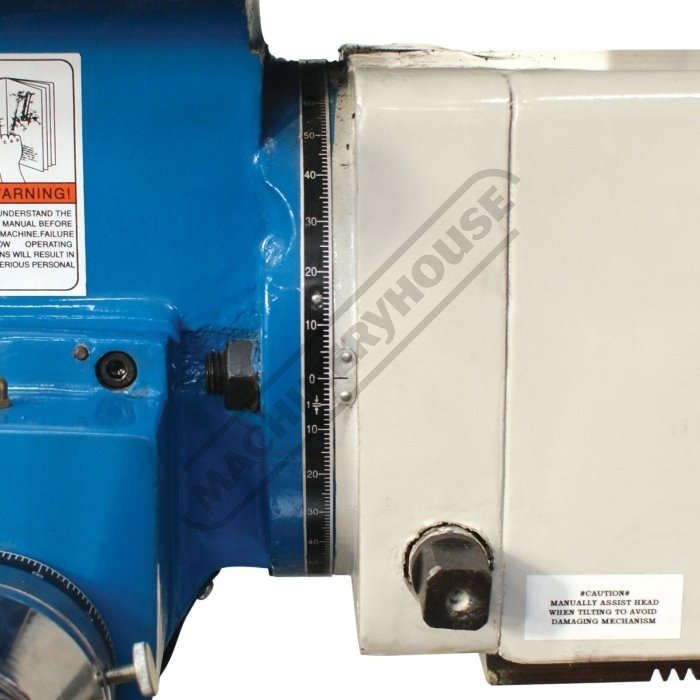

Tilting Head Scale 6 of 17

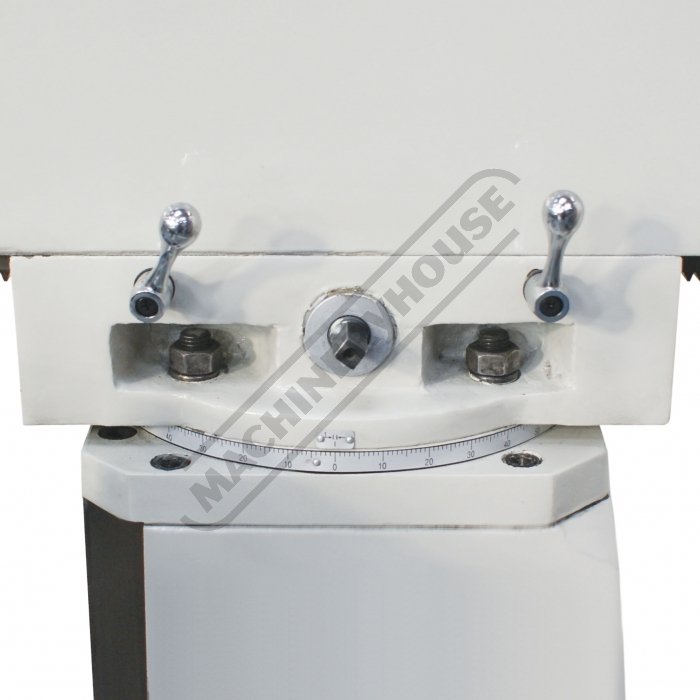

Adjustable Swivel & Sliding Ram 7 of 17

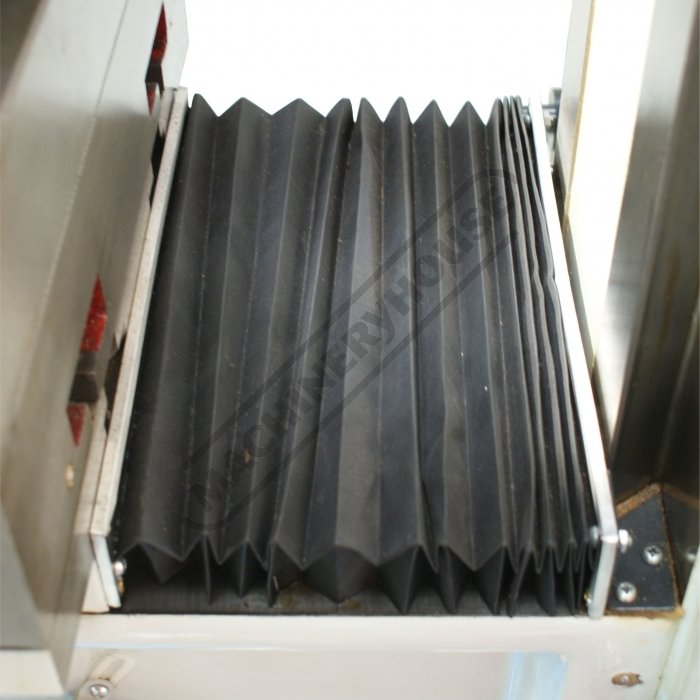

Concertina Slide Way Cover 8 of 17

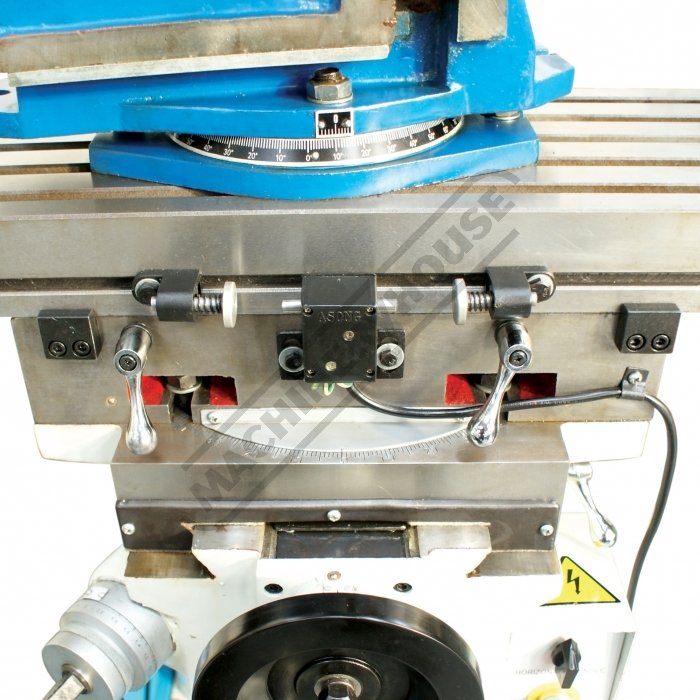

Swivel Table & Feed Limit Switches 9 of 17

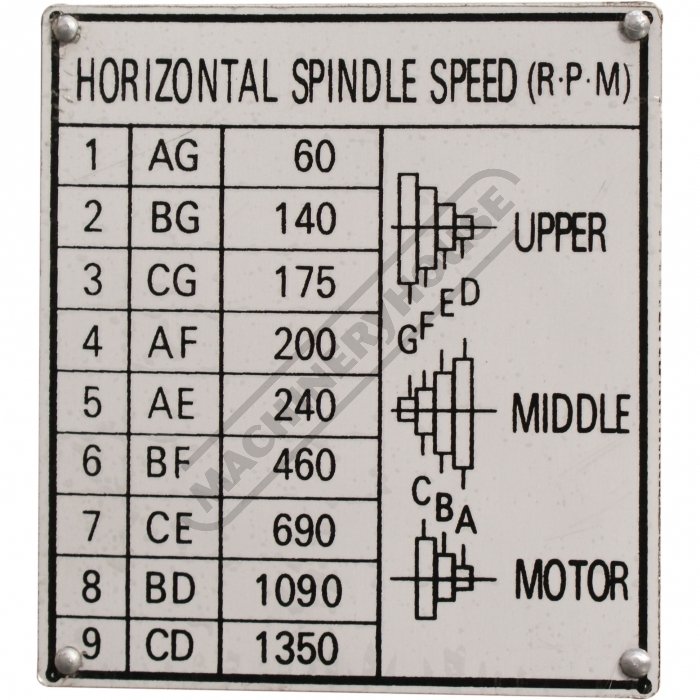

Horizontal Speed Spindle Chart 10 of 17

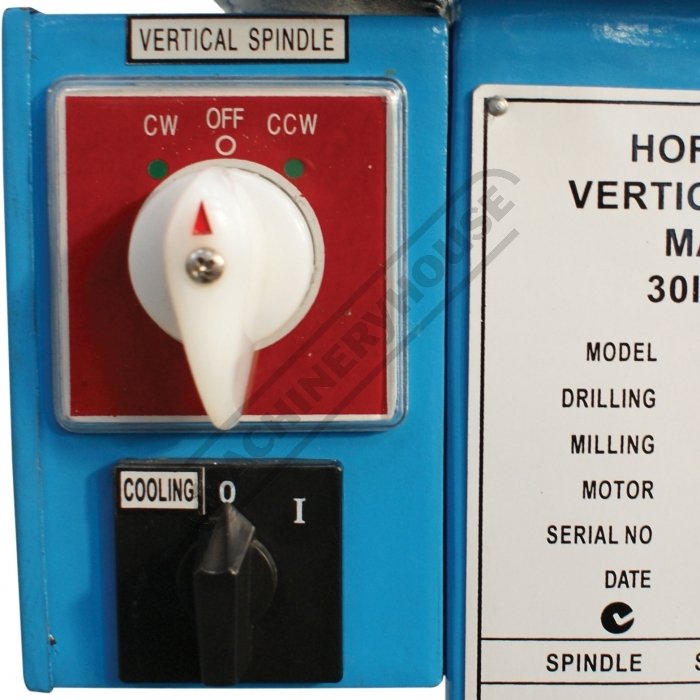

Vertical Spindle Switch 11 of 17

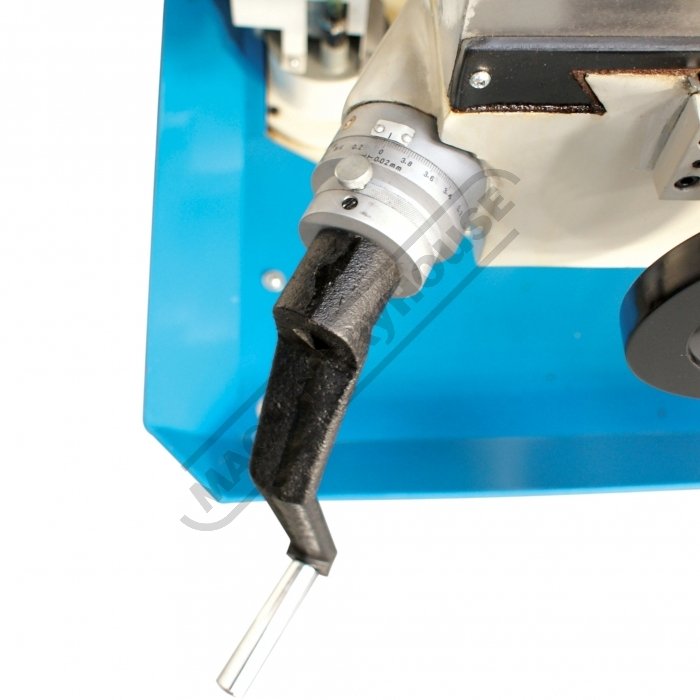

Knee Feed Handle 12 of 17

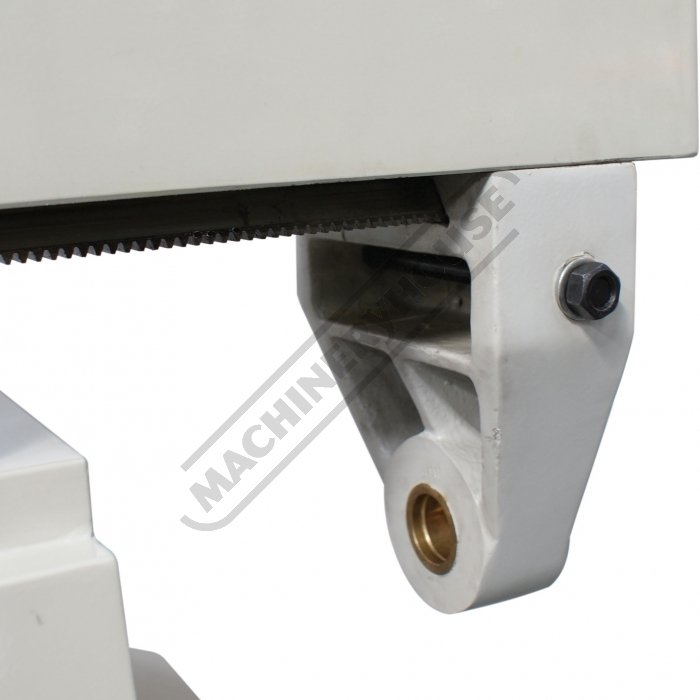

Horizontal Spindle Support 13 of 17

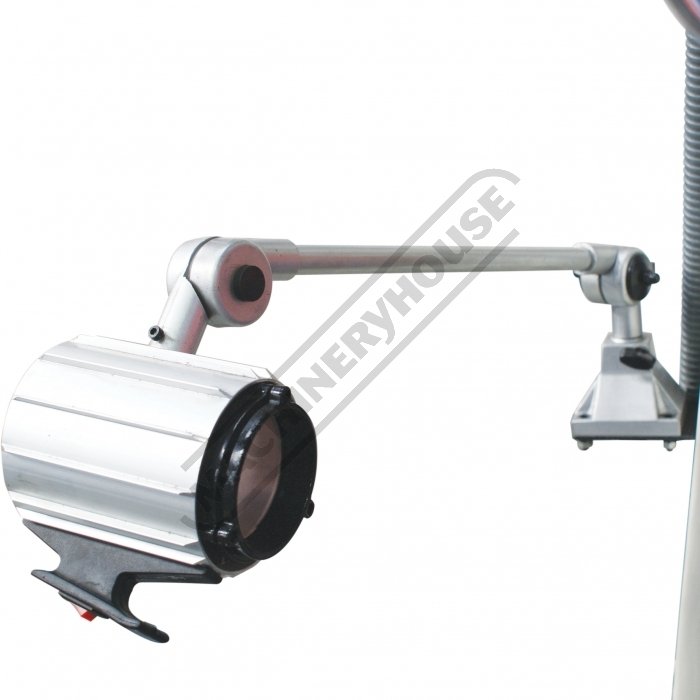

Halogen Light 14 of 17

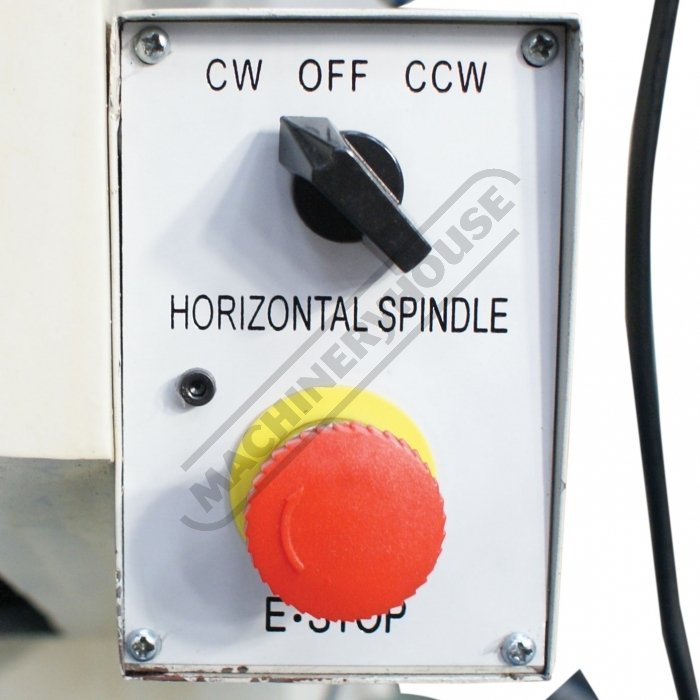

Horizontal Spindle Switch 15 of 17

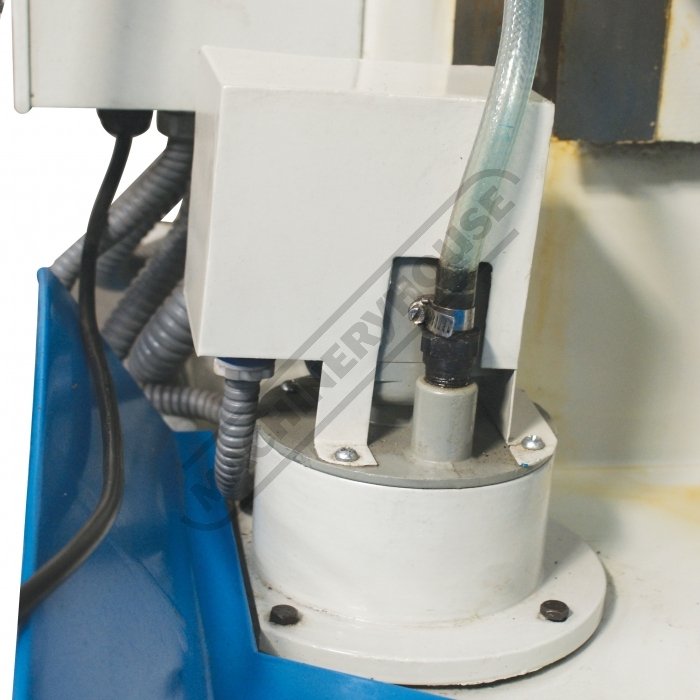

Coolant Pump 16 of 17

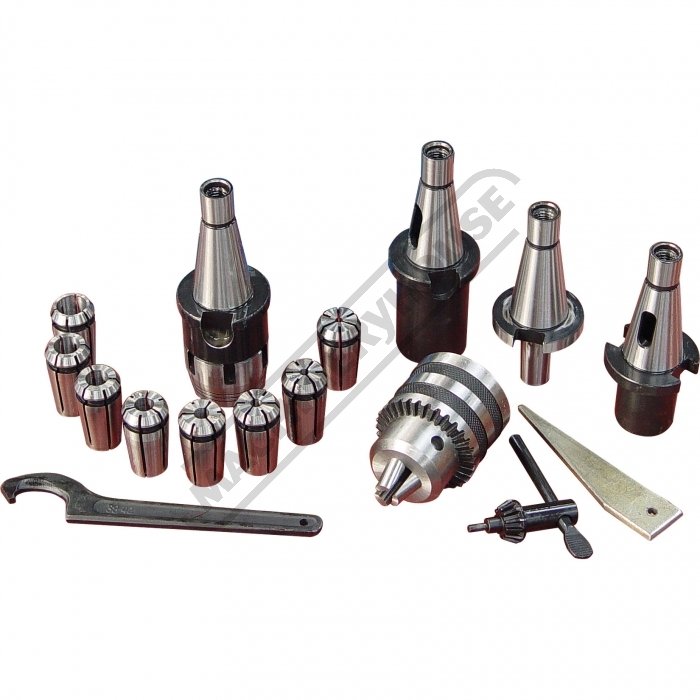

Accessories Included, Metric Collet Chuck, Drill Chuck & Arbor, Morse Taper Adaptors 17 of 17

HAFCO-METALMASTER

Discontinued

Order Code: M161

240V / 10A
1 Year Warranty

Sorry, this Product is no longer available
Click Here To View All Milling Machines - Conventional

Compare

Wishlist

Description Specifications Compare Accessories Related Downloads Spare Parts

Description

Workshop Turret Milling Machine Horizontal - Vertical - HM-52

Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm

Overview

A well-built entry level turret milling vertical and horizontal, drilling machine with a powerful continuous-load 1.5kW motor, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The screwed belt guard covers on each side of the head offer secure safety whilst providing easy access to the belts and pulleys for speed changing.

Other features include taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage work light, 8 piece metric collet chuck set, coolant system, X axis power feed unit, drill chuck, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.

Extra Features:
Swivel Table
2 Arbors for the Horizontal spindle

Features

Swivel table & two arbors for the Horizontal spindle
Mill head tilts to ±90º left to right.
500mm horizontally sliding and rotating ram
NT30 Horizontal and vertical spindles that are hardened and ground
Precision-ground dovetail slide-ways and table
Precision milling table incorporating machined T slots
Rear concertina slide-way cover
Forward and reverse on/off switch
Fine handwheel operated quill feed
Swarf & splash tray
Spindle lock for quill
Metric dial graduations @ 0.02mm for X , Y & Z-Axis
Vertical dial graduations on hand wheel @ 0.05mm
All slides utilise dovetail construction for maximum rigidity

* Note: X & Y travels maybe reduced due to safety stops
* Note: Optional Y & Z power feeds require additional parts & fitting (not included)

Includes

X-Axis power feed
Safety cutter guard
Swarf tray
Coolant system
Halogen lamp
Drill chuck & arbor
2 & 3MT adaptors
8-piece metric collet chuck set (4-16mm)

Specifications

Compare Product Range

Specifications

ORDER CODE	M161
MODEL	HM-52
Digital Readout	Optional
Type	Vertical & Horizontal
(mm)Table Size	1000 x 240
Spindle Taper - Vertical	NT30
Spindle Taper - Horizontal	NT30
(mm)Longitudinal Travel (X-Axis)	600
(mm)Cross Travel (Y-Axis)	200
(mm)Vertical Travel (Z-Axis)	340
Type of Slides	Dovetail
(mm)Ram Travel	500
(mm)Spindle to Table	375
(mm)Spindle Travel / Diameter	125 / 90
(mm)Throat Depth (max.)	640
Tilting Head (Left ~ Right)	±90º
Tilting Head (Forward ~ Back)	Fixed
(mm/rev)Power Feed - Quill	Manual
(mm/min)Power Feed - Longitudinal (X-Axis)	20 - 2000
(mm/min)Power Feed - Cross (Y-Axis)	Optional *
(mm/min)Power Feed - Vertical (Z-Axis)	Optional *
(inch / mm)Table T-Slot Size	14
(kg)Work Table Load Capacity	175
(No./ rpm)Spindle Speeds Vertical	9 (220 - 2400)
(No./ rpm)Spindle Speeds Horizontal	9 (60 - 1350)
(kW / hp)Motor Power - Vertical Spindle	1.5 / 2
(kW / hp)Motor Power - Horizontal Spindle	1.5 / 2
(V / amp)Voltage / Amperage	240 / 10
(kg)Nett Weight	1050
