800 x 1200mm M16 Pro Series Welding Table Cart Package Deal - WT16-1208CPK

500kg Total W.L.L.

Ø16mm Holes

W07805K 1 of 11

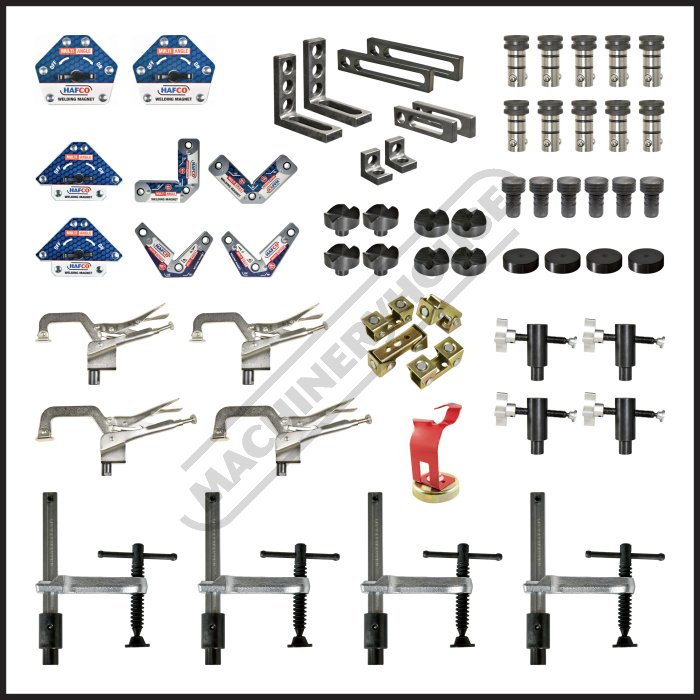

Includes 61 Piece Fixturing Kit 2 of 11

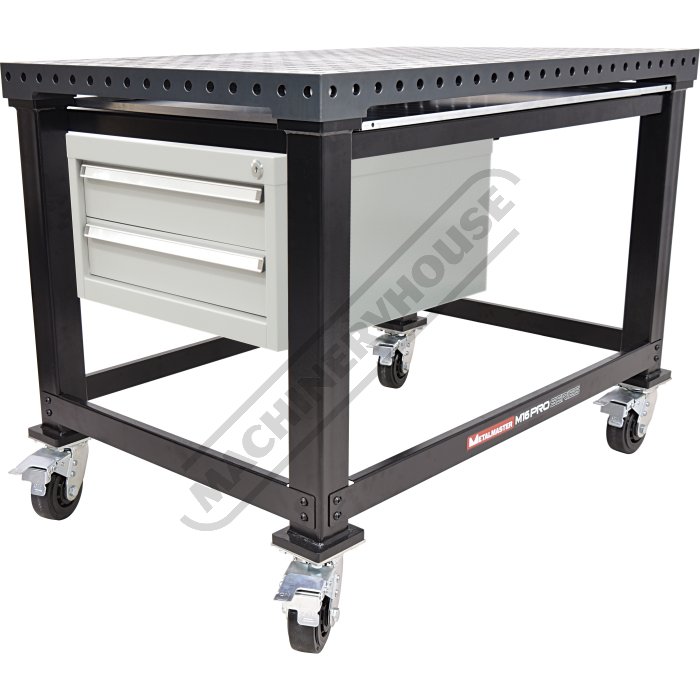

Shown with Under Bench Tooling Cabinet HC-2 3 of 11

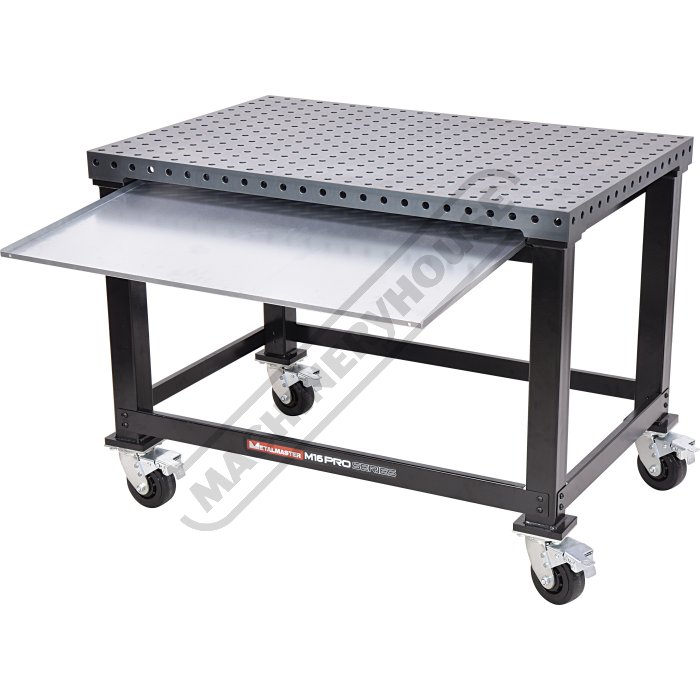

Full View Pull Out Tray 4 of 11

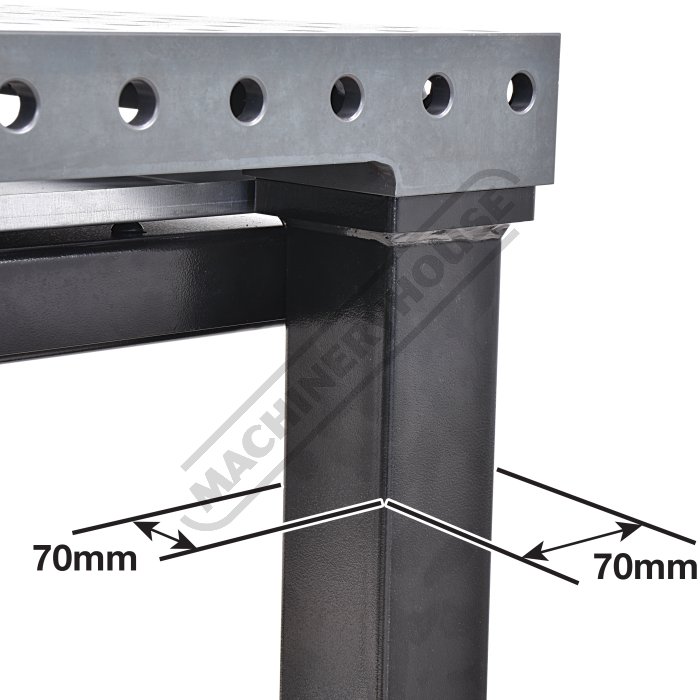

Heavy Duty Steel Legs 70 x 70mm 5 of 11

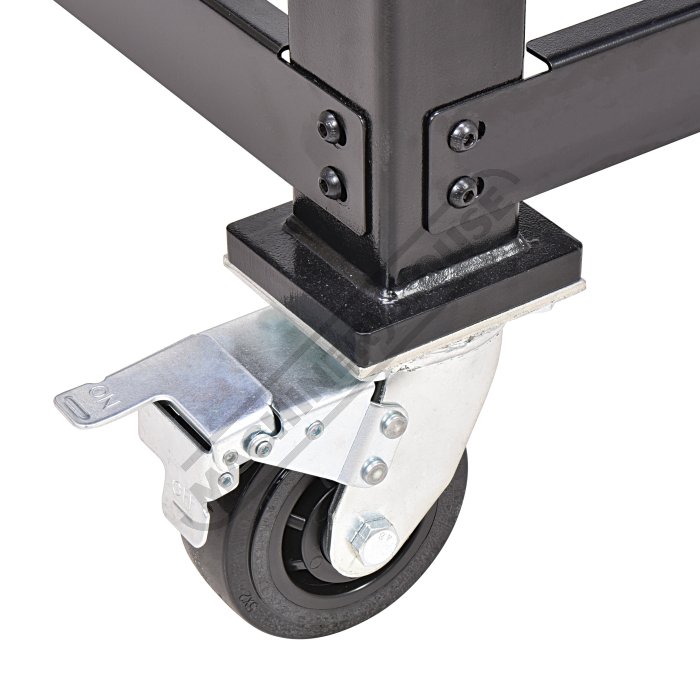

Heavy Duty Swivel Brake Wheels 6 of 11

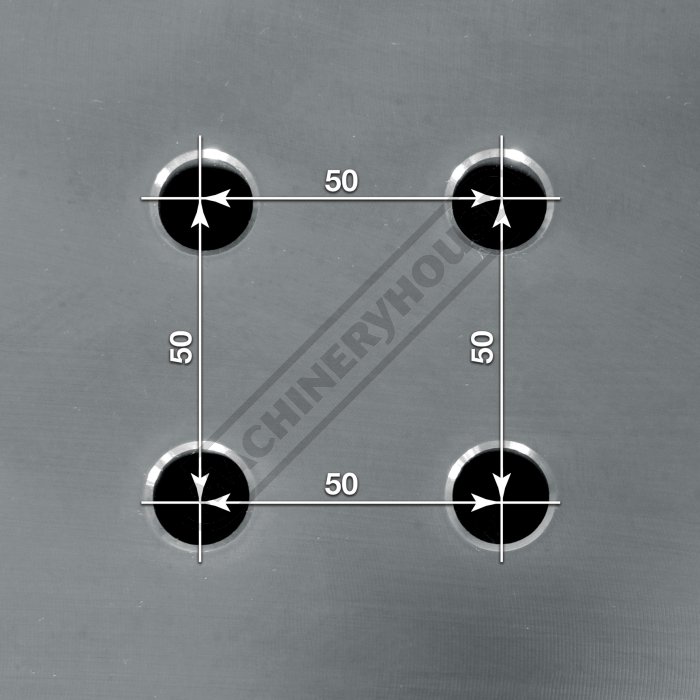

50 x 50mm Hole Centre Pattern 7 of 11

Plasma Nitride table surface treatment 8 of 11

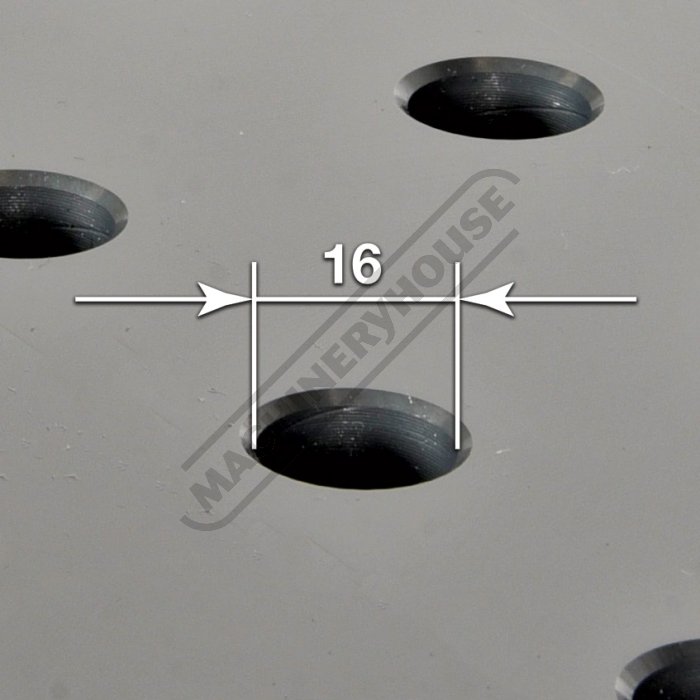

Ø16mm Diameter Holes 9 of 11

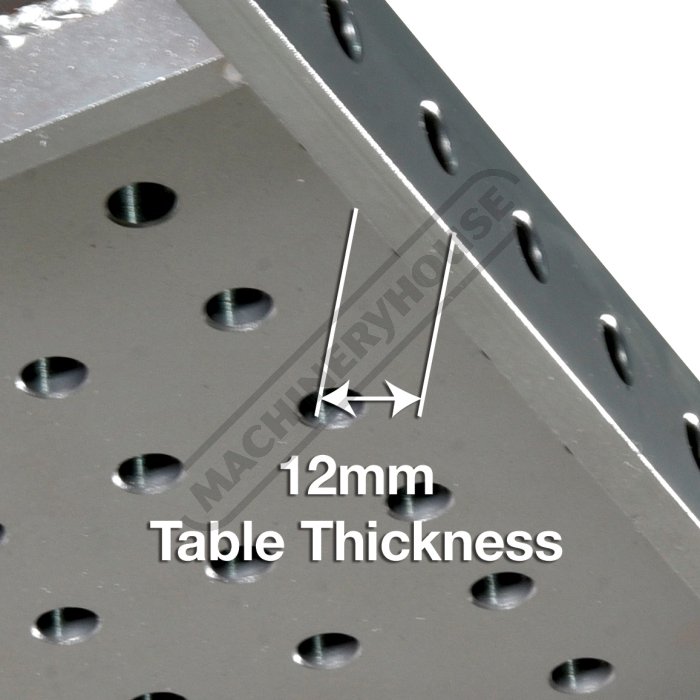

12mm Table Thickness 10 of 11

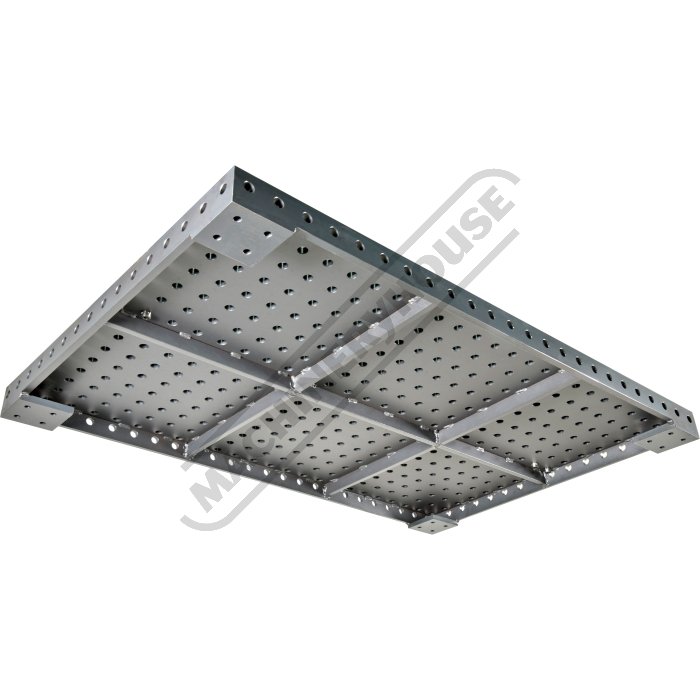

Strengthened by Welded Webbing 11 of 11

METALMASTER

On Sale - Package Deal

Order Code: W07805K

ex-gst

inc-gst

^$ 4,324.00

^$ 4,972.60

^$ 2,800.00

^$ 3,220.00

Package Contents - SAVE $1,752.60 inc-gst

240V / 10A
1 Year Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

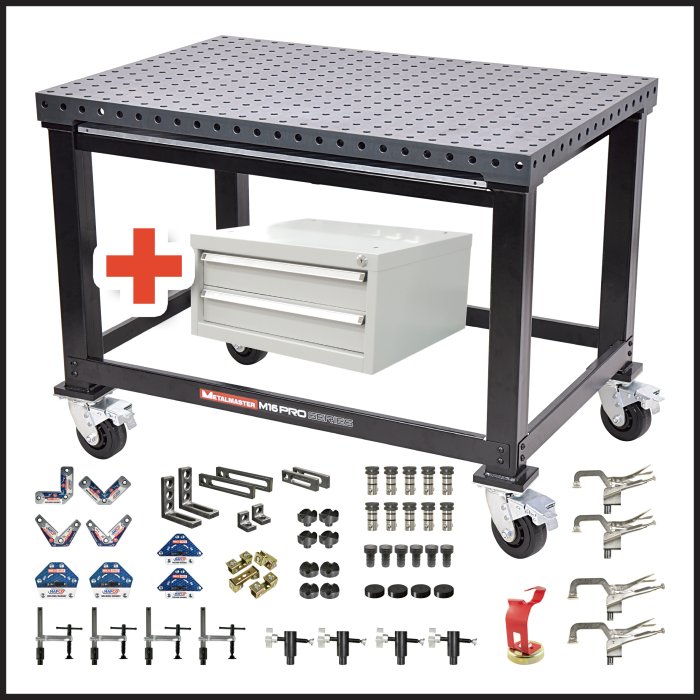

800 x 1200mm M16 Pro Series Welding Table Cart Package Deal - WT16-1208CPK

500kg Total W.L.L.

Ø16mm Holes

Overview

The WT16-1208C Metalmaster M16 Pro Series Welding Table Cart is our economical version for a mobile welding solution, built for strength, precision and versatility. Packaged together with a 2 drawer storage cabinet & 61pc fixturing & accessory kit making this your complete "go-to" fixturing station.

With sturdy 70 x 70mm square tube legs providing a solid working surface for any welding tasks. With its Ø125mm swivel caster & 500kg load capacity ensures it can handle a wide range of jobs, from small-scale projects to heavy-duty industrial work.

The 800 x 1200mm table top is constructed from a welded S355 steel frame, CNC-machined for precise flatness. Featuring Ø16mm holes with a 50 x 50mm hole pattern, it offers versatile clamping options for fixtures. Solid steel ribs and 50mm high sides enhance rigidity, while the plasma nitriding coating provides resistance to spatter, wear, and rust.

Features

Includes a 2 drawer storage cabinet & a 61pc fixturing & welding accessory kit
800 x 1200mm 3D Welding Tabletop with Ø16mm precision bored fixing holes
50 x 50mm hole grid pattern offering a multitude of clamping options
Plasma nitriding surface finish for increased hardness, rust & spatter resistance

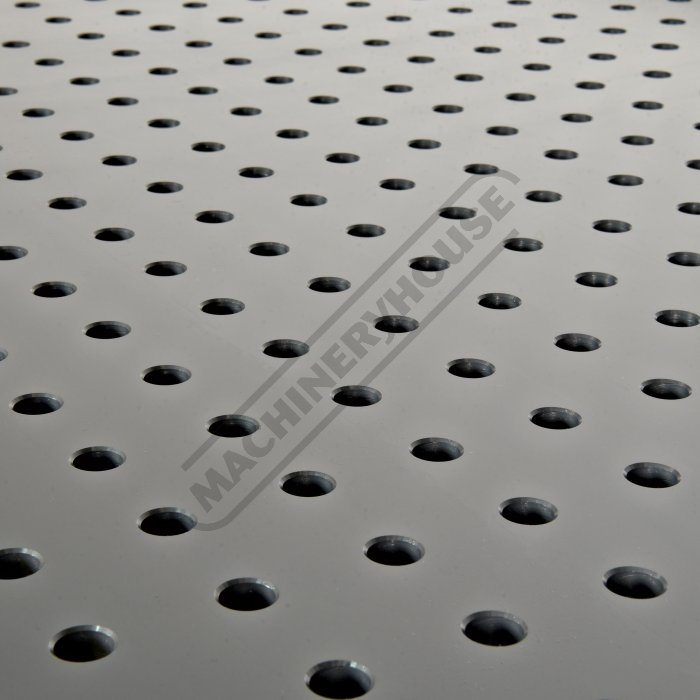

Tabletop is manufactured from heavy S355 plate steel
CNC machined to ensure flatness
Sturdy 70 x 70mm square steel legs with Ø125mm swivel casters with 2 brake wheels for secure positioning
A working height of 900mm for ergonomic use
Total WLL = 500kg weight capacity
Includes galvanized steel dust tray

Includes

1 x WT16-1208C - 800 x 1200mm M16 Pro Series Welding Table Cart
1 x HC-2 - Industrial Under Bench Tooling Cabinet
4 x WT16-C815 - Welding Table Clamp
2 x WT16-RC6 - Welding Table Rapid Clamp
2 x WT16-RC9 - Welding Table Rapid Clamp
2 x WT16-AB443 - Right Angle Bracket / Stop
2 x WT16-AB993 - Right Angle Bracket / Stop
2 x WT16-SB115 - Straight Bar Stop
2 x WT16-SB150 - Straight Bar Stop
10 x WT16-BLP24 - Ball Lock Pin 16 x 24mm
1 x SCLP-16 - Locating Pin 16 x 40mm - (6pc Pack)
1 x SCMP-12 - 12mm x Ø38mm Magnetic Rest Pad - (4pc Pack)
1 x SCVM-90135 - Magnetic Cross Type 90 / 135º V-Pad - (4pc Pack)
1 x SCV-90135 - Cross Type 90 / 135º V-Pad - (4pc Pack)
2 x SDC-50 - 50mm Side Clamp - (2pc Pack)
1 x MTH-1 - Magnetic MIG Torch Rest
1 x WCM-3A - Multi Angle Corner Magnets - (2pc Pack)
1 x WCM-4A - Multi Angle Corner Magnets - (2pc Pack)
2 x WCM-3S - Switchable Multi-Angle Welding Magnet
2 x WCM-5S - Switchable Multi-Angle Welding Magnet
1 x WMVP-2M - Magnetic Swivel V-Pad Clamps (4pc Pack)

Specifications

Compare Product Range

Specifications

ORDER CODE	W07805K
MODEL	WT16-1208CPK
(Type)Table Top Finish	Plasma Nitriding Coating
(mm)Table Top Size	800 x 1200
(mm)Table Height	900
(mm)Table Side Height	50 / 65
(mm)Top Plate Thickness	12
(mm)Grid Pattern	50 x 50
(Ø)Table Hole Diameter	16
(kg)Total W.L.L.	500
(kg)Nett Weight	180
