M16 Pro Series Mobile Welding Station - WT16-1208K

1200 x 800 x 950mm (LxWxH)

Ø16mm Holes

W07806K 1 of 21

Mobile Welding Station | Welding Made Easy | 2 of 21

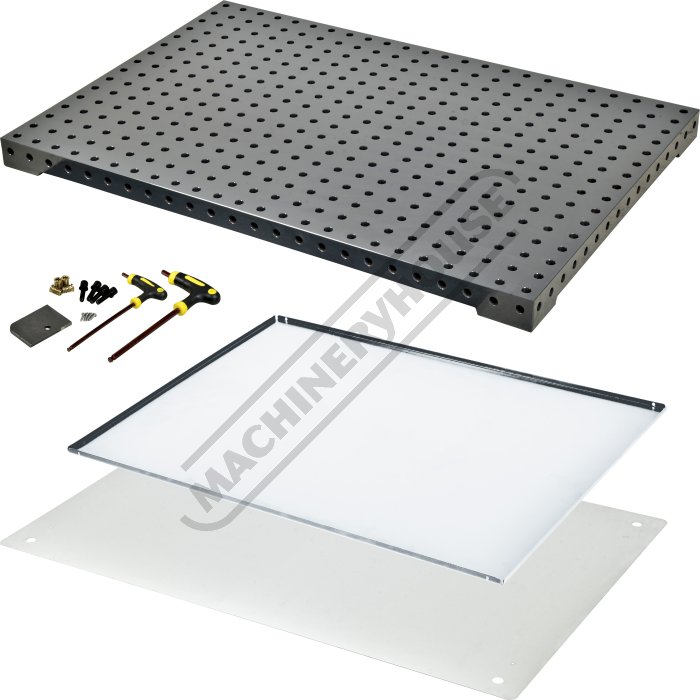

WT16 1208T 800 x 1200mm M16 Pro Series Welding Table Top with Pull out Tray 3 of 21

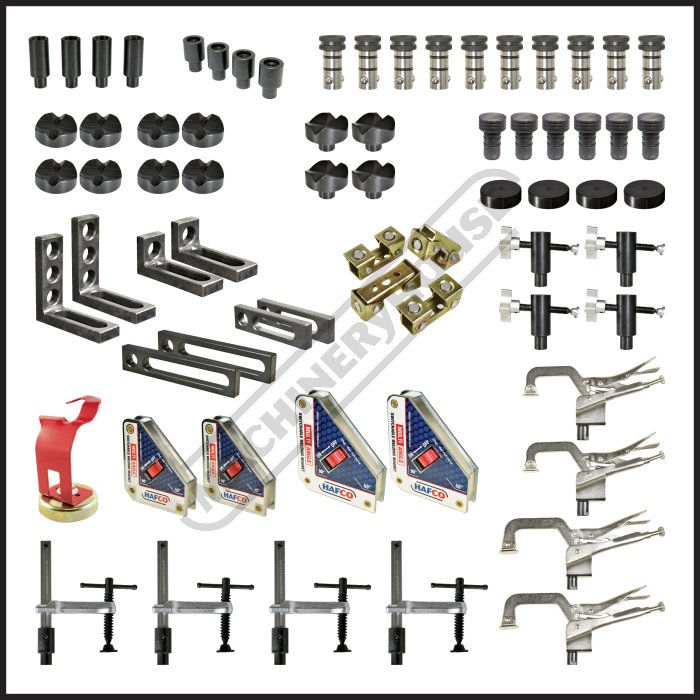

Includes 69 Piece Fixturing Kit 4 of 21

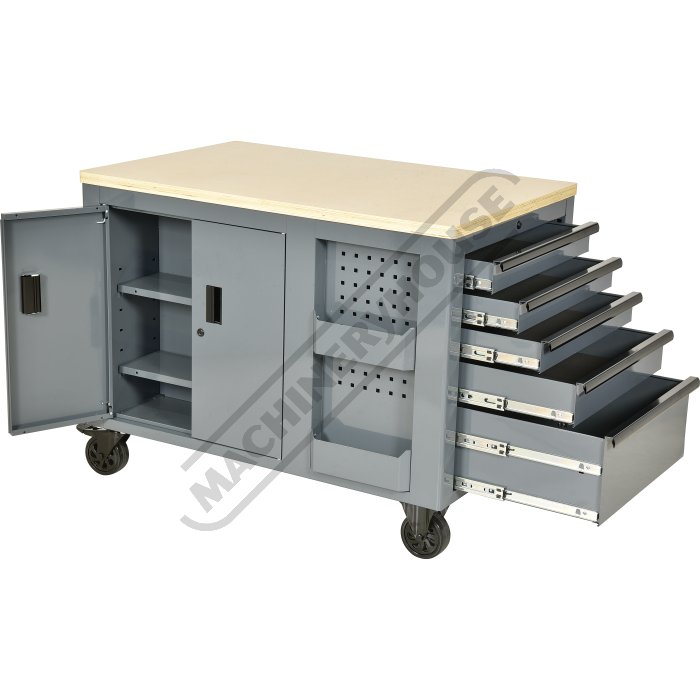

TWS-622 Mobile Workstation 5 of 21

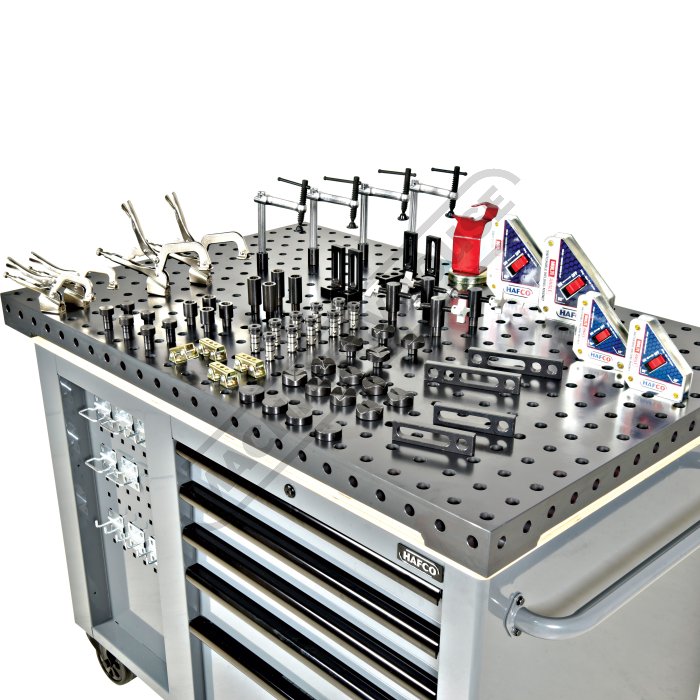

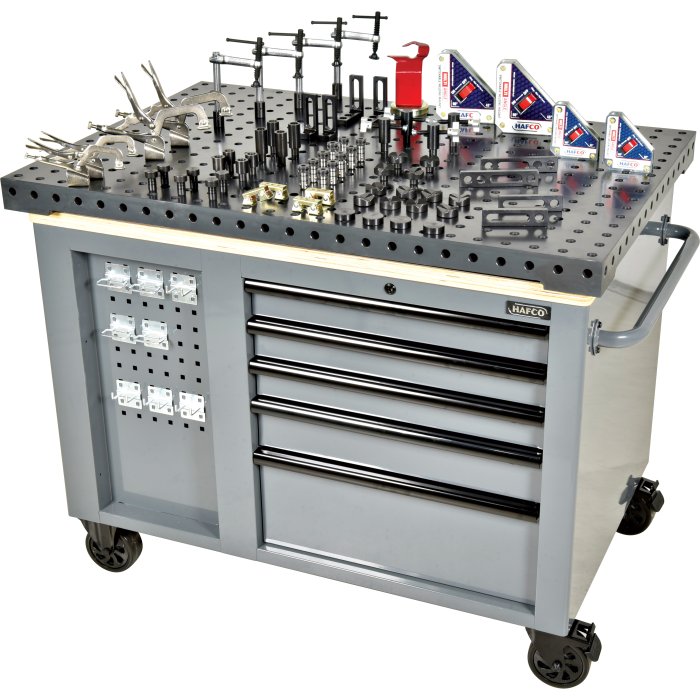

Included 69 Piece Fixing Kit Shown on Table 6 of 21

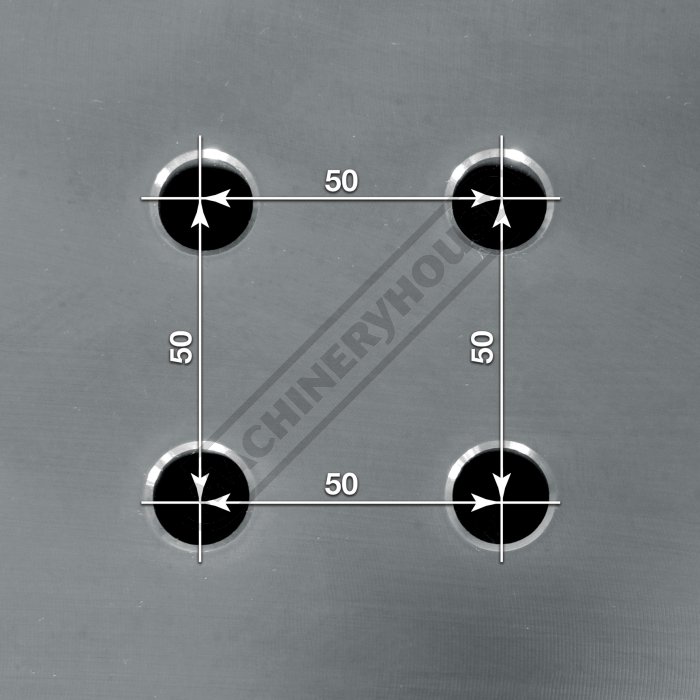

50 x 50mm Hole Centre Pattern 7 of 21

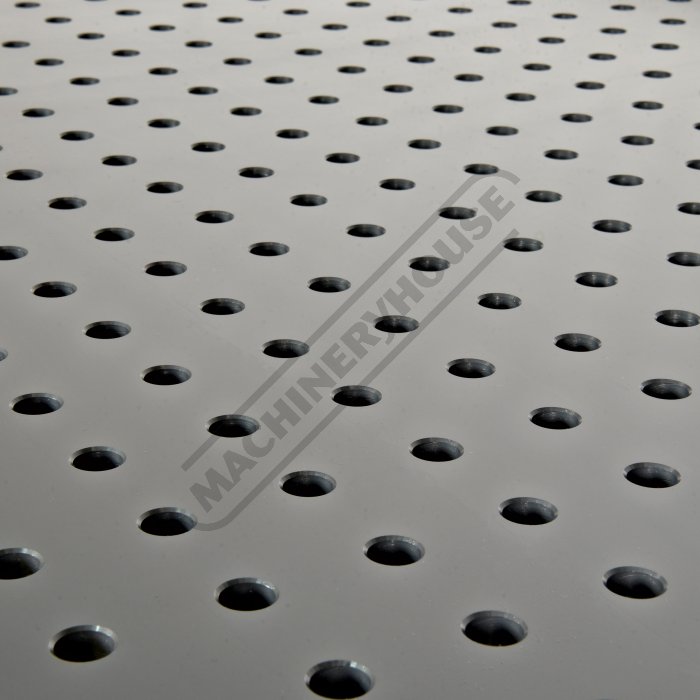

Table Manufactured from Heavy S355 Plate Steel 8 of 21

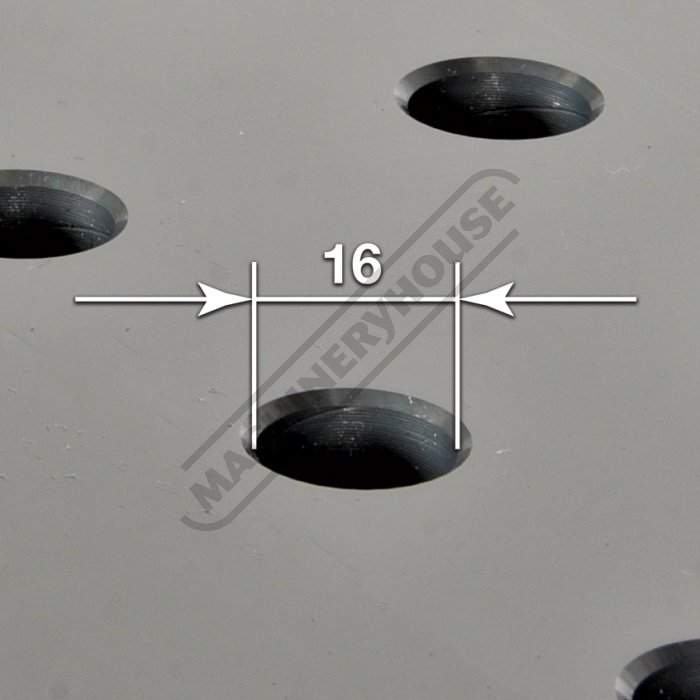

Ø16mm Diameter Holes 9 of 21

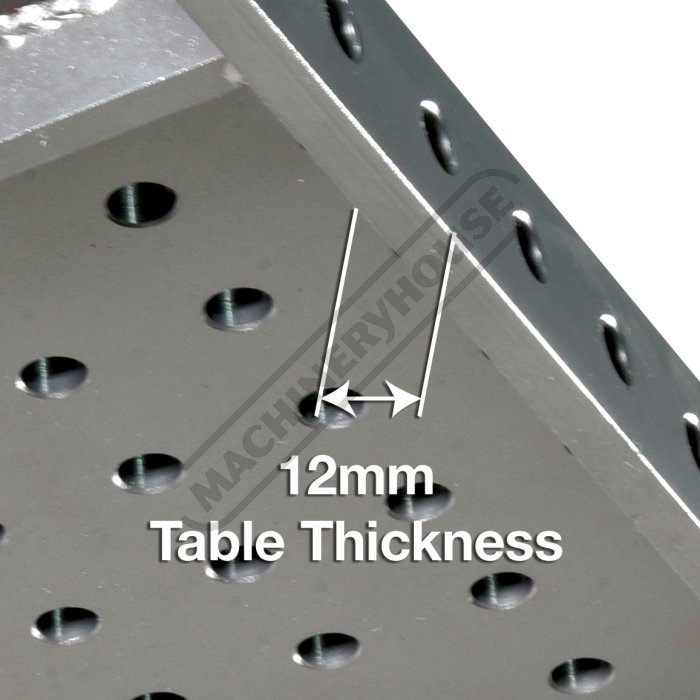

12mm Table Thickness 10 of 21

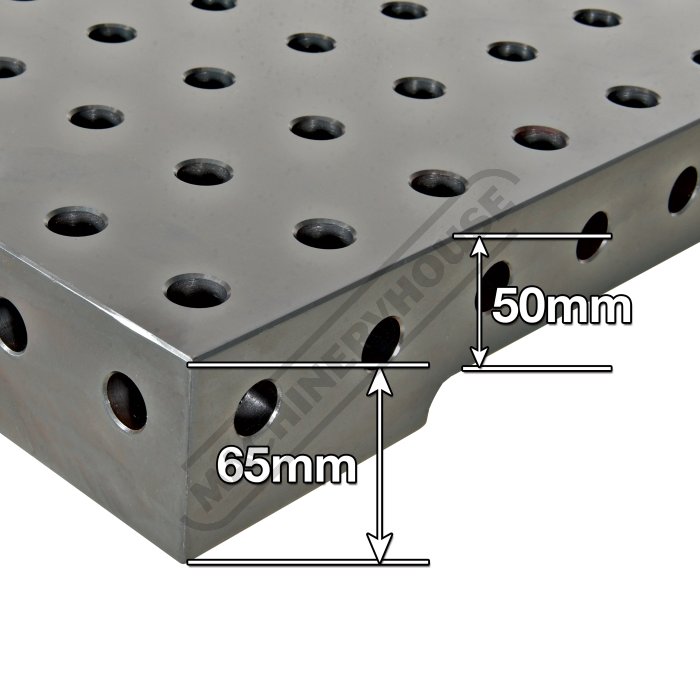

65mm High Ends with 50mm High Sides 11 of 21

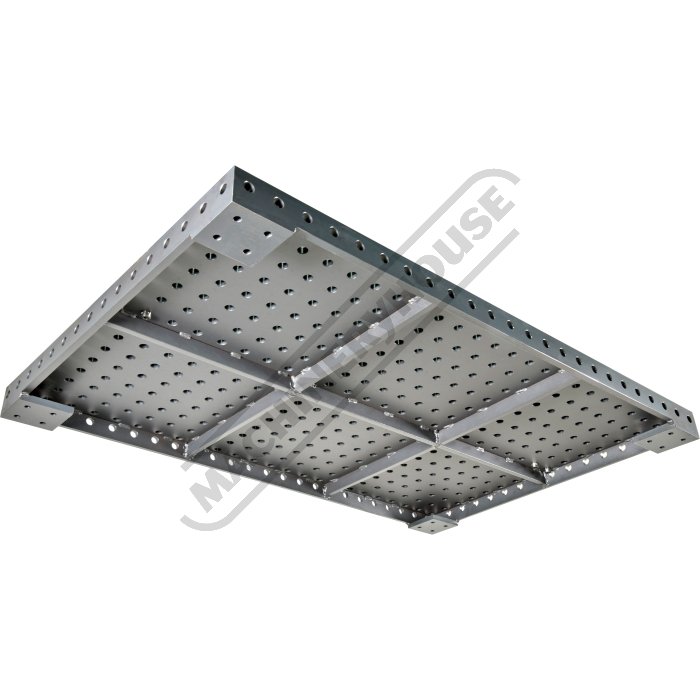

Strengthened by Welded Webbing 12 of 21

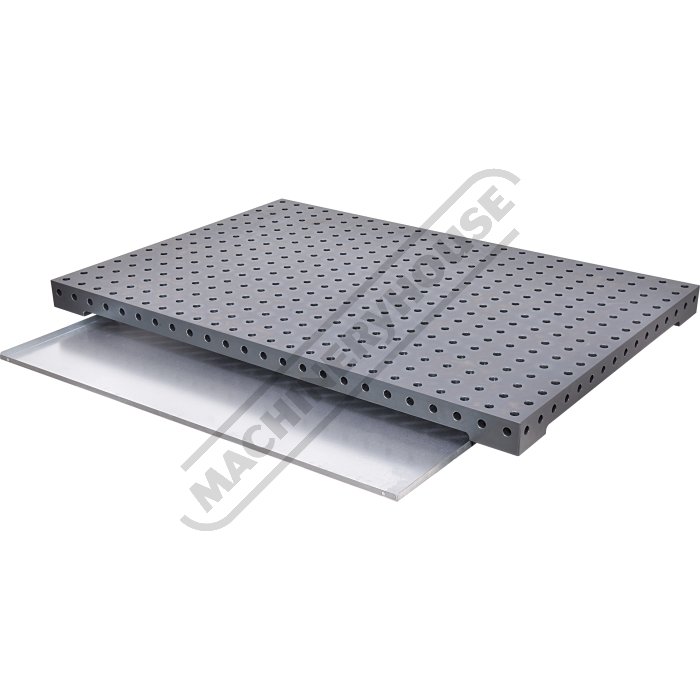

Pull Out Welding Splatter Tray 13 of 21

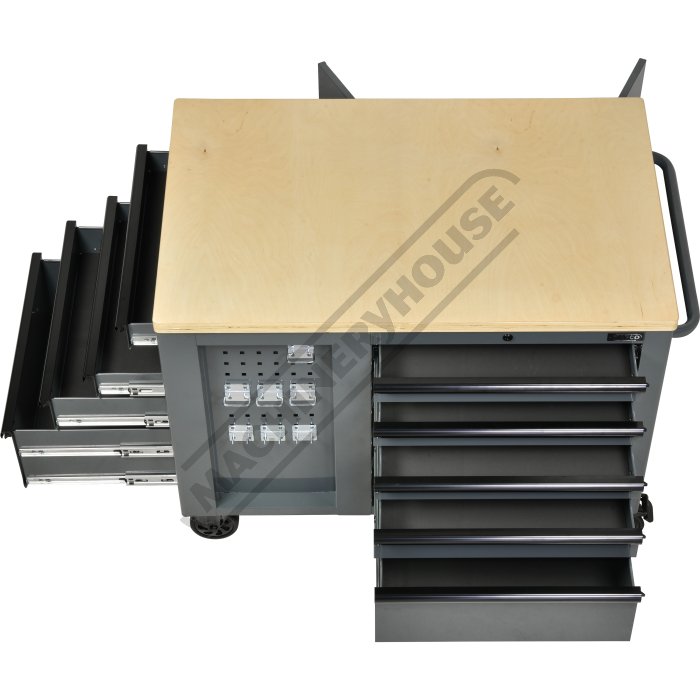

TWS-622 Mobile Workstation - Drawers Open 14 of 21

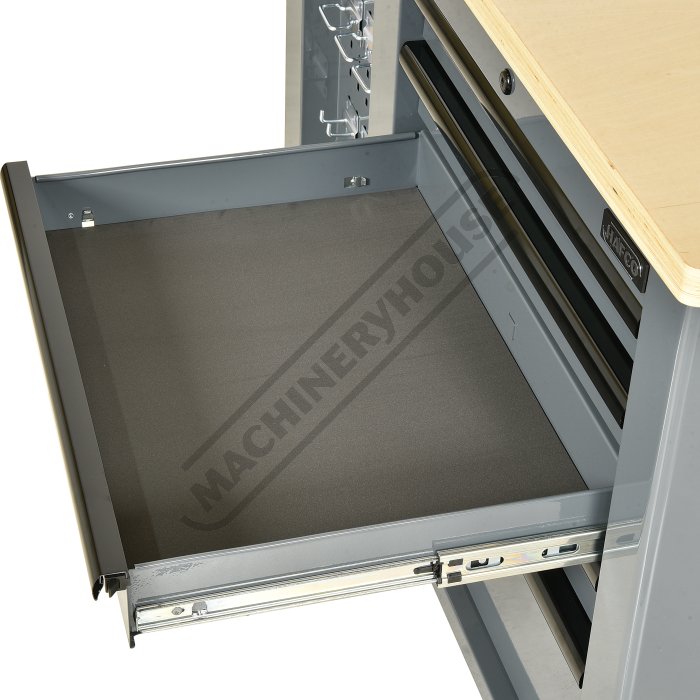

Protective Drawer Liners 15 of 21

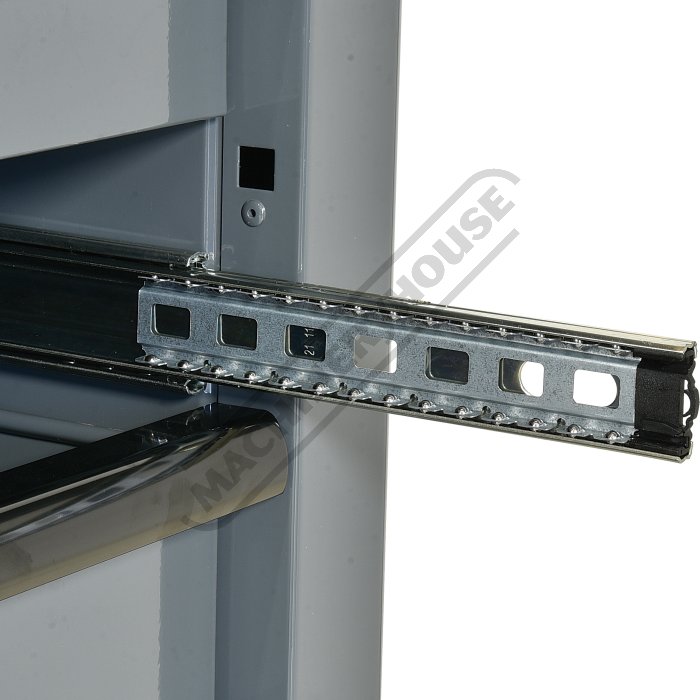

Ball Bearing Slide Drawers 16 of 21

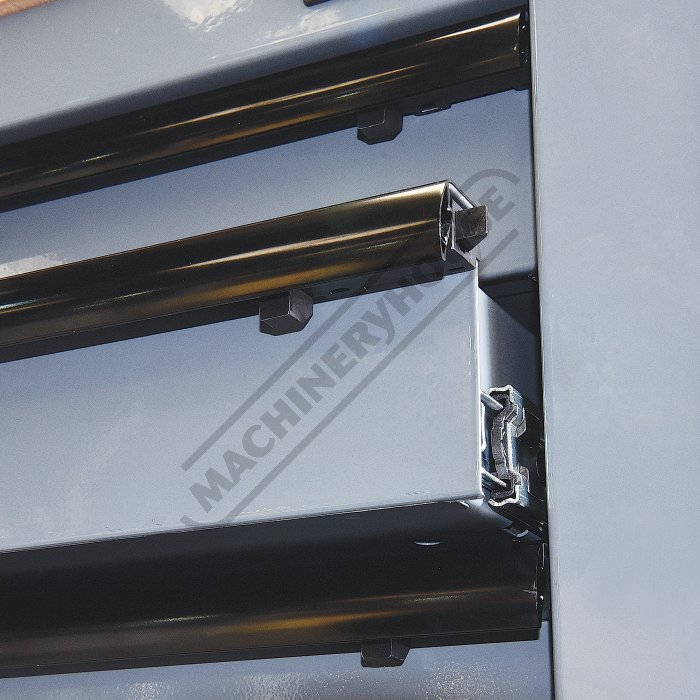

Drawer Latches on each Drawer 17 of 21

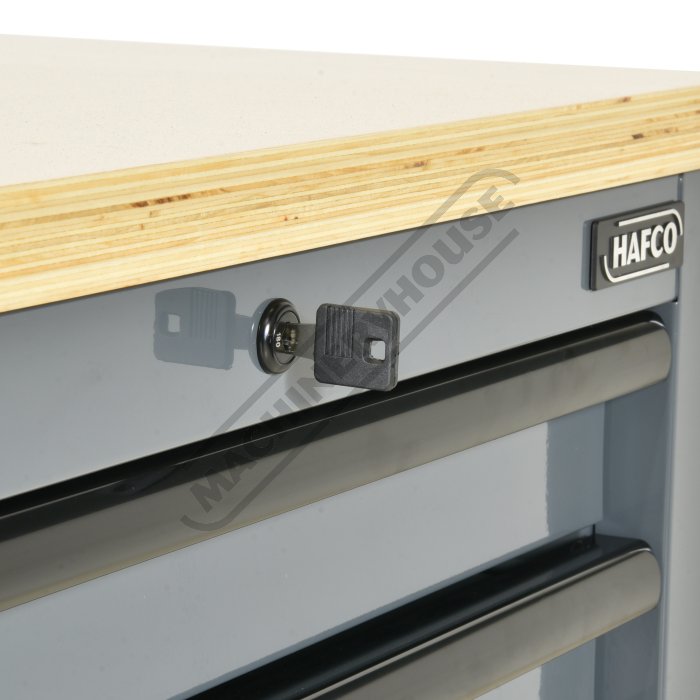

Key Lockable 18 of 21

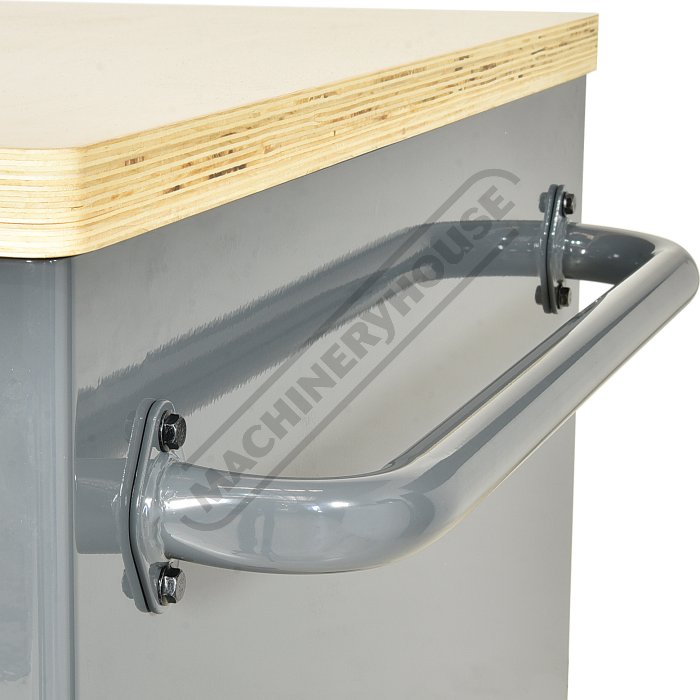

Heavy Duty Push Handle 19 of 21

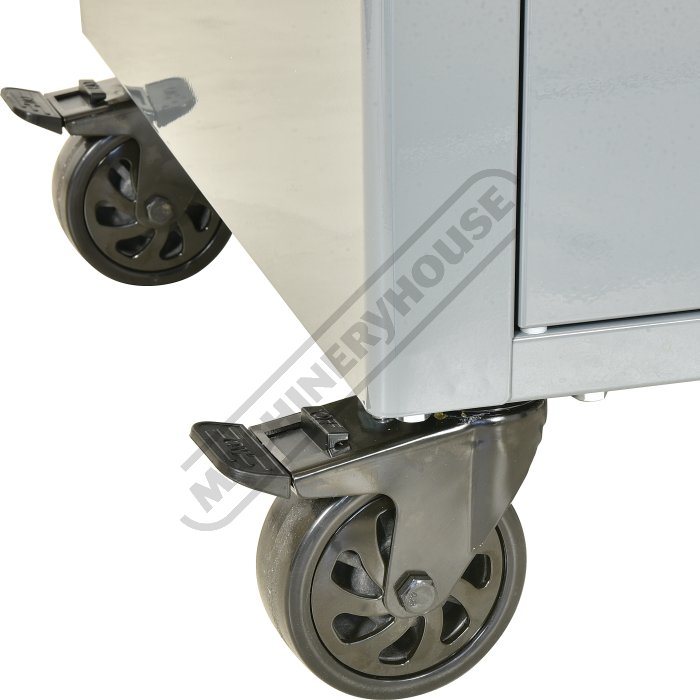

2 x Swivel Brake Wheels 20 of 21

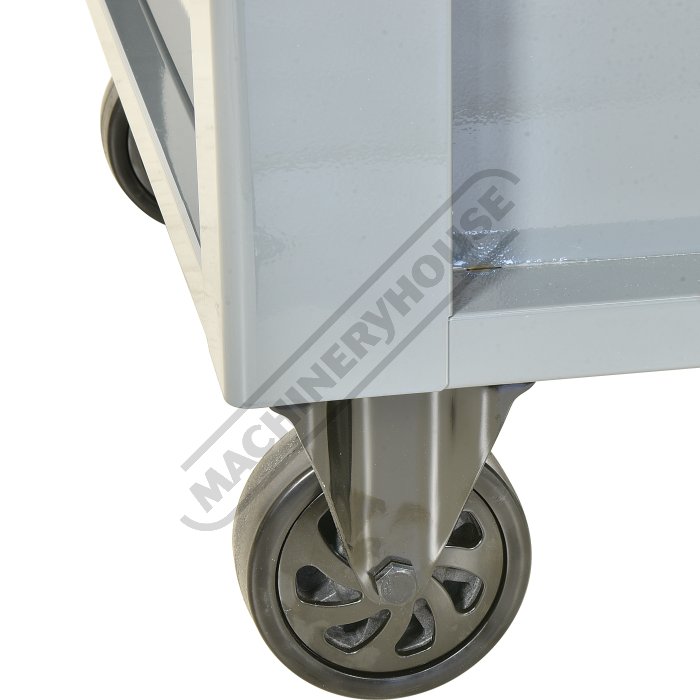

2 x Fixed Wheels 21 of 21

METALMASTER

On Sale - Package Deal

Order Code: W07806K

ex-gst

inc-gst

^$ 4,930.00

^$ 5,669.50

^$ 3,700.00

^$ 4,255.00

Package Contents - SAVE $1,414.50 inc-gst

240V / 10A
1 Year Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

M16 Pro Series Mobile Welding Station - WT16-1208K

1200 x 800 x 950mm (LxWxH)

Ø16mm Holes

Overview

The Metalmaster M16 Pro Series Welding Table, paired with the TWS-622 Mobile Work Station and 69 Piece Fixturing Kit, is the ultimate mobile welding solution.

The 800 x 1200mm Welding Table features a welded S355 12mm thick steel frame, CNC-machined for precise flatness. Featuring Ø16mm holes with a 50 x 50mm hole pattern, it offers versatile clamping options for fixtures. Solid steel ribs and 50mm high sides ensure rigidity, while the plasma nitriding coating resists spatter, wear, and rust.

The Mobile Work Station offers ten drawers, adjustable shelving, hanging hooks, and side storage, with soft-close drawers, safety locks, foam liners, and oversized caster wheels for easy mobility.

400kg Total Load Capacity

NOTE: Welding Table Requires Fitting to Benchtop
A minor fitting process is required to mount the WT16-1208T Welding Table Top onto the TWS-622 Mobile Work Station Benchtop.
(Please refer to the downloadable Instruction Manual for easy to follow setup)

Features

WT16-1208T 800 x 1200mm Nitride Steel Welding Table Top
Tabletop is manufactured from heavy S355 plate steel finished nominal thickness of 12mm
CNC machined to ensure flatness
Plasma nitriding surface finish for increased hardness, rust & spatter resistance
Ø16mm Precision bored fixing holes
50 x 50mm hole grid pattern offering a multitude of clamping options
The kit includes a sheet steel cover for benchtop, pull-out swarf tray, and a hardware pack for mounting to benchtop

TWS-622 - Professional Series Mobile Work Station
Maximum storage with adjustable shelving and racks
Ball bearing slides, drawer latches & anti-slip foam liners on all drawers
Dual slides on larger drawers for extra weight
Large handle
Key lockable
Brakes on two wheels

69-piece Fixturing Kit
The 69-piece Fixturing Kit is an excellent startup kit, providing all the necessary welding clamps and fixtures to get started on most welding projects

Includes

1 x WT16-1208T Nitride Steel Welding Table Top with Pull-out Tray
1 x TWS-622 - Professional Series Mobile Work Station
4 x WT16-C815 - Welding Table Clamps
2 x WT16-RC6 - Welding Table Rapid Clamps
2 x WT16-RC9 - Welding Table Rapid Clamps
2 x WT16-AB943 - Right Angle Brackets
2 x WT16-AB993 - Right Angle Brackets
2 x WT16-SB115 - Straight Bar Stops
2 x WT16-SB150 - Straight Bar Stops
10 x WT16-BLP24 - Ball Lock Pins 16 x 24mm
1 x SCLP-16 - Locating Pin 16 x 40mm
1 x SCMP-12 - Magnetic Rest Pad 12mm x Ø38mm - 4pc Pack
2 x SCVM-90135 - Magnetic Cross Type 90 / 135º V-Pad (4 Piece Pack)
1 x SCV-90135 - Cross Type 90 / 135º V-Pad (4 Piece Pack)
2 x SDC-50 - 50mm Side Clamp (2 Piece Pack)
1 x W08513 - Weld Clamp Adaptor - 4pc Pack
1 x SCA-5016P - 50mm Material Stop (Spigot Type) - 4pc Pack
1 x MTH-1 - Magnetic MIG Torch Rest
2 x WCM-90HD - Switchable Multi-Angle Welding Magnets
2 x WCM-140HD - Switchable Multi-Angle Welding Magnets
1 x WMVP-2M - Magnetic Swivel V-Pad Clamps

Specifications

Compare Product Range

Specifications

ORDER CODE	W07806K
MODEL	WT16-1208K
(Type)Table Top Finish	Plasma Nitriding Coating
(mm)Table Top Size	800 x 1200
(mm)Table Height	950
(mm)Table Side Height	50 / 65
(mm)Top Plate Thickness	12
(mm)Grid Pattern	50 x 50
(Ø)Table Hole Diameter	16
(kg)Static Load Capacity	400
(kg)Nett Weight	256
