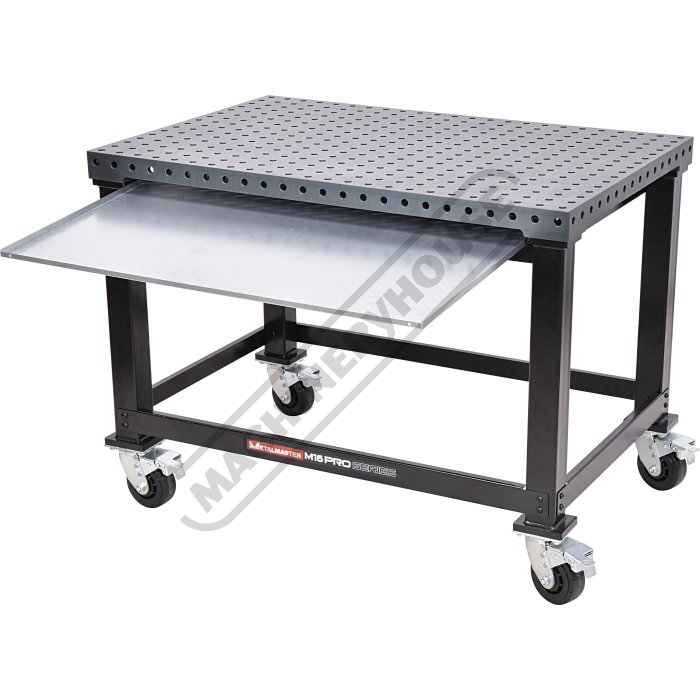

Full View Pull Out Tray 2 of 20

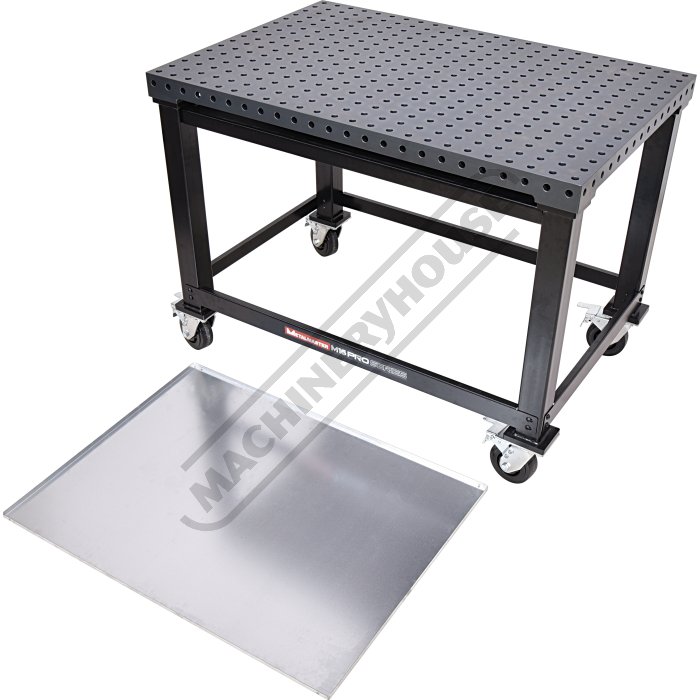

Top View with Tray Removed 3 of 20

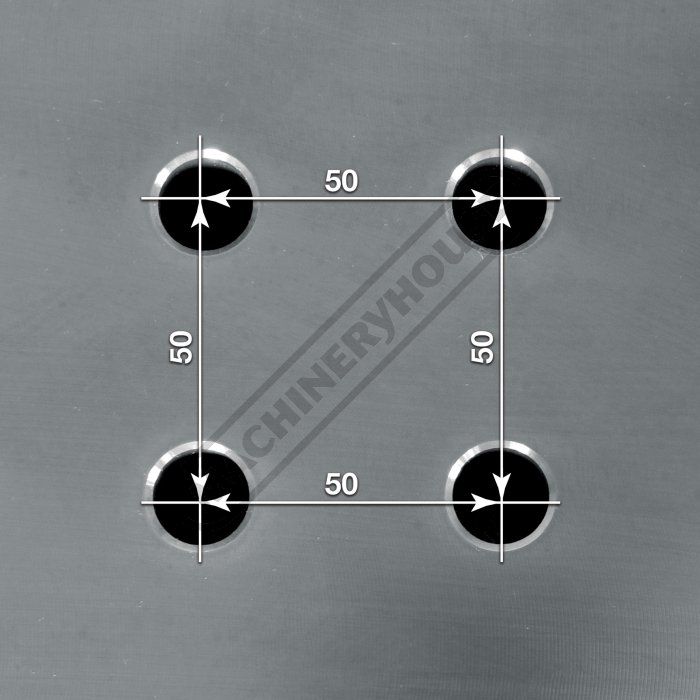

50 x 50mm Hole Centre Pattern 4 of 20

Plasma Nitride table surface treatment 5 of 20

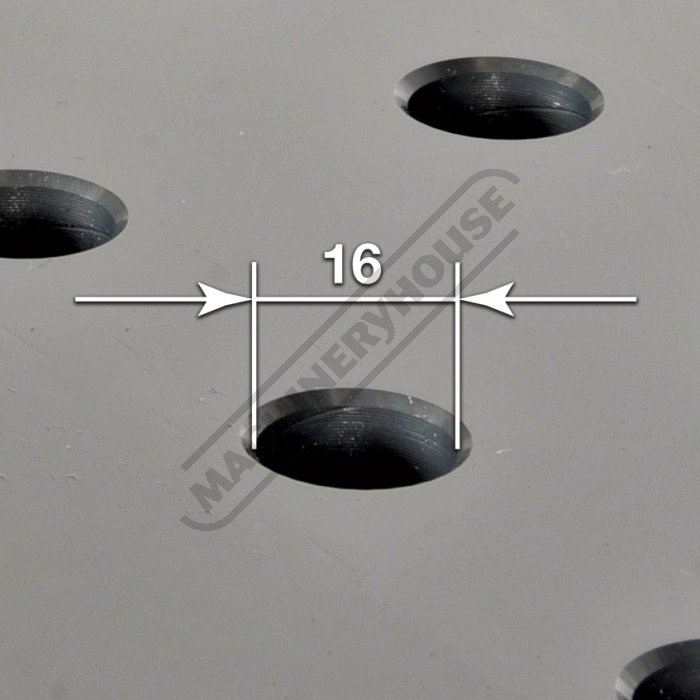

Ø16mm Diameter Holes 6 of 20

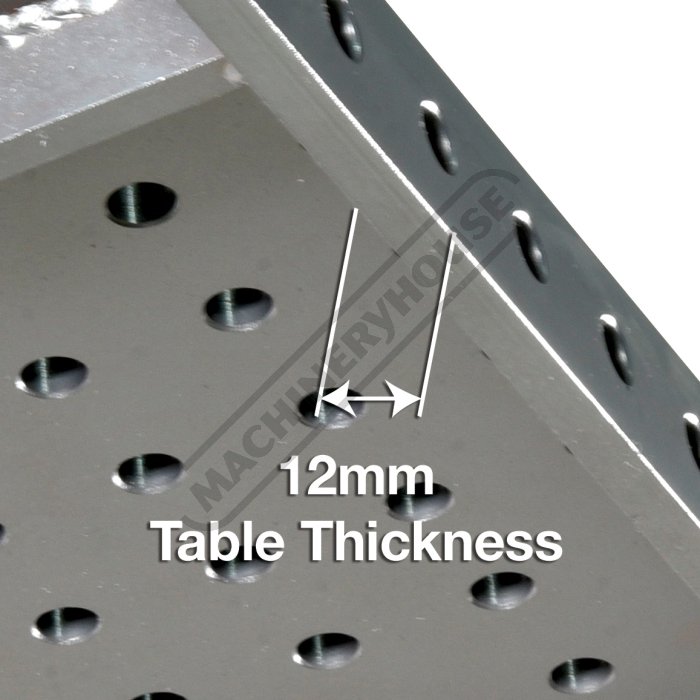

12mm Table Thickness 7 of 20

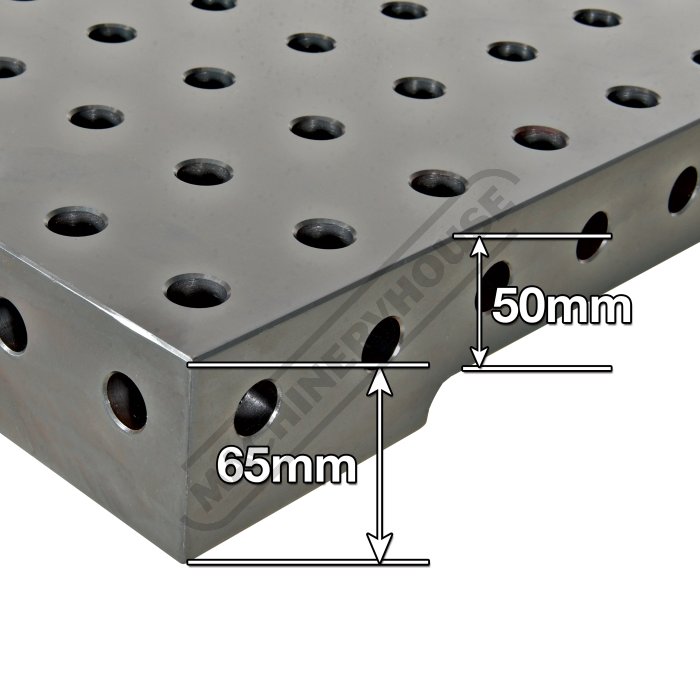

65mm High Ends with 50mm High Sides 8 of 20

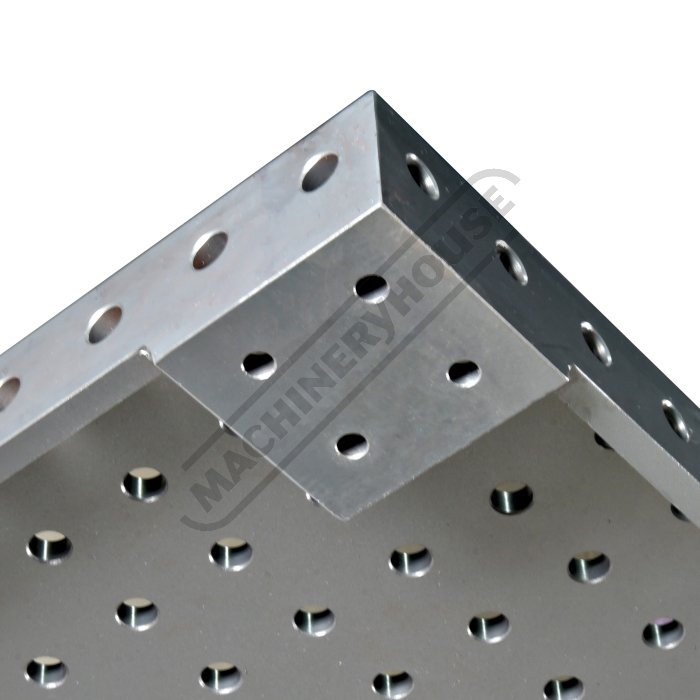

Feet with 4 Mounting Holes 9 of 20

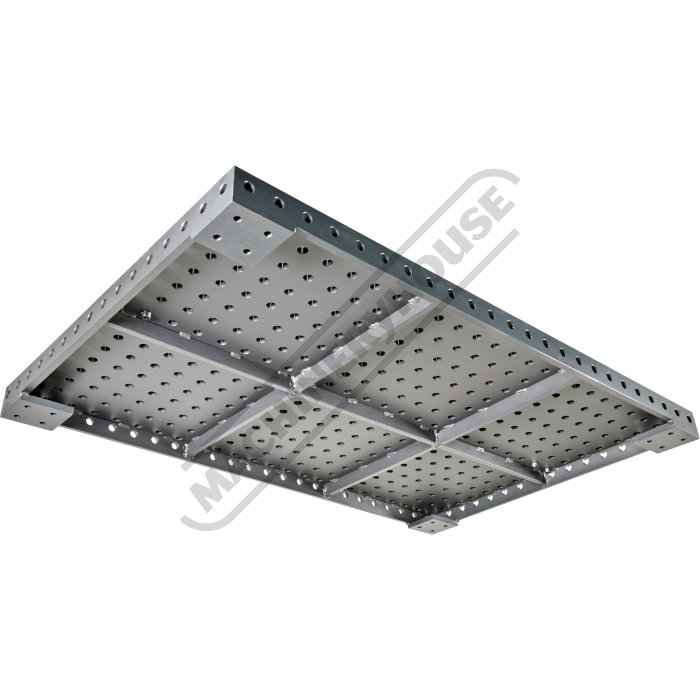

Strengthened by Welded Webbing 10 of 20

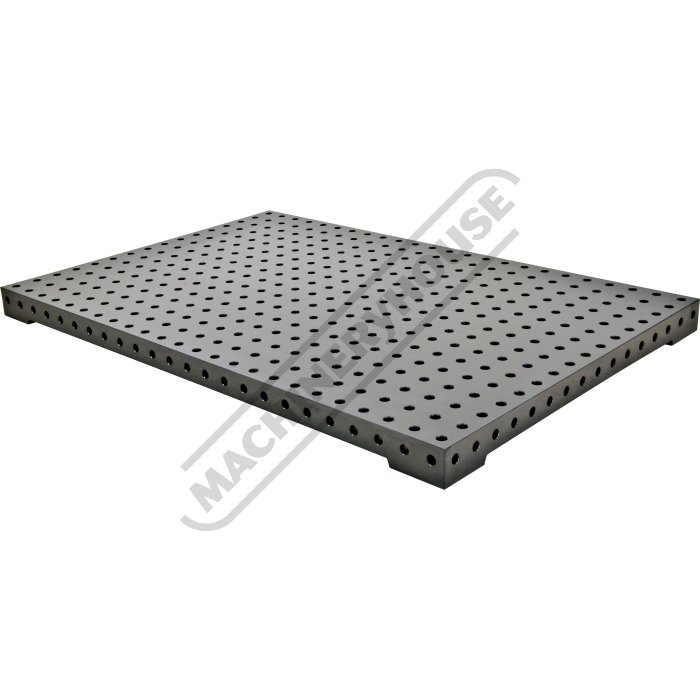

Welding Table 11 of 20

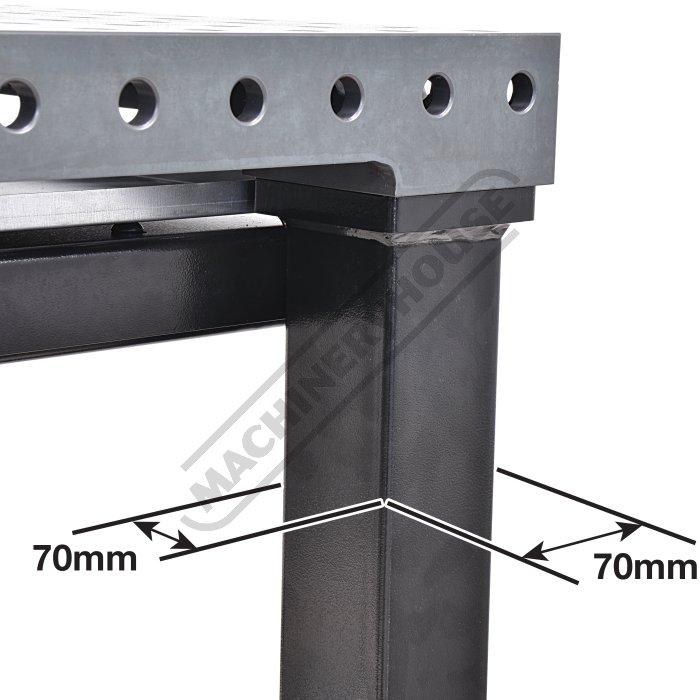

Heavy Duty Steel Legs 70 x 70mm 12 of 20

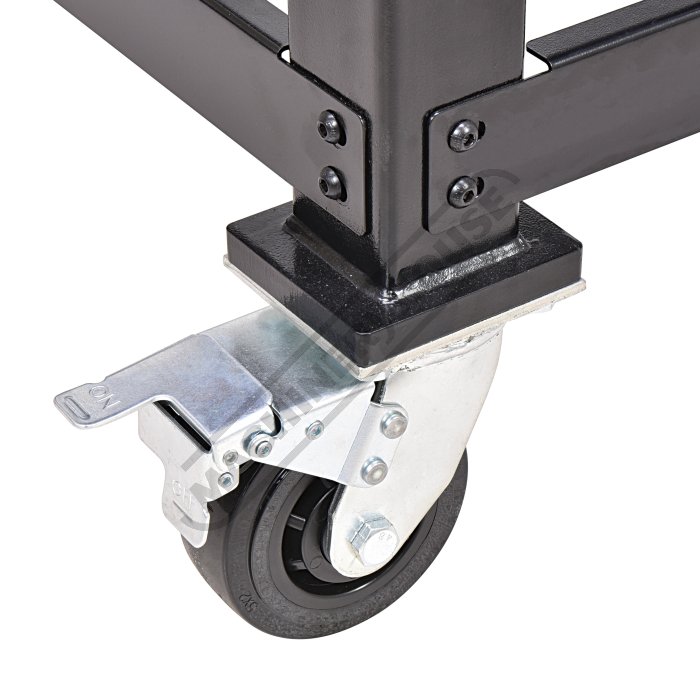

Heavy Duty Swivel Brake Wheels 13 of 20

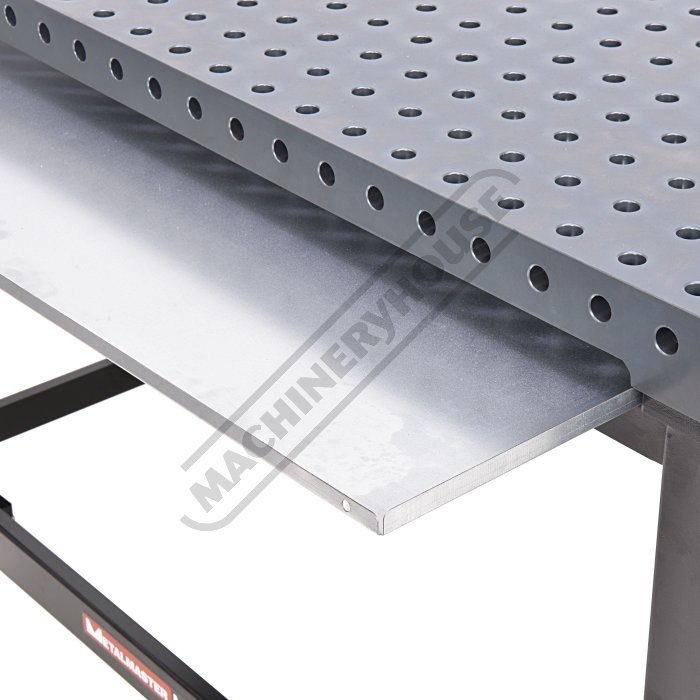

Pull Out Tray Close Up 14 of 20

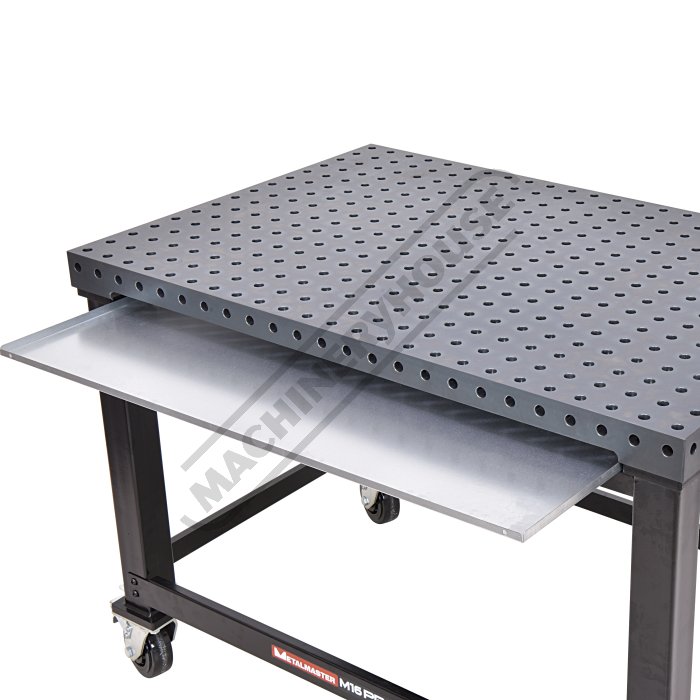

Pull Out Tray Table Top 15 of 20

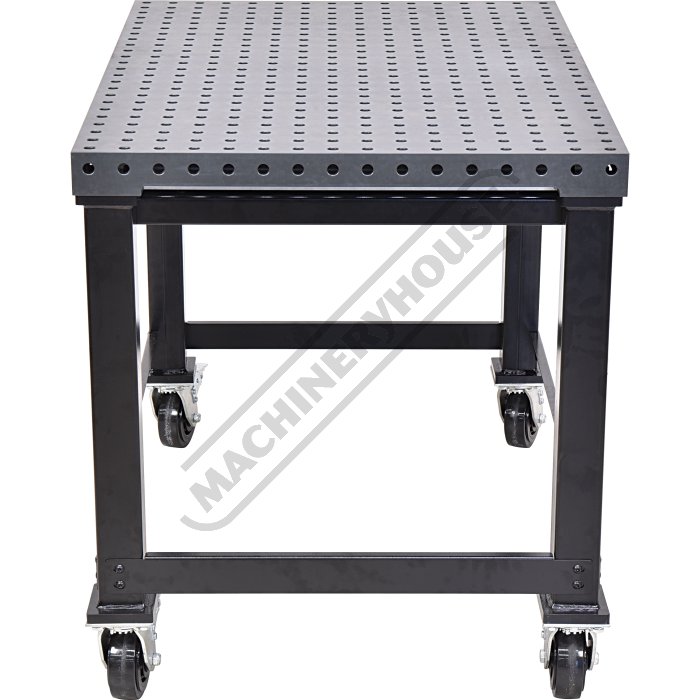

Side View 16 of 20

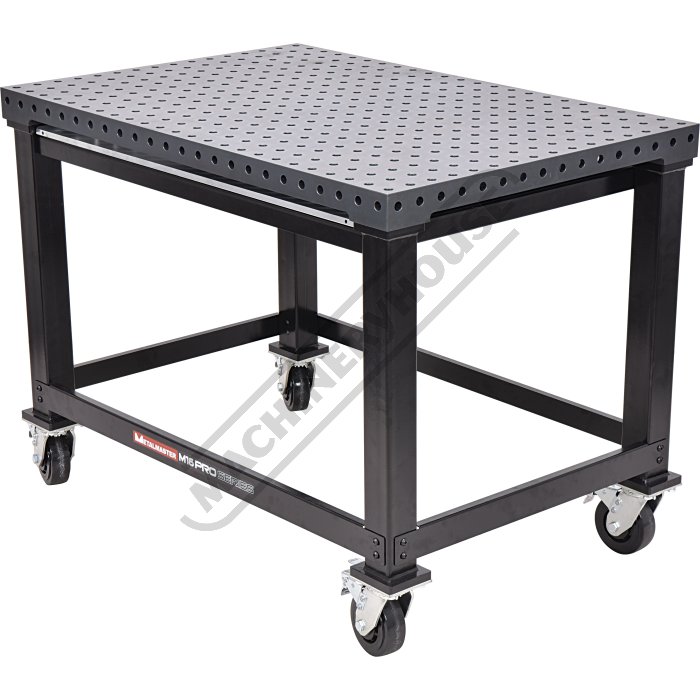

End View 17 of 20

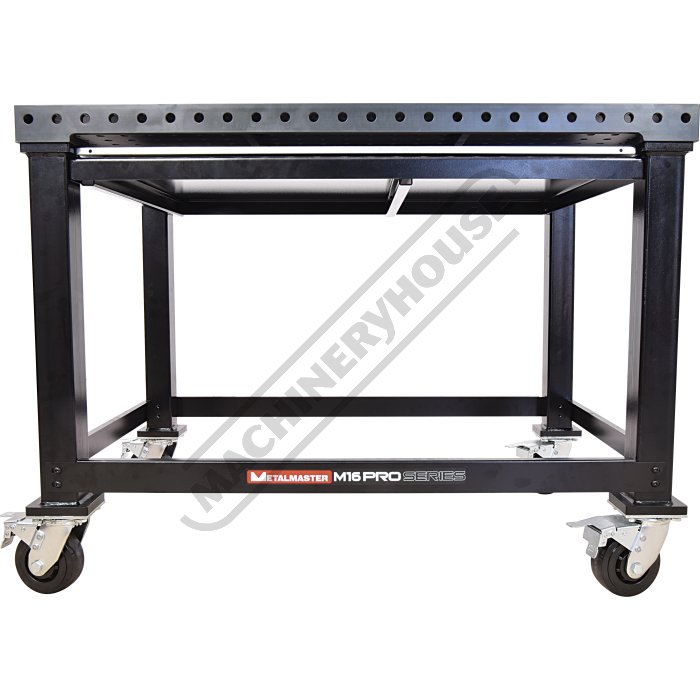

Front View 18 of 20

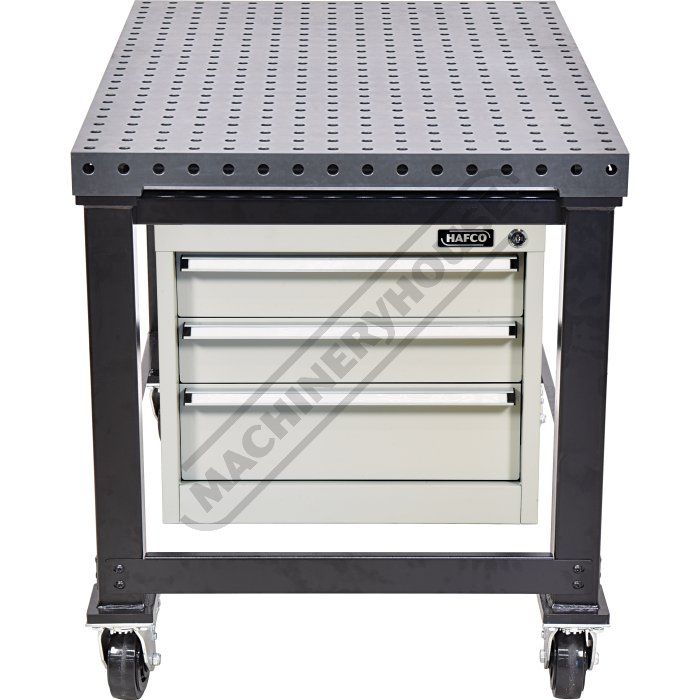

Side View Shown with Opional Drawer Unit A423 19 of 20

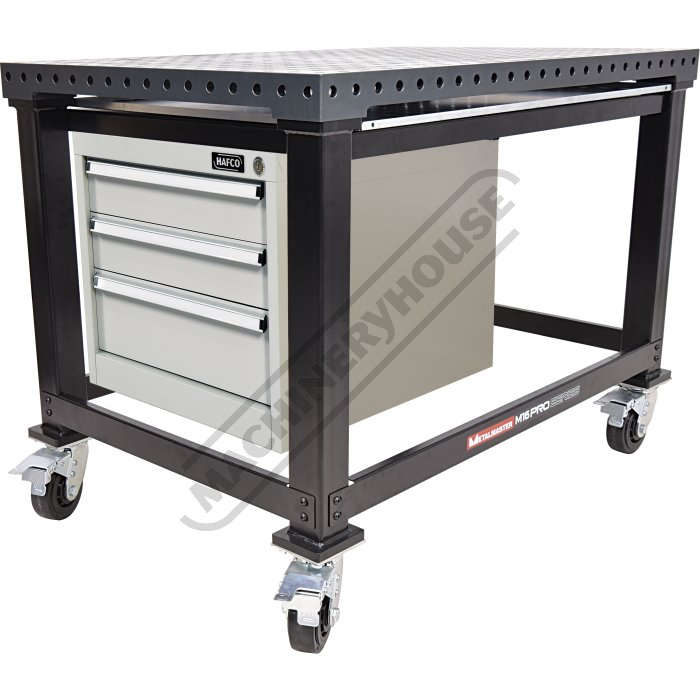

Side Low View Shown with Optional Drawers A423 20 of 20

METALMASTER

On Sale - New Release

Order Code: W07805

ex-gst

inc-gst

^$ 2,868.00

^$ 3,298.20

^$ 2,500.00

^$ 2,875.00

1 Year Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

800 x 1200mm M16 Pro Series Welding Table Cart - WT16-1208C

500kg Total W.L.L.

Ø16mm Holes

Overview

The WT16-1208C Metalmaster M16 Pro Series Welding Table Cart is our economical version for a mobile welding solution, built for strength, precision and versatility.

With sturdy 70 x 70mm square tube legs providing a solid working surface for any welding tasks. With its Ø125mm swivel caster & 500kg load capacity ensures it can handle a wide range of jobs, from small-scale projects to heavy-duty industrial work.

The 800 x 1200mm table top is constructed from a welded S355 steel frame, CNC-machined for precise flatness. Featuring Ø16mm holes with a 50 x 50mm hole pattern, it offers versatile clamping options for fixtures. Solid steel ribs and 50mm high sides enhance rigidity, while the plasma nitriding coating provides resistance to spatter, wear, and rust.

Features

800 x 1200mm 3D Welding Tabletop with Ø16mm precision bored fixing holes
50 x 50mm hole grid pattern offering a multitude of clamping options
Plasma nitriding surface finish for increased hardness, rust & spatter resistance

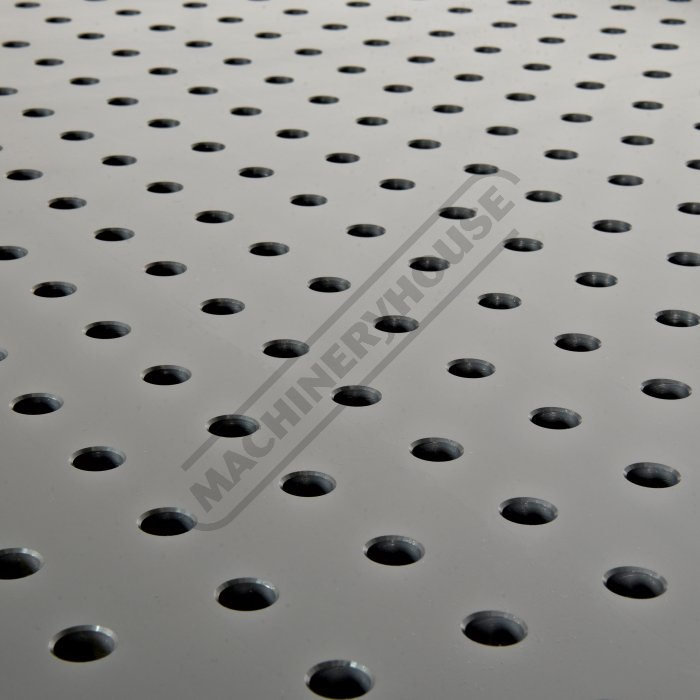

Tabletop is manufactured from heavy S355 plate steel
CNC machined to ensure flatness
Sturdy 70 x 70mm square steel legs with Ø125mm swivel casters with 2 brake wheels for secure positioning
A working height of 900mm for ergonomic use
Total WLL = 500kg weight capacity
Includes galvanized steel dust tray

Specifications

Compare Product Range

Specifications

ORDER CODE	W07805
MODEL	WT16-1208C
(Type)Table Top Finish	Plasma Nitriding Coating
(mm)Table Top Size	800 x 1200
(mm)Table Height	900
(mm)Table Side Height	50 / 65
(mm)Top Plate Thickness	12
(mm)Grid Pattern	50 x 50
(Ø)Table Hole Diameter	16
(kg)Total W.L.L.	500
(kg)Nett Weight	180
