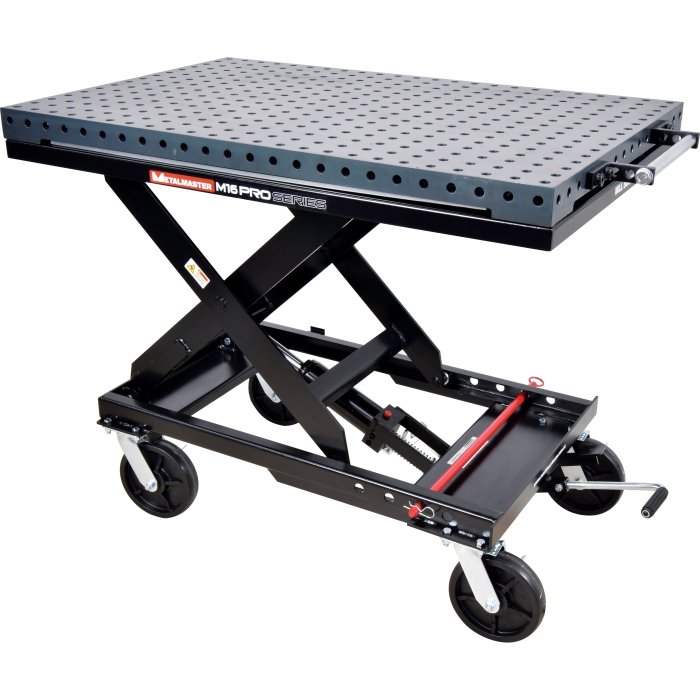

Main 1 of 18

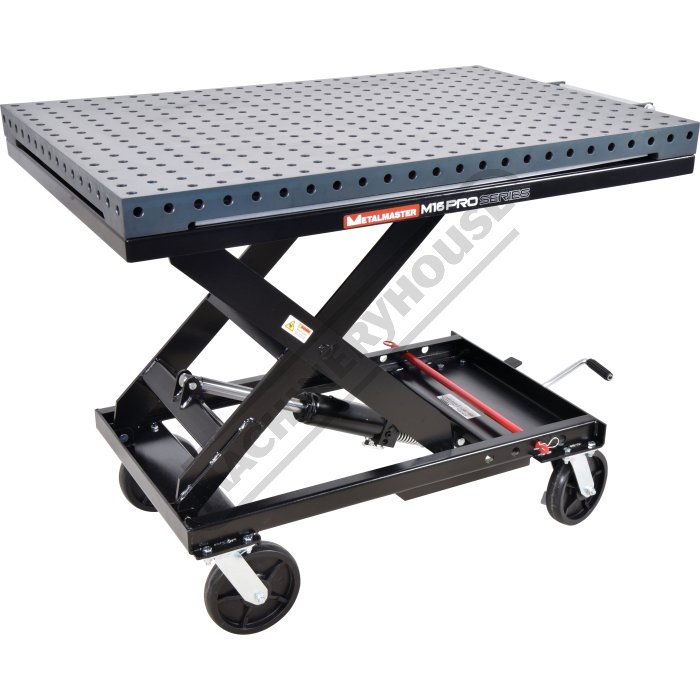

Table At Highest Setting 2 of 18

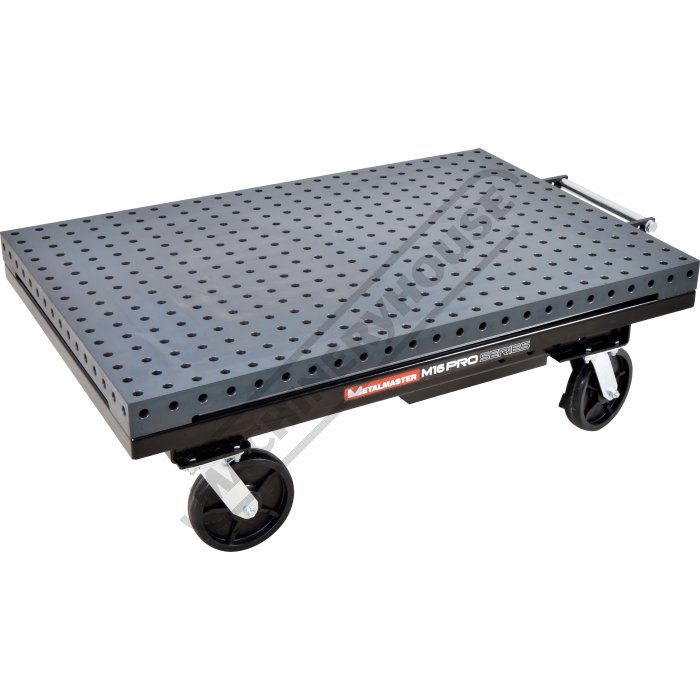

Table At Lowest Setting 3 of 18

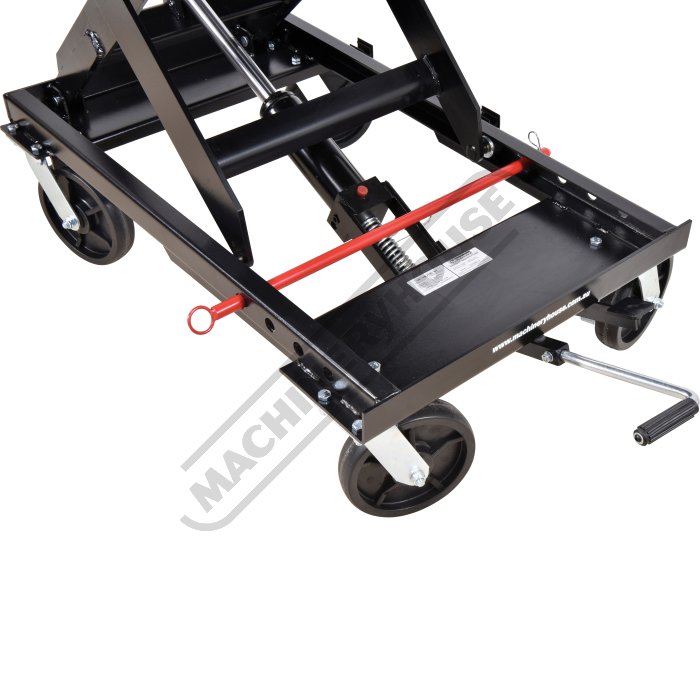

Safety Locking Pin 4 of 18

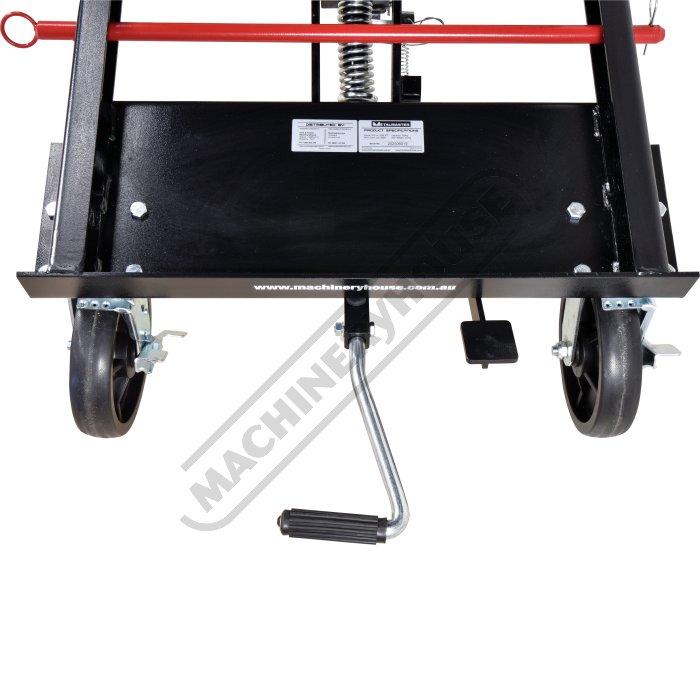

Hydraulic Foot Controls 5 of 18

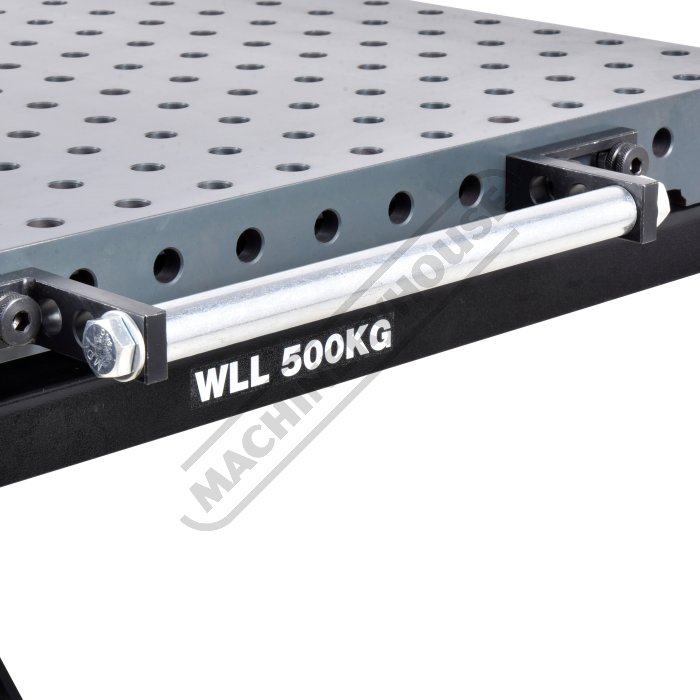

Removable Handle 6 of 18

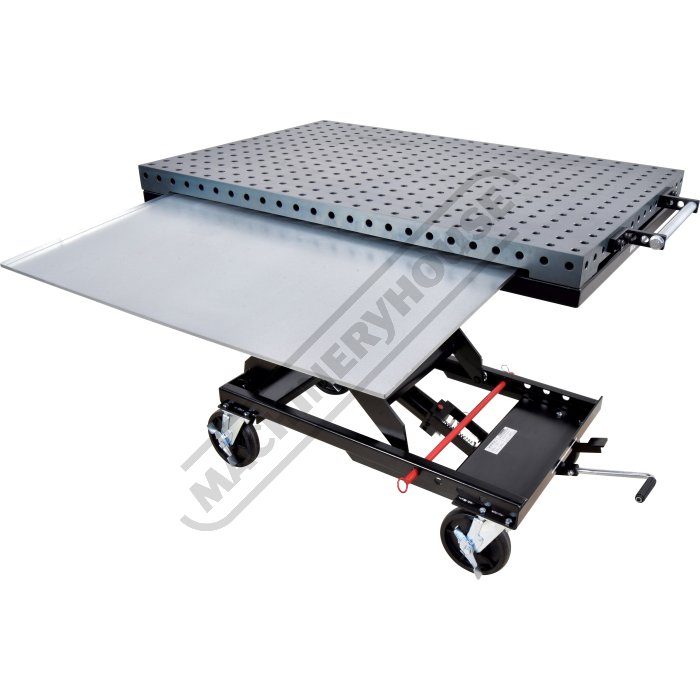

Slide Out Tray 7 of 18

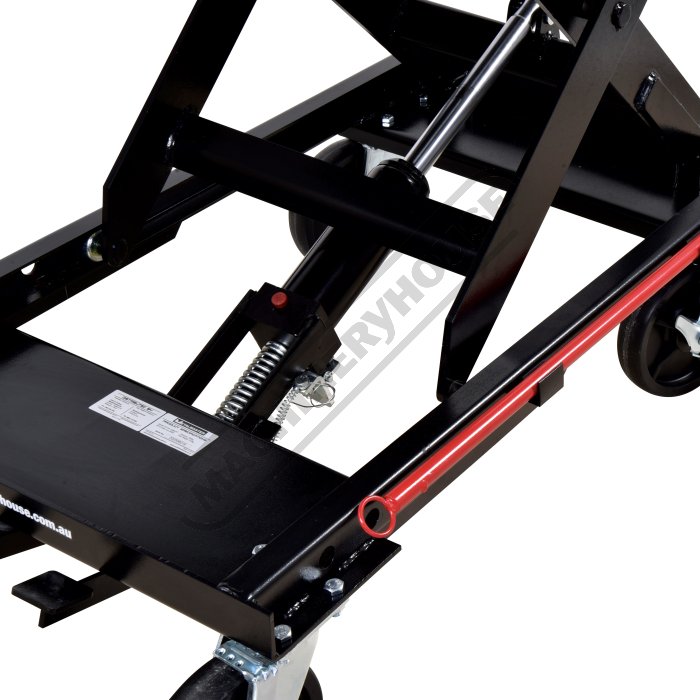

Safety Lock Pin Holder 8 of 18

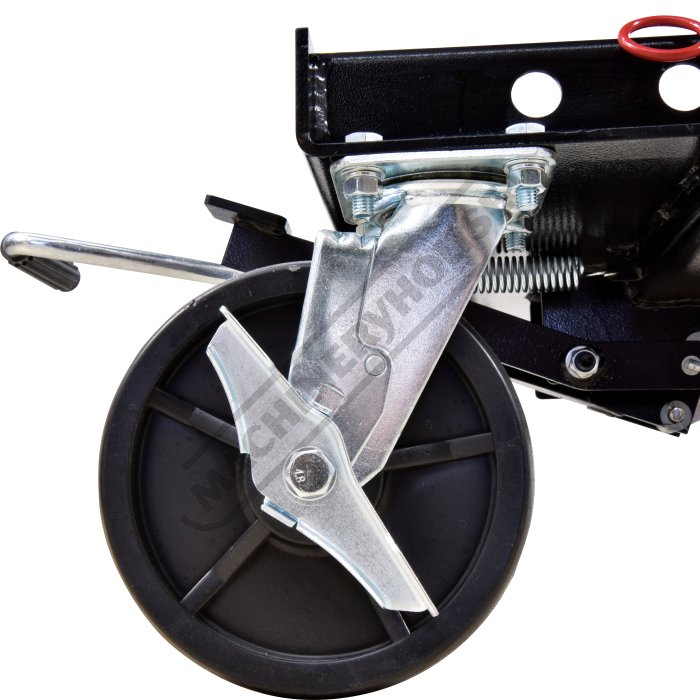

Lockable Caster Wheels 9 of 18

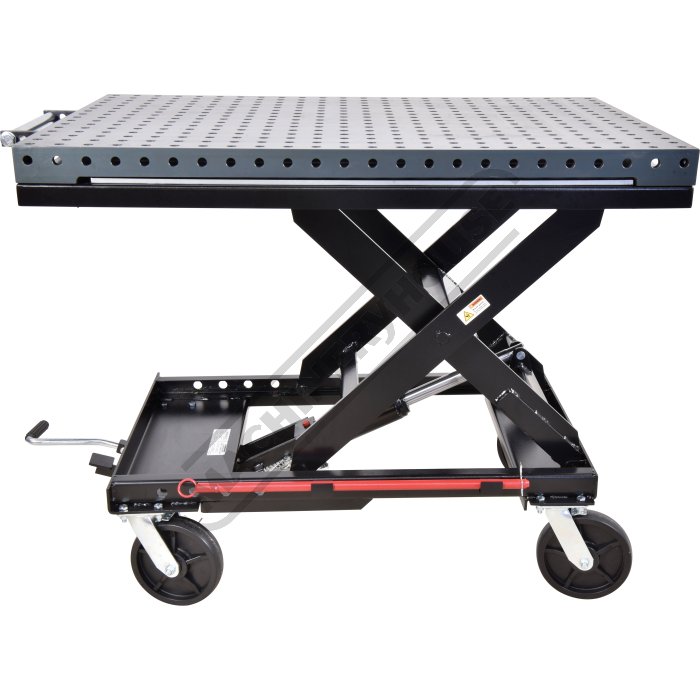

Side View 10 of 18

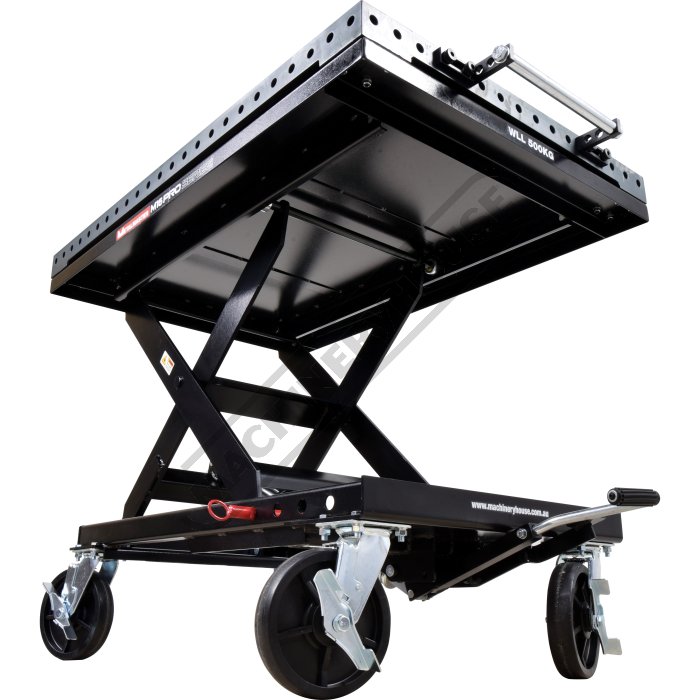

Low View 11 of 18

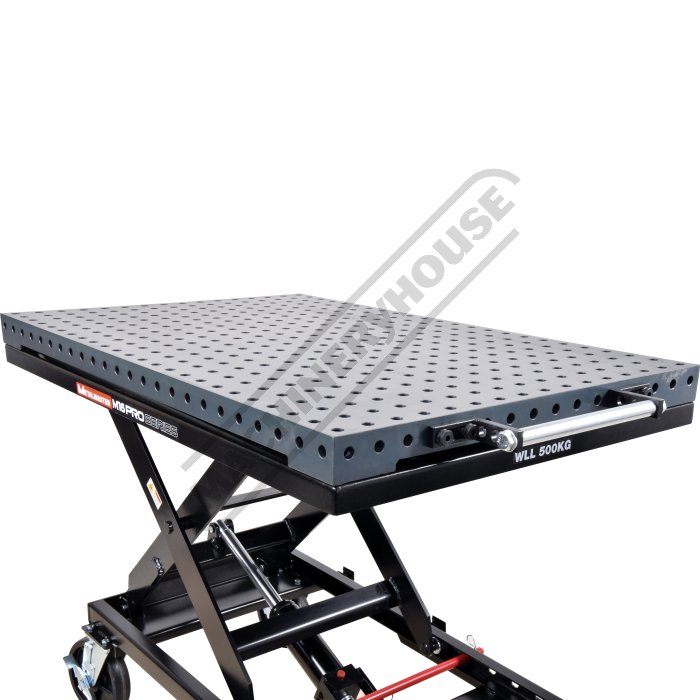

800 x 1200mm 3D Welding Tabletop 12 of 18

50 x 50mm Hole Centre Pattern 13 of 18

Plasma Nitride table surface treatment 14 of 18

Ø16mm Diameter Holes 15 of 18

12mm Table Thickness 16 of 18

65mm High Ends with 50mm High Sides 17 of 18

Strengthened by Welded Webbing 18 of 18

METALMASTER

On Sale - Back In Stock Soon

Order Code: W07807

ex-gst

inc-gst

^$ 3,282.00

^$ 3,774.30

^$ 3,000.00

^$ 3,450.00

1 Year Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

800 x 1200mm M16 Pro Series LIFT Welding Table - WT16-1208LIFT

500kg Total W.L.L.

Ø16mm Holes

Overview

The WT16-1208T Metalmaster M16 Pro Series LIFT Welding Table is the ultimate mobile welding solution, built for strength, precision and versatility.

With a foot-operated lever for smooth height adjustment, it offers an adjustable height range of 440mm to 960mm, providing optimal ergonomics and comfort for any welding task. With its Ø150mm swivel caster & 500kg load capacity ensures it can handle a wide range of jobs, from small-scale projects to heavy-duty industrial work.

The 800 x 1200mm table top is constructed from a welded S355 steel frame, CNC-machined for precise flatness. Featuring Ø16mm holes with a 50 x 50mm hole pattern, it offers versatile clamping options for fixtures. Solid steel ribs and 50mm high sides enhance rigidity, while the plasma nitriding coating provides resistance to spatter, wear, and rust.

Features

Adjustable in height via a foot-operated lever from 440~960mm for ergonomic use
800 x 1200mm 3D Welding Tabletop with Ø16mm precision bored fixing holes
50 x 50mm hole grid pattern offering a multitude of clamping options
Plasma nitriding surface finish for increased hardness, rust & spatter resistance
Tabletop is manufactured from heavy S355 plate steel
CNC machined to ensure flatness
Total WLL = 500kg weight capacity
Removeable push handle for easy maneuvering
Ø150mm swivel casters with 2 brake wheels for secure positioning
Safety locking pin with 4 positions
Includes galvanized steel dust tray

Specifications

Compare Product Range

Specifications

ORDER CODE	W07807
MODEL	WT16-1208LIFT
(Type)Table Top Finish	Plasma Nitriding Coating
(mm)Table Top Size	800 x 1200
(mm)Table Height	440~960
(mm)Table Side Height	50 / 65
(mm)Top Plate Thickness	12
(mm)Grid Pattern	50 x 50
(Ø)Table Hole Diameter	16
(kg)Total W.L.L.	500
(kg)Nett Weight	262.60
