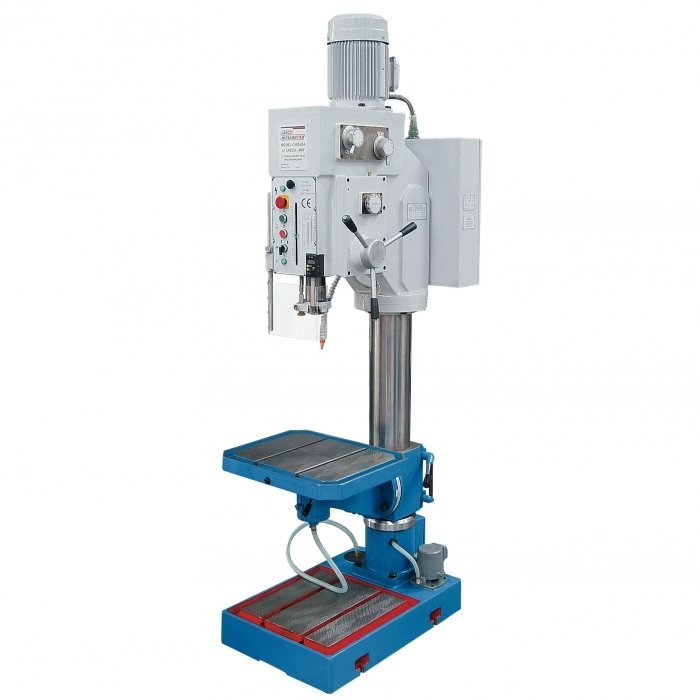

Industrial 4MT Geared Head Drilling Machine - GHD-45A
Ø40mm Drilling Capacity
Includes Automatic Feed & Tapping
D137
1 of 16

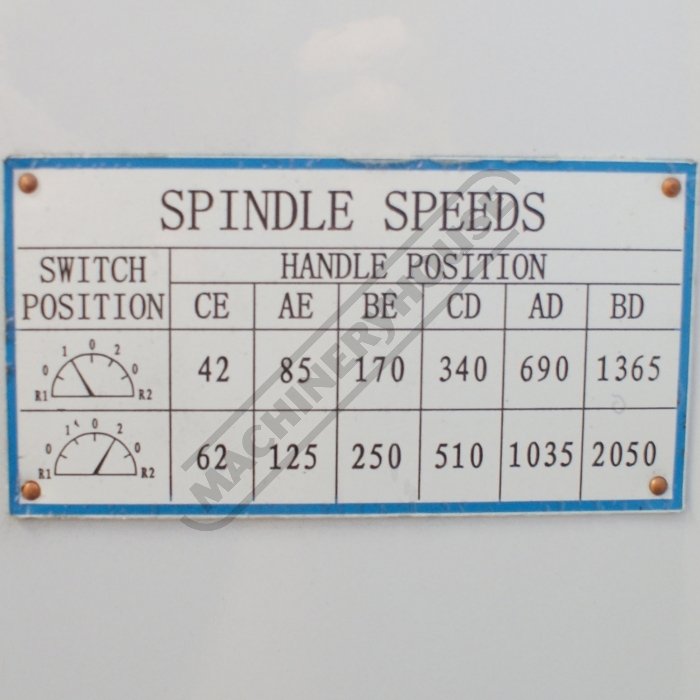

12 Drilling Speeds From 42 2050rpm
2 of 16

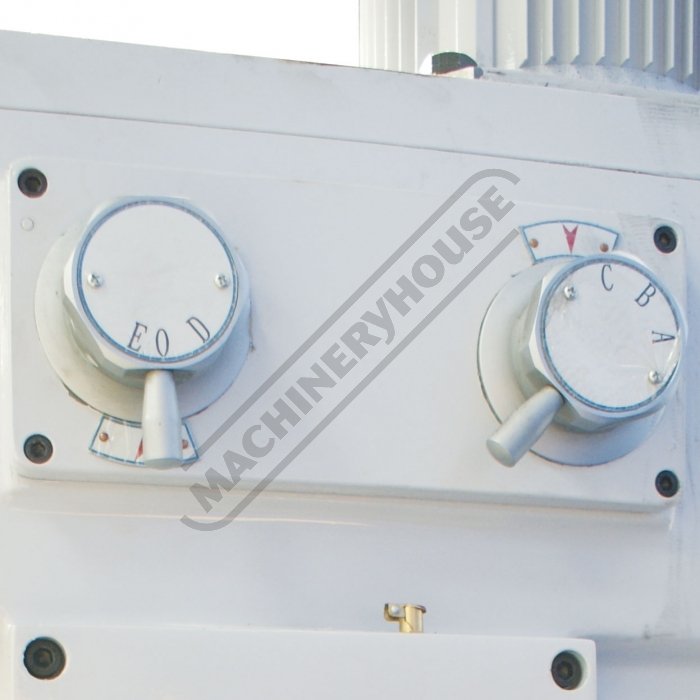

Gear Selection Levers
3 of 16

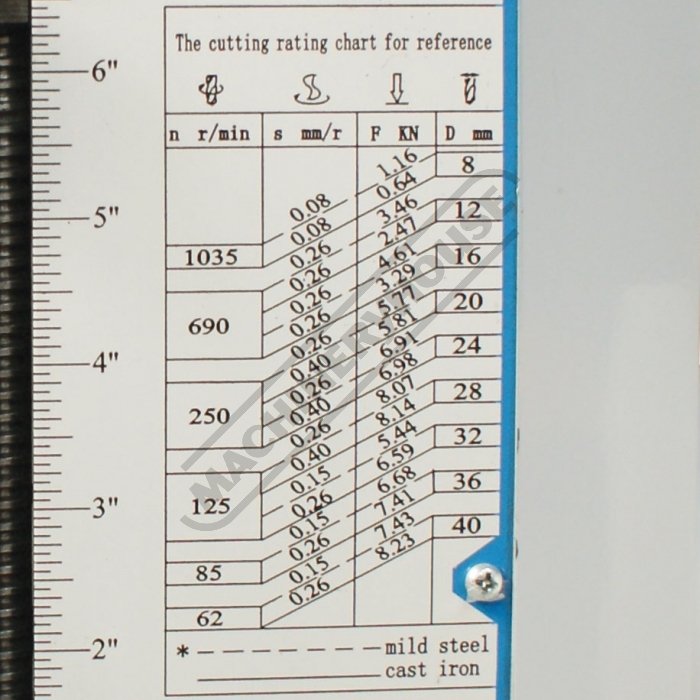

Cutting Chart
4 of 16

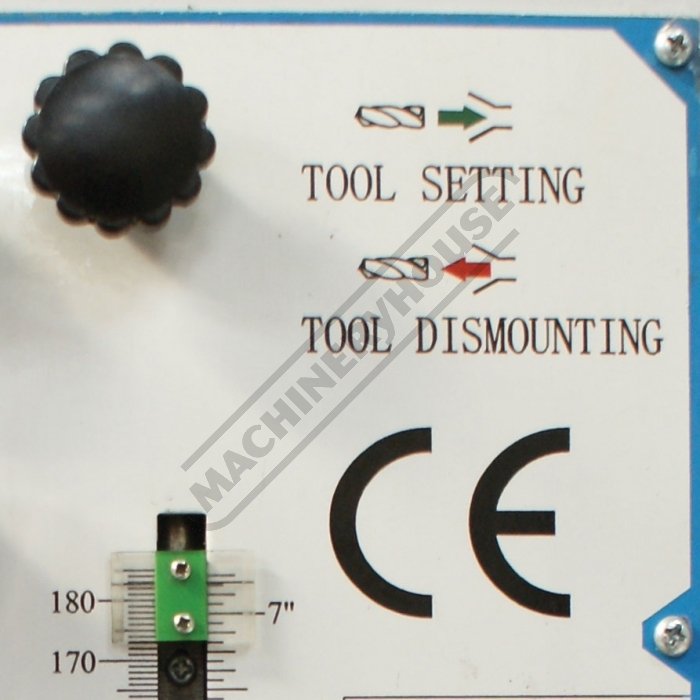

Drill Ejector
5 of 16

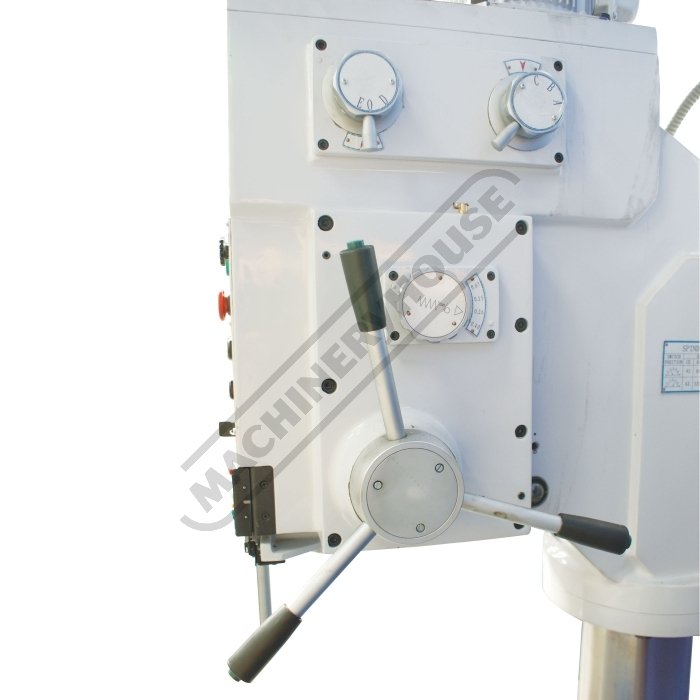

Head Controls
6 of 16

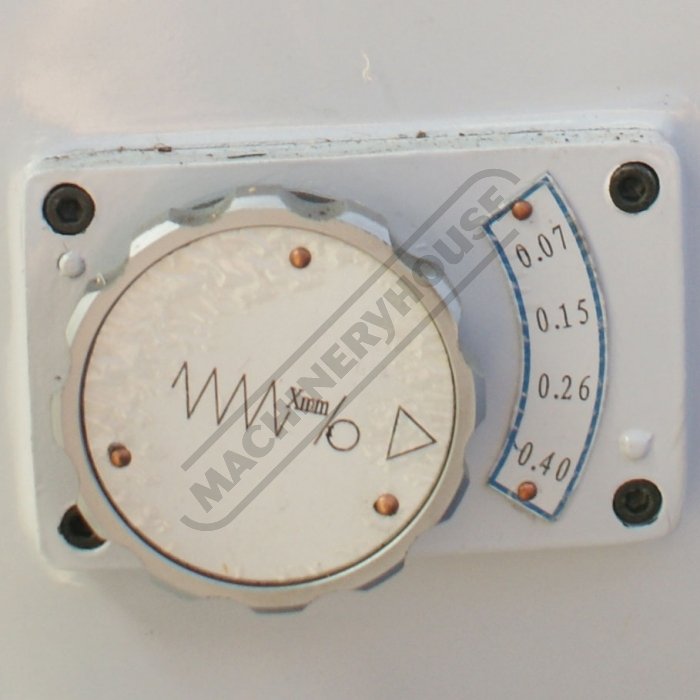

Automatic Feed Range
7 of 16

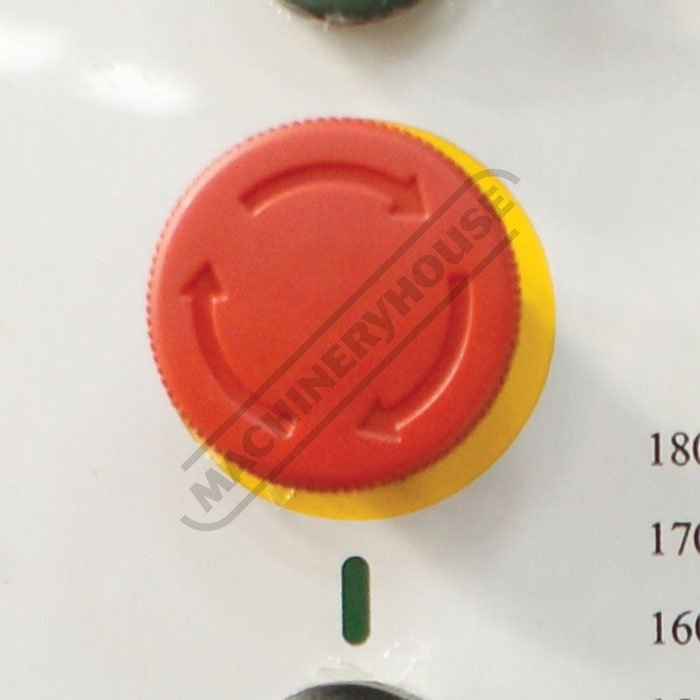

Emergency stop Switch and Overload Protection
8 of 16

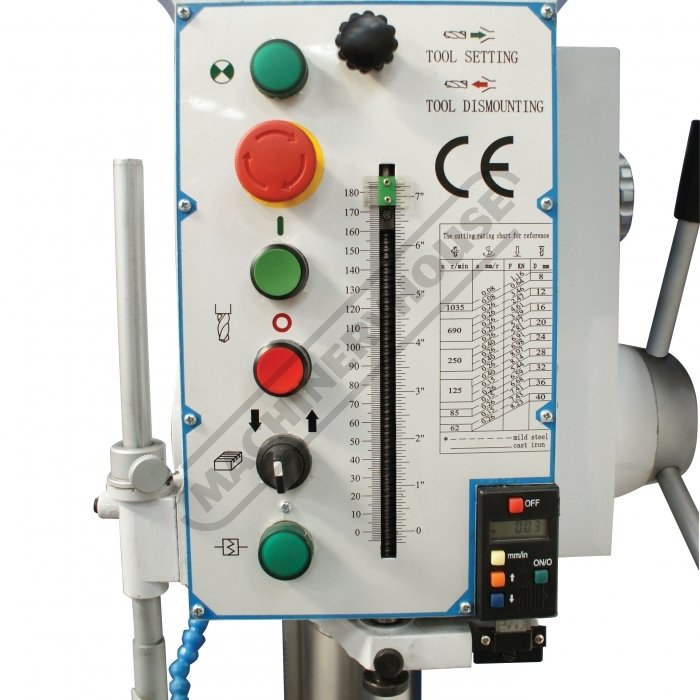

Front Controls
9 of 16

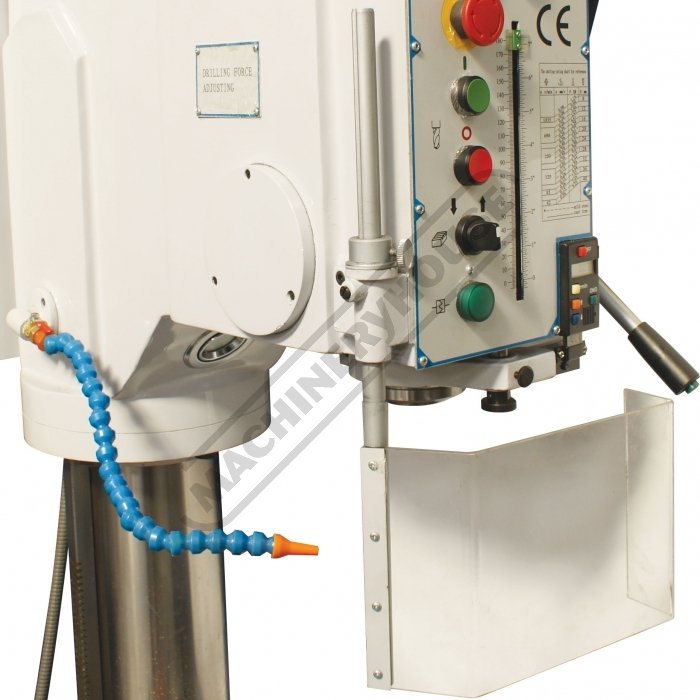

Chuck Guard with Micro Switch and Coolant Nozzle
10 of 16

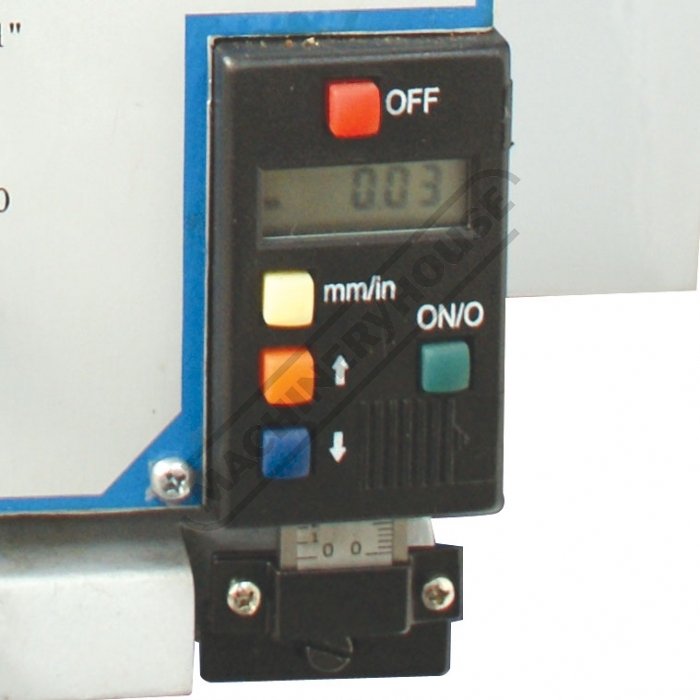

Digital Depth Gauge
11 of 16

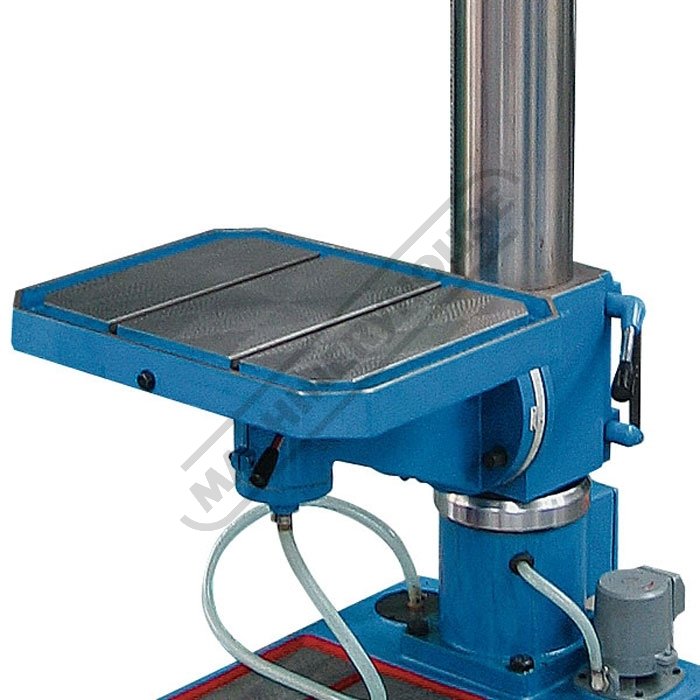

T Slotted Work Table
12 of 16

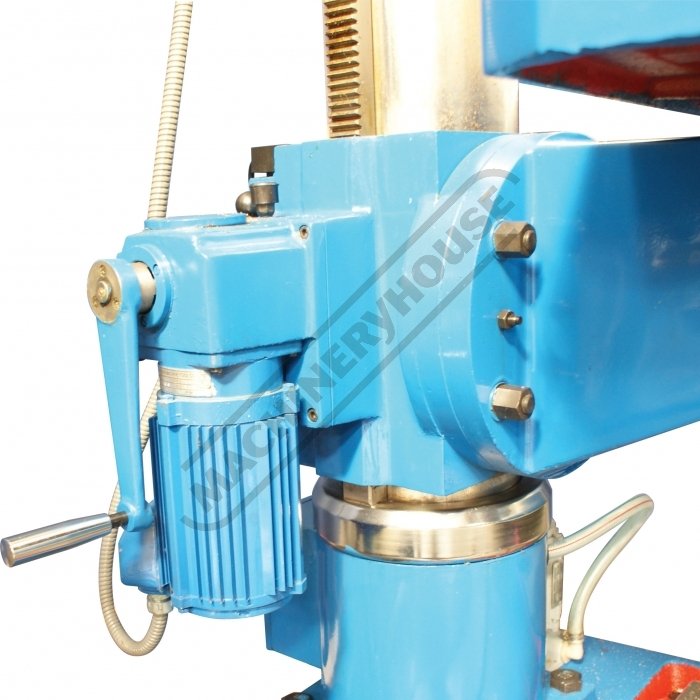

Motorised Rise and Fall Work Table
13 of 16

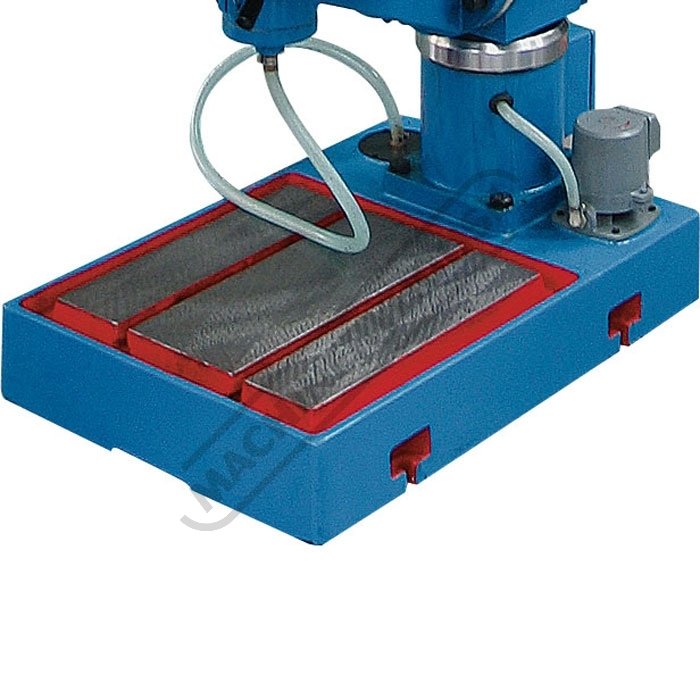

T Slotted Base
14 of 16

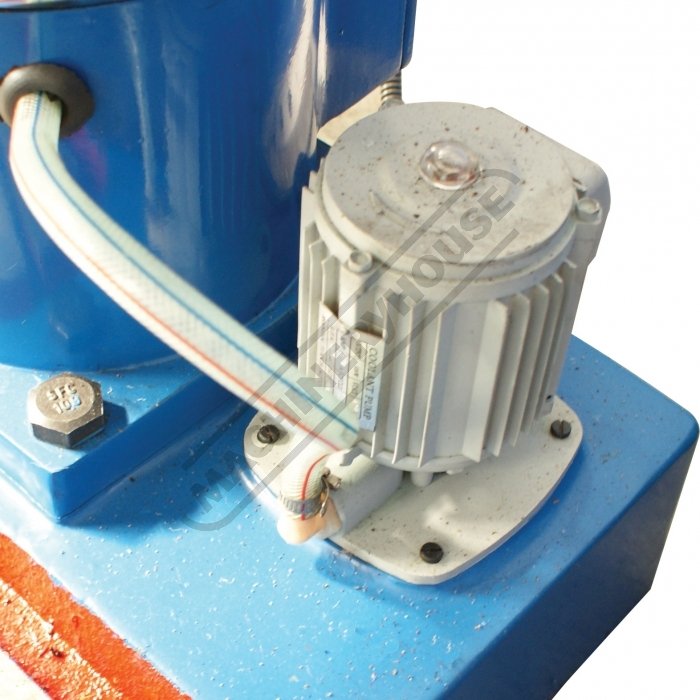

Coolant Pump System
15 of 16

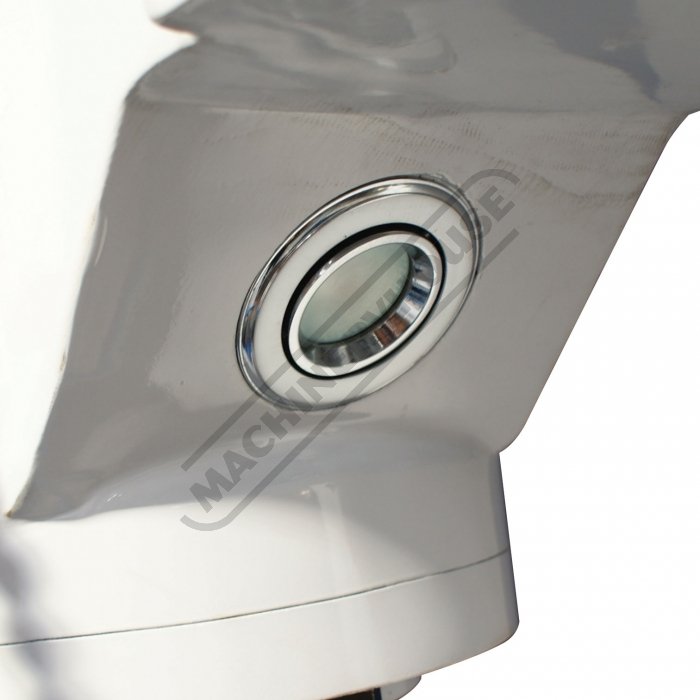

Work Light
16 of 16
Discontinued
Order Code: D137
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Industrial 4MT Geared Head Drilling Machine - GHD-45A
Ø40mm Drilling Capacity
Includes Automatic Feed & Tapping
Features
- Ideal for industrial workshop use
- Geared head drilling machine with 4 morse taper spindle
- Automatic feed range (0.07, 0.15, 0.26, 0.40mm/rev)
- Thread tapping with auto reverse
- 12 drilling speeds from 42-2050rpm
- Digital readout depth gauge mounted on front panel (Includes LR44 battery)
- Chuck guard with micro-switch
- Drill ejector incorporated in machine
- Coolant pump system with flexible hose
- Work light mounted in convenient location
- 40mm drill capacity with 180mm of spindle travel
- Oil sight glass for geared head and feed gearbox
- Modern electrics to European CE standards
- Forward and reverse spindle switch with high and low speeds
- Emergency stop switch and overload protection
- Substantial heavy walled column ensuring greater rigidity
- Adjustable accurate depth setting with auto feed cut out for increased productivity
- T slotted work table and base
- Square work table tilts to ±45º and rotates 360º
- Motorised rise & fall work table
- 42rpm low speed for heavy drilling
Includes
- Coolant pump system
- Auto feed
- Tapping function
- Safety chuck guard
- Work light
- Digital depth gauge
- Motorised work table positioning
Compare Product Range
Specifications
| ORDER CODE | D137 |
|---|---|
| MODEL | GHD-45A |
| (mm)Drilling Capacity | Ø40 |
| (Metric)Thread Tapping Capacity | M27 |
| (MT)Spindle Taper | 4 |
| (mm)Spindle Travel | 180 |
| (mm)Throat Depth | 360 |
| (mm)Quill Diameter | 70 |
| (mm)Column Diameter | 160 |
| (mm)Spindle To Table | 600 |
| (mm)Spindle To Base | 1200 |
| (Type)Table | Rectangle |
| (mm)Table Size | 450 x 578 |
| (mm)T-Slot Size | 14 |
| (mm/rev)Automatic Quill Feed | 0.07, 0.15, 0.26, 0.40 |
| (Includes)Work Light | Yes |
| (Includes)Coolant System | Yes |
| (No.)Spindle Speed Steps | 12 |
| (rpm)Spindle Speed Range | 42 ~ 2050 |
| (kW / hp)Motor Power | 2.8 / 3.75 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Full Height | 2330 |
| (kg)Nett Weight | 680 |
