Centre Lathe - AL-335F

300 x 910mm Turning Capacity

Includes Foot Brake, Coolant Pump System & Cabinet Stand

L681 1 of 34

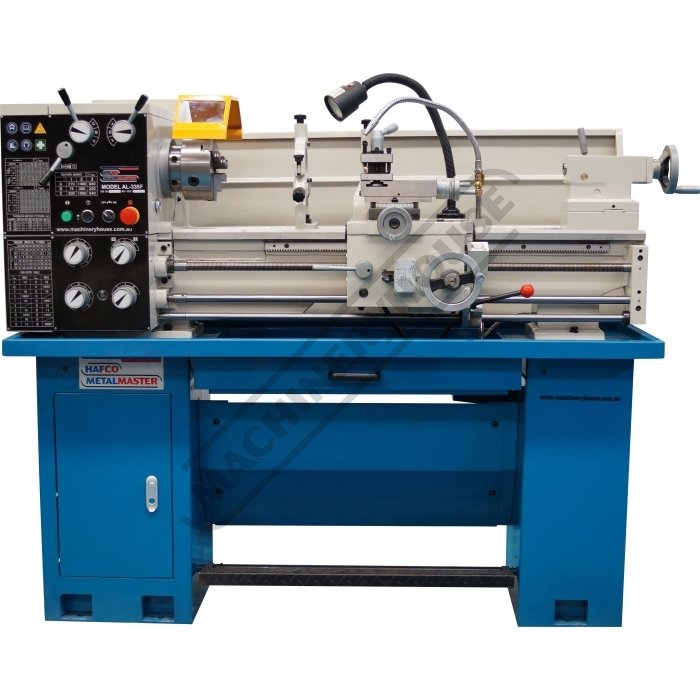

Front View 2 of 34

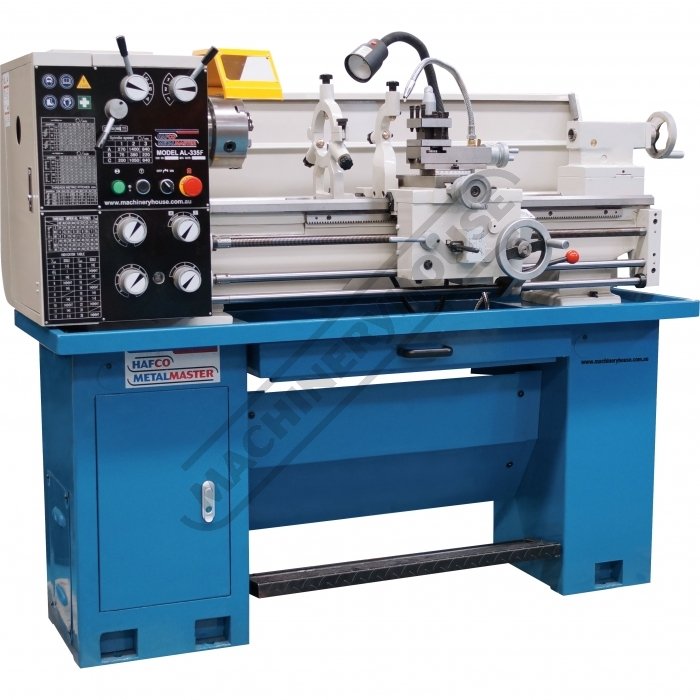

Left View 3 of 34

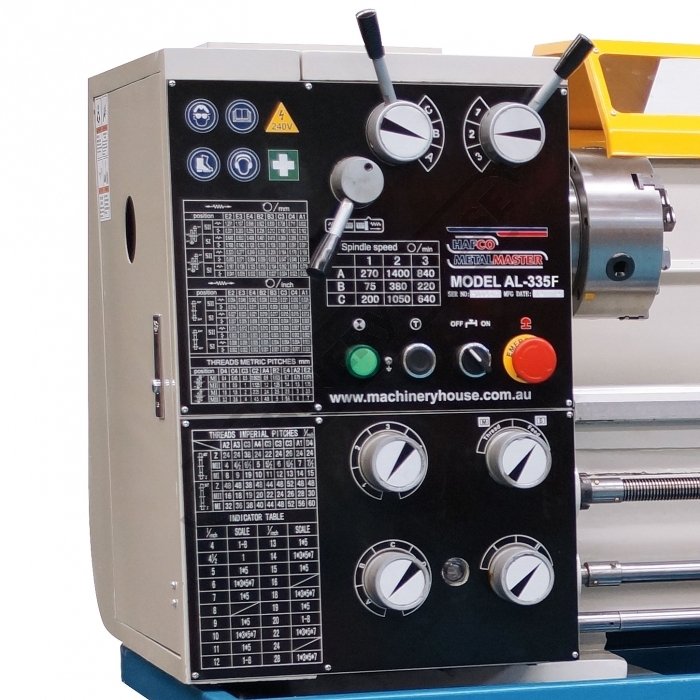

Headstock 4 of 34

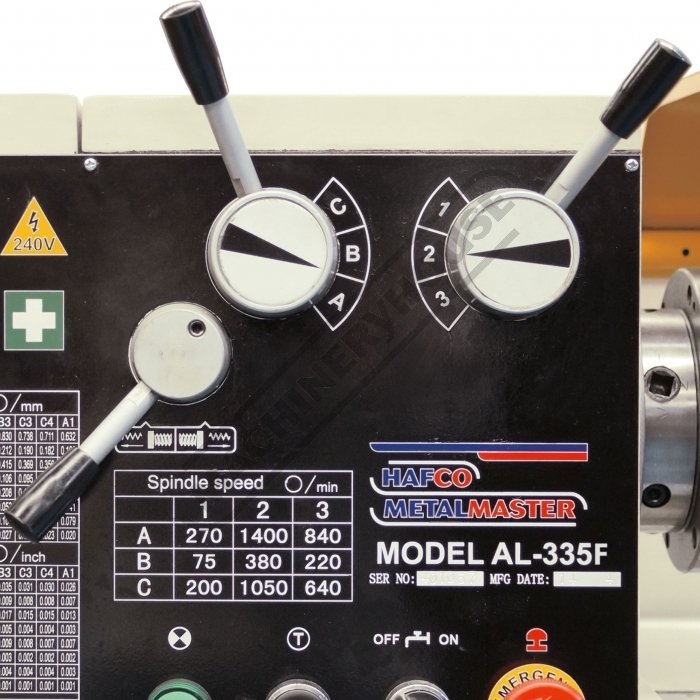

Spindle Speed Levers 5 of 34

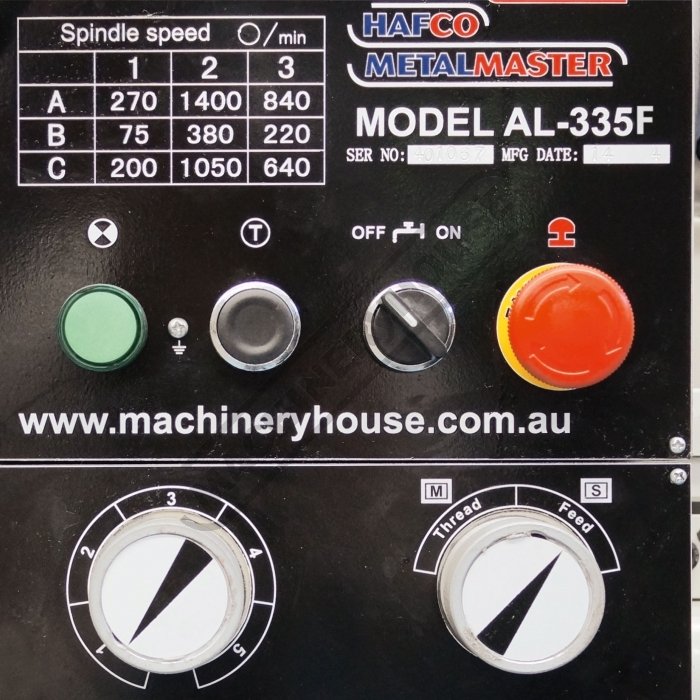

Control Panel Switches 6 of 34

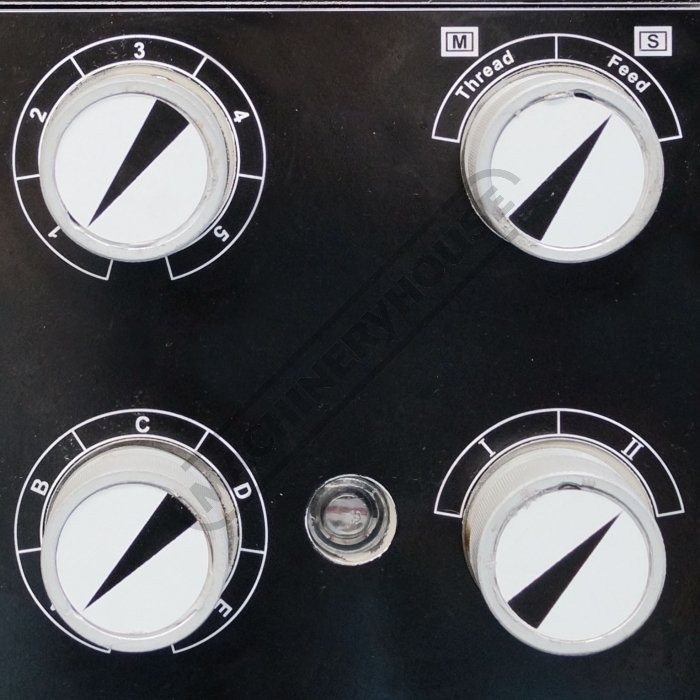

Feed and Thread Gearbox 7 of 34

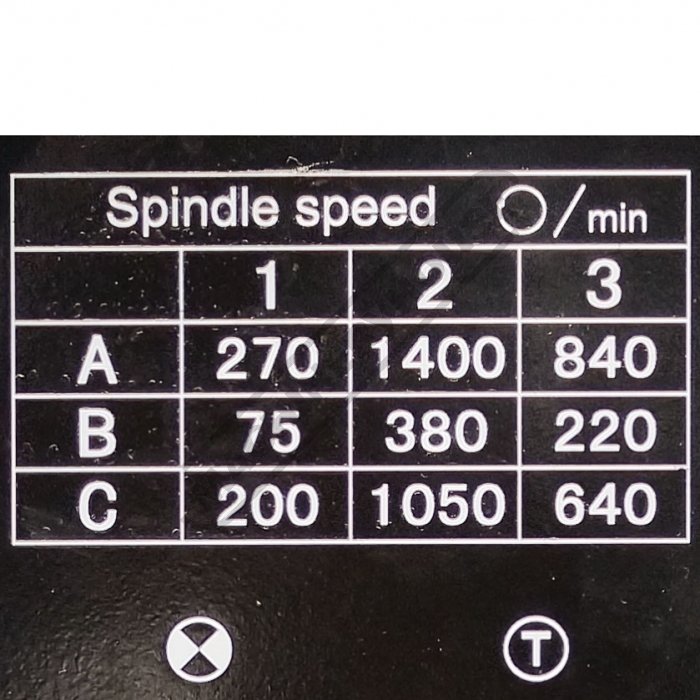

Spindle Speed Chart 8 of 34

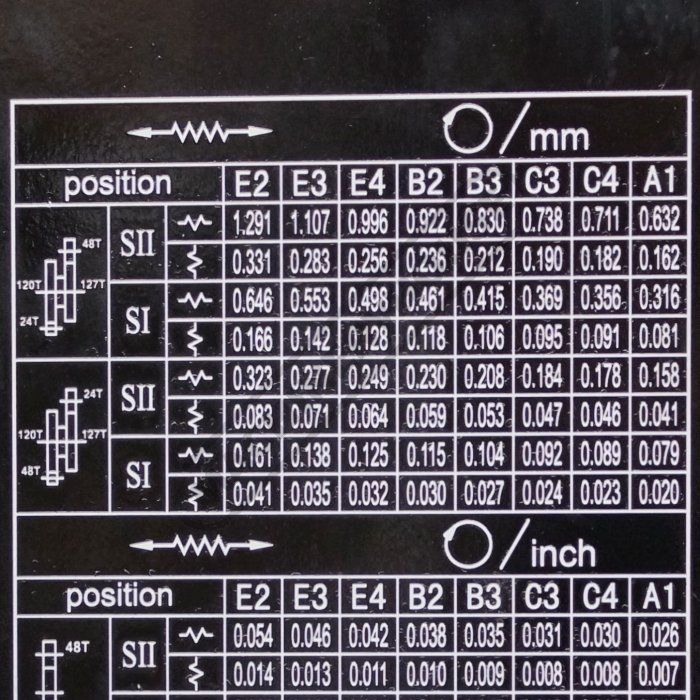

Metric Feed Chart 9 of 34

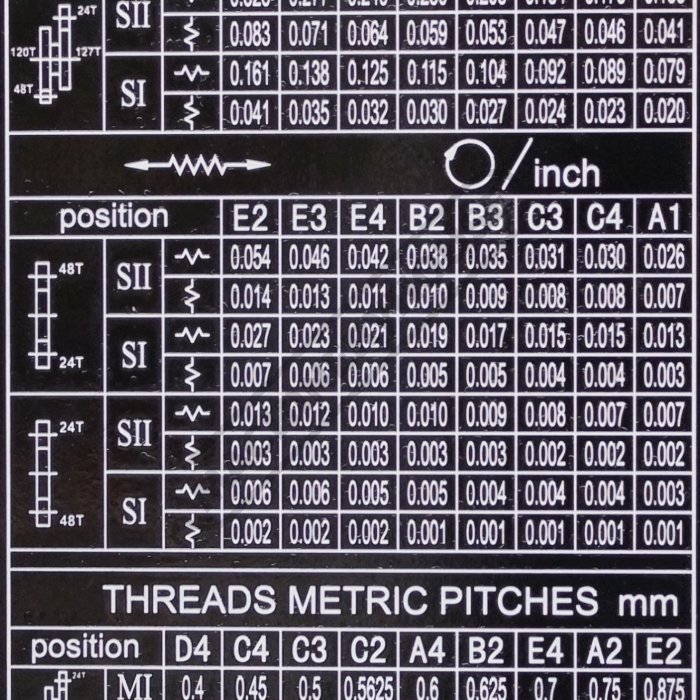

Imperial Feed Chart 10 of 34

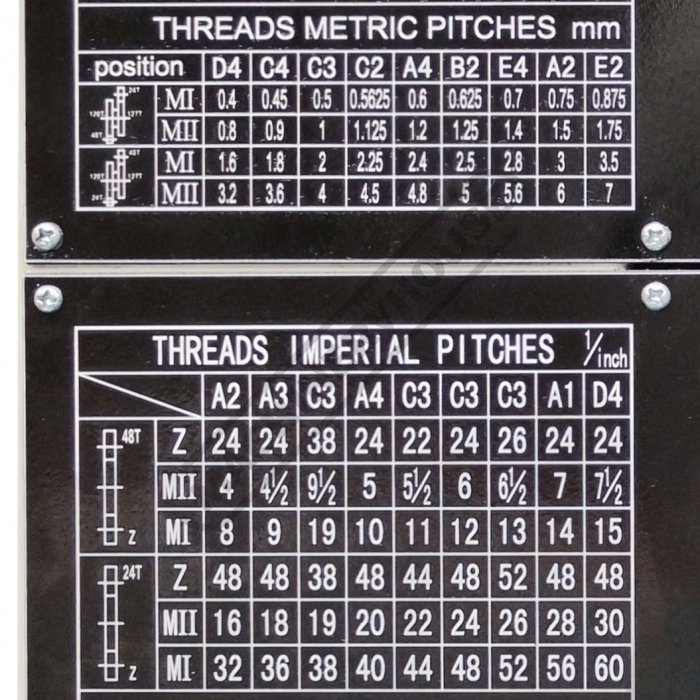

Metric and Imperial Thread Charts 11 of 34

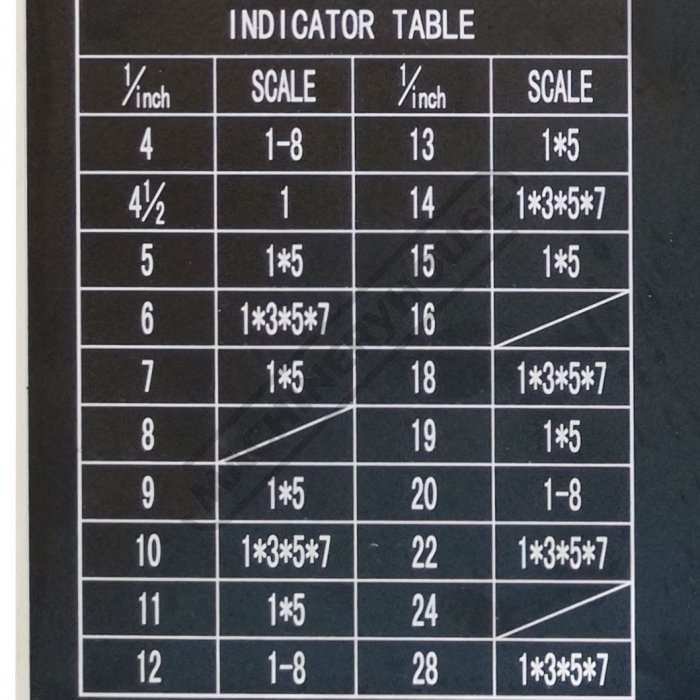

Indicator Table 12 of 34

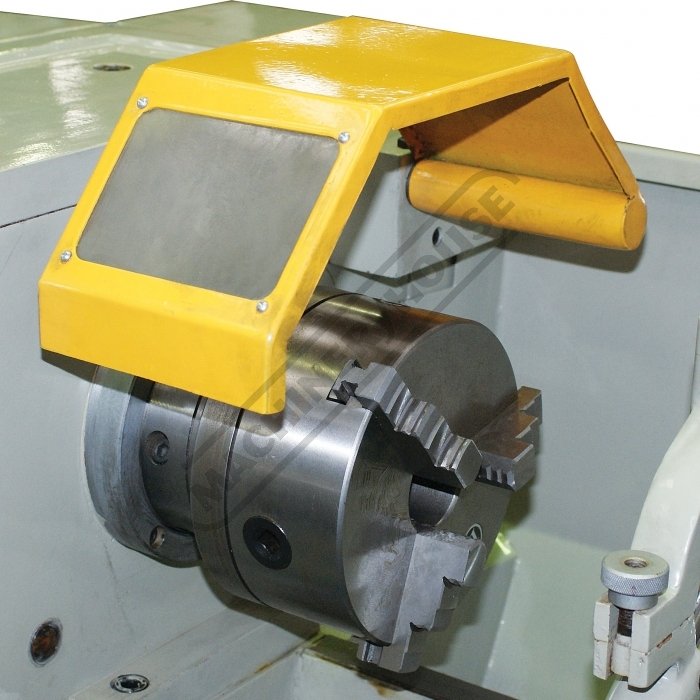

Chuck Guard 13 of 34

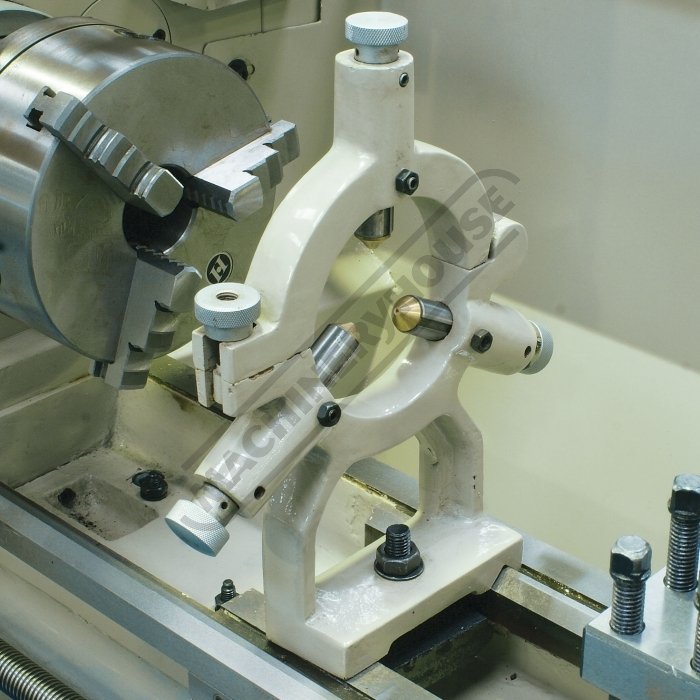

3 Point Steady 14 of 34

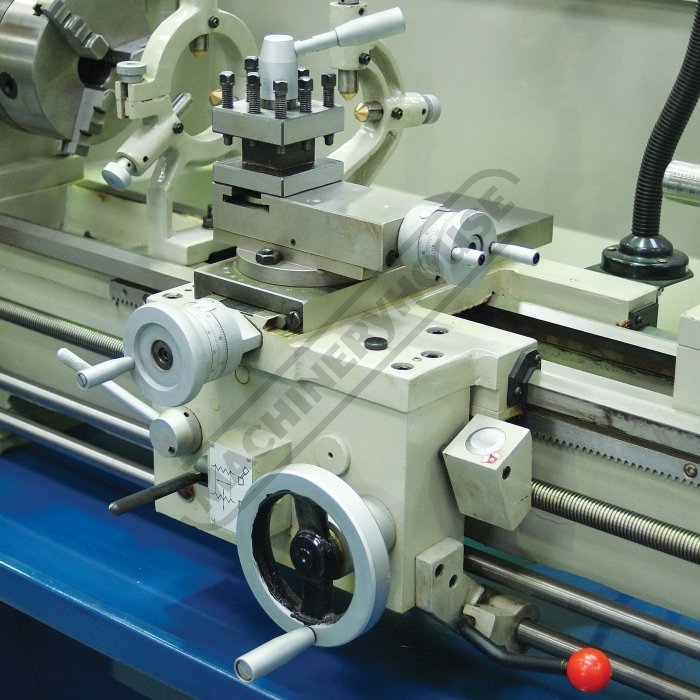

Saddle 15 of 34

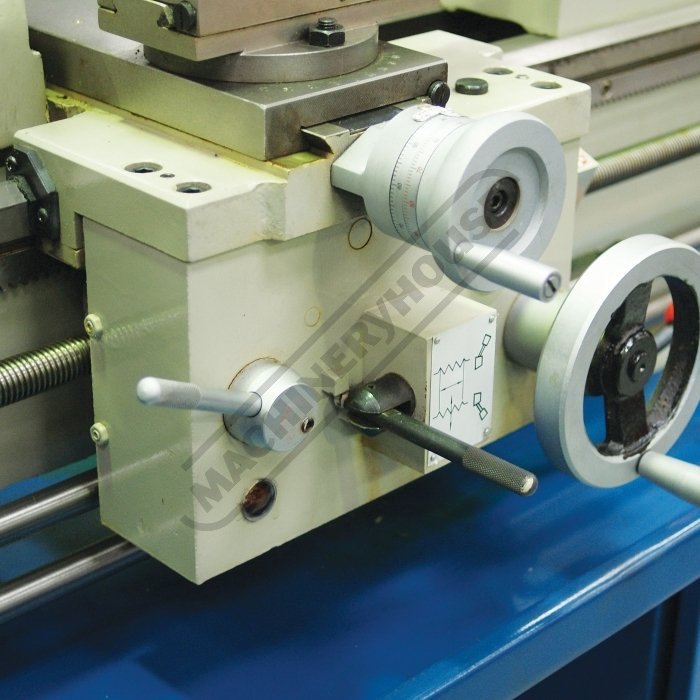

Saddle Left View 16 of 34

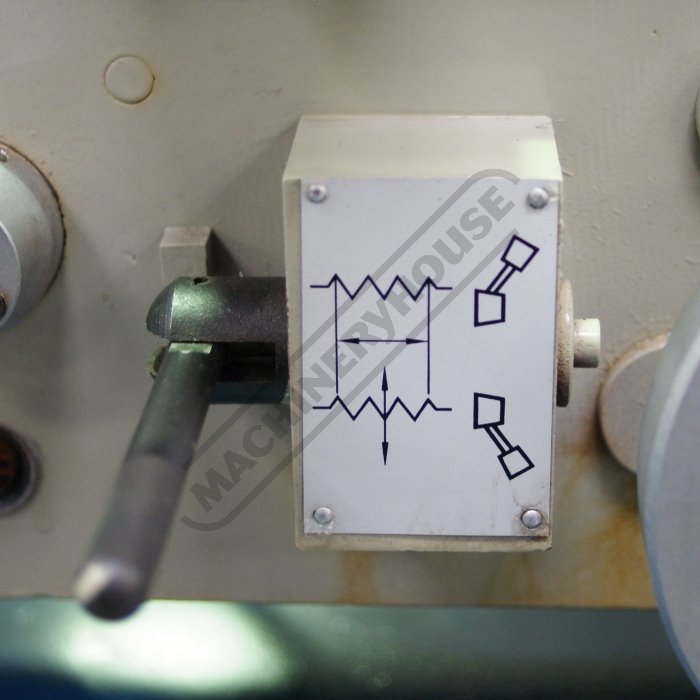

Feed Engagement Lever 17 of 34

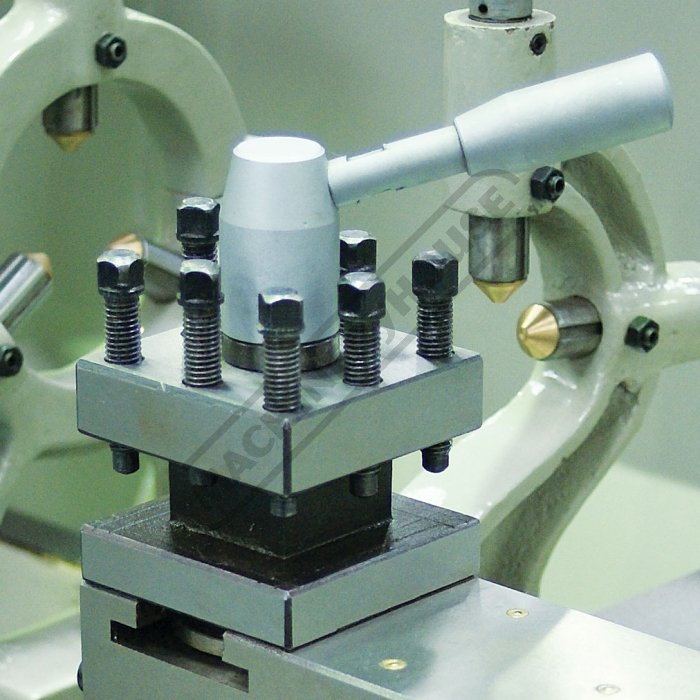

Toolpost 18 of 34

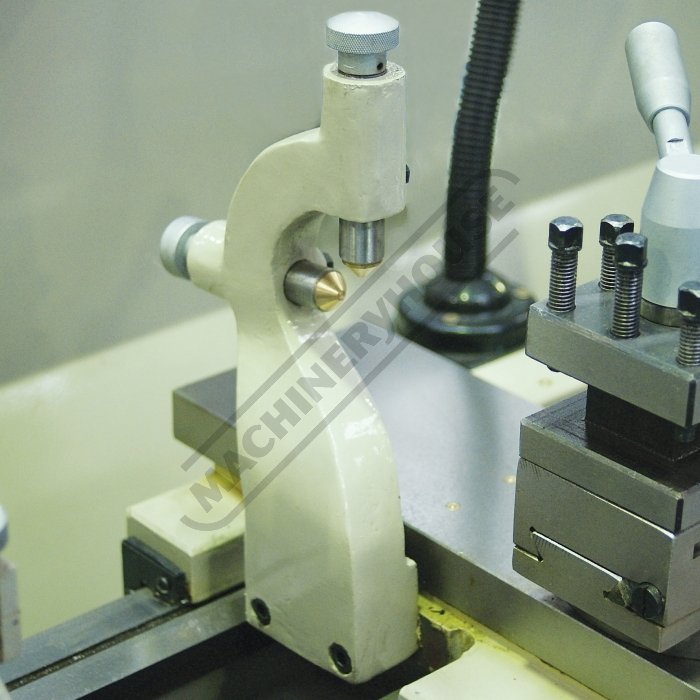

2 Point Steady 19 of 34

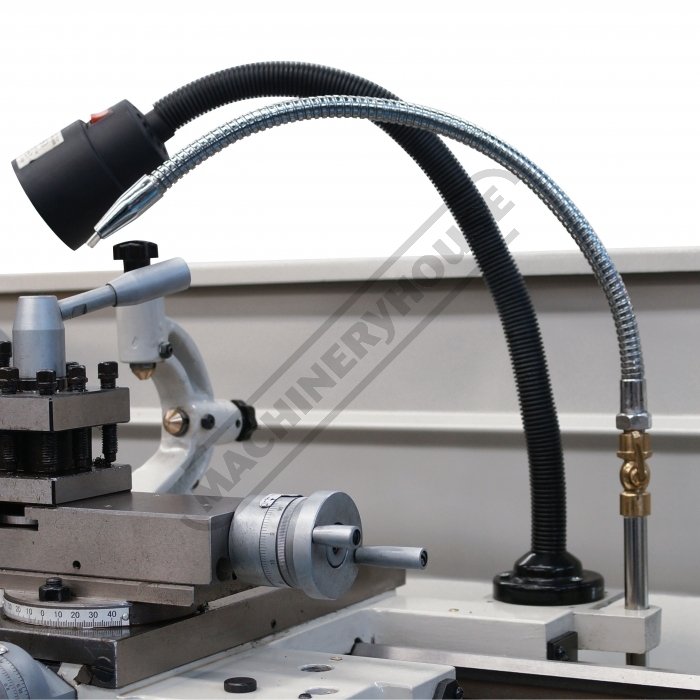

Halogen Light and Coolant System 20 of 34

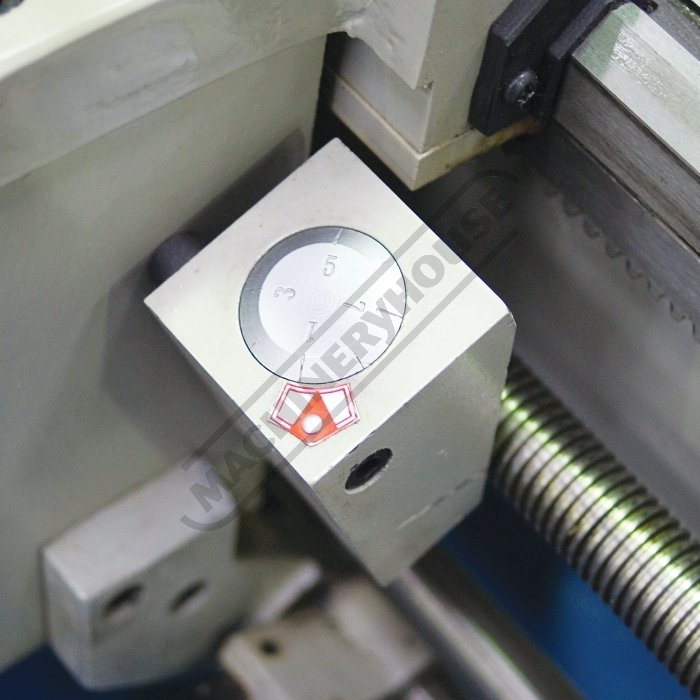

Thread Chasing Dial 21 of 34

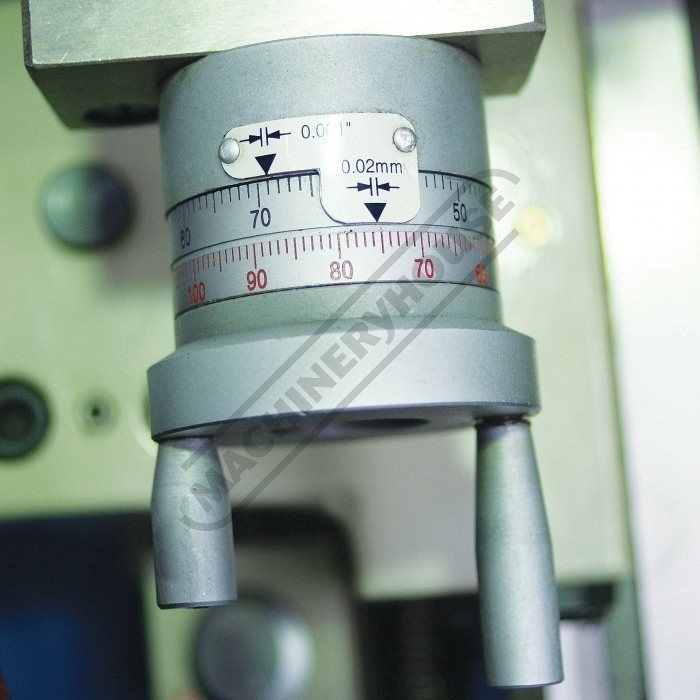

Compound Slide Hand Wheel 22 of 34

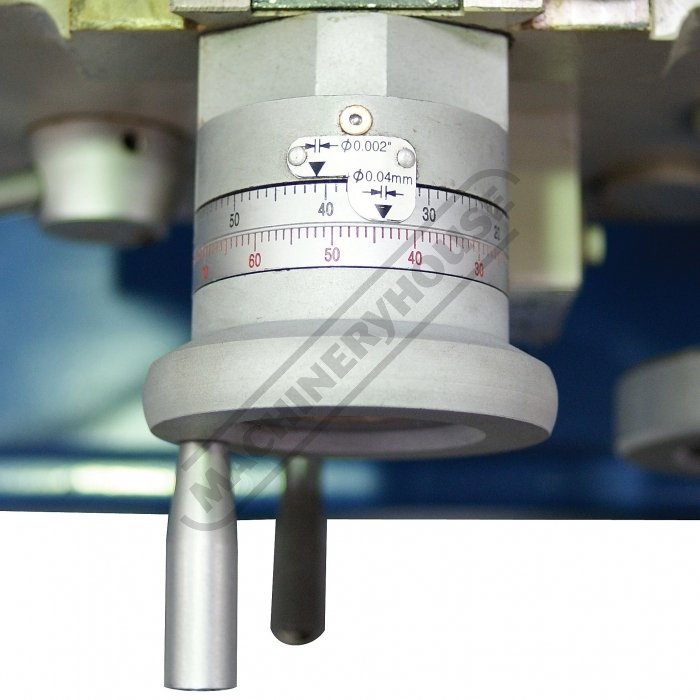

Cross Feed Handle 23 of 34

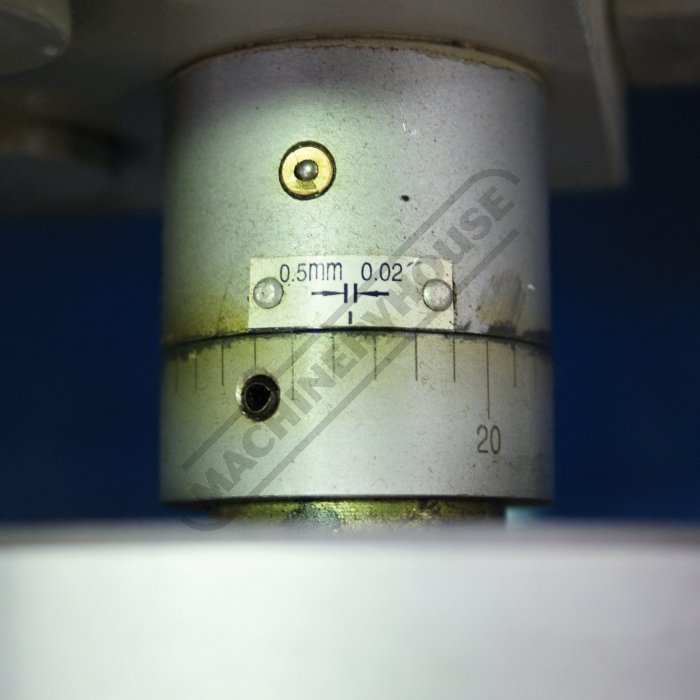

Saddle Hand Wheel 24 of 34

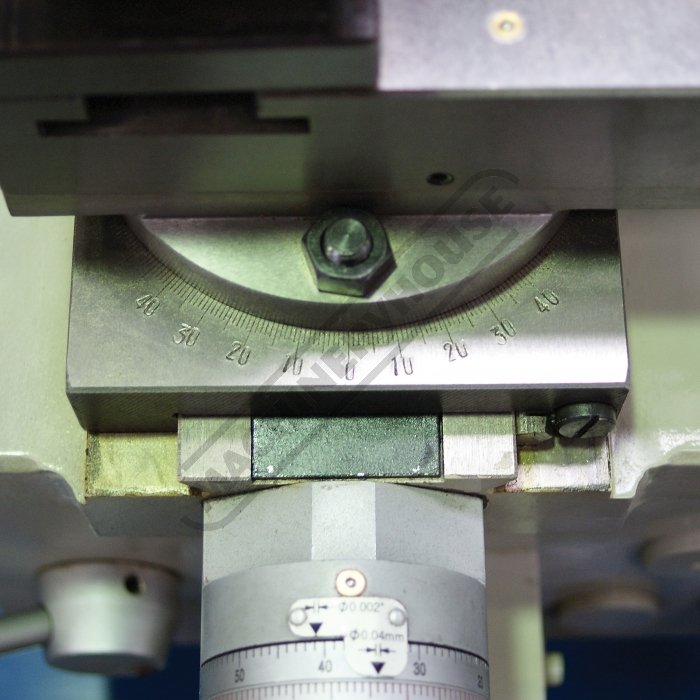

Compound Slide 25 of 34

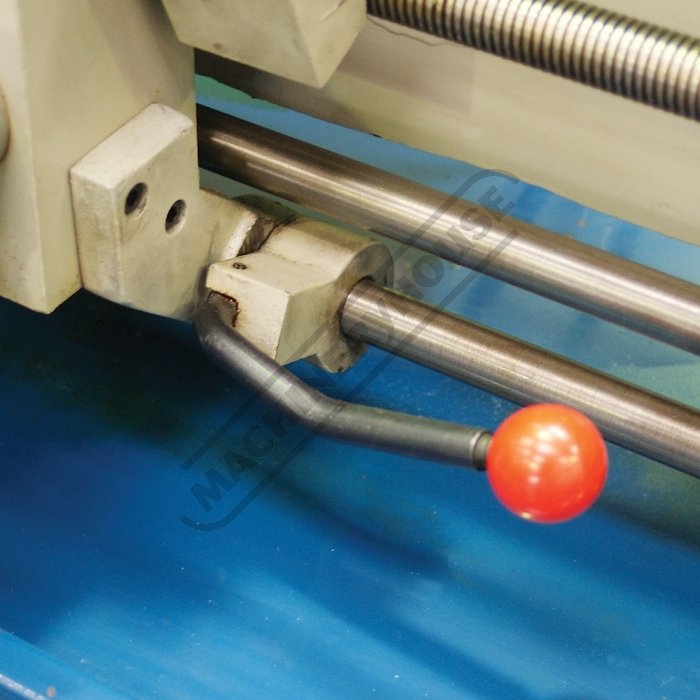

Forward Reverse Spindle Lever 26 of 34

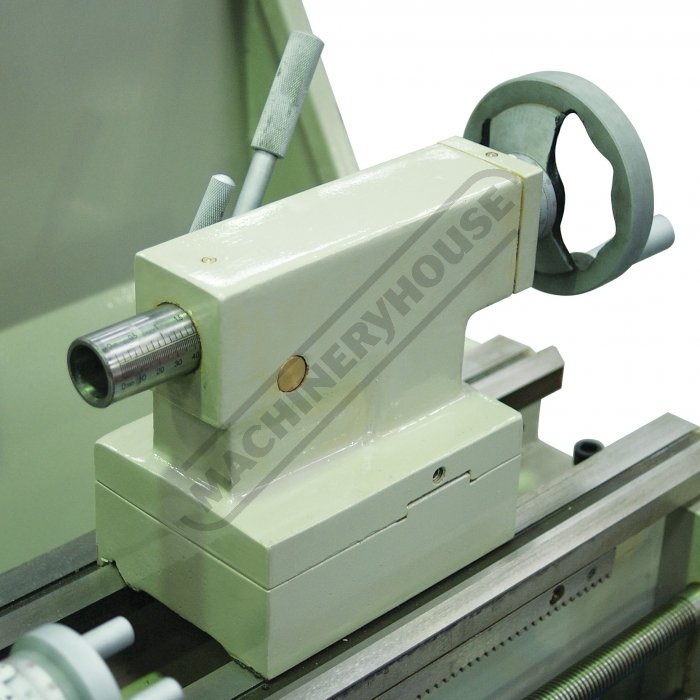

Tailstock 27 of 34

Tailstock Quill 28 of 34

Tailstock Handle 29 of 34

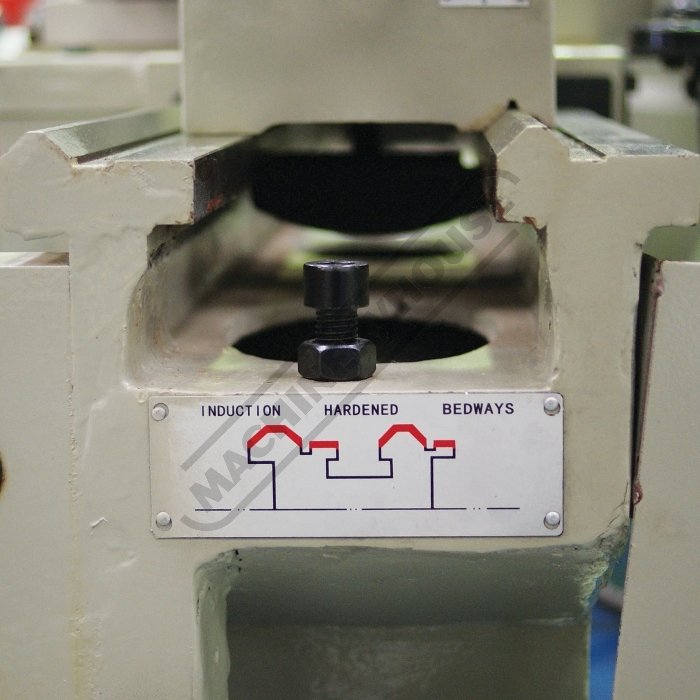

Induction Hardened Bedways 30 of 34

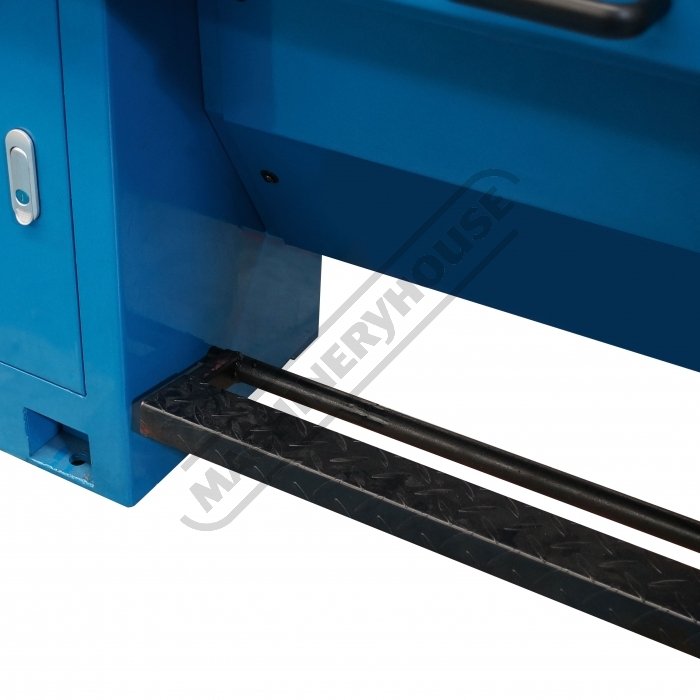

Safety Footbrake 31 of 34

Slide Out Swarf Tray 32 of 34

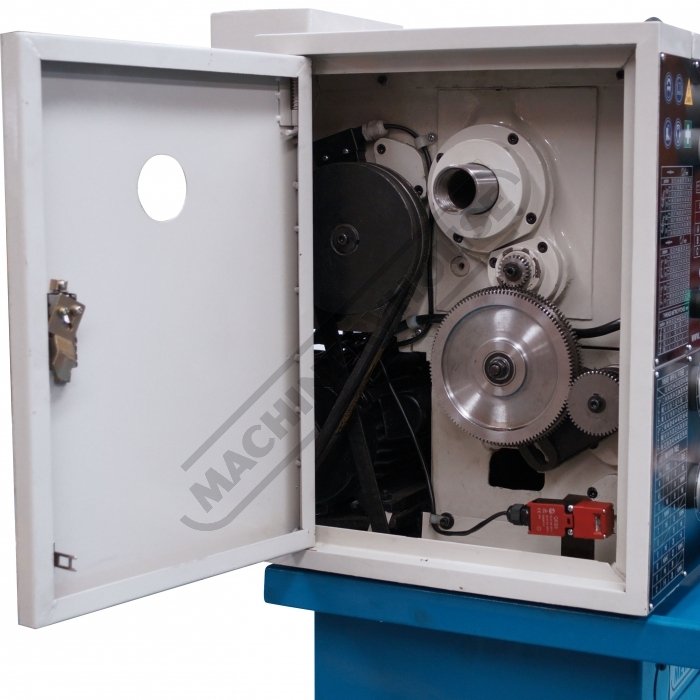

Side Access Door to Change Gears 33 of 34

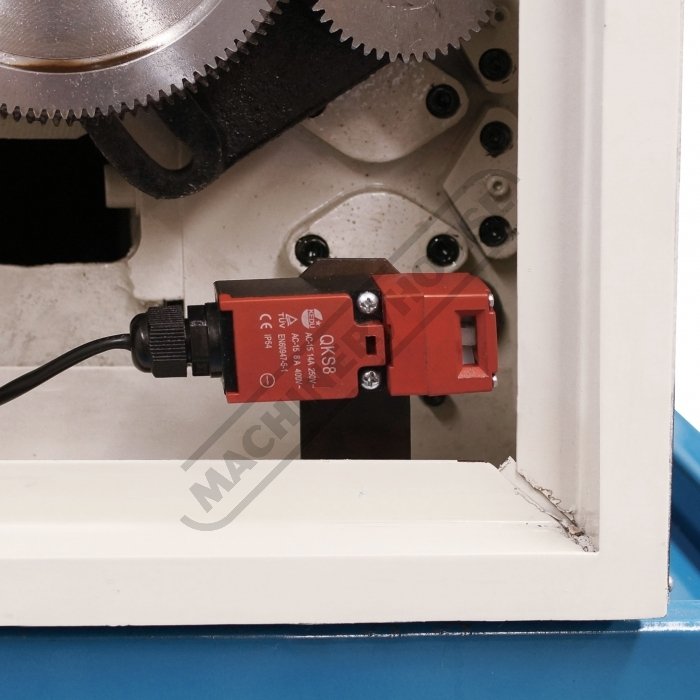

Safety Micro Switch on Side Access Door 34 of 34

HAFCO-METALMASTER

Discontinued

Order Code: L681

240V / 10A
1 Year Warranty

Product is no longer available
Click here to view a similar item: L682 View a similar item: L682

Compare

Wishlist

Description Specifications Compare Accessories Related Downloads Spare Parts

Description

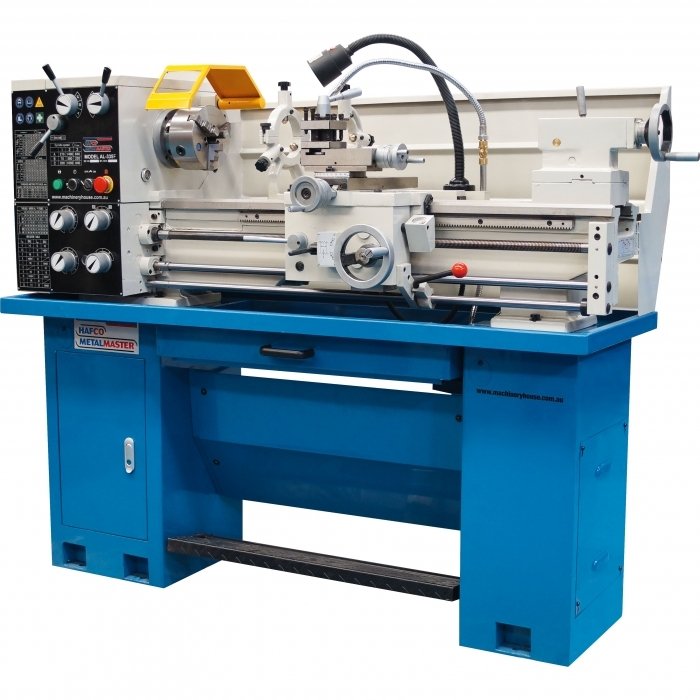

Centre Lathe - AL-335F

300 x 910mm Turning Capacity

Includes Foot Brake, Coolant Pump System & Cabinet Stand

Overview

This new & improved AL-335F quality metal turning lathe and now includes a coolant system & foot brake for the serious enthusiastic home model engineer, general maintenance and small workshops. Featuring a precision ground, induction hardened bed, fully gear driven spindle with hardened and ground gears with a speed range of 75 - 1400rpm, selectable via the front of headstock mounted gear selection levers.

2hp single phase 240 volt motor is supplied on machine, taper roller spindle bearings, range of cross and longitudinal feed speeds selected on a separate gearbox, thread chasing dial, chuck guard with safety interlock, splash guard and work lamp.

Supplied with a large range of standard accessories including a 150mm(6") 3 jaw self centring chuck, 200mm(8") 4 jaw independent chuck, face plate and dead centres. 5 to 3 MT reduction sleeve, steady rest, follow rest, standard tool post, floor stand with a swarf tray. Change gears and toolbox with maintenance tools.

Features

Gear driven headstock for quick change of spindle speeds
Foot operated spindle brake with safety cut out switch
Slide out front swarf tray for easy cleaning
Coolant pump system with flexible hose & nozzle
Precision V-beds are induction hardened and ground, incorporated with rigid webbed castings
Low voltage halogen work light
Change gears for metric and imperial thread cutting
Adjustable taper roller bearings support the spindle
9 spindle speeds from 75 to 1400rpm
Saddle hand wheel mounted on right side of apron reducing swarf contacting the hand
Inching button is incorporated on the control panel for convenient spindle speed selection
Quick-action gearbox for thread cutting and auto feeding
D1-4 camlock spindle for quick and accurate chuck removal and safe reverse direction turning. ISO standard
External adjustable cross feed lead-screw nut
Powered longitudinal and cross feeds
Bed wipers on saddle
Removable gap bed-way for larger diameter jobs
Dual calibrated dials (except for saddle hand-wheel)
Chuck guard fitted with safety micro switch
Chuck & change gear guards are fitted with micro switches

Includes

Foot brake system
Coolant pump system
Slide out front swarf tray
Work light with flexible arm
3-jaw chuck with reverse jaws
4-jaw chuck
Face plate
Fixed steady
Travelling steady
Change gears
Dead centre
Thread-chasing dial
Rear splash guard & swarf tray
Safety chuck guard
Cabinet stand
Spanners
Tool box
Instruction booklet

Specifications

Compare Product Range

Specifications

ORDER CODE	L681
MODEL	AL-335F
(mm)Swing Over Bed	300
(mm)Distance Between Centres	910
(mm)Spindle Bore	38
(mm)Swing In Gap	450
(mm)Swing Over Cross-slide	178
Digital Readout System Fitted	Optional
Quick Change Toolpost Fitted	Optional
Coolant System	Yes
(mm)Tool Height To Suit	12
(mm)Centre Height	150
Spindle Nose Size or Type	D1-4 Camlock
(mm)Bed Width	180
(MT)Headstock Spindle Taper	5
(MT)Tailstock Taper	3
(mm)Cross Slide Travel	170
(mm)Compound Slide Travel	85
Leadscrew Type	Imperial
(inch/rev)Imperial Cross Feed (X-Axis)	0.02 - 0.33
(inch/rev)Imperial Longitudinal Feed (Z-Axis)	0.07 - 1.29
(No. / mm)Metric Thread Steps & Pitch	36 (0.4 - 7)
(No. / TPI)Imperial Thread Steps & TPI	45 (4 - 60)
(mm)3 Jaw Chuck Diameter	160
(mm)4 Jaw Chuck Diameter	200
(No. / rpm)Spindle Steps / Speeds	9 (75 - 1400)
(kW / hp)Motor Power	1.5 / 2
(V / amp)Voltage / Amperage	240 / 10
(kg)Nett Weight	500
